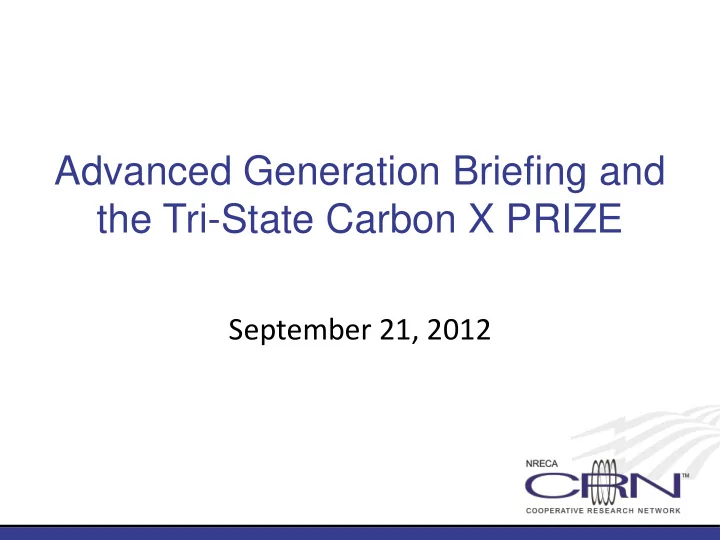

Advanced Generation Briefing and the Tri-State Carbon X PRIZE

September 21, 2012

For Technical Support

If you’re listening over the phone, please press *0. If you’re listening through your computer speakers, email nreca_assist@commpartners.com.

2

Question: Where can I get more information? Response: Go to www.cooperative.com for more details.

How to Submit Your Questions Online

Step 2: Click on the Send button. Step 1: Type in your question.

3

To Download the Program Files…

• 1. Click here in the Links box to
• pen the presentation slides or

handout.

• 2. Click on an icon to print
• r save the file.

4

5

Robbin Christianson, NRECA’s Cooperative Research Network Director of Program Operations

Moderator

AGENDA

• A Carbon-Constrained World: Challenges

and Opportunities

• Transforming Carbon from Waste to Asset
• Technology Snapshot: CO2 Conversion to

Liquid Fuels

• X PRIZE and New NRECA Multi-G&T

Membership

Dale T Bradshaw Technical Liaison to CRN’s Generation, Fuels, and Environment Membership Advisory Group and Contractor to NRECA

Presenter

A Paradigm Shift Around Emissions of CO2

 From Carbon Capture and Sequestration (CCS)

– Carbon Capture costs appear to be very expensive and dramatically increases fossil plant parasitic loads – Geologic Sequestration has unknown costs, unknown geologic consequences, and unknown liabilities

 To Carbon Capture and Recycle (CCR)

– High carbon capture costs can be more than offset by high value for recycle and utilization of carbon as chemicals or liquid hydrocarbon fuels

The Goal:

• Validate at a commercial scale new technologies and products that

make capturing CO2 from coal plants a revenue stream, not a liability.

• Additional competitions may be launched including CO2 utilization

from natural gas-fired production streams.

• Led by Tri-State G&T. Sunflower Electric Power Co-op is a founding

member.

$10M purse for winning competitor

Transforming Carbon from Waste to Asset

CO2 Utilization-Massive Market Opportunity

CO2 Utilization Technologies

Technology Snapshot Potential Technologies for CO2 Conversion to Liquid Fuels

Converting CO2 Using High Temperature Co-Electrolysis (HTCE)

 CO2 and high temperature steam from Fossil Plant input to Solid Oxide Fuel Cell  Plus Electricity from Grid, Wind, and/or Solar  Output is Green gasoline, diesel, jet fuel, chemicals, and Oxygen  Oxygen can be input for retrofit fossil plants for Oxycombustion

13

Solid Oxide Fuel Cell

Oxygen used for Oxycombustion

14

Syngas as Hydrogen and Carbon Monoxide

HTCE Unit

Chemical Plant

Oxy-Combustion with CO2 Utilization

X

Pure Oxygen

Use of Syngas from HTCE and Oxycombustion

ECOCAP Catalytic Gasification Bevin Reactor with Conversion of 12 K tons CO2 Plus Coal to Petroleum Products

CO2 Steam Coal 50 to 65% ROI with oil at $75/BBl. 50,000 BBl/day Bevin Reactor ($1.125 Billion/year) will consume 5 million tons of CO2. 250 of these reactors will consume 50% of the US CO2

ECOCAP Conversion of 13K Tons CO2 per Day to Liquid Fuels Using Natural Gas Feed

Competition Criteria

The Tri-State Carbon X PRIZE will stimulate technology innovation to create value from captured CO2 to help solve our energy challenge…

Prize

 $10 million prize  Ongoing carbon capture and recycling contract for top contenders

Winning Criteria

 Capture and recycle at least 80 percent of the CO2 provided  Create the highest commercial value from the recycled carbon  Not exceed maximum thresholds for water and energy use

Time Frame

 4 years

Recent Successful X PRIZE Competitions

Develop production-ready, fast, affordable cars that exceed 100 MPGe Develop vertical lift-off and landing vehicles for lunar exploration Inspire innovative solutions to speed the pace of cleaning up seawater surface oil

Top teams achieved between 100 and 139 MPGe 136 teams from 11 nations spent >$100 million Generated >12 billion media impressions worldwide

12 teams spent > $20 million Competitors earned multiple commercial contracts 38 teams competed from four nations 2x recovery rate improvement required 4x recovery rate achieved

Unique Advantages of Prize Model

X PRIZE Competition Phases

 PHASE I

– Carbon Recycling Conference (2 days, 500 participants expected)

 PHASE 2

– Technology Demonstration – Two Weeks – 20 technology teams expected

 PHASE 3

– Second Technology Demonstration – Two Weeks – 10 teams

 PHASE 4

– Commercial Scale – One year – Five teams

Designed to:

 Encourage competitor collaboration  Limit competitor costs to participate  Highlight solution performance and cost  Maximize the number of participants

Robust Test Center at Tri-State’s Plant Escalante

Join the Carbon X PRIZE through NRECA’s Multi-G&T Sponsorship

 CRN to Coordinate a Carbon Utilization Steering Panel

– Track rising technology, and have a seat at the table – Eligible to attend X PRIZE events – Tour Tri-State Escalante Test Center – Input into CRN research agenda

 Earn goodwill and communicate your co-op’s leadership  Membership: $400,000 total over four years  Goal: $4M ($3.5M for X PRIZE operations, $0.5M for CRN R&D and management)

Next Steps

 Download the review the NRECA Letter of Intent  Request a briefing for your co-op from CRN  Contacts: – Dale Bradshaw – dtbradshaw@electrivation.com – Tom Lovas – Tom.Lovas-contractor@nreca.coop – Robbin Christianson -- Robbin.Christianson@nreca.coop  We’d like to keep you posted on developments by email, but you always can asked to be removed from the list
