slide-1
SLIDE 1

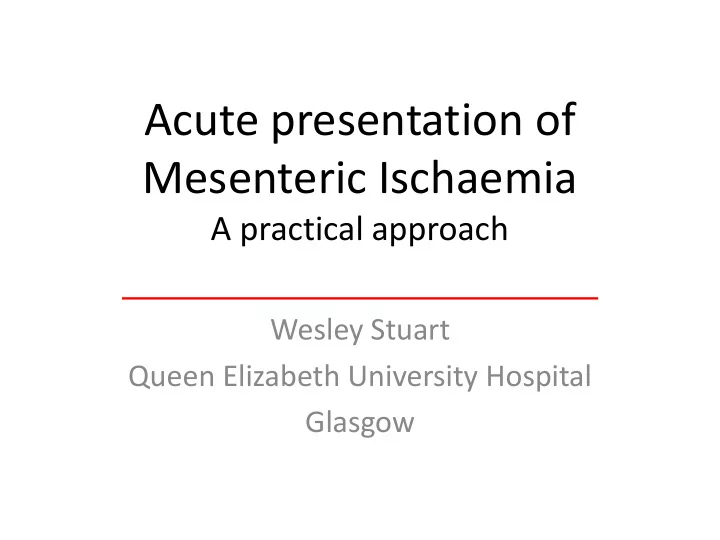

Acute presentation of Mesenteric Ischaemia

A practical approach

Wesley Stuart Queen Elizabeth University Hospital Glasgow

slide-2
SLIDE 2

AMI: Background

  • Always mentioned in standard surgical texts

– Bottom of any list of causes of abdominal pain

  • Commonly held misconceptions

– Rare – Difficult to diagnose – Near impossible to treat

slide-3
SLIDE 3

Other Forms Of Mesenteric Ischaemia

  • NOMI: Non-occlusive mesenteric ischaemia

– Prob most common in ITU esp. after cardiac surgery – Pump failure and/or high dose inotropes

  • Venous infarction

– Acute venous (portal vein or SMV) – Associated with acquired thrombophilia

  • Colonic ischaemia

– Usually managed conservatively – Resection not revascularisation

slide-4
SLIDE 4

Key questions

  • How common is acute mesenteric ischaemia?
  • What are the reported outcomes for

treatment?

  • How is a diagnosis made?
  • Is a laparotomy needed?
  • Is there a superior method of restoring

perfusion?

  • Is a relook laparotomy needed?
  • Other issues
slide-5
SLIDE 5

Terminology

  • Acute symptoms

< 2 weeks

  • Chronic symptoms > 2 weeks
  • Acute-on-chronic

Both features

(EJVES Guidelines use 6 weeks to denote chronic symptoms)

  • Abdominal pain: acute, chronic and change (to

rest pain)

  • Food-related symptoms
  • Mesenteric angina
  • Food aversion/anorexia
  • Weight loss
slide-6
SLIDE 6

Normal Gut Arterial Supply

slide-7
SLIDE 7

Normal Gut Arterial Supply

slide-8
SLIDE 8

Normal Gut Arterial Supply

slide-9
SLIDE 9

Normal Gut Arterial Supply

slide-10
SLIDE 10

Normal Gut Arterial Supply

slide-11
SLIDE 11

Epidemiology

  • Probably not that rare
  • Swedish autopsy data from 80’s (acute cases)

– 87% autopsy rates – AMI: 8.6/100,000 population per year (mostly SMA) – Only a third suspected by pre-mortem

Acosta 2010

– RAAA: 5.6/100,000 (pre-screening era) – 8.6 /100 000 person years ≡ 103 per year GG&C

slide-12
SLIDE 12

Reported Outcomes Mortality quoted:

–48.3% for treated* embolic AMI –80% for treated* thrombotic AMI

Schoots (2004 review)

*Resection/revasc/both

–73.9% overall† (all AMI)

  • 60% mort for 2002-2014

Adaba (2015 review)

† These data are for those with a “firm diagnosis” of mesenteric infarction: hist, lap, CT, angiography

slide-13
SLIDE 13

Changes since the eighties

  • Rising recognition of acute-on-chronic disease
  • Acosta: numbers largely centred on SMA disease
  • Rise of anticoagulation

– AF, post-MI

  • Rise of statins and antiplatelet agents
  • Fewer smokers, more diabetes
  • Imaging
slide-14
SLIDE 14

Rise of emergency cross-sectional (CT) imaging

Annual number of abdominal imaging studies per modality per 1,000 ED

  • visits. (Raja, Int J Em Med, 2011.)
slide-15
SLIDE 15
slide-16
SLIDE 16

CT Activity Scotland

200 400 600 800 1000 1200 1400 1600 1800 2000

CT per 10,000 population

2014-15 2016-17

slide-17
SLIDE 17

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Scotland GG&C HB Mes Isch Distribution of deprivation by SIMD Quintile

SIMD 1 SIMD 2 SIMD 3 SIMD 4 SIMD 5

Mesenteric Ischaemia Association With Poverty

slide-18
SLIDE 18

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Scotland GG&C HB Mes Isch Distribution of deprivation by SIMD Quintile

SIMD 1 SIMD 2 SIMD 3 SIMD 4 SIMD 5

Mesenteric Ischaemia Association With Poverty

slide-19
SLIDE 19

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Scotland GG&C HB Mes Isch Distribution of deprivation by SIMD Quintile

SIMD 1 SIMD 2 SIMD 3 SIMD 4 SIMD 5

Mesenteric Ischaemia Association With Poverty

slide-20
SLIDE 20

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48) Female:Male

14:13 29:25 37:11

Weight loss

3 39 44

Abdominal pain

27 54 46

Eating related symptoms

  • Post-prandial pain
  • Food aversion
  • Anorexia

2 28 39

GI/abdo pain Ix in preceding year

9 42 48

Presenting Features

Eighty one cases with acute symptoms

slide-21
SLIDE 21

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48) Female:Male

14:13 29:25 37:11

Weight loss

3 39 44

Abdominal pain

27 54 46

Eating related symptoms

  • Post-prandial pain
  • Food aversion
  • Anorexia

2 28 39

GI/abdo pain Ix in preceding year

9 42 48

Presenting Features

Eighty one cases with acute symptoms

slide-22
SLIDE 22

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48) Female:Male

14:13 29:25 37:11

Weight loss

3 39 (72%) 44 (92%

Abdominal pain

27 54 46

Eating related symptoms

  • Post-prandial pain
  • Food aversion
  • Anorexia

2 28 (52%) 39 (81%

GI/abdo pain Ix in preceding year

9 42 48

Presenting Features

Eighty one cases with acute symptoms

slide-23
SLIDE 23

Where do our cases come from?

Acute (n=27) Acute-on- chronic (n=54) Chronic (n=48) Gastroenterology 1 4 15 Medicine Specs

  • 4

5 General Surgery 25 40 23 Other vascular 1 3 1

slide-24
SLIDE 24

Acute

slide-25
SLIDE 25

Acute-on-chronic

slide-26
SLIDE 26

Acute* (n=27) Acute-on-chronic (n=54) Chronic (n=48) SMA only 14 (52%) 7 6 Triple vessel 5 27 22 Coeliac only

  • 2

Coeliac and SMA 5 19 11 IMA and SMA or coeliac 2 1 7

Vessels Affected

*One case no with no data. Laparotomy without imaging.

slide-27
SLIDE 27

Acute* (n=27) Acute-on-chronic (n=54) Chronic (n=48) SMA only 14 7 6 Triple vessel 5 27 (50%) 22 Coeliac only

  • 2

Coeliac and SMA 5 19 (38%) 11 IMA and SMA or coeliac 2 1 7

Vessels Affected

*One case no with no data. Laparotomy without imaging.

slide-28
SLIDE 28

Making a diagnosis

  • Most likely after imaging

– Radiologist suggests considering diagnosis of AMI

  • Do images and symptoms match?
  • What are the symptoms?

– Lots of pain, background of pain and weight loss. – Food-related symptoms.

  • Biomarkers: not much help

– Perhaps a normal D-dimer makes AMI or A-on-C unlikely

slide-29
SLIDE 29

Is a laparotomy needed?

  • Abdominal signs (any tenderness or

peritonism)

  • WCC, perhaps a little
  • Resolution of all symptoms after awake

procedure

  • Ceiling of care
  • If you think it might be needed, just do it.
slide-30
SLIDE 30

Visible necrosis No evidence of necrosis White cell count <10 2 4 10-12 1 6 12.1-15 7 5 15.1-20 7 7 >20 14 7

Is a laparotomy needed?

Sixty patients with acute symptoms and a primary laparotomy.

slide-31
SLIDE 31

Visible necrosis No evidence of necrosis White cell count <10 2 4 10-12 1 6 12.1-15 7 5 15.1-20 7 7 >20 14 7

Is a laparotomy needed?

Sixty patients with acute symptoms and a primary laparotomy.

slide-32
SLIDE 32

Visible necrosis No evidence of necrosis White cell count <10 2 4 10-12 1 6 12.1-15 7 5 15.1-20 7 7 >20 14 7

Is a laparotomy needed?

Sixty patients with acute symptoms and a primary laparotomy.

slide-33
SLIDE 33

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Primary intervention Resection only 4 Thromboembolectomy 13 4 Radiological Intervention 3 21 33 Bypass graft 7 28 14 Necrosis at first lap 19 16 Bowel resection Cholecystectomy 16

  • 21

2 5

  • Laparotomy only
  • 1

1 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Primary Interventions

slide-34
SLIDE 34

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Primary intervention Resection only 4 Thromboembolectomy 13 (48%) 4 Radiological Intervention 3 21 33 Bypass graft 7 28 14 Necrosis at first lap 19 16 Bowel resection Cholecystectomy 16

  • 21

5 5

  • Laparotomy only
  • 1

1 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Primary Interventions

slide-35
SLIDE 35

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Primary intervention Resection only 4 Thromboembolectomy 13 4 Radiological Intervention 3 21 33 Bypass graft 7 (24%) 28 14 Necrosis at first lap 19 16 Bowel resection Cholecystectomy 16

  • 21

5 5

  • Laparotomy only
  • 1

1 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Primary Interventions

slide-36
SLIDE 36

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Primary intervention Resection only 4 Thromboembolectomy 13 4 Radiological Intervention 3 21 (39%) 33 Bypass graft 7 28 (52%) 14 Necrosis at first lap 19 16 Bowel resection Cholecystectomy 16

  • 21

5 5

  • Laparotomy only
  • 1

1 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Primary Interventions

slide-37
SLIDE 37

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Primary intervention Resection only 4 Thromboembolectomy 13 4 Radiological Intervention 3 21 (39%) 33 Bypass graft 7 28 (52%) 14 Necrosis at first lap 19 16 Bowel resection Cholecystectomy 16

  • 21

5 5

  • Laparotomy only
  • 1

1 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Primary Interventions

slide-38
SLIDE 38

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Primary intervention Resection only 4 Thromboembolectomy 13 4 Radiological Intervention 3 21 33 Bypass graft 7 28 14 Necrosis at first lap 19 16 Bowel resection Cholecystectomy 16

  • 21

5 5

  • Laparotomy only
  • 1

1 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Primary Interventions

slide-39
SLIDE 39

Best revascularisation?

  • No single answer: therefore discuss with IR
  • Appearances of lesions

– What is likely to succeed?

  • Need for laparotomy: increases options
  • Time considerations
  • Where is the patient?

– Distant site and in theatre with limited IR facilities

  • Ceilings of care

– Fit for laparotomy

slide-40
SLIDE 40

Thrombus aspiration

slide-41
SLIDE 41

Retrograde SMA stent

slide-42
SLIDE 42

Patient with intermittent rest pain on a background of food related symptoms awaiting scheduled endovasc intervention. Continuous pain overnight, WCC rose to 21 Findings: GB fundus infarction (no perforation) Good quality common hepatic artery Long occlusion of SMA (Aorta not occluded)

slide-43
SLIDE 43

Day 2 post-op second-look: well perfused bowel Day 4 post-op: WCC rose again with new abdo pain Laparotomy: all bowel clearly well perfused. SMA limb

  • ccluded, but no action taken

(CT performed 6 weeks later

  • n readmission. Abdo pain,

settled in 24 hours, cons Mx.)

slide-44
SLIDE 44

CHA-SMA vein graft

slide-45
SLIDE 45

Acute (n=27) Acute-on- chronic(n=54) Chronic (n=48) No of laparotomies 1 2 3 4 5 43 1 15 7 3 1 70 13 19 17 4 1 33 26 14 6 1 1 Vascular Re-intervention:

  • Early
  • Late

1 2 8 10 6 8

Laparotomies and re-intervention

slide-46
SLIDE 46

Ischaemic but not necrotic

slide-47
SLIDE 47

Much improved

slide-48
SLIDE 48

Dubious viability

slide-49
SLIDE 49

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Fistula 1 4 Stoma 8 7 4 Home TPN 3 5 2 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Outcomes

slide-50
SLIDE 50

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Fistula 1 4 Stoma 8 7 4 Home TPN 3 5 2 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Outcomes

slide-51
SLIDE 51

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Fistula 1 4 Stoma 8 7 4 Home TPN 3 5 2 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Outcomes

slide-52
SLIDE 52

Acute (n=27) Acute-on-chronic (n=54) Chronic (n=48)

Fistula 1 4 Stoma 8 7 4 Home TPN 3 5 2 Inpatient/30 day Death 10 (37%) 12 (22%) 6 (13%)

Outcomes

slide-53
SLIDE 53

Survival After Intervention

slide-54
SLIDE 54

Summary

Glasgow strategy

–Discuss with IR if at all possible –Tailor treatment to patient’s needs and what might work quickly and first time –Low threshold for laparotomy –Low threshold for second laparotomy: standard in acute –Repeat lap & salvage procedures as needed –Acceptable results are possible
