Acoustic Emission Sensors in Superconducting Magnets Marcos Araque SIST/GEM Final Presentation 6 August 2018 Acoustic Emission Quench Detection Sensors in Superconducting Magnets Quenching in Acoustic Emission (AE) Data Acquisition

slide-1
SLIDE 1

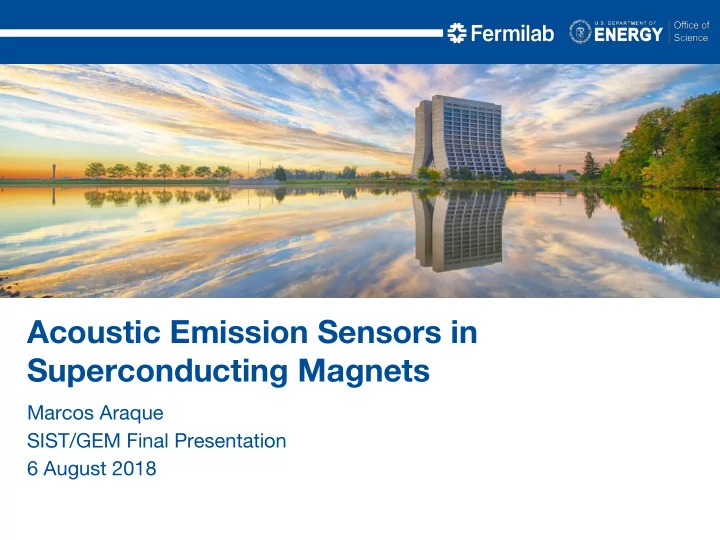

Marcos Araque SIST/GEM Final Presentation 6 August 2018

Acoustic Emission Sensors in Superconducting Magnets

slide-2
SLIDE 2

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 2

Acoustic Emission Quench Detection Sensors in Superconducting Magnets

Quenching in Superconducting Magnets Data Acquisition and Results Acoustic Emission (AE) Sensor

slide-3
SLIDE 3

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 3

Acoustic Emission Quench Detection Sensors in Superconducting Magnets

Quenching in Superconducting Magnets Data Acquisition and Results Acoustic Emission (AE) Sensor

slide-4
SLIDE 4

Electromagnets made of superconducting wire Zero Resistance More Current Stronger Magnetic Fields Higher Energy Beams

Superconducting Magnets

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 4

slide-5
SLIDE 5

Careful design and maintenance required

  • Appropriate stress applied
  • Must remain superconducting
  • Quench - Sudden loss of superconductivity in part of a coil

Superconducting Magnets

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 5

slide-6
SLIDE 6

Factors that cause quenching include:

  • Mechanical disturbances (microcracks)
  • Electrical disturbances/ faults
  • Magnetic field strength/ rate of change
  • Defects in magnet

Magnets “trained” to withstand higher quenching currents by gradually increasing operating current (ramp)

Quenching

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 6

slide-7
SLIDE 7

Quenching

7

slide-8
SLIDE 8

Quench detection and diagnostic techniques:

  • Strain gauges
  • Quench antenas
  • Coil voltage taps
  • Acoustic Emission sensors

Sensors trigger heat sink to the magnet to more evenly distribute heat from a quench

Quenching

V8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 8

slide-9
SLIDE 9

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 9

Acoustic Emission Sensor

Quenching in Superconducting Magnets Data Acquisition and Results Acoustic Emission (AE) Sensor

slide-10
SLIDE 10

Advantages of AE sensors:

  • Comparable or faster signal detection (millisecond

timescale)

  • Isolated measurement system external to the magnet
  • Negligibly affected by magnetic fields
  • Inexpensive

How are they designed?

Acoustic Emission Sensor

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 10

slide-11
SLIDE 11

Engineering Design Process

11

System Requirements Design Schematic Create Printed Circuit Board (PCB) Design Electrical Casing Hardware Testing

Functional Circuit

slide-12
SLIDE 12

Piezoelectric Ceramic 5 mm Inner Diameter 10 mm Outer Diameter

Transducer: converts mechanical stress into an electrical signal (voltage) and vice versa Entire circuit is designed to

  • ptimize this signal

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 12

AE Sensor

slide-13
SLIDE 13

13

slide-14
SLIDE 14

Schematic

14

Amplifies signal using MOSFET amplifying circuit

slide-15
SLIDE 15

15

slide-16
SLIDE 16

Schematic

16

Decouples power signal from AE signal and strengthens

  • utput signal
slide-17
SLIDE 17

Schematic

17

slide-18
SLIDE 18

Electrical Casing

18

slide-19
SLIDE 19

Electrical Casing (Junction Box)

  • Maintains solid, reliable

connections

  • Protects circuit
  • Reduces defects over time

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 19

Electrical Casing

slide-20
SLIDE 20

20

slide-21
SLIDE 21

21

slide-22
SLIDE 22

9/9/15 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 22

Acoustic Emission Quench Detection Sensors in Superconducting Magnets

Quenching in Superconducting Magnets Data Acquisition and Results Acoustic Emission (AE) Sensor

slide-23
SLIDE 23

Data collection of sensors in 1 dimension:

  • 33 x 2 x 1 inch aluminum bar
  • AE sensors mechanically screwed in on both ends
  • Bar tapped with a hammer at various points

Data Acquisition

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 23

slide-24
SLIDE 24

8/6/18 Marcos Araque | Acoustic Emission Sensoros in Superconducting Magnets 24

1-dimensional source localization: Time difference Velocity of sound in bar AE source location

slide-25
SLIDE 25

25

  • Velocity of sound in bar determined to be 1.989 km/s
  • Standard deviation: 2.34 cm
  • Standard error: 0.33 cm
  • 1. Conduct 2 dimensional localization
  • 2. Improve sensor/experiment accuracy (COMSOL

simulation, more sensors)

  • 3. Test on prototype magnets

Results Next Steps

slide-26
SLIDE 26

26

Questions?

slide-27
SLIDE 27

9/9/15 Presenter | Presentation Title or Meeting Title 27

Collaborations / Partnerships / Members

slide-28
SLIDE 28

28

Appendix

slide-29
SLIDE 29

Circuit on Breadboard

29

slide-30
SLIDE 30

Cryo Amplifier PCB

30

slide-31
SLIDE 31

Coupling Box PCB

31

slide-32
SLIDE 32

32

Sample Data for 1-D AE localization

slide-33
SLIDE 33

MOSFET animation: https://upload.wikimedia.org/wikipedia/commons/2/2f/FET-Ani. gif Transducer animation: https://www.teachengineering.org/content/uoh_/lessons/uoh_p iezo/uoh_piezo_lesson01_figure1.gif Marchevsky, M., et al. “Acoustic Emission during Quench Training of Superconducting Accelerator Magnets.” Cryogenics, Science Direct, 31 Mar. 2015, www.sciencedirect.com/science/article/pii/S001122751500039 9.

References
