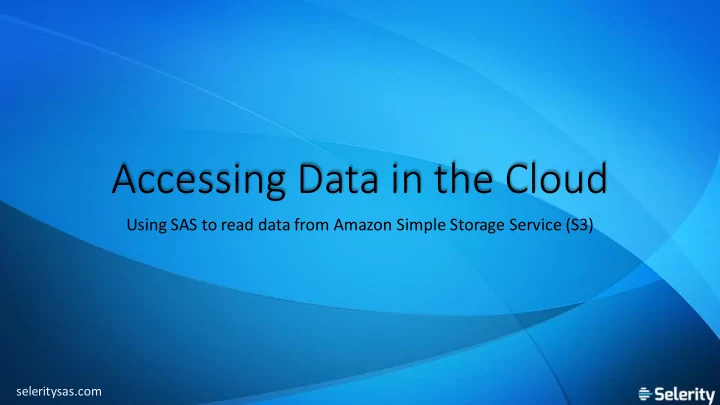

Accessing Data in the Cloud

Using SAS to read data from Amazon Simple Storage Service (S3)

seleritysas.com

What is Amazon Simple Storage Service (S3)?

• An object store, not a file system
• Write once, read many (WORM)
• Eventually consistent
• 99.999999999% durability
• Unlimited storage capacity
• Highly scalable and available data storage
• Low latency and high throughput performance

What Public Data is Available in S3?

• AWS Public Datasets
• https://aws.amazon.com/public-datasets/
• Geospatial and Environmental Datasets
• Genomics and Life Science Datasets
• Datasets for Machine Learning
• Regulatory and Statistical Data
• awesome-public-datasets
• https://github.com/caesar0301/awesome-

public-datasets

• NYC Taxi and Limousine Commission
• http://www.nyc.gov/html/tlc/html/about/trip_r

ecord_data.shtml

What is the typical workflow to use raw data from S3?

• Download the data file from S3 to your PC using http/https
• Upload/Import the data to SAS

What would make this more efficient?

• Cutting out the middle-man (your local PC)

How can we have S3 communicate direct to the SAS Server?

• Use the FILENAME URL access method

✓ Easy to implement ✗ File is retrieved using the http protocol (serially) ✗ The slowest of all options, subject to timeouts for very large files

• Use PROC S3 to download files to the SAS Server’s filesystem

✓ Very fast, as it uses parallel downloads ✗ Only available from 9.4M4 ✗ Only works with secure S3 files, not public S3 files

How can we have S3 communicate direct to the SAS Server?

• Use the AWS CLI to download files to the SAS Server’s filesystem

✓ Very fast, as it uses parallel downloads ✗ Need to install the AWS CLI on the SAS Server ✗ Need the ability to run X commands on the SAS Server

• “Mount” the S3 storage on the SAS Server

✓ Treat it like a local disk ✗ S3 is not designed for block storage/access ✗ Potential issues with current storage driver implementations

Example: NYC Trip Data in S3

• NYC Yellow Cab trip data for January 2017
• 9,710,124 records
• CSV format
• 815 MB
• Location
• Bucket: nyc-tlc
• Object Key: trip data/yellow_tripdata_2017-01.csv
• HTTP Protocol: https://s3.amazonaws.com/nyc-tlc/trip+data/yellow_tripdata_2017-01.csv
• S3 Protocol: “s3://nyc-tlc/trip data/yellow_tripdata_2017-01.csv”

FILENAME URL Access Method

NOTE: The data set WORK.YELLOW_TRIPDATA_2017_01 has 9710124 observations and 17 variables. real time 36.09 seconds cpu time 33.85 seconds

PROC S3

NOTE: PROCEDURE S3 used (Total process time): real time 3.77 seconds cpu time 6.31 seconds NOTE: PROCEDURE IMPORT used (Total process time): real time 26.75 seconds cpu time 26.75 seconds

AWS CLI

NOTE: DATA statement used (Total process time): real time 5.80 seconds cpu time 0.00 seconds

NOTE: PROCEDURE IMPORT used (Total process time): real time 26.59 seconds cpu time 26.59 seconds

Questions?

Contact michael@selerity.com.au 1300 727 757
