Full-color LED bulb for film productions & event lighting. Accepts AC power via E27 Socket as well as DC power from standard powerbanks and the NYX PowerStation Greek Mythology: Nyx is the goddess of the night. Usage areas Theater


slide-1
SLIDE 1

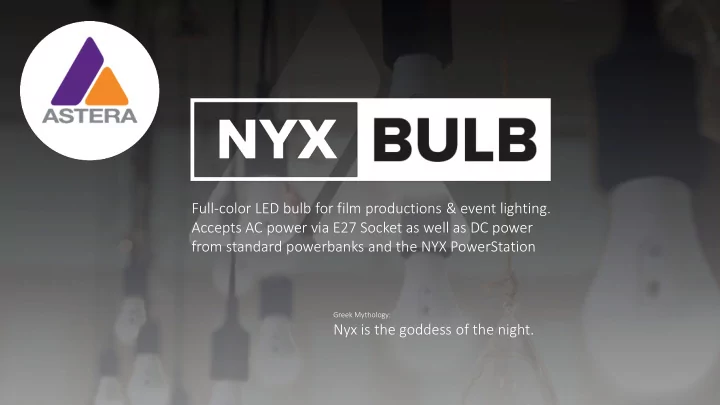

Full-color LED bulb for film productions & event lighting. Accepts AC power via E27 Socket as well as DC power from standard powerbanks and the NYX PowerStation Nyx is the goddess of the night.

Greek Mythology:

slide-2
SLIDE 2

Usage areas

Theater

Practical

Stage design

Studio installations The use cases are endless......

slide-3
SLIDE 3

Optical

  • 14 W LED power
  • 10 W power draw
  • 750lm
  • Comparable with 60W

conventional bulbs

LED Power

slide-4
SLIDE 4

Optical

  • RGB + Amber + Mint
  • CRI & TLCI ≥ 96 (3200-6500K)
  • Digital calibration for precise colors
  • 1 pixel
  • Flicker free
  • 3-7 DMX addresses per Bulb

Titan LED Engine

slide-5
SLIDE 5

Dual Power Input

  • E27 version for Europe, Asia, Australia

(90-264V)

  • E26 version for America, JP, TW

(90-130V)

  • Other Sockets (B22, E14 etc) not

available

AC Power

E27 E27 Soc Socket

slide-6
SLIDE 6

Dual Power Input

  • DC Power via included USB Cable
  • 5-18VDC, 2A
  • Works with standard Power bank

DC Power

DC DC Soc Socket

USB DC Cable Included with each bulb Standard Powerbank In use

slide-7
SLIDE 7

Dual Power Input

  • 36Wh external battery (comparable

to 10,000mAh power bank)

  • 3.5h runtime on MAX
  • PowerStation is more than a battery

pack

PowerStation

slide-8
SLIDE 8

Control

  • ARC1 Remote control
  • AsteraApp
  • Wireless DMX (CRMX)

Same control as always

AsteraApp Remote control Wireless DMX

slide-9
SLIDE 9

Control

  • Direct Bluetooth connection
  • Bulb transmits to other Astera lights
  • Range: 100m to connected lights
  • Smartphone/Tablet – close range to

Master Bulb

  • Feature coming soon via software

update

NYX Bulb as Transmitter

slide-10
SLIDE 10

Control

  • Set up via PowerStation,

bulb will remember settings

  • Set up in their case before using
  • Alternatively: connect to power, then

set up via AsteraApp

Set up NYX Bulb

slide-11
SLIDE 11

Mounting

Mount on lamp socket

  • Like a normal lightbulb
  • Also inside lamp shades
slide-12
SLIDE 12

Mounting

PowerStation

As mounting option

  • Use as a standing object.
  • Mounted with the lamp socket using

the “Airline track”

slide-13
SLIDE 13

Mounting

PowerStation

As mounting option

  • Hanging the PowerStation
  • Mounted with the lamp socket using

the “Airline track”

  • PowerStation Hanger
slide-14
SLIDE 14

Mounting

PowerStation

As mounting option

  • TrackPin using the “Airline track”
  • Use a Superclamp
  • Mount on a C-Stand via Gobo head
slide-15
SLIDE 15

Mounting

PowerStation

As mounting option

  • 4 Magnets on the backside
slide-16
SLIDE 16

Accessories

Airline Track Accessories

  • Compatible with future products
  • Other accessories might come

PowerStation Hanger TrackPin Lamp socket

(Sold in sets of 8)

slide-17
SLIDE 17

CupBouncer

CupBouncer

  • Reflects light back
  • Enlarge beam angle beyond 180°
  • Good for lamp shades

WITHOUT CupBouncer WITH CupBouncer WITHOUT CupBouncer WITH CupBouncer

slide-18
SLIDE 18

Single Units

  • Single units good for installs
  • Comes with USB DC cable

NYX Bulb

USB Cable Included with each NYX Bulb NYX Bulb

slide-19
SLIDE 19

Single Units

  • Available as single unit
  • Comes with PSU and socket

PowerStation

E26/E27 Socket Included with each NYXPowerStation AX1 PSU Included with each PowerStation PowerStation

slide-20
SLIDE 20

Sets

1 x PowerStation 8 x Bulbs 8 x USB Cables 8 x CupBouncer 1 x 48VDC PSU

NYX Bulb SET

slide-21
SLIDE 21

Sets

8 x PowerStation 8 x E26/E27 socket 8 x PowerStation Hanger 8 x TrackPin

with 8-way charging cable

PowerStation SET

24VDC, 4A PSU Bridge Cable

slide-22
SLIDE 22

Sets

  • 1 PowerStation per NYX Bulb Set

to set up bulbs one by one

  • 8 bulbs can be set up simultaneously

with the Bridge cable (part of PowerStation Set)

Setup bulbs in their case

slide-23
SLIDE 23

Accessories Overview

NYX Bulb Case

All Accessories

PowerStation Case TrackPin PowerStation Hanger CupBouncer 48VDC Charger USB Cable E26/E27 socket Hyperion Charger

FP5-USBC FP5-CB FP5-PSH FP5-PS-CHRCSE FP3-CHR AX1-CHR

PowerStation

FP5-PS AX-TP FP5-E26S / FP5-E27S FP5-CSE

slide-24
SLIDE 24

Thank You!

Jesper Soerensen Field Representative soerensen@astera-led.com

Let‘s stay in touch!
