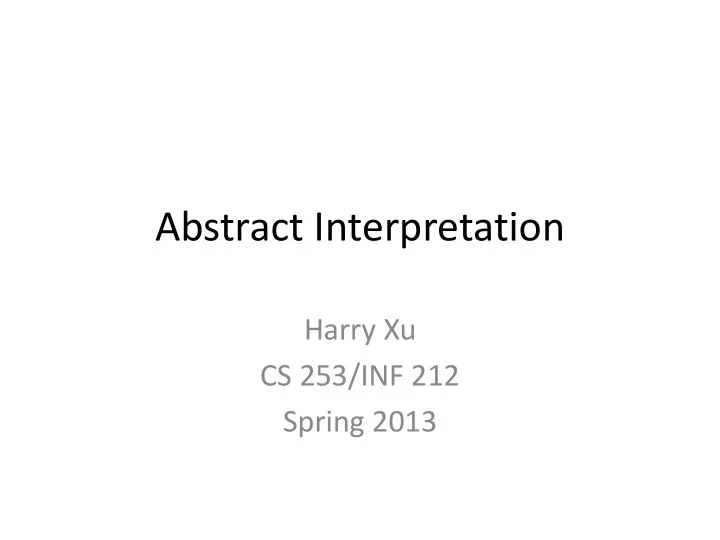

Abstract Interpretation Harry Xu CS 253/INF 212 Spring 2013 Acknowledgements Many slides in this file were taken from the tutorial slides that Patrick Cousot used in VMCAI05 Abstract Interpretation A theory of sound approximation of

slide-1
SLIDE 1

Abstract Interpretation

Harry Xu CS 253/INF 212 Spring 2013

slide-2
SLIDE 2

Acknowledgements

Many slides in this file were taken from the tutorial slides that Patrick Cousot used in VMCAI’05

slide-3
SLIDE 3

Abstract Interpretation

  • A theory of sound approximation of the

semantics of computer programs

  • A partial execution of a program which gains

information about its semantics (e.g., control- flow, data-flow) without performing all the calculations

  • Establish a relationship between the concrete

semantics and the abstract semantics

slide-4
SLIDE 4

More Formally

slide-5
SLIDE 5

Abstract Interpretation

  • A methodology to derive sound static analysis

with varying precision

– Correct by construction – Generic – Easy to fine-tune

  • Example

int a[1000]; for (i = 0; i < 1000; i++) { a[i] = … ; // 0 <= i <= 999 } a[i] = … ; // i = 1000; int a[1000]; for (i = 0; i < 1000; i++) { a[i] = … ; // 0 <= i <= 999 } a[i] = … ; // i = 1000; buffer overrun safe operation

slide-6
SLIDE 6

Overview

  • Start with a formal specification of the

program semantics (the concrete semantics)

  • Construct abstract semantic equations w.r.t. a

parametric approximation scheme

  • Use general algorithms to solve the abstract

semantic equations

  • Try-and-test various instantiations of the

approximation scheme in order to find the best fit

slide-7
SLIDE 7
slide-8
SLIDE 8
slide-9
SLIDE 9
slide-10
SLIDE 10
slide-11
SLIDE 11

General Idea

Abstract Semantics Collecting Semantics Partitioning Concrete Semantics Abstract Domain Abstract Domain Iterative Resolution Algorithms Tuners

slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29
slide-30
SLIDE 30
slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34

Which Collecting Semantics?

  • Buffer overrun, division by zero, arithmetic
  • verflows: state properties
  • Deadlocks, un-initialized variables: finite trace

properties

  • Loop termination: finite and infinite trace

properties

slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40

Fixpoint Approximation

L1 L2 L2 L1 α γ α o F o γ F Theorem: lfp F ⊆ γ (lfp α o F o γ)
