ABOUT PLASMA 4 th State of Matter mixture of ions, electrons & - - PowerPoint PPT Presentation

ABOUT PLASMA 4 th State of Matter mixture of ions, electrons & neutrals Highly reactive Accelerates chemical reactions Reduces processing times Homogenous processing (cold plasma) Environment Friendly Broadly classified as Thermal


slide-1
SLIDE 1

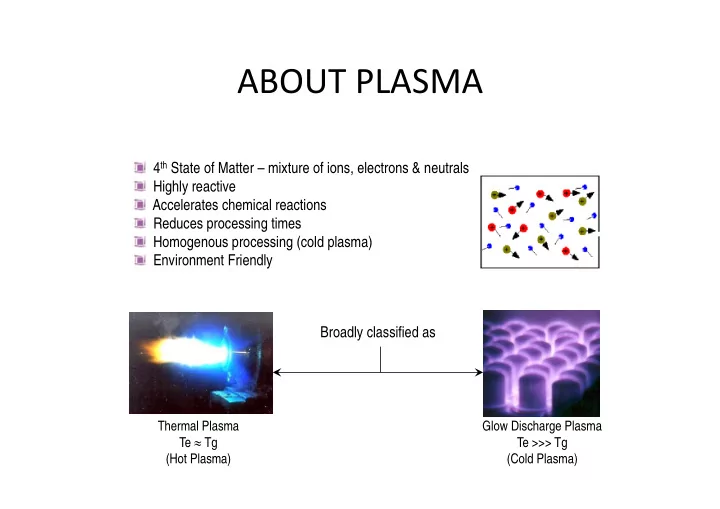

ABOUT PLASMA

Thermal Plasma Te  Tg (Hot Plasma) Glow Discharge Plasma Te >>> Tg (Cold Plasma)

Broadly classified as 4th State of Matter – mixture of ions, electrons & neutrals Highly reactive Accelerates chemical reactions Reduces processing times Homogenous processing (cold plasma) Environment Friendly

slide-2
SLIDE 2

PLASMA FOR SURFACE ENGG.

Plasma based coatings Plasma Assisted Vapour Deposition Plasma sprayed coatings Plasma CVD Plasma PVD

Untreated surface Deposition Diffusion

slide-3
SLIDE 3

PLASMA CVD

 Precursor dissociates in

plasma and leads to deposition on surface

 Can deposit metals,

compounds and polymers

 Process can be tailored for

different applications

slide-4
SLIDE 4

PLASMA CVD APPLICATIONS

Glass like coating by plasma polymerization

 Anti reflection coatings on solar cells

Increases efficiency of solar cells

 Protective coatings on headlight reflectors

Prevents oxidation of Al coating on headlight reflectors and passivates the surface, thus increasing service life of reflectors.

 Anti Tarnish coatings on brass / silver decorative articles

Passive transparent (SiOx) layer on silver / brass prevents it from being exposed to environment.

 Diffusion barrier coatings on polymer films – Packaging

application

Prevents diffusion of oxygen into packed food. Imagine a pouch of milk not spoiling for over 6 months!!

slide-5
SLIDE 5

PLASMA ALUMINIZING

  • Aluminides have good wear/corrosion resistance
  • Al deposition using magnetron sputtering + high

temperature diffusion

  • Substrate biasing to form glow discharge plasma
  • Fe‐Al phases can be generated on steels while Ni‐

Al phase can be formed on Ni‐base super alloys

  • Useful for gas turbine applications, high

temperature power plants, oxidation resistance applications.

slide-6
SLIDE 6

PLASMA ALUMINIZING

Magnetron deposition With heating Magnetron deposition Without heating

slide-7
SLIDE 7

PLASMA PVD

Magnetron Sputtering

 Plasma sputters metal atoms from

Target

 Sputtered atoms deposit on the

activated substrate.

 Gives adherent uniform coating on

various substrates

 Al/Cu coating done on metals &

polymers

slide-8
SLIDE 8

PLASMA NITRIDING

 N2 & H2 are fragmented to ions and radicals

by the glow discharge plasma surrounding the sample uniformly.

 The ions and radicals diffuse inside the

sample because of high sample temperature.

 The sample temperature is maintained by ion

and neutral bombardment and by external heating.

 Process yields:

 uniform case depth & hardness across the

surface

 Low cycle times (faster processing)  Eco-friendly processing  elimination of post grinding operations

slide-9
SLIDE 9

Plasma Nitriding Process

  • Ultrasonic cleaning in acetone; and subsequently

sputter cleaning of samples under Ar

  • N2 + H2 gas mix @ 1‐5 mbar pressure in vac. Chamber
  • Substrate (job) is negatively biased to generate glow

discharge plasma of N2 + H2 gas mix.

  • Forms Fe3N – Fe4N type hard nitrides on steels
slide-10
SLIDE 10

PLASMA NITRIDING

UHV PN System for Space Quality Plasma Nitriding Industrial Scale Plasma Nitriding Facility For Large size Industrial Jobs

Mould locking plates Crankshafts Connecting rods Cam chain sprocket

slide-11
SLIDE 11

Thermal Spray

slide-12
SLIDE 12

Thermal Spray

slide-13
SLIDE 13

Basic Principal of Thermal Spray Systems ‐‐‐‐ Heat Energy ‐‐‐‐ Kinetic Energy

Flame Arc HVOF Plasma

slide-14
SLIDE 14

Combustion Spray

process Layout

slide-15
SLIDE 15

Flame Spray Process

slide-16
SLIDE 16

Arc Spray

slide-17
SLIDE 17

Typical Arc Gun

slide-18
SLIDE 18

Parameter Value Barrel length, mm 1800 Barrel diameter, mm 22 Working gases: Fuel Oxidizer Powder carrier gas Acetylene Oxygen Nitrogen Firing frequency, Hz 2-4 Coating thickness per cycle μm 5-20 Typical coating thickness μm 50-500 Power consumption per hour, kW 2 Spraying distance 240mm

Detonation -gun Spraying

Working gases composition: mixture of a fuel gas, usually H2 or hydrocarbons, such as acetylene(C2H2), propane (C3H8)and butane (C4H10), with

  • xygen (O2)

Maximum temperature of 4200oC the Particle velocity of 3000 m/s Firing rate: is in the range 1‐15Hz.

  • 2. POWDER

Particle size: range 5‐60μm Powder feed rate: is in the range 16‐ 40g/min. Composition of carrier gas: Nitrogen or Air PRINCIPAL PROCESSING PARAMETER Spray distance: about 100mm. Spray atmosphere: is air COATING PROPETIES Bond strength: 83 and 70MPa. Porosities: 0.5% for WC‐Co coatings and about 2% for Al2O3 Thicknesses: Not exceeding 300μm.

slide-19
SLIDE 19

High Velocity Oxygen fuel ( HVOF)

slide-20
SLIDE 20

Plasma Spray

Plasma spraying is used to apply surfacing materials that melt at very high

  • temperatures. An arc is formed between an electrode and the spray nozzle,

which acts as the second electrode. A pressurized inert gas is passed between the electrodes where it is heated to very high temperatures to form a plasma gas. Powdered feedstock material is then introduced into the heated gas where it melts and is propelled to the substrate at a high velocity. A plasma spray system consists of a power supply, gas source, gun, and powder feeding mechanism. Plasma spraying is primarily performed in fabrication shops. The process may be used to apply thermal barrier materials, such as zirconia and alumina, and wear resistant coatings such as chromium oxide.

slide-21
SLIDE 21

Plasma Spray

slide-22
SLIDE 22

Atmospheric Plasma Spray

slide-23
SLIDE 23

LPP Process

slide-24
SLIDE 24

Vacuum Plasma Apparatus

slide-25
SLIDE 25

Low Pressure /Vacuum Plasma Spray

slide-26
SLIDE 26

Vacuum Plasma Technique

  • Working gases composition:
  • Ar mixed with H2, He or N2, with a

flow rate ranging from 90 to 200 slpm.

  • Temperature : 10,000 to 30,000 K,
  • Velocity of the plasma flow ranges

from 1500 to 3500 m/s.

  • The plasma jet is much longer than

that issuing from a plasma torch into an open atmosphere and can reach 250 mm.

  • Electric power input: is substantially

greater than in APS and usually more than 80 kW.

  • Geometry of anode‐nozzle:
  • A converging‐diverging nozzle: the

‘de Laval’ type is often used

  • POWDER
  • Particles sizes 5 to 20 µm.
  • PROCESS PARAMETER ‐ ARC PLASMA
  • POWDER
  • Almost any kind of powder can be

sprayed

  • High M.P.Metals such a srefrcatory

Metals, Ceramics such as ZrO2+Y2O3 powders

  • PRINCIPAL PROCESSING

PARAMETERS

  • Spraying distance: 100‐250 mm .
  • Spraying atmosphere: Ar, He or N2, to

which is added the working gas.

  • COATING PROPETIES
  • Bond strength: The tensile bond

strength of SPS is in the range 20‐45 MPa.

  • Porosities: The porosity is in the

range 1‐7%.

  • Thicknesses: The thicknesses of the

coatings are in the range 300 to 1500 µm.

slide-27
SLIDE 27

A Modern LPPS System for Gas Turbine Blades
