AB 32 Discrete Early Action Measure AB 32 Discrete Early Action Measure Semiconductor and Related Devices Third Public Workshop California Air Resources Board Sacramento, CA September 2, 2008 1 Outline Outline Background Proposed


slide-1
SLIDE 1

1

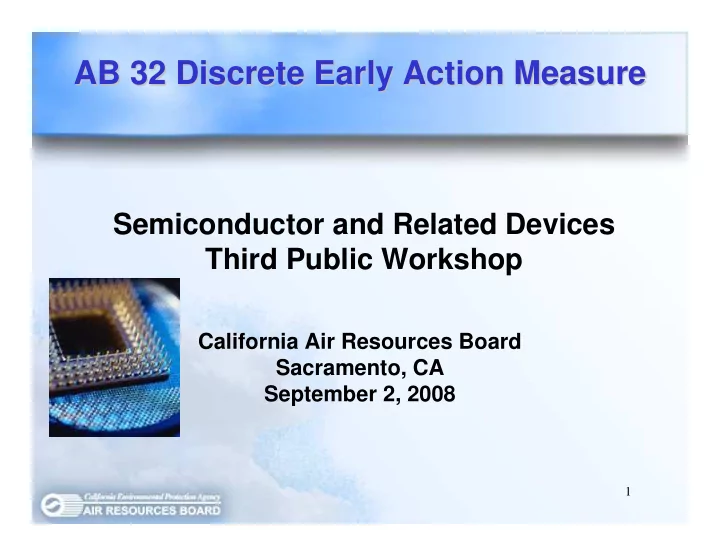

Semiconductor and Related Devices Third Public Workshop

California Air Resources Board Sacramento, CA September 2, 2008

AB 32 Discrete Early Action Measure AB 32 Discrete Early Action Measure

slide-2
SLIDE 2

2

Outline Outline

  • Background
  • Proposed Performance Standards
  • Emissions and Emission Reductions
  • Reporting and Recordkeeping

Requirements

  • Current and Future Activities
slide-3
SLIDE 3

3

Background Background

  • The California Global Warming Solutions Act of 2006

requires the ARB to identify a list of discrete early action greenhouse gas emission reduction measures.

  • On October 25, 2007, the Board approved the

Semiconductor and Related Devices Emissions Reduction Strategy as a discrete early action measure.

  • Two workshops held to discuss applicability,

definitions, and survey results.

  • This measure is scheduled for Board consideration in

December 2008.

slide-4
SLIDE 4

4

Proposed Performance Standards Proposed Performance Standards

(Semiconductor and Related Devices) (Semiconductor and Related Devices) Effective 1/1/2012 Effective 1/1/2012

CVD Chamber Cleaning and Etching Processes 0.50 Tier 3: ≤3.7 0.30 Tier 2: >3.7 and ≤37.7 0.20 Tier 1: >37.7

Maximum Emissions Per Square Centimeter for a Calendar Year

(Kg CO2e/cm2)

Category

(Million Sq Cm Per Calendar Year)

slide-5
SLIDE 5

5

Performance Standards cont Performance Standards cont… …

(Semiconductor and Related Devices) (Semiconductor and Related Devices)

  • Sulfur hexafluoride
  • Prohibit use for CVD chamber cleaning in

Tier 1 and Tier 2 categories

  • No impact on etching process
slide-6
SLIDE 6

6

Emissions and Emission Reductions Emissions and Emission Reductions

NA NA 0.023 57

Reporting Only

0.017 42 0.023 12

Tier 3

0.16 NA 0.27 85

Total

0.031 43 0.071 11

Tier 2

0.11 57 0.16 5

Tier 1

Emission Reductions

(MMTCO2e)

Percent Complying Market Share Emissions

(MMTCO2e)

Number of Operations Category

CVD Chamber Cleaning and Etching Processes

slide-7
SLIDE 7

7

Operations Impacted Operations Impacted

  • Tier 1

– 3 operations would be required to reduce emissions – 2 currently comply with the proposed standard

  • Tier 2

– 6 operations would be required to reduce emissions – 5 currently comply with the proposed standard

  • Tier 3

– 6 operations would be required to reduce emissions – 6 currently comply with the proposed standard

slide-8
SLIDE 8

8

Tier 1 Operations Tier 1 Operations

(Proposed Standard 0.2 kg CO2e/cm (Proposed Standard 0.2 kg CO2e/cm2

2)

)

2 no abatement, 1 CVD abatement 2 CVD and etch abatement

Abatement

0.77 to 1.2 0.02 to 0.18

Emissions Range (kgCO2e/cm2) 3 2 Number of Companies Noncomplying Complying

slide-9
SLIDE 9

9

Tier 2 Operations Tier 2 Operations

(Proposed Standard 0.3 kg CO2e/cm (Proposed Standard 0.3 kg CO2e/cm2

2)

)

6 no abatement 2 CVD and etch abatement, 3 no abatement

Abatement

0.35 to 1.2 0.003 to 0.3

Emissions Range (kgCO2e/cm2) 6 5 Number of Companies Noncomplying Complying

slide-10
SLIDE 10

10

Tier 3 Operations Tier 3 Operations

(Proposed Standard 0.5 kg CO2e/cm (Proposed Standard 0.5 kg CO2e/cm2

2)

)

5 no abatement, 1 CVD abatement 1 CVD and etch abatement, 1 CVD abatement, 1 etch abatement, 3 no abatement

Abatement

0.78 to 8.14 0.04 to 0.26

Emissions Range (kgCO2e/cm2) 6 6 Number of Companies Noncomplying Complying

slide-11
SLIDE 11

11

Reporting Requirements Reporting Requirements

  • Initial Reporting Requirement
  • Annual Emissions Reporting

– Submit March 1st of each calendar year – Receive March 15th of each calendar year – Contents:

– Fluorinated gas volumes (Kg) – Wafer production in square centimeters – Tier 2b emissions – Heat transfer fluid (HTF)

slide-12
SLIDE 12

12

Reporting Requirements (cont Reporting Requirements (cont’ ’d) d)

  • Operations that emit 0.0008 million

metric tons or less of CO2e per year

– Primarily research and development

  • perations
slide-13
SLIDE 13

13

Recordkeeping Requirements Recordkeeping Requirements

  • Fluorinated gas usage and HTF

purchase/usage volumes and dates, 5 years

  • Equipment malfunctions or failures,

5 years

  • Information may be designated

confidential

slide-14
SLIDE 14

14

Current and Future Activities Current and Future Activities

  • Assessing measure cost
  • Staff report release: October 24, 2008
  • Board Hearing: December 11, 2008
  • Regulation legally effective:

January 1, 2010

slide-15
SLIDE 15

15

Reminder Reminder

  • Today’s presentation is posted at:

www.arb.ca.gov/cc/semiconductors/meetings /meetings.htm

  • The semiconductor list serve is at:

www.arb.ca.gov/listserv/semiconductors.htm

slide-16
SLIDE 16

16

ARB Points of Contact ARB Points of Contact

Terrel Ferreira, Manager tferreir@arb.ca.gov (916) 445-3526 Dale Trenschel, Lead dtrensch@arb.ca.gov (916) 324-0208 Lynn Yeung, Air Pollution Specialist lyeung@arb.ca.gov (916) 324-0210 Andrew Mrowka, Air Resources Engineer amrowka@arb.ca.gov (916) 324-0330

slide-17
SLIDE 17

17

Questions and Comments? Questions and Comments?
