06/12/2018 10 th European Cubesat Symposium A WATERMARKING LIKE SCHEME FOR CUBESAT COMMUNICATIONS Luciano Barros Cardoso da Silva 1, 2 Tarik Benaddi 1 Laurent Franck 3 1- IMT Atlantique, Lab-STICC, Toulouse, France; 2- National Institute for

slide-1
SLIDE 1

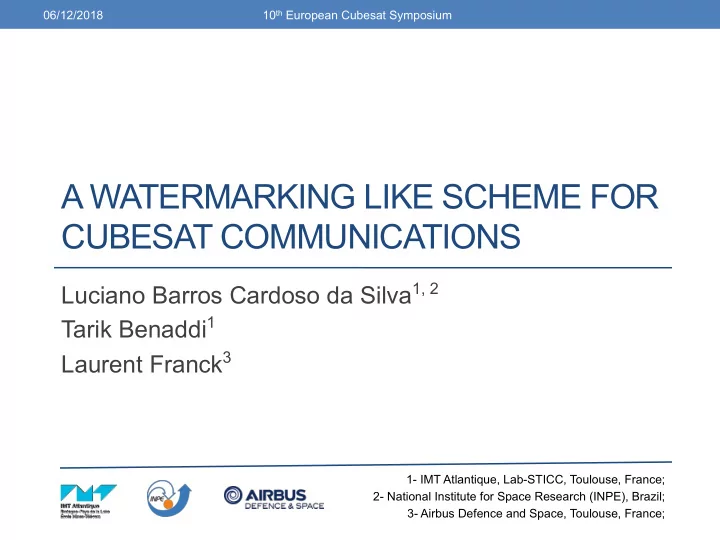

A WATERMARKING LIKE SCHEME FOR CUBESAT COMMUNICATIONS

Luciano Barros Cardoso da Silva1, 2 Tarik Benaddi1 Laurent Franck3

1- IMT Atlantique, Lab-STICC, Toulouse, France; 2- National Institute for Space Research (INPE), Brazil; 3- Airbus Defence and Space, Toulouse, France; 10th European Cubesat Symposium 06/12/2018

slide-2
SLIDE 2

Agenda

  • 1. Background and Purpose
  • 2. System Model
  • 3. Design Procedure and Encoding Strategies
  • Primary User Link - Superposition
  • Cognitive User Link – Dirty Paper Coding (DPC)
  • 4. Results and Discussions
  • 5. Future Investigations

2

06/12/2018 10th European Cubesat Symposium

slide-3
SLIDE 3

Background and Purpose

  • Cubesat application for store and forward payload (S&F);
  • Low complexity design by using COTS components and

SDR;

  • Watermarking scheme in order to assure the

confidentially, integrity and authentication of the data received;

  • Transmission of both license (data) and additional

(watermarking) service concurrently at the same frequency, time and space.

06/12/2018 10th European Cubesat Symposium

3

slide-4
SLIDE 4

Background and Purpose Overlay Satellite Scenario

06/12/2018 10th European Cubesat Symposium

4

Primary User (PU) Cognitive User (CU) (watermarking)

slide-5
SLIDE 5

System Model

Overlay Channel

5

06/12/2018 10th European Cubesat Symposium

  • Channel Equations:
slide-6
SLIDE 6

System Model

Overlay Channel – worst scenario

6

06/12/2018 10th European Cubesat Symposium

  • Maximum interference case (without additional attenuation in the interfering

paths);

  • Only one system of reception equipped with two demodulators (after ADC);
  • Channel gains h determined by the link budget;
  • Same system noise temperature for both links.

Terminal

Primary demodulator « Cognitive » demodulator

slide-7
SLIDE 7

High Level Specification for Cubesat Communication System

  • 1. Primary User Signal
  • Output Power - 1 W;
  • Downlink Operating Frequency – 2200 MHz (EESS Downlink Band);
  • Bit rate – 3.4 Mbps;
  • BER – 10-5
  • Convolutional coded QPSK R=1/2 L=5;
  • 2. Cognitive User Signal (watermarking)
  • Scheme of secure transmission aggregated to the legacy

infrastructure of PU;

  • Security service should be independent of PU Signal;
  • Bit Rate >16 kbps.

06/12/2018 10th European Cubesat Symposium

7

slide-8
SLIDE 8

Cubesat Link Budget (QPSK coded FEC R=1/2) Frequency (MHz) 2200 Throughput Rate (Mbps) 3.4 Transmit Power (W) 1 Satellite Carrier EIRP (dBm) 38.3 Free Space Loss (dB)

  • 162.2

Depointing Loss(dB)

  • 10

Ground Station Antenna max gain - 5m, eff 50% (dBi) 38.2 System Noise temperature (K) 130 C/N0 (dBHz) 81.8 Eb/N0 (dBHz) 16.5 Demodulation losses (dB)

  • 6

Eb/N0 required - BER = 10e-5 (dB) 7 Margin (dB) 3.5

06/12/2018 10th European Cubesat Symposium

8

slide-9
SLIDE 9

System Design

Primary User Interference Analysis

9

06/12/2018 10th European Cubesat Symposium

slide-10
SLIDE 10

CU Encoding Strategies

PU Link - Superposition

06/12/2018 10th European Cubesat Symposium

10

  • CU allocates partial power for assisting the PU transmission
  • The signal-to-interference-plus-noise ratio at PU receiver is given by:
slide-11
SLIDE 11

CU Encoding Strategies

CU Link – Dirty Paper Coding (PIP)

06/12/2018 10th European Cubesat Symposium

11

  • 1. Output Transmitted Signal:
  • 2. Received Signal at CU

Terminal:

  • 3. Effective SNR at CU Decoder:
slide-12
SLIDE 12

CU Encoding Strategies

Adaptation of Voronoi Precoder

12

06/12/2018 10th European Cubesat Symposium

  • L. B. C. da Silva, T. Benaddi and L. Franck, "Cognitive Radio Overlay Paradigm Towards Satellite

Communications," 2018 IEEE International Black Sea Conference on Communications and Networking (BlackSeaCom), Batumi, 2018, pp. 1-5.

  • L. B. C. da Silva, T. Benaddi and L. Franck, "A Design Method of Cognitive Overlay Links for Satellite

Communications," 2018 9th Advanced Satellite Multimedia Systems Conference and the 15th Signal Processing for Space Communications Workshop (ASMS/SPSC), Berlin, 2018, pp. 1-6.

slide-13
SLIDE 13
  • 10
  • 5

5 10

In-Phase

  • 10
  • 5

5 10

Quadrature Scatter plot

CU Encoding Strategies

Dirty Paper Coding (PIP) – Scatter Plot

06/12/2018 10th European Cubesat Symposium

13

Scatter plot: Xcc (green); S (red) and Xhat (blue)

slide-14
SLIDE 14

Results Watermarking link

Bit Error Rate (BER) for Watermarking Signal

06/12/2018 10th European Cubesat Symposium

14

3 4 5 6 7 8 9 10 11 12 13 14

1e-05 1.0E-4 0.001 0.01 0.1 Eb{N0 at CU Receiver BER

Watermarking Signal PU=7dB + Interference PU=7dB AWGN

slide-15
SLIDE 15

Cubesat Link Budget (Watermarking) Transmit Power (W) 0.1*0.15=15mW (11.8 dBm) Satellite Carrier EIRP (dBm) 20.1 Free Space Loss (dB)

  • 162.2

Depointing Loss (dB)

  • 10

Ground Station Antenna max gain - 5m, eff 50% (dBi) 38.2 System Noise temperature (K) 130 C/N0 (dBHz) 63.6 Demodulation losses (dB)

  • 6

Eb/N0 required - BER = 10e-3 (dB) Eb/N0 required - BER = 10e-5 (dB) 10 12.5 Margin (dB) 3 Bit Rate - BER = 10e-3 (kbps) Bit Rate - BER = 10e-5 (kbps) 28.8 16.2

06/12/2018 10th European Cubesat Symposium

15

slide-16
SLIDE 16

Results Conclusion

Design of a solution for watermarking scheme in satellite communication context by using realistic Cubesat scenario parameters; The Primary User performance is maintained as in absence of the watermarking transmission; The Watermarking signal transmission reaches a bit rate >16 kbps by using Trellis Shaping based Dirty Paper Coding Scheme; An increase of the output satellite power due to the intrinsic correlation of the superposition technique (in this scenario, the final total power transmitted at the satellite antenna is about 32 dBm instead of 30 dBm).

06/12/2018 10th European Cubesat Symposium

16

slide-17
SLIDE 17

Future Investigations

17

06/12/2018 10th European Cubesat Symposium

1.

Proof of concept by means of SDR implementation;

2.

Satellite Impairments and other satellite modulations schemes on overlay techniques.

slide-18
SLIDE 18

THANK YOU

Comments/Questions luciano.barroscardosodasilva@imt-atlantique.fr

06/12/2018 10th European Cubesat Symposium

18

slide-19
SLIDE 19

Main References

19

06/12/2018 10th European Cubesat Symposium

[1] L. B. C. da Silva, T. Benaddi and L. Franck, "Cognitive Radio Overlay Paradigm Towards Satellite Communications," 2018 IEEE International Black Sea Conference on Communications and Networking (BlackSeaCom), Batumi, 2018, pp. 1-5. [2] L. B. C. da Silva, T. Benaddi and L. Franck, "A Design Method of Cognitive Overlay Links for Satellite Communications," 2018 9th Advanced Satellite Multimedia Systems Conference and the 15th Signal Processing for Space Communications Workshop (ASMS/SPSC), Berlin, 2018, pp. 1-6. [3] A. Jovicic and P. Viswanath, “Cognitive radio: An informationtheoretic perspective,” IEEE Transactions on Information Theory, vol. 55, no. 9, pp. 3945–3958, 2009. [4] D. Barbarić, J. Vuković and D. Babic, "Link budget analysis for a proposed Cubesat Earth

  • bservation mission," 2018 41st International Convention on Information and Communication

Technology, Electronics and Microelectronics (MIPRO), Opatija, 2018, pp. 0133-0138. [5] G. Maral, M. Bousquet, Satellite Communications Systems: Systems, Techniques and Technology, John Wiley & Sons, 2011.
