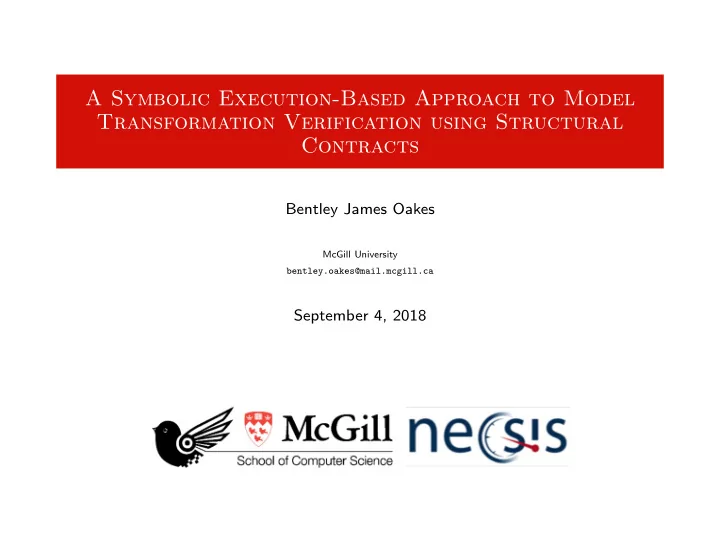

A Symbolic Execution-Based Approach to Model Transformation Verification using Structural Contracts

Bentley James Oakes

McGill University bentley.oakes@mail.mcgill.ca

September 4, 2018

slide-2
SLIDE 2

1 Introduction 2 Formalization of DSLTrans 3 Transformation Verification using Contracts 4 SyVOLT Tool 5 Conclusion

  • B. Oakes

Model Trans. Verification 2 / 37

slide-3
SLIDE 3

Outline

1 Introduction 2 Formalization of DSLTrans 3 Transformation Verification using Contracts 4 SyVOLT Tool 5 Conclusion

  • B. Oakes

Model Trans. Verification 3 / 37

slide-4
SLIDE 4

Motivation

Model-driven engineering is crucial for creating and understanding complex systems Goal: Build a model of a system in the most appropriate language(s) for multiple stakeholders Example: A model for simulation/code synthesis/safety analysis of a nuclear reactor (Van Mierlo 2017)

Concepts include tanks, pipes, water level, pressure Human-readable, activities possible through model transformation

  • B. Oakes

Model Trans. Verification 4 / 37

slide-5
SLIDE 5

Model Transformations

Problem: Want to have a structured and understandable way to modify/translate/simulate models Solution: Use model transformations, which are composed of rules to manipulate model elements Rules are executed in a particular schedule, and match elements in the input model to produce elements in the output model Issue: Difficult to understand interactions of rules from examining a transformation

  • B. Oakes

Model Trans. Verification 5 / 37

slide-6
SLIDE 6

Contract Proving Technique

Problem: Want to understand how an input model to the transformation relates to the corresponding output model Solution: Verify pre-/post-condition patterns (structural contracts) which guarantee relations and traceability between elements if the contract is satisfied “A Family with a father, mother, son and daughter should always produce two Man and two Woman elements connected to a Community.” Result: Combinations of rules where the contract is satisfied, and combinations where the contract is not satisfied Allows the user to better understand the behaviour of the transformation

  • B. Oakes

Model Trans. Verification 6 / 37

slide-7
SLIDE 7

Research Questions

Five research questions answered by the thesis and this presentation: Formalization of DSLTrans transformation language RQ1) How can the DSLTrans language be precisely formalized? Transformation verification using contracts RQ2) How can the infinite execution possibilities of a DSLTrans transformation be represented in an explicit finite set? RQ3)

a) How can contracts be proved to be satisfied or non-satisfied on these representations? b) When not satisfied, how do the counter-examples relate to the transformation?

Development of the SyVOLT proving tool RQ4) What is the design and work-flow of a contract verification tool? RQ5) What are techniques for improving the scalability of the verification tool?

  • B. Oakes

Model Trans. Verification 7 / 37

slide-8
SLIDE 8

Outline

1 Introduction 2 Formalization of DSLTrans 3 Transformation Verification using Contracts 4 SyVOLT Tool 5 Conclusion

  • B. Oakes

Model Trans. Verification 8 / 37

slide-9
SLIDE 9

DSLTrans Overview

DSLTrans transformation language was conceived by Barroca et al. (2011), so not a contribution of the thesis Intent was to create a language of limited expressiveness, so that by construction each transformation terminates and is confluent (rules cannot conflict) Rules in DSLTrans are scheduled in layers. Rules are fully applied in one layer before moving on

Layered nature crucial for understandability and analysability

Rules provide traceability links, to record how elements were built

  • B. Oakes

Model Trans. Verification 9 / 37

slide-10
SLIDE 10

DSLTrans Semantics

Problem: Not all constructs of DSLTrans were formally specified

Behaviour defined by implementation

Solution: Describe semantics of DSLTrans in a widely-used model transformation formalization Double-pushout approach answers RQ1) How can the DSLTrans language be precisely formalized? Reasons for selecting the double-pushout approach:

Provides elegant (and most appropriate) explanation Aligns semantics with other transformation languages Provides rigour for DSLTrans usability and analysability

  • B. Oakes

Model Trans. Verification 10 / 37

slide-11
SLIDE 11

Rule Matcher and Rewriter

The double-pushout approach divides the application of a rule into the matching and rewriting stages Consider a rule which:

Matches on a model with a diamond and a circle Replaces the circle with a rounded square

Pre-condition/Matcher / LHS Post-condition/Rewriter / RHS

  • B. Oakes

Model Trans. Verification 11 / 37

slide-12
SLIDE 12

Double-Pushout Approach

Arrows are morphisms between components, providing mappings of nodes and edges Element creation is performed through matching and the union operator, termed push-outs

  • B. Oakes

Model Trans. Verification 12 / 37

slide-13
SLIDE 13

Mass Productions

Double-pushout approach allows the creation of elegant mass productions Technique: Combine the matchers and rewriters of multiple rules p1 : L1

l1

← − K1

r1

− → R1 . . . pk : Lk

lk

← − Kk

rk

− → Rk L = L1 + . . . + Lk K = K1 + . . . + Kk R = R1 + . . . + Rk

in1

L

in1

K

in1

R

ink

L

ink

K

ink

R

l r

Allows for all rules in a layer to be applied at once, ensuring they cannot interfere with each other

  • B. Oakes

Model Trans. Verification 13 / 37

slide-14
SLIDE 14

Formalization Contributions

Precise semantics provided for all DSLTrans constructs in the double-pushout approach Examination of termination and confluence properties

  • B. Oakes

Model Trans. Verification 14 / 37

slide-15
SLIDE 15

Outline

1 Introduction 2 Formalization of DSLTrans 3 Transformation Verification using Contracts 4 SyVOLT Tool 5 Conclusion

  • B. Oakes

Model Trans. Verification 15 / 37

slide-16
SLIDE 16

Contract Proving Results

Verification results indicate which combinations of rules (path conditions) satisfy

  • r do not satisfy each contract

Allows the user to better understand transformation behaviour Contract: “A School will always produce an OrdinaryFacility” Reality: Contract should fail, as a rule exists in the transformation such that SpecialFacilities can also be produced

Verification results: a) Name: Neg_SchoolOrdFac Num Succeeded Path Conditions: 6 Num Failed Path Conditions: 3 b) Explaining contract result: Good rules: (Rules in success set and not failure set) dfacilities...OrdinaryFacilityPerson Bad rules: (Rules common to all in failure set) dfacilities...SpecialFacilityPerson

Answers RQ3 b) When not satisfied, how do the counter-examples relate to the transformation?

  • B. Oakes

Model Trans. Verification 16 / 37

slide-17
SLIDE 17

Path Conditions

Contract proof is performed on path conditions, which represent valid combinations of rule applications

Record element presence when rules apply

First step is to build the path conditions, then the second step is to match the contract onto the path conditions Example: This path condition represents the application of four rules, where each rule has applied at least once Through a formalized abstraction relation, this path condition represents an infinite set of transformation executions

Abstracts over rule application multiplicity and element overlap

A set of path conditions answers RQ2: How can the infinite execution possibilities

  • f a DSLTrans transformation be represented in an explicit finite set?
  • B. Oakes

Model Trans. Verification 17 / 37

slide-18
SLIDE 18

Step 1 - Symbolic Execution

Path conditions are produced through a symbolic execution of the transformation’s rules, layer-by-layer Final set of path conditions represents all valid transformation executions Rules are classified depending on combination with the path condition Combining the rules and path condition creates new path conditions

  • B. Oakes

Model Trans. Verification 18 / 37

slide-19
SLIDE 19

Step 2 - Contract Matching

After path condition generation, the elements in the contracts are matched against the path conditions to determine contract satisfaction Answers RQ3: a) How can contracts be proven to be sat Issue: In path conditions, unknown whether rule elements overlap or not Major contribution is the “split” morphism for matching contracts and path conditions

Allows one contract element to match over multiple path condition elements

  • B. Oakes

Model Trans. Verification 19 / 37

slide-20
SLIDE 20

Contract Proving Contributions

Detailed procedure for building the set of path conditions Technique for matching contracts onto path conditions to determine counter-examples Precise definition for validity of proof result

Results of proof on path conditions is related to proof on abstracted transformation executions

  • B. Oakes

Model Trans. Verification 20 / 37

slide-21
SLIDE 21

Outline

1 Introduction 2 Formalization of DSLTrans 3 Transformation Verification using Contracts 4 SyVOLT Tool 5 Conclusion

  • B. Oakes

Model Trans. Verification 21 / 37

slide-22
SLIDE 22

SyVOLT Architecture

SyVOLT is a tool for contract verification of DSLTrans transformations Major contribution of thesis is on efficiency and applicability to industrial-sized transformations FTG-PM presented answers RQ4) What is the design and work-flow of a contract verification tool?

  • B. Oakes

Model Trans. Verification 22 / 37

slide-23
SLIDE 23

Efficiency Techniques

Thesis presents five case studies ranging from 7 rules to 46 rules To improve the scalability of the tool, three efficiency techniques are presented: Parallelization Slicing Pruning Answers RQ5) What are techniques for improving the scalability of the verification tool?

  • B. Oakes

Model Trans. Verification 23 / 37

slide-24
SLIDE 24

Parallelization

Idea: Employ multiple threads to speed up tool Technique: Divide path condition generation and contract proving amongst multiple threads Results on the 32-core supercomputer for the largest case study of 46 rules:

  • B. Oakes

Model Trans. Verification 24 / 37

slide-25
SLIDE 25

Slicing

Idea: Instead of symbolically executing all rules, select the rules relevant to a contract Technique: Match elements from contract onto rules to find dependencies Speed-up: 3.8x - 72.6x Trade-off between generating all path conditions, and smaller set for one contract Contract Name Rules Path Conds. Total Time (s) Full 19 4916 59.18 CityCompany 8 43 0.30 CountryCity 6 10 0.13 SchoolOrdFac 5 17 0.17 DaughterMother 9 64 0.43 AssocCity 9 64 0.35 ChildSchool 5 17 0.17 FourMembers 9 64 0.43 MotherFather 9 64 0.45 ParentCompany 5 18 0.16 TownHallComm 11 184 0.86

  • B. Oakes

Model Trans. Verification 25 / 37

slide-26
SLIDE 26

Pruning

Idea: Remove invalid path conditions to decrease state space Technique: Check if path conditions violate meta-model containment restrictions

Example: A meta-model requires that all Woman elements are contained in a Community through a persons link If a Woman element exists, but is not connected by a persons link, then that path condition is invalid as it doesn’t represent a valid output model

Speed-up: 0.9x - 14.2x Warning: Pruning can change contract satisfaction results

Counter-examples to a contract can be pruned away

  • B. Oakes

Model Trans. Verification 26 / 37

slide-27
SLIDE 27

SyVOLT Contributions

Development of an efficient and scalable contract verification tool Detailed presentation of core algorithms and efficiency techniques, their complexity, and advantages/disadvantages Examination of multiple case studies (toy to industrial) with results of contract proof

  • B. Oakes

Model Trans. Verification 27 / 37

slide-28
SLIDE 28

Outline

1 Introduction 2 Formalization of DSLTrans 3 Transformation Verification using Contracts 4 SyVOLT Tool 5 Conclusion

  • B. Oakes

Model Trans. Verification 28 / 37

slide-29
SLIDE 29

Conclusion

Thesis provides end-to-end approach to contract verification Semantics provided for DSLTrans enables precise usage and verification for all structures Contract verification approach efficiently determines counter-examples to contracts, offering insight into transformation behaviour Algorithmic design and implementation of a contract prover, which is scalable to industrial-sized transformations

  • B. Oakes

Model Trans. Verification 29 / 37

slide-30
SLIDE 30

Future Work

Investigate how symbolic execution and contract proving approach can be transferred to other transformation languages Explore assisting the user in systematically creating contracts to verify transformations

Promote “contract-based design” of model transformations, with continuous verification

  • B. Oakes

Model Trans. Verification 30 / 37

slide-31
SLIDE 31

Thank You

Thank you for your time and attention

  • B. Oakes, C. Verbrugge, L. L´

ucio,and H. Vangheluwe. Debugging of Model Transformations and Contracts in SyVOLT. Submitted to the Debugging in Model-Driven Engineering (MDEbug 2018) workshop.

  • B. Oakes, L. L´

ucio, C. Gomes, and H. Vangheluwe. Expressive Symbolic-Execution Contract Proving for the DSLTrans Transformation Language. Technical Report SOCS-TR-2017.1, McGill University, 2017.

  • B. Oakes, J. Troya, L. L´

ucio, and M. Wimmer. Full Contract Verification for ATL using Symbolic Execution. Software and Systems Modeling, pages 1–35, 2016.

  • B. Oakes, J. Troya, L. L´

ucio, and M. Wimmer. Fully Verifying Transformation Contracts for Declarative ATL. In International Conference on Model Driven Engineering Languages and Systems, pages 256–265, 2015.

  • L. L´

ucio, B. Oakes, C. Gomes, G. Selim, J. Dingel, J. Cordy, and H. Vangheluwe. SyVOLT: Full Model Transformation Verification using Contracts. In International Conference on Model Driven Engineering Languages and Systems, pages 24–27, 2015.

  • G. Selim, J. Cordy, J. Dingel, L. L´

ucio, and B. Oakes. Finding and Fixing Bugs in Model Transformations with Formal Verification: An Experience Report. In Proceedings of Analysis of Model Transformations workshop at Model Driven Engineering Languages and Systems, pages 26–35, 2015.

  • L. L´

ucio, B. Oakes, and H. Vangheluwe. A Technique for Symbolically Verifying Properties of Graph-based Model Transformations. Technical Report SOCS-TR-2014.1, McGill University, 2014.

  • G. Selim, J. Cordy, J. Dingel, L. L´

ucio, and B. Oakes. Specification and Verification of Graph-Based Model Transformation Properties. In Proceedings of International Conference on Graph Transformation, pages 113–129, 2014.

  • B. Oakes

Model Trans. Verification 31 / 37

slide-32
SLIDE 32

Pushout Explanation

A B C P

f g f ′ g ′

P is a pushout over the morphisms f : A → B and g : A → C defined by: a pushout object P the morphisms f ′ : B → P and g′ : C → P with f ′ ◦ g = g′ ◦ f Definition Universal Property For all objects X, morphisms h : B → X, k : C → X with k ◦ g = h ◦ f : there is a unique morphism x : P → X with x ◦ g′ = h and x ◦ f ′ = k.

A B C P X

f g f ′ h g ′ k x

  • B. Oakes

Model Trans. Verification 32 / 37

slide-33
SLIDE 33

Pushout Example

  • B. Oakes

Model Trans. Verification 33 / 37

slide-34
SLIDE 34

Double-Pushout Approach Example

  • B. Oakes

Model Trans. Verification 34 / 37

slide-35
SLIDE 35

Split Morphism

Issue: Need one pattern node to be matched to two target nodes Requirements: Pattern nodes are totally matched One pattern node to multiple target nodes

Attributes must be matched

Edges must be one-to-one

  • B. Oakes

Model Trans. Verification 35 / 37

slide-36
SLIDE 36

Contract Matching

The issue is that we are representing rule application, but not all possible ways rules can match over the same elements This is prohibitively expensive to calculate explicitly This structural information is discarded in the split morphism, allowing the contract to “split” over the path condition, and consider the Family elements to be unified

  • B. Oakes

Model Trans. Verification 36 / 37

slide-37
SLIDE 37

Contract Language Limitations

Contracts can only express very basic structural information

Constructs available: And, Or, If-Then, Not, pivots Can’t represent universal operators (“for all element A’s, B’s must be attached”), or temporal properties

Multiplicity is unintuitive If a System element exists in the output model, then that System element should be connected to a SystemMapping element, and not (always) connected to two SystemMapping elements Language not placed in formal logic (first-order, second-order) framework Future work: Replace contract language with another, rather than improve

  • B. Oakes

Model Trans. Verification 37 / 37
