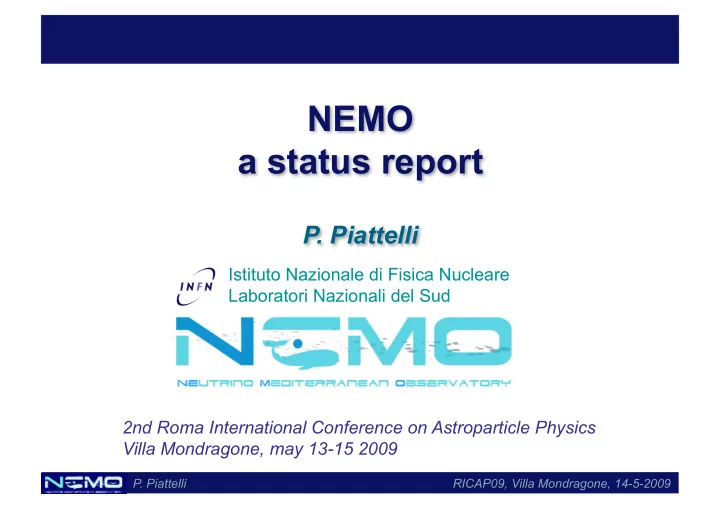

NEMO a status report P. Piattelli Istituto Nazionale di Fisica Nucleare Laboratori Nazionali del Sud 2nd Roma International Conference on Astroparticle Physics Villa Mondragone, may 13-15 2009 P. Piattelli RICAP09, Villa Mondragone, 14-5-2009


slide-1
SLIDE 1
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

NEMO a status report

  • P. Piattelli

Istituto Nazionale di Fisica Nucleare Laboratori Nazionali del Sud 2nd Roma International Conference on Astroparticle Physics Villa Mondragone, may 13-15 2009

slide-2
SLIDE 2
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Outline

  • R&D activities
  • Site exploration
  • Preliminary design of a km3 detector
  • NEMO Phase-1
  • Aims and objectives of the project
  • Results and lessons learned
  • NEMO Phase-2
  • The Capo Passero shore and deep-sea infrastructures
  • Developments of the technologies for the telescope construction
  • Conclusions and prospects
  • The contribution of NEMO to the KM3NeT european consortium
slide-3
SLIDE 3
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

NEMO: a brief history

  • R&D activity towards the km3 started in 1998
  • Search and characterization of an optimal deep-sea site
  • Feasibility study and definition of a preliminary project of

the km3

  • Development of innovative technological solutions for the

km3

  • Low power electronics
  • Directionsl PMTs
  • Advanced R&D activities to validate the proposed

technologies

  • Phase-1 and Phase-2 projects
slide-4
SLIDE 4
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

The NEMO collaboration

INFN

Bari, Bologna, Catania, Genova, LNF, LNS, Napoli, Pisa, Roma

Università

Bari, Bologna, Catania, Genova, Napoli, Pisa, Roma “La Sapienza”

CNR

Istituto di Oceanografia Fisica, La Spezia Istituto di Biologia del Mare, Venezia Istituto Sperimentale Talassografico, Messina

Istituto Nazionale di Geofisica e Vulcanologia (INGV) Istituto Nazionale di Oceanografia e Geofisica Sperimentale (OGS) Istituto Superiore delle Comunicazioni e delle Tecnologie dell’Informazione (ISCTI) More than 80 researchers from INFN and other italian institutes

slide-5
SLIDE 5
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

The Capo Passero site

The Capo Passero deep-sea site has been proposed in january 2003 to ApPEC as a candidate for the km3 intallation

  • Depths of more than 3500 m are reached at

about 100 km distance from the shore

  • Water optical properties are the best observed in

the studied sites (La ≈ 70 m @ λ = 440 nm)

  • Optical backgroung from bioluminescence is

extremely low

  • Stable water characteristics
  • Deep sea water currents are low and stable (3

cm/s avg., 10 cm/s peak)

  • Wide abyssal plain, far from the shelf break,

allows for possible reconfigurations of the detector layout

slide-6
SLIDE 6
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Seasonal dependence of optical properties

No seasonal dependence observed

Average values 2850÷3250 m

Absorption and attenuation lengths (for λ=440 nm)

The measured value of 30 kHz is compatible with pure 40K background

Data taken in collaboration with ANTARES

Dead time: Fraction of time with rate > 200 kHz

  • PMT: 10”
  • Thres: ~.5 SPE

Optical background

Absorption lenght values are compatible with optically pure sea water

slide-7
SLIDE 7
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

km3 architecture: the NEMO proposal

Detector based on tower-like structures with horizontal extent Non homogenus distribution of sensors Vertical sequence of “storeys” Structure packable for integration and deployment

slide-8
SLIDE 8
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Seafloor layouts

84 towers X (m) Y(m)

main EO cable main Junction Box secondary JB “tower”

91 towers

Several different seafloor layouts have been considered and simulated

slide-9
SLIDE 9
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Sensibilità a sorgenti puntiformi

Sensitivity to a point like source (α = -2 and declination -60°) as a function of

  • bservation time

E2 dNν/dEν [s-1 cm-2 GeV]

☼ average on all declinations of

northern sky from Ahrens et al. Astr. Phys. 20(5) 2004 – 507-532

 91 towers-20 storeys  127 towers – 20 storeys  IceCube ☼

years Ratio IceCube/ 127 torri Ratio IceCube/ 91torri 1 2.7 1.9 3 3.1 2.2 5 3.5 2.4 The geometry

  • 10” PMT
  • 6 PMT/floor
  • 180m distance between towers
  • 20 floors
  • 40m distance between floor
  • 10m bar length
slide-10
SLIDE 10
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

NEMO Phase-1

slide-11
SLIDE 11
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

NEMO Fase-1

25 km E offshore Catania 2000 m depth TSS Frame

Buoy

Junction Box e.o. connection e.o. cable from shore Shore laboratory, Port of Catania e.o. cable 10 optical fibre, 6 conductors NEMO mini-tower (4 floors, 16 OM)

Mini-Tower unfurled 300 m

Junction Box 15 m Mini-Tower compacted

slide-12
SLIDE 12
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Deployment and connection

Connection in the frame Connection of the JB Connection of the Mini-Tower Deployment of the Mini-Tower Deployment of the JB

Phase-1 installed in december 2006 at the Catania Test Site (2000 m depth)

slide-13
SLIDE 13
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

  • Fully operative for 6 months (commissioning and data taking)
  • Many critical items and solutions validated
  • Concept of “tower” with horizontal extent
  • Deployment of a compact structure with unfurling on the seabed
  • Double containment pressure vessels
  • “All-data-to-shore” synchronous acquisition
  • Low power electronics
  • Calibration (time and position) techniques
  • Some technical problems encountered
  • Loss of buoyancy in the tower
  • Electro-optical penetrators in the Junction Box
  • JB problems solved by replacing the defective components
  • JB redeployed in 2008 and presently working
  • Five months of data analysed
  • “Lessons learned” fundamental for further developments
slide-14
SLIDE 14
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Scheme of the prototype tower

Fours floors

Lenght 15 m Vertical spacing 40 m

16 Optical Modules with 10” PMT Acoustic Positioning

2 hydrophones per floor 1 beacon on the tower base

Environmental instrumentation

1 compass + tiltmeter in each Floor Control Module CTD (Conductivity-Temperature-Depth) probe on floor 1 C* (attenuation length meter) on floor 2 ADCP (Acoustic Doppler Profiler (including compass) on floor 4

TBM FPM FPM FCM FCM FPM FCM FCM FPM

br br br br

H H OM OM

CTD

AB

C* ADCP

Tower Base Floor 1 Floor 2 Floor 3 Floor 4 Buoy

HC

slide-15
SLIDE 15
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Acoustic positioning system

Distance H0-H1 measured on floor 2 during 6 hours (1 Feb h.17-23) Each point is averaged in 300 s

Construction 14.25±0.01 AP measure 14.24±0.06

Accuracy better than the required 10 cm

slide-16
SLIDE 16
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Background rates on PMTs

The average measured rates are about 80 kHz for PMTs on floors 2, 3 and 4 as expected from 40K decay plus a contribution

  • f diffuse bioluminescence

Floor 4 PMT

The instantaneous rate value is calculated by the Front-End board

  • f the PMT averaging, in a time

window of 1 µs, all the hits whose amplitude exceeds a given threshold equivalent to 0.3 spe.

slide-17
SLIDE 17
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Atmospheric muon angular distribution

23-24 January, 2007: LiveTime: 11.31 hours OnLine Trigger: ~6⋅107 OffLine Trigger (7 seeds): 184709 Reconstructed tracks: 2260 Selected tracks: 965

Azimuth Likelihood Distribution Zenith

slide-18
SLIDE 18
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Vertical muon intensity

Vertical Muon intensity as a function of depth from data recorded on 23-24 Jan, 2007 Compared with the relation from Bugaev et al, Phys. Rev. D58, 05401 (1998)

slide-19
SLIDE 19
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

NEMO Phase-2

slide-20
SLIDE 20
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

STATUS

  • 100 km electro-optical cable (>50 kW,

20 fibres) deployed in July 2007

  • DC/DC power converter built by Alcatel

tested and working; installation in july 2009

  • On-shore laboratory (1000 m2) inside

the harbour area of Portopalo completed

slide-21
SLIDE 21
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

The Alcatel DC/DC system

System based on an innovative 10 kW DC/DC converter specifically designed by Alcatel for deep-sea applications A final prototype of the DC/DC converter has been tested at full load in realistic conditions

slide-22
SLIDE 22
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Test of the DC/DC converter

slide-23
SLIDE 23
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Upgrades in the tower design

  • DC power system to comply with the feeding

system provided by Alcatel

  • Data transmission system
  • Segmented electro-optical backbone
  • Acoustic system integrating both positioning and

acoustic detection systems

slide-24
SLIDE 24
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

KM3NeT

  • European Consortium involving 40 Institutes from 10 countries
  • Design Study project (FP6)
  • Define the technologies for the contruction of the km3
  • Preparatory Phase project (FP7)
  • Define the governance, legal and financial issues and prepare plans for

construction of the Research Infrastructure

slide-25
SLIDE 25
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Convergence in KM3NeT

  • Three full designs are presently considered in KM3NeT
  • The final choice will be based on detector sensitivity, cost

and reliability

  • One of the designs, developed by INFN and IN2P3, is

largely based on the experience and technical solutions developed in NEMO and ANTARES

  • Tower with horizontal extent
  • Packable structure for integration and deployment with unfurling
  • n the seabed
  • Synchronous all-data-to-shore readout
  • DC power feeding system
slide-26
SLIDE 26
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

New data daisy chain data transmission system

The link is bidirectional with asymmetric data rates:

  • Up-going link @163.84 Mb/s for timing

and slow control

  • Down-going link @1.18 Gb/s for

physics data and control All nodes are identical The system can be implemented using either a fibre or a copper backbone

slide-27
SLIDE 27
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Op#cal
backbone
 Op#cal
connector
 Electrical
connectors
 Electrical
backbone
 Hidrophone
connector
 Electrical
conector
to
OM
 Floor
electronics
module


Op#cal
modules
 Op#cal
modules


Floor
electronics
module


“Daisy
Chain”
connec/ons


slide-28
SLIDE 28
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Power distribution network

Electro‐Op#cal
 Cable


100
Km



x
17÷
24
 x5


...


10
KV
dc



L
max
1500
m


375
V
dc



...


L
max
250
m


DU
1
 DU
2
 DU
5


POWER BUDGET N° DU 84 120 Power per DU 300 W DUs total power 25,2 kW 36 kW Cable Losses < 4% 1 kW 1,5 kW Cable voltage drops% < 4% Total Power off-shore 26,2 kW 37,5 kW MVC losses (η=80%) 6,6 kW 9,4 kW Main Cable losses 1,7 kW 3,5 TOTAL POWER LOSSES 27% 28% POWER ON SHORE 34,5 kW 50,4 kW

slide-29
SLIDE 29
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

One idea for the seabed layout and cable network

Primary
JB
 Secondary
JB





DU


 Main
cable
 Cable
PJB‐SJB
 Cable
SJB‐DU


slide-30
SLIDE 30
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Optical network to shore

PJB
 *
 *
 *


...
 ...


*
 *


...
 ...
 17
 ...
 ...


*
 *
 *
 *
 *
 *


...
 1
 8
 ...


*
 *


...
 ...
 1
 8
 1
 8
 1
 8
 SJB
17
 SJB
24
 SJB
1
 SJB

 8
 DWDM
 mux
 demux
 Sta#on
 MEOC
 band
 mux‐demux
 ...
 ...


*
 *
 *


17
 24
 24
 17
 24
 17
 24


DU
1
 DU
5


...


DU
116
 DU
120


...
 SHORE
 SUB
SEA


...


...
 ...
 ...
 1
B
 119
B
 120
B
 ...
 1
 23
 24
 1
A
 119
A
 120
A


  • Ring topology based on circulators: doubled offshore and onshore to achieve 100% redundancy;
  • 1 ring can support as many DUs as fiber bandwidth allows;
  • Standard ITU frequency grids accommodate up to 60 ÷132 colors (100 GHz or 50 GHz grid spacing)
  • 3 rings are needed to transport 120 DUs;
  • 6 fibers of the Main Electro Optical Cable are used to setup the 3 rings between shore and subsea;
slide-31
SLIDE 31
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Near future plans

  • Test of a “mechanical” tower in may-june 2009 to

validate the structure and the new buoy design at 3500 m depth

  • Building of a fully equipped tower with a reduced

number of floors to test the technological solutions proposed in KM3NeT (in collaboration with the IN2P3 groups) to be deployed in spring 2010

slide-32
SLIDE 32
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

Conclusions …

  • In a ten year long activity NEMO has provided

significant contributions towards the km3 detector

  • Identification of an optimal deep-sea site
  • Development and test of technologies for the

telescope construction

  • The NEMO collaboration is presently taking part

in the KM3NeT EU consortium

slide-33
SLIDE 33
  • P. Piattelli

RICAP09, Villa Mondragone, 14-5-2009

… and outlook

  • For the construction of the KM3NeT european Research

Infrastructure a multi-site option is also being considered

  • This options fits a funding scheme in which most of the

funding will come on a regional basis

  • The assessment of the single vs multi-site option will be

done within the Preparatory Phase project, but preliminary results indicate that a multi-site telescope has at least the same sensitivity than a single one

  • Initiatiatives to get fundings are under way in several

countries (France, Greece, Italy, The Netherlands)

  • In Italy the Sicilian Regional Government has proposed

the funding of a km3 size detector on national funds for the less developed regions
