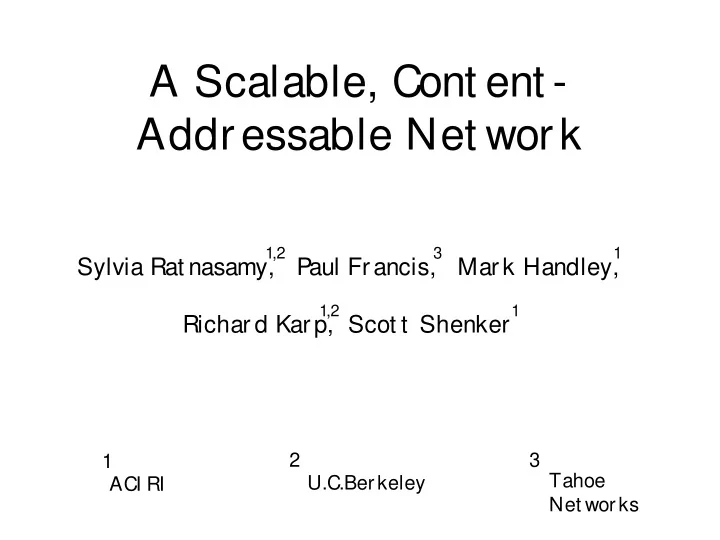

A Scalable, Cont ent - Addressable Net work 1,2 3 1 Sylvia Rat - - PowerPoint PPT Presentation

Sylvia Rat nasamy, Paul Francis, Mark Handley, Richard Karp, Scot t Shenker

A Scalable, Cont ent - Addressable Net work

ACI RI U.C.Ber keley Tahoe Net works 1 2 3

1,2 3 1 1,2 1

Out line

• I nt roduct ion
• Design
• Evaluat ion
• St r engt hs & Weaknesses
• Ongoing Work

I nt ernet -scale hash t ables

• Hash t ables

– essent ial building block in sof t ware syst ems

• I nt ernet -scale dist ribut ed hash t ables

– equally valuable t o large-scale dist ribut ed syst ems?

• Hash t ables

– essent ial building block in sof t ware syst ems

• I nt ernet -scale dist ribut ed hash t ables

– equally valuable t o large-scale dist ribut ed syst ems?

• peer -t o-peer syst ems

– Napst er, Gnut ella, Groove, FreeNet , Moj oNat ion…

• large-scale st orage management syst ems

– Publius, OceanSt ore, PAST, Farsit e, CFS ...

• mirroring on t he Web

I nt ernet -scale hash t ables

Cont ent -Addressable Net work

(CAN)

• CAN: I nt ernet -scale hash t able
• I nt erf ace

– insert (key,value) – value = ret rieve(key)

Cont ent -Addressable Net work

(CAN)

• CAN: I nt ernet -scale hash t able
• I nt erf ace

– insert (key,value) – value = ret rieve(key)

• Propert ies

– scalable – operat ionally simple – good perf ormance (w/ improvement )

Cont ent -Addressable Net work

(CAN)

• CAN: I nt ernet -scale hash t able
• I nt erf ace

– insert (key,value) – value = ret rieve(key)

• Propert ies

– scalable – operat ionally simple – good perf ormance

• Relat ed syst ems: Chord/ P

ast ry/ Tapest ry/ Buzz/ Plaxt on ...

Problem Scope

Design a syst em t hat provides t he int erf ace

• scalabilit y
• robust ness
• perf ormance
• securit y
• Applicat ion-specif ic, higher level primit ives
• keyword searching
• mut able cont ent
• anonymit y

Out line

• I nt roduct ion
• Design
• Evaluat ion
• St r engt hs & Weaknesses
• Ongoing Work

K V

CAN: basic idea

K V K V K V K V K V K V K V K V K V K V

CAN: basic idea

insert (K1,V1)

K V K V K V K V K V K V K V K V K V K V K V

CAN: basic idea

insert (K1,V1)

K V K V K V K V K V K V K V K V K V K V K V

CAN: basic idea

(K1,V1)

K V K V K V K V K V K V K V K V K V K V K V

CAN: basic idea

ret rieve (K1)

K V K V K V K V K V K V K V K V K V K V K V

CAN: solut ion

• virt ual Cart esian coordinat e space
• ent ire space is part it ioned amongst all t he nodes

– every node “ owns” a zone in t he overall space

• abst ract ion

– can st ore dat a at “ point s” in t he space – can rout e f rom one “ point ” t o anot her

• point = node t hat owns t he enclosing zone

CAN: simple example

1

CAN: simple example

1 2

CAN: simple example

1 2 3

CAN: simple example

1 2 3 4

CAN: simple example

CAN: simple example

I

CAN: simple example

node I ::insert (K,V)

I

(1) a = hx(K)

CAN: simple example

x = a node I ::insert (K,V)

I

(1) a = hx(K) b = hy(K)

CAN: simple example

x = a y = b node I ::insert (K,V)

I

(1) a = hx(K) b = hy(K)

CAN: simple example

(2) rout e(K,V) -> (a,b)

node I ::insert (K,V)

I

CAN: simple example

(2) rout e(K,V) -> (a,b) (3) (a,b) st ores (K,V)

(K,V) node I ::insert (K,V)

I

(1) a = hx(K) b = hy(K)

CAN: simple example

(2) rout e “ ret rieve(K)” t o (a,b)

(K,V) (1) a = hx(K) b = hy(K) node J ::ret rieve(K)

J

Dat a st or ed in t he CAN is addr essed by name (i.e. key), not locat ion (i.e. I P address)

CAN

CAN: rout ing t able

CAN: rout ing

(a,b) (x,y)

A node only maint ains st at e f or it s immediat e neighbor ing nodes

CAN: rout ing

CAN: node insert ion

Boot st r ap node 1) Discover some node “ I ” already in CAN

new node

CAN: node insert ion

I new node

1) discover some node “ I ” already in CAN

CAN: node insert ion

2) pick r andom point in space

I

(p,q)

new node

CAN: node insert ion

(p,q)

3) I rout es t o (p,q), discovers node J

I J new node

CAN: node insert ion

new J 4) split J ’s zone in half … new owns one half

I nsert ing a new node af f ect s only a single ot her node and it s immediat e neighbors

CAN: node insert ion

CAN: node f ailures

• Need t o repair t he space

– recover dat abase (weak point )

• sof t -st at e updat es
• use r eplicat ion, r ebuild dat abase f r om r eplicas

– repair rout ing

• t akeover algor it hm

CAN: t akeover algorit hm

• Simple f ailures

– know your neighbor’s neighbors – when a node f ails, one of it s neighbors t akes over it s zone

• More complex f ailure modes

– simult aneous f ailure of mult iple adj acent nodes – scoped f looding t o discover neighbors – hopef ully, a rare event

Only t he f ailed node’s immediat e neighbors are required f or recovery

CAN: node f ailures

Design recap

• Basic CAN

– complet ely dist ribut ed – self -organizing – nodes only maint ain st at e f or t heir immediat e neighbors

• Addit ional design f eat ures

– mult iple, independent spaces (realit ies) – background load balancing algorit hm – simple heurist ics t o improve perf ormance

Out line

• I nt roduct ion
• Design
• Evaluat ion
• St r engt hs & Weaknesses
• Ongoing Work

Evaluat ion

• Scalabilit y
• Low-lat ency
• Load balancing
• Robust ness

CAN: scalabilit y

• For a unif ormly part it ioned space wit h n nodes and d

dimensions

– per node, number of neighbors is 2d – aver age r out ing pat h is (dn1/ d)/ 4 hops – simulat ions show t hat t he above result s hold in pract ice

• Can scale t he net work wit hout increasing per-node

st at e

• Chord/ Plaxt on/ Tapest ry/ Buzz

– log(n) nbrs wit h log(n) hops

CAN: low-lat ency

• Problem

– lat ency st ret ch = (CAN rout ing delay) (I P rout ing delay) – applicat ion-level rout ing may lead t o high st ret ch

• Solut ion

– increase dimensions, realit ies (reduce t he pat h lengt h) – Heurist ics (reduce t he per-CAN-hop lat ency)

• RTT-weight ed r out ing
• mult iple nodes per zone (peer nodes)
• det er minist ically r eplicat e ent r ies

CAN: low-lat ency

# nodes Lat ency st ret ch

20 40 60 80 100 120 140 160 180

16K 32K 65K 131K

# dimensions = 2

w/ o heurist ics w/ heurist ics

2 4 6 8 10

CAN: low-lat ency

# nodes Lat ency st ret ch

16K 32K 65K 131K

# dimensions = 10

w/ o heurist ics w/ heurist ics

CAN: load balancing

• Two pieces

– Dealing wit h hot -spot s

• popular (key,value) pair s
• nodes cache r ecent ly r equest ed ent r ies
• over loaded node r eplicat es popular ent r ies at neighbor s

– Unif orm coordinat e space part it ioning

• unif or mly spr ead (key,value) ent r ies
• unif or mly spr ead out r out ing load

Unif orm Part it ioning

• Added check

– at j oin t ime, pick a zone – check neighboring zones – pick t he largest zone and split t hat one

20 40 60 80 100

Unif orm Part it ioning

V 2V 4V 8V

Volume Per cent age

• f nodes

w/ o check w/ check V = t ot al volume n

V 16 V 8 V 4 V 2

65,000 nodes, 3 dimensions

CAN: Robust ness

• Complet ely dist ribut ed

– no single point of f ailur e ( not applicable t o pieces of dat abase when node f ailur e happens)

• Not exploring dat abase recovery (in case

t here are mult iple copies of dat abase)

• Resilience of rout ing

– can rout e around t rouble

Out line

• I nt roduct ion
• Design
• Evaluat ion
• St r engt hs & Weaknesses
• Ongoing Work

St rengt hs

• More resilient t han f looding

br oadcast net wor ks

• Ef f icient at locat ing inf ormat ion
• Fault t olerant rout ing
• Node & Dat a High Availabilit y (w/

improvement )

• Manageable r out ing t able size &

net work t raf f ic

Weaknesses

• I mpossible t o perf orm a f uzzy search
• Suscept ible t o malicious act ivit y
• Maint ain coherence of all t he indexed

dat a (Net work overhead, Ef f icient dist r ibut ion)

• St ill relat ively higher rout ing lat ency
• Poor per f or mance w/ o impr ovement

Suggest ions

• Cat alog and Met a indexes t o perf orm

search f unct ion

• Ext ension t o handle mut able cont ent

ef f icient ly f or web-host ing

• Securit y mechanism t o def ense

against at t acks

Out line

• I nt roduct ion
• Design
• Evaluat ion
• St r engt hs & Weaknesses
• Ongoing Work

Ongoing Work

• Topologically-sensit ive CAN const ruct ion

– dist ribut ed binning

Dist ribut ed Binning

• Goal

– bin nodes such t hat co-locat ed nodes land in same bin

• I dea

– well known set of landmar k machines – each CAN node, measur es it s RTT t o each landmar k –

• r der s t he landmar ks in or der of incr easing RTT
• CAN const ruct ion

– place nodes f r om t he same bin close t oget her on t he CAN

Dist ribut ed Binning

– 4 Landmarks (placed at 5 hops away f rom each ot her) – naïve part it ioning

number of nodes

256 1K 4K

l a t e n c y S t r e t c h

5 10 15 20 256 1K 4K

• w/ o binning

w/ binning w/ o binning w/ binning

# dimensions=2 # dimensions=4

Ongoing Work (cont ’d)

• Topologically-sensit ive CAN const ruct ion

– dist ribut ed binning

• CAN Securit y (Pet ros Maniat is - St anf ord)

– spect rum of at t acks – appropriat e count er-measures

Ongoing Work (cont ’d)

• CAN Usage

– Applicat ion-level Mult icast (NGC 2001) – Grass-Root s Cont ent Dist ribut ion – Dist ribut ed Dat abases using CANs

(J .Heller st ein, S.Rat nasamy, S.Shenker , I .St oica, S.Zhuang)

Summary

• CAN

– an I nt ernet -scale hash t able – pot ent ial building block in I nt ernet applicat ions

• Scalabilit y

– O(d) per-node st at e

• Low-lat ency rout ing

– simple heurist ics help a lot

• Robust

– decent ralized, can rout e around t rouble
