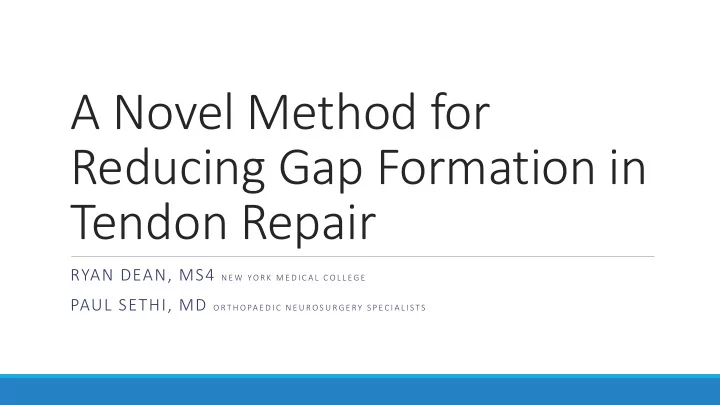

A Novel Method for Reducing Gap Formation in Tendon Repair

RYAN DEAN, MS4 N E W YO R K M E D I C A L C O L L E G E PAUL SETHI, MD O R T H O PA E D I C N E U R O S U R G E RY S P E C I A L I S T S

Gap Formation

Distance between repaired tendon and fixation point. Develops after repair is subjected to tension. Secure fixation between the tendon and bone is critical for clinical success of the tendon repair1,2. Early rehabilitation protocols are dependent on resistance to gap formation.1,2,3,4

Why Does Gap Formation Occur?

Understanding the mechanism to help facilitate innovation:

• Tendon Repair Technology
• Rehabilitation

Proposed Mechanisms: 1. Tear-Out 2. Material Elasticity 3. Slack

Understanding “Slack”

When tensioned, suture constricts the compressible tendon.

• Leads to extrusion of suture from tendon end
• Gap Formation Occurs
• Unavoidable with current techniques
• Not a result loose knot throws
• Gap remains after tension is released.

Designing for Slack Removal

Challenges in Removing Slack with Current Method: 1. Krackow is a Locking Stitch 2. Substantial Tension is Required for Slack Removal

• Currently Impractical in the OR

Traditional Krackow

Designing for Slack Removal

Tension-Assist Loop

1. Overcoming the Locking Design

• Tension applied from 2 directions
• More efficient tensioning

2. Appling Substantial Tension Safety

• “Suture-to-Suture” tensioning
• No longer “Suture-to-Patient”

Krackow with TAL

The Tension-Assist Loop Method

Apply Bi-Directional Tension 250 N (56 lbs) Stitch the TAL Krackow Slack Now Reduced

The Tension-Assist Loop Method

Cut Loop and Tie TAL Krackow Traditional Krackow

Methods – Comparison to Traditional Krackow

4 groups of 8 porcine tendons each:

• TAL Krackow: #2 FiberWire
• Traditional Krackow:

1. #2 FiberWire 2. FiberTape 3. LabralTape

Each group cyclically loaded to 200 N (45 lbs) 200 times Gap measured under tension of 200th load

Before Loading 200th Load Gap

Results

TAL Method resulted in 75% less gap formation compared to Krackow with same suture material.

• Additional studies show consistent results (>10

mm) with traditional Krackow with #2 FiberWire.4,6

• 5mm gap considered clinical failure.7
• Many consider the Krackow the gold standard. 4

Conclusions

The Tension-Assist Loop Method is one way to achieve less gap formation in the lab. Results suggest Slack a significant mechanism in gap formation. Identifying the significant mechanism may help facilitate future innovation in tendon repair. A handheld device may be feasible for application of TAL in the OR.

• Additional Leverage
