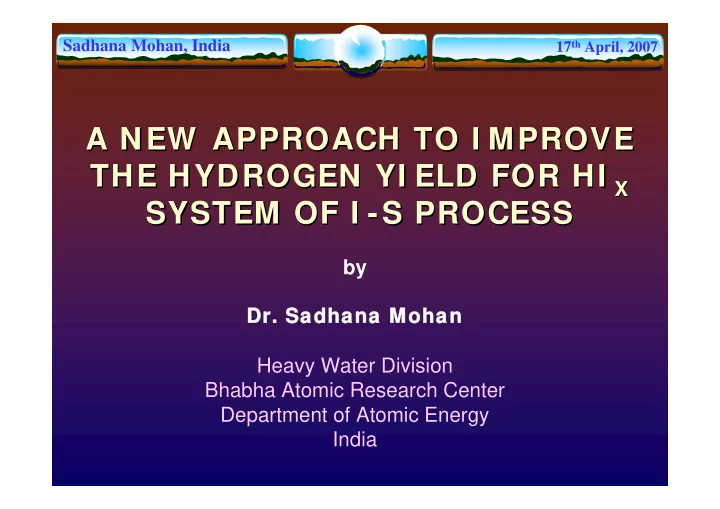

SLIDE 1 17th April, 2007
A NEW APPROACH TO I MPROVE A NEW APPROACH TO I MPROVE THE HYDROGEN YI ELD FOR HI THE HYDROGEN YI ELD FOR HI X
X
SYSTEM OF I SYSTEM OF I -
S PROCESS
by
- Dr. Sadhana Mohan
- Dr. Sadhana Mohan
Heavy Water Division Bhabha Atomic Research Center Department of Atomic Energy India
Sadhana Mohan, India
SLIDE 2 Sadhana Mohan, India
17th April, 2007
Objectives
- I ndia is planning to study the I -S process for
production of hydrogen in conjunction w ith high tem perature nuclear reactor. This requires optim ization of param eters for im proved efficiency.
- I -S process involves three m ajor steps
Bunsen reaction Sulfuric acid decom position Hydrogen production by HI X reactive distillation
SLIDE 3 Sadhana Mohan, India
17th April, 2007
Overview of I -S ( I odine-Sulfur) process
Overall efficiency of the process is dictated by individual Stage perform ance I m provem ent in the yield of hydrogen production by various design options of HI X system w ill lead to
- verall perform ance enhancem ent of I -S process
No conclusive design data from literature is available for HI X system All theoretical param etric estim ations are subjected to uncertainty due to lack of experim ental data
SLIDE 4 Sadhana Mohan, India
17th April, 2007
Com plexities involved in HI X system
HI X system is m ulti-com ponent, m ulti-phase system form ing hetro-azeotrope at norm al tem perature and pressure To have reasonable driving force for distillation High tem perature ( > 3 0 0 oC) and high pressure ( > 2 2 bar)
HI X System is highly corrosive at this tem perature thus sealing m aterial and system com ponent fabrication require special care Direct m easurem ent of equilibrium vapor and liquid com positions is an analytical challenge
SLIDE 5
Sadhana Mohan, India
17th April, 2007
Experience in reactive and distillation field
Experience gained in m ultiphase H 2-H 2O isotopic exchange is utilized w hile designing HI X system I n both the cases though overall reaction is betw een liquid and gas phase actual reaction takes place in the vapor phase alone and requires Pt/ Pd loaded catalyst Total isotopic transfer rate enhancem ent in liquid phase catalytic exchange m ode com pared to vapor phase catalytic exchange m ode is due to replenishm ent of gas phase reactant from liquid phase Catalyst gets poisoned w ith excessive liquid loading. I ntroduction of segregated bed addresses this problem and reduces HETP
SLIDE 6
Sadhana Mohan, India
17th April, 2007
Design basis of the study
Hydrogen is produced by direct decom position of HI in the gas phase Equilibrium tray concept is used for reactive as w ell as physical distillation stages based on standard free energy change Equilibrium yield is taken as the ratio of hydrogen production to feed HI content Equilibrium yield is estim ated by param etric variation having fixed re-boiler load NRTL three param eter m odel is taken for vapor-liquid equilibrium
SLIDE 7
Sadhana Mohan, India
17th April, 2007
Param etric study for equilibrium yield enhancem ent
Analysis of already published case studies Effect of the num ber of theoretical plates Effect of side stream location I nfluence of in-situ flushing of iodine from vapor phase I nfluence of scrubbed liquid recycling to replenish decom posed HI Colum n concentration profile in the absence of reaction
SLIDE 8 Reference Scheme for HI Reference Scheme for HIX
X Reactive Distillation
Reactive Distillation
237MJ/hr Col Pr. 22 bar No of plates 10
- Eq. Yield 7.9%
- Sat. Liq. feed
- Sat. side stream
as 60% of feed
Sadhana Mohan
17th April, 2007
5
5 8
λ = ~2500MJ/hr (for liq. Feed)
Feed plate (8) Feed plate (8) Reactive Plate (3) Plate (5) Side stream withdrawal Plate (5) Side stream withdrawal Reactive Plate (3) Ref.: ROTH M. et. al. Int. J. Hydrogen Energy. 1989
SLIDE 9
Sadhana Mohan, India
17th April, 2007
Analysis of m ost elaborate published schem e as Reference Schem e
This is the only published schem e depicting com plete colum n vapor-liquid com position profile Colum n pressure is based on driving force i.e. difference betw een the feed and azeotropic com position Azeotropic com position of HI decreases from 1 0 % to 1 % for iodine concentration of 3 9 % to 9 5 % Hydrogen production is significant only for iodine depleted vapors Stripping section plates of the colum n follow s azeotropic com positions corresponding to the iodine concentration
SLIDE 10
Sadhana Mohan, India
17th April, 2007
Problem s associated w ith the Reference Schem e
Overall and individual com ponent m aterial balance are not m atching I nternal reflux for the colum n is not clearly brought out Re-boiler load is insufficient for saturated liquid feed Based on this analysis Schem e-1 is proposed for sam e design objectives w ith m inor m odifications
SLIDE 11
Sadhana Mohan, India
17th April, 2007 Colum n has been split into tw o distinct sections w ith a partial Condenser in betw een W ater scrubber has been added to get Product hydrogen purity
Extension of reference scheme
SLIDE 12
Sadhana Mohan, India
17th April, 2007
Schem e-1 : Extension of Reference Schem e
Com m on features as of reference Schem e
Total num ber of plates and reaction zone plates are kept sam e Feed and side stream plate locations are unchanged Re-boiler load and Colum n operating pressure are sam e All feed and product stream s flow and com positions are unchanged Equilibrium hydrogen yield and product hydrogen purity is kept sam e
SLIDE 13 Sadhana Mohan, India
17th April, 2007
Modifications to reference Schem e
Feed quality is changed to saturated vapor as against saturated liquid Reference colum n is split into tw o colum ns to take care
- f internal reflux to m eet the design objectives
Scrubber is added to m eet the requirem ent of product hydrogen purity
SLIDE 14 Observations from schem e-1 analysis
Bottom product is enriched to m ore than 9 0 % of iodine by rem oving w ater content of the feed as side stream Rem oval of w ater as side stream from enrichm ent section
- f the colum n leads to significant loss of HI
I m provem ent in equilibrium yield is possible by shifting the side stream dow nw ards I n view of the above side stream plate location is shifted dow nw ards in Schem e-2 Sadhana Mohan, India
17th April, 2007
SLIDE 15
Sadhana Mohan, India
17th April, 2007 Side stream W ithdraw al plate location has been changed from condenser reflux to 2 nd plate from top
Effect of side stream position
SLIDE 16
Salient features of side stream location: Schem e-2
Except side stream location all design param eters are kept sam e Side stream w ithdraw al location has been changed from condenser reflux stream to 2 nd plate from the top I t reduces the HI content in the side stream w hich increases the total am ount of HI going to reactive distillation colum n This m odification led to increased yield of hydrogen in the product to 1 2 .5 % Sadhana Mohan, India
17th April, 2007
SLIDE 17
Observations from schem e-2 analysis
Dow nw ard shifting of side stream increases w ater and HI content going to the reactive distillation section for a given iodine enrichm ent Low er iodine concentration im proves equilibrium yield. Thus requires proper com bination of w ater and HI Scrubber w ater is directly added to reactive distillation section in schem e-3 to see the effect of iodine flushing. Sadhana Mohan, India
17th April, 2007
SLIDE 18
Sadhana Mohan, India
17th April, 2007 Separate w ater scrubber rem oved Scrubbing w ater added directly in the reactive distillation section
Effect of water on iodine flushing
SLIDE 19
Salient features of w ater flushing: Schem e-3
Separate w ater scrubber is rem oved from the system W ater is added as an additional reflux to the reactive distillation colum n This utilizes the scrubber w aste stream HI content available for the reaction This m odification led to increase in yield of hydrogen to 2 0 % Sadhana Mohan, India
17th April, 2007
SLIDE 20
Observations from schem e-3 analysis
I odine com position in the bottom product stream reduces due to additional w ater in the system Higher HI content in the reactive distillation stages results in better yield of hydrogen in product stream Based on this observations schem e-4 A is prepared to check the effect of high internal vapor-liquid flow rate Sadhana Mohan, India
17th April, 2007
SLIDE 21 10 9 8 7 6 5 4 3 2 1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
H2O HI I2 liquid phase mole fraction Column plate no. from condenser
10 9 8 7 6 5 4 3 2 1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
H2 H2O HI I2 Vapor phase mole fraction Column plate no. from condenser
Sadhana Mohan, India
17th April, 2007 Reactive distillation section clubbed directly w ith physical distillation section
Effect of high internal vapor-liquid flow rates
SLIDE 22
Salient features of high internal reflux: Schem e-4 A
Reactive and physical distillation colum ns are clubbed together so that the w hole colum n observes increased internal vapor and liquid flow rates HI recovered by scrubber w ater is utilized by recycling Scrubbing w ater flow is reduced This m odification led to increase in yield of hydrogen to 2 1 % Sadhana Mohan, India
17th April, 2007
SLIDE 23
Observations from schem e-4 A analysis
Hydrogen production rate is not only function of HI concentration in the vapor phase but also concentration of iodine & HI in the liquid phase Based on positive points of earlier schem es a new schem e is generated w ith the follow ing features
Higher internal vapor-liquid flow rates are m aintained I n place of separate side stream and bottom stream , a Single bottom product stream carrying low est HI content is rem oved from the system Scrubber w ater is recycled to recover HI Sadhana Mohan, India
17th April, 2007
SLIDE 24 HI x REACTI VE DI STI LLATI ON (STAGE I I I )
7 Feed at 9th stage 61 km ol/ hr H 7% water 48% HI 43% 4.16 km ol/ hr yield 33% 25 ° C 99.8% H 6 km ol/ hr water at 25 ° C 4.5 km ol/ hr H 91.8% Hl 8.2% Partial condenser 63 km ol/ hr 26.5 ° C water 56% Hl 42% l 2% 127.5 km ol/ hr 245 ° C water 55% HI 3.3% l 41.7%
(Total No. of Theoretical plates: 10) (Colum n pressure: 22 bar)
Catalyst Liquid Collector I nert packing Liquid Distributor Scrubber Condenser 25 ° C TO STAGE -I FROM STAGE -I Feed at & 22 bar 125.8 km ol/ hr water 51% HI 10% l2 39%
Pre heater Feed Evaporator 125 ° C 120 ° C
2
237 MJ/ hr 221 ° C
2
I 2%
2 2 2 2
10 9 8 7 6 5 4 3 2 1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
H2O HI I2 liquid phase mole fraction Column plate no. from condenser
10 9 8 7 6 5 4 3 2 1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
H2 H2O HI I2 Vapor phase mole fraction Plate no. from condenser
Sadhana Mohan, India
17th April, 2007 Proposed Scheme for HIX Reactive Distillation
Schem e-4
SLIDE 25 Sadhana Mohan, India
17th April, 2007
% yield of Hydrogen
Sum m ary
20 40 50
21.00 33.00 19.87 12.48 7.95
Hydrogen Yield with various Schemes
R A B D C
10 30
R Modified Reference Scheme A B C Effect of water scrubbing on iodine flushing Side stream withdrawal location shifted downwards Effect of high internal reflux D Proposed scheme
SLIDE 26 Sadhana Mohan, India
17th April, 2007
Conclusion
I n the absence of definite therm odynam ic m odel available in the literature hydrogen yield m ay vary from the actual one. How ever, relative gains in various schem es cannot be
- ignored. Nevertheless w e are initiating the efforts to conduct
experim ents and im prove the m odel to reduce the
- uncertainties. I t is concluded that increased hydrogen yield is
- btained at the cost of low er iodine enrichm ent. W e strongly
feel that efforts to im prove hydrogen yield are m ore desirable than iodine enrichm ent as iodine stream is any w ay going to m ix w ith aqueous stream before it enters the Bunsen reactor. I n the present study m ore focus is given to equilibrium yield. Total optim ization w ill require energy considerations also.
SLIDE 27
Sadhana Mohan, India
17th April, 2007
Thank You! Thank You!
