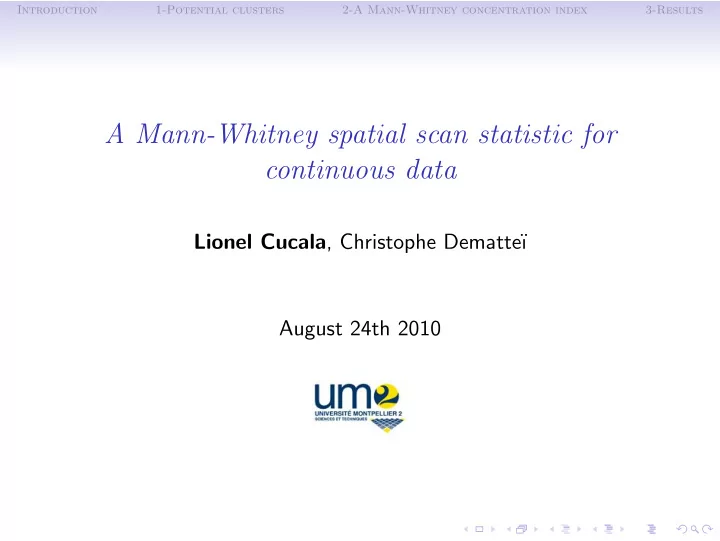

A Mann-Whitney spatial scan statistic for continuous data

Lionel Cucala, Christophe Dematte¨ ı August 24th 2010

slide-2
SLIDE 2

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-3
SLIDE 3

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-4
SLIDE 4

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

A data set to analyze

slide-5
SLIDE 5

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

A data set to analyze

2000 4000 6000 8000 10000 18000 20000 22000 24000 26000 long[1:339] lat[1:339]

slide-6
SLIDE 6

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

A data set to analyze

slide-7
SLIDE 7

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

A data set to analyze

➨ 339 dairy farms located in France.

slide-8
SLIDE 8

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

A data set to analyze

➨ 339 dairy farms located in France. ➨ Somatic individual score (indicator for a disease called mastitis).

slide-9
SLIDE 9

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

A data set to analyze

➨ 339 dairy farms located in France. ➨ Somatic individual score (indicator for a disease called mastitis). ➨ Marked point process : (Xi, Ci), i = 1, · · · , n where Xi ∈ A ⊂ Rd and Ci ∈ R.

slide-10
SLIDE 10

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-11
SLIDE 11

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Definition : Cluster= geographical area where the continuous variable is higher than outside.

slide-12
SLIDE 12

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Definition : Cluster= geographical area where the continuous variable is higher than outside. Question : Are there one or more clusters ? Where ?

slide-13
SLIDE 13

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

slide-14
SLIDE 14

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

➨ We attempt to reject H0 : (C1, · · · , CN) independent and identically distributed.

slide-15
SLIDE 15

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

➨ We attempt to reject H0 : (C1, · · · , CN) independent and identically distributed. ➨ Goals : detecting cluster(s) and testing the significance according to H0.

slide-16
SLIDE 16

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

➨ We attempt to reject H0 : (C1, · · · , CN) independent and identically distributed. ➨ Goals : detecting cluster(s) and testing the significance according to H0. Two steps :

slide-17
SLIDE 17

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

➨ We attempt to reject H0 : (C1, · · · , CN) independent and identically distributed. ➨ Goals : detecting cluster(s) and testing the significance according to H0. Two steps :

  • defining the set of potential clusters.
slide-18
SLIDE 18

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

➨ We attempt to reject H0 : (C1, · · · , CN) independent and identically distributed. ➨ Goals : detecting cluster(s) and testing the significance according to H0. Two steps :

  • defining the set of potential clusters.
  • choosing a concentration index.
slide-19
SLIDE 19

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

➨ We attempt to reject H0 : (C1, · · · , CN) independent and identically distributed. ➨ Goals : detecting cluster(s) and testing the significance according to H0. Two steps :

  • defining the set of potential clusters.
  • choosing a concentration index.

Statistic : maximal concentration among potential clusters.

slide-20
SLIDE 20

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The null hypothesis

➨ We attempt to reject H0 : (C1, · · · , CN) independent and identically distributed. ➨ Goals : detecting cluster(s) and testing the significance according to H0. Two steps :

  • defining the set of potential clusters.
  • choosing a concentration index.

Statistic : maximal concentration among potential clusters. Significance estimated by a Monte-Carlo procedure.

slide-21
SLIDE 21

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-22
SLIDE 22

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-23
SLIDE 23

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Fixed-shape potential clusters

slide-24
SLIDE 24

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Fixed-shape potential clusters

➨ Circles centered on one event, another event on the circumference.

slide-25
SLIDE 25

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Fixed-shape potential clusters

➨ Circles centered on one event, another event on the circumference. ➨ Elliptic clusters, with given orientation and shape (2D only).

slide-26
SLIDE 26

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-27
SLIDE 27

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

Graphs G(δ) associated to the point process :

slide-28
SLIDE 28

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

Graphs G(δ) associated to the point process : ➨ Vertices : {1, · · · , n}.

slide-29
SLIDE 29

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

Graphs G(δ) associated to the point process : ➨ Vertices : {1, · · · , n}. ➨ Edges : {(i, j) : d(xi, xj) ≤ δ, 1 ≤ i < n, i < j ≤ n}.

slide-30
SLIDE 30

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-31
SLIDE 31

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-32
SLIDE 32

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-33
SLIDE 33

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-34
SLIDE 34

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-35
SLIDE 35

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-36
SLIDE 36

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-37
SLIDE 37

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-38
SLIDE 38

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-39
SLIDE 39

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-40
SLIDE 40

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-41
SLIDE 41

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-42
SLIDE 42

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-43
SLIDE 43

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-44
SLIDE 44

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-45
SLIDE 45

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

−0.5 0.0 0.5 1.0 1.5 −1.0 −0.5 0.0 0.5 1.0 1.5 2.0 x y

slide-46
SLIDE 46

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

slide-47
SLIDE 47

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

➨ Connected component of the edge i in G(δ) : Ni(δ).

slide-48
SLIDE 48

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

➨ Connected component of the edge i in G(δ) : Ni(δ). ➨ Ai(δ) = {x ∈ A : ∃j ∈ Ni(δ), d(x, xj) ≤ δ}.

slide-49
SLIDE 49

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

➨ Connected component of the edge i in G(δ) : Ni(δ). ➨ Ai(δ) = {x ∈ A : ∃j ∈ Ni(δ), d(x, xj) ≤ δ}. ➨ Potential clusters : C= {Ai(δ) : 1 ≤ i ≤ n, δ ∈ R+}.

slide-50
SLIDE 50

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Data-based potential clusters

➨ Connected component of the edge i in G(δ) : Ni(δ). ➨ Ai(δ) = {x ∈ A : ∃j ∈ Ni(δ), d(x, xj) ≤ δ}. ➨ Potential clusters : C= {Ai(δ) : 1 ≤ i ≤ n, δ ∈ R+}. ➨ Only n − 1 areas, arbitrarily shaped.

slide-51
SLIDE 51

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-52
SLIDE 52

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-53
SLIDE 53

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Concentration indices

slide-54
SLIDE 54

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Concentration indices

We evaluate the concentration in Z ⊂ A.

slide-55
SLIDE 55

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Concentration indices

We evaluate the concentration in Z ⊂ A. ➨ n(Z) = ♯{i : Xi ∈ Z}.

slide-56
SLIDE 56

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Concentration indices

We evaluate the concentration in Z ⊂ A. ➨ n(Z) = ♯{i : Xi ∈ Z}. ➨ µ(Z) =

1 n(Z)

  • i:Xi∈Z Ci.
slide-57
SLIDE 57

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Concentration indices

We evaluate the concentration in Z ⊂ A. ➨ n(Z) = ♯{i : Xi ∈ Z}. ➨ µ(Z) =

1 n(Z)

  • i:Xi∈Z Ci.

➨ σ(Z)2 =

1 n(Z)

  • i:Xi∈Z
  • Ci − µ(Z)

2.

slide-58
SLIDE 58

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

slide-59
SLIDE 59

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

We test the presence of a cluster in Z ⊂ A.

slide-60
SLIDE 60

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

We test the presence of a cluster in Z ⊂ A. ➨ H0 : Ci ∼ f0.

slide-61
SLIDE 61

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

We test the presence of a cluster in Z ⊂ A. ➨ H0 : Ci ∼ f0. ➨ H1,Z : Ci|Xi ∼ fZ 1 1(Xi ∈ Z) + f¯

Z

1 1(Xi ∈ ¯ Z).

slide-62
SLIDE 62

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

We test the presence of a cluster in Z ⊂ A. ➨ H0 : Ci ∼ f0. ➨ H1,Z : Ci|Xi ∼ fZ 1 1(Xi ∈ Z) + f¯

Z

1 1(Xi ∈ ¯ Z). Likelihood ratio : I(Z) = L1,Z(X1, · · · , Xn, C1, · · · , Cn) L0(X1, · · · , Xn, C1, · · · , Cn) 1 1

  • µ(Z) > µ(¯

Z)

  • .
slide-63
SLIDE 63

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

slide-64
SLIDE 64

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The Exponential model

slide-65
SLIDE 65

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The Exponential model ➨ H0 : Ci ∼ E

  • 1/µ(A)
  • .
slide-66
SLIDE 66

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The Exponential model ➨ H0 : Ci ∼ E

  • 1/µ(A)
  • .

➨ H1,Z : Ci|Xi ∼ E(1/µ(Z)

  • 1

1(Xi ∈ Z) + E

  • 1/µ(¯

Z)

  • 1

1(Xi ∈ ¯ Z).

slide-67
SLIDE 67

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The Exponential model ➨ H0 : Ci ∼ E

  • 1/µ(A)
  • .

➨ H1,Z : Ci|Xi ∼ E(1/µ(Z)

  • 1

1(Xi ∈ Z) + E

  • 1/µ(¯

Z)

  • 1

1(Xi ∈ ¯ Z). Likelihood ratio : Iexp(Z) = −n(Z) log

  • µ(Z)
  • − n(¯

Z) log

  • µ(¯

Z)

  • .
slide-68
SLIDE 68

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

slide-69
SLIDE 69

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The homoscedastic Gaussian model

slide-70
SLIDE 70

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The homoscedastic Gaussian model ➨ H0 : Ci ∼ N

  • µ(A), σ(A)2

.

slide-71
SLIDE 71

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The homoscedastic Gaussian model ➨ H0 : Ci ∼ N

  • µ(A), σ(A)2

. ➨ H1,Z : Ci|Xi ∼ N

  • µ(Z), σ2

1,Z

  • 1

1(Xi ∈ Z) +N

  • µ(¯

Z), σ2

1,Z

  • 1

1(Xi ∈ ¯ Z)

slide-72
SLIDE 72

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The homoscedastic Gaussian model ➨ H0 : Ci ∼ N

  • µ(A), σ(A)2

. ➨ H1,Z : Ci|Xi ∼ N

  • µ(Z), σ2

1,Z

  • 1

1(Xi ∈ Z) +N

  • µ(¯

Z), σ2

1,Z

  • 1

1(Xi ∈ ¯ Z) where σ2

1,Z = n(Z)σ(Z)2+n(¯ Z)σ(¯ Z)2 n

.

slide-73
SLIDE 73

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The homoscedastic Gaussian model ➨ H0 : Ci ∼ N

  • µ(A), σ(A)2

. ➨ H1,Z : Ci|Xi ∼ N

  • µ(Z), σ2

1,Z

  • 1

1(Xi ∈ Z) +N

  • µ(¯

Z), σ2

1,Z

  • 1

1(Xi ∈ ¯ Z) where σ2

1,Z = n(Z)σ(Z)2+n(¯ Z)σ(¯ Z)2 n

. Likelihood ratio : Ihomgau(Z) = 1 σ2

1,Z

.

slide-74
SLIDE 74

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

slide-75
SLIDE 75

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The heteroscedastic Gaussian model

slide-76
SLIDE 76

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The heteroscedastic Gaussian model ➨ H0 : Ci ∼ N

  • µ(A), σ(A)2

.

slide-77
SLIDE 77

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The heteroscedastic Gaussian model ➨ H0 : Ci ∼ N

  • µ(A), σ(A)2

. ➨ H1,Z : Ci|Xi ∼ N

  • µ(Z), σ(Z)2

1 1(Xi ∈ Z) +N

  • µ(¯

Z), σ(¯ Z)2 1 1(Xi ∈ ¯ Z).

slide-78
SLIDE 78

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Likelihood-based indices

The heteroscedastic Gaussian model ➨ H0 : Ci ∼ N

  • µ(A), σ(A)2

. ➨ H1,Z : Ci|Xi ∼ N

  • µ(Z), σ(Z)2

1 1(Xi ∈ Z) +N

  • µ(¯

Z), σ(¯ Z)2 1 1(Xi ∈ ¯ Z). Likelihood ratio : Ihetgau(Z) = −n(Z) log

  • σ(Z)2

− n(¯ Z) log

  • σ(¯

Z)2 .

slide-79
SLIDE 79

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-80
SLIDE 80

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

No distribution assumption : Mann-Whitney test

slide-81
SLIDE 81

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

No distribution assumption : Mann-Whitney test ➨ Rj is the rank of Cj among the Ci, 1 ≤ i ≤ n.

slide-82
SLIDE 82

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

No distribution assumption : Mann-Whitney test ➨ Rj is the rank of Cj among the Ci, 1 ≤ i ≤ n. ➨ RS(Z) =

i:Xi∈Z Ri.

slide-83
SLIDE 83

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

No distribution assumption : Mann-Whitney test ➨ Rj is the rank of Cj among the Ci, 1 ≤ i ≤ n. ➨ RS(Z) =

i:Xi∈Z Ri.

➨ Under H0, E

  • RS(Z)
  • = M(Z) = n(Z)(n+1)

2

.

slide-84
SLIDE 84

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

No distribution assumption : Mann-Whitney test ➨ Rj is the rank of Cj among the Ci, 1 ≤ i ≤ n. ➨ RS(Z) =

i:Xi∈Z Ri.

➨ Under H0, E

  • RS(Z)
  • = M(Z) = n(Z)(n+1)

2

. ➨ Under H0, Var

  • RS(Z)
  • = V (Z) = n(Z)n(¯

Z)(n+1) 12

slide-85
SLIDE 85

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

No distribution assumption : Mann-Whitney test ➨ Rj is the rank of Cj among the Ci, 1 ≤ i ≤ n. ➨ RS(Z) =

i:Xi∈Z Ri.

➨ Under H0, E

  • RS(Z)
  • = M(Z) = n(Z)(n+1)

2

. ➨ Under H0, Var

  • RS(Z)
  • = V (Z) = n(Z)n(¯

Z)(n+1) 12

➨ Under H0, RS(Z)−M(Z) √

V (Z)

− →

d

N(0, 1).

slide-86
SLIDE 86

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

No distribution assumption : Mann-Whitney test ➨ Rj is the rank of Cj among the Ci, 1 ≤ i ≤ n. ➨ RS(Z) =

i:Xi∈Z Ri.

➨ Under H0, E

  • RS(Z)
  • = M(Z) = n(Z)(n+1)

2

. ➨ Under H0, Var

  • RS(Z)
  • = V (Z) = n(Z)n(¯

Z)(n+1) 12

➨ Under H0, RS(Z)−M(Z) √

V (Z)

− →

d

N(0, 1). Irank(Z) = RS(Z) − M(Z)

  • V (Z)

.

slide-87
SLIDE 87

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-88
SLIDE 88

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Outline

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

slide-89
SLIDE 89

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The farms data set

slide-90
SLIDE 90

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The farms data set

2000 4000 6000 8000 10000 18000 20000 22000 24000 26000 long[1:339] lat[1:339]

slide-91
SLIDE 91

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The farms data set

slide-92
SLIDE 92

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

The farms data set

2000 4000 6000 8000 10000 18000 20000 22000 24000 26000 long[1:339] lat[1:339]

slide-93
SLIDE 93

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

slide-94
SLIDE 94

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

Observation of a cubic part of the Universe : (20 Mpc)3 .

slide-95
SLIDE 95

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

Observation of a cubic part of the Universe : (20 Mpc)3 . 1 Mpc = 3 × 1022 metres .

slide-96
SLIDE 96

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

Observation of a cubic part of the Universe : (20 Mpc)3 . 1 Mpc = 3 × 1022 metres . ➨ Locations of the galaxies : X1, · · · , Xn.

slide-97
SLIDE 97

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

Observation of a cubic part of the Universe : (20 Mpc)3 . 1 Mpc = 3 × 1022 metres . ➨ Locations of the galaxies : X1, · · · , Xn. ➨ Light intensities : C1, · · · , Cn.

slide-98
SLIDE 98

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

Observation of a cubic part of the Universe : (20 Mpc)3 . 1 Mpc = 3 × 1022 metres . ➨ Locations of the galaxies : X1, · · · , Xn. ➨ Light intensities : C1, · · · , Cn. Goal : detecting areas where galaxies are ”redder”.

slide-99
SLIDE 99

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Light intensities

slide-100
SLIDE 100

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Light intensities

Color Frequency 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 50 100 150

slide-101
SLIDE 101

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

slide-102
SLIDE 102

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Astronomical data

z x y

slide-103
SLIDE 103

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Conclusion

slide-104
SLIDE 104

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Conclusion

➨ Graph-based possible clusters, useful in 3D or for multidimensional data.

slide-105
SLIDE 105

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Conclusion

➨ Graph-based possible clusters, useful in 3D or for multidimensional data. ➨ The MW concentration index is hypothesis-free.

slide-106
SLIDE 106

Introduction 1-Potential clusters 2-A Mann-Whitney concentration index 3-Results

Conclusion

➨ Graph-based possible clusters, useful in 3D or for multidimensional data. ➨ The MW concentration index is hypothesis-free. ➨ Simulation study to compare concentration indices.
