counting fish mixing properties A little bit more about ergodicity Jana Rodriguez Hertz ICTP 2018 counting fish mixing properties mark and recapture method mark and recapture method mark and recapture counting fish mixing properties

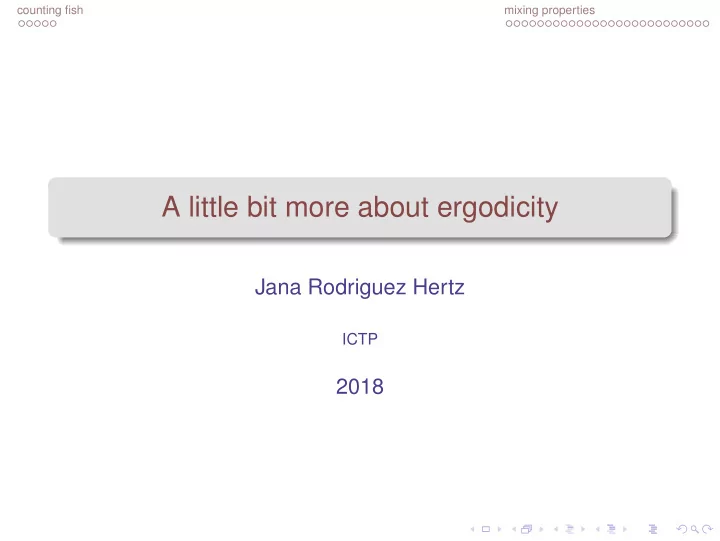

slide-1
SLIDE 1

counting fish mixing properties

A little bit more about ergodicity

Jana Rodriguez Hertz

ICTP

2018

slide-2
SLIDE 2

counting fish mixing properties mark and recapture method

mark and recapture method

mark and recapture

slide-3
SLIDE 3

counting fish mixing properties mark and recapture method

mark and recapture method

mark and recapture ↓

slide-4
SLIDE 4

counting fish mixing properties mark and recapture method

mark and recapture method

mark and recapture ↓ ecology

slide-5
SLIDE 5

counting fish mixing properties mark and recapture method

mark and recapture method

mark and recapture ↓ ecology epidemiology

slide-6
SLIDE 6

counting fish mixing properties mark and recapture method

mark and recapture method

mark and recapture ↓ ecology epidemiology ↓

slide-7
SLIDE 7

counting fish mixing properties mark and recapture method

mark and recapture method

mark and recapture ↓ ecology epidemiology ↓ estimate populations

slide-8
SLIDE 8

counting fish mixing properties mark and recapture method

counting fish

slide-9
SLIDE 9

counting fish mixing properties mark and recapture method

counting fish

procedure

slide-10
SLIDE 10

counting fish mixing properties mark and recapture method

counting fish

procedure

capture 1000 fishes

slide-11
SLIDE 11

counting fish mixing properties mark and recapture method

counting fish

procedure

capture 1000 fishes tag them

slide-12
SLIDE 12

counting fish mixing properties mark and recapture method

counting fish

procedure

capture 1000 fishes tag them release them

slide-13
SLIDE 13

counting fish mixing properties mark and recapture method

counting fish

slide-14
SLIDE 14

counting fish mixing properties mark and recapture method

counting fish

procedure

let them get mixed

slide-15
SLIDE 15

counting fish mixing properties mark and recapture method

counting fish

procedure

let them get mixed

slide-16
SLIDE 16

counting fish mixing properties mark and recapture method

counting fish

procedure

let them get mixed

slide-17
SLIDE 17

counting fish mixing properties mark and recapture method

counting fish

procedure

let them get mixed recapture

slide-18
SLIDE 18

counting fish mixing properties mark and recapture method

estimate

recaptured sample

recaptured fish

slide-19
SLIDE 19

counting fish mixing properties mark and recapture method

estimate

recaptured sample

recaptured fish

tagged

slide-20
SLIDE 20

counting fish mixing properties mark and recapture method

estimate

recaptured sample

1000

tagged

slide-21
SLIDE 21

counting fish mixing properties mark and recapture method

estimate

recaptured sample

1000 10

slide-22
SLIDE 22

counting fish mixing properties mark and recapture method

estimate

recaptured sample

100% 1%

slide-23
SLIDE 23

counting fish mixing properties mark and recapture method

estimate

recaptured sample

100% 1%

estimated population

100% 1%

slide-24
SLIDE 24

counting fish mixing properties mark and recapture method

estimate

recaptured sample

1000 10

estimated population

100% 1%

slide-25
SLIDE 25

counting fish mixing properties mark and recapture method

estimate

recaptured sample

1000 10

estimated population

100% 1% initial sample

slide-26
SLIDE 26

counting fish mixing properties mark and recapture method

estimate

recaptured sample

1000 10

estimated population

100% initial sample

1000

slide-27
SLIDE 27

counting fish mixing properties mark and recapture method

estimate

recaptured sample

1000 10

estimated population

100,000 initial sample

1000

slide-28
SLIDE 28

counting fish mixing properties implicit hypotheses

assumptions

implicit hypotheses

fish amount or measure is not altered

slide-29
SLIDE 29

counting fish mixing properties implicit hypotheses

assumptions

implicit hypotheses

fish amount or measure is not altered tagged fish move around the lake and come back

slide-30
SLIDE 30

counting fish mixing properties implicit hypotheses

assumptions

implicit hypotheses

fish amount or measure is not altered tagged fish move around the lake and come back tagged and non-tagged fish get well mixed

slide-31
SLIDE 31

counting fish mixing properties possible failure 1

possible failure 1

possibility 1

slide-32
SLIDE 32

counting fish mixing properties possible failure 1

estimate

recaptured sample

slide-33
SLIDE 33

counting fish mixing properties possible failure 1

estimate

recaptured sample

slide-34
SLIDE 34

counting fish mixing properties possible failure 1

estimate

recaptured sample

slide-35
SLIDE 35

counting fish mixing properties possible failure 1

estimate

recaptured sample

slide-36
SLIDE 36

counting fish mixing properties possible failure 1

estimate

recaptured sample

slide-37
SLIDE 37

counting fish mixing properties possible failure 1

estimate

recaptured sample

slide-38
SLIDE 38

counting fish mixing properties possible failure 1

estimate

recaptured sample estimated population?

? 1000

slide-39
SLIDE 39

counting fish mixing properties possible failure 1

preservation of the measure

measure preserving process

f : L → L process where

slide-40
SLIDE 40

counting fish mixing properties possible failure 1

preservation of the measure

measure preserving process

f : L → L process where for any sample A ⊂ L

slide-41
SLIDE 41

counting fish mixing properties possible failure 1

preservation of the measure

measure preserving process

f : L → L process where for any sample A ⊂ L we have m(f(A)) = m(A)

slide-42
SLIDE 42

counting fish mixing properties possible failure 2

possible failure 2

possibility 2

slide-43
SLIDE 43

counting fish mixing properties possible failure 2

possible failure 2 - trace

possibility 2 - trace

slide-44
SLIDE 44

counting fish mixing properties possible failure 2

possibility 2

recaptured sample

slide-45
SLIDE 45

counting fish mixing properties possible failure 2

possibility 2

recaptured sample

slide-46
SLIDE 46

counting fish mixing properties possible failure 2

possibility 2

recaptured sample

slide-47
SLIDE 47

counting fish mixing properties possible failure 2

possibility 2

recaptured sample

slide-48
SLIDE 48

counting fish mixing properties possible failure 2

possibility 2

recaptured sample

slide-49
SLIDE 49

counting fish mixing properties possible failure 2

possibility 2

recaptured sample

slide-50
SLIDE 50

counting fish mixing properties possible failure 2

possibility 2

recaptured sample estimated population

1000 ?

slide-51
SLIDE 51

counting fish mixing properties possible failure 3

possibility 3

possibility 3

slide-52
SLIDE 52

counting fish mixing properties possible failure 3

possibility 3

possibility 3 - trace

slide-53
SLIDE 53

counting fish mixing properties possible failure 3

estimate

recaptured sample

slide-54
SLIDE 54

counting fish mixing properties possible failure 3

estimate

recaptured sample

slide-55
SLIDE 55

counting fish mixing properties possible failure 3

estimate

recaptured sample

slide-56
SLIDE 56

counting fish mixing properties possible failure 3

estimate

recaptured sample

slide-57
SLIDE 57

counting fish mixing properties possible failure 3

estimate

recaptured sample

slide-58
SLIDE 58

counting fish mixing properties possible failure 3

estimate

recaptured sample estimated population

1000

?

slide-59
SLIDE 59

counting fish mixing properties mixing lake population

possibility 4

possibility 4

slide-60
SLIDE 60

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample

slide-61
SLIDE 61

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample

slide-62
SLIDE 62

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample

slide-63
SLIDE 63

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample

slide-64
SLIDE 64

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample

slide-65
SLIDE 65

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample estimated population

1%

100%

slide-66
SLIDE 66

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample estimated population

1000

100%

slide-67
SLIDE 67

counting fish mixing properties mixing lake population

estimate - mixing situation

recaptured sample estimated population

1000

100,000

slide-68
SLIDE 68

counting fish mixing properties mixing lake population

mixing property

mixing property

f : L → L is mixing

slide-69
SLIDE 69

counting fish mixing properties mixing lake population

mixing property

mixing property

f : L → L is mixing if every pair of samples A, B ⊂ L satisfy

slide-70
SLIDE 70

counting fish mixing properties mixing lake population

mixing property

mixing property

f : L → L is mixing if every pair of samples A, B ⊂ L satisfy m(A ∩ f n(B)) → m(A)m(B)

slide-71
SLIDE 71

counting fish mixing properties mixing lake population

mixing property

in our context

if the lake population is mixing

slide-72
SLIDE 72

counting fish mixing properties mixing lake population

mixing property

in our context

if the lake population is mixing A ⊂ L initial sample

slide-73
SLIDE 73

counting fish mixing properties mixing lake population

mixing property

in our context

if the lake population is mixing A ⊂ L initial sample m(A ∩ f n(A)) m(A)

slide-74
SLIDE 74

counting fish mixing properties mixing lake population

mixing property

in our context

if the lake population is mixing A ⊂ L initial sample m(A ∩ f n(A)) m(A) → m(A)

slide-75
SLIDE 75

counting fish mixing properties mixing lake population

mixing property

mixing property

slide-76
SLIDE 76

counting fish mixing properties mixing lake population

mixing property

mixing property ⇓ mark and recapture method works

slide-77
SLIDE 77

counting fish mixing properties mixing lake population

mixing property

NO mixing property ? mark and recapture method works

slide-78
SLIDE 78

counting fish mixing properties ergodicity

possibility 3

possibility 3

slide-79
SLIDE 79

counting fish mixing properties ergodicity

possibility 3

possibility 3 - trace

slide-80
SLIDE 80

counting fish mixing properties ergodicity

estimate

recaptured sample

slide-81
SLIDE 81

counting fish mixing properties ergodicity

estimate

recaptured sample

slide-82
SLIDE 82

counting fish mixing properties ergodicity

estimate

recaptured sample

slide-83
SLIDE 83

counting fish mixing properties ergodicity

estimate

recaptured sample

slide-84
SLIDE 84

counting fish mixing properties ergodicity

estimate

recaptured sample

slide-85
SLIDE 85

counting fish mixing properties ergodicity

estimate

recaptured sample estimated population

1000

?

slide-86
SLIDE 86

counting fish mixing properties ergodicity

possibility 3

in this example

∃ lim m(A ∩ f n(A)) m(A)

slide-87
SLIDE 87

counting fish mixing properties ergodicity

possibility 3

in this example

∃ lim m(A ∩ f n(A)) m(A)

what about this:

1 N

N−1

  • n=0

m(A ∩ f n(A)) m(A) → ?

slide-88
SLIDE 88

counting fish mixing properties ergodicity

ergodicity

ergodicity (exercise)

f : L → L is ergoodic

slide-89
SLIDE 89

counting fish mixing properties ergodicity

ergodicity

ergodicity (exercise)

f : L → L is ergoodic if every pair of samples A, B ⊂ L satisfy

slide-90
SLIDE 90

counting fish mixing properties ergodicity

ergodicity

ergodicity (exercise)

f : L → L is ergoodic if every pair of samples A, B ⊂ L satisfy 1 N

N−1

  • n=0

m(A ∩ f n(B)) → m(A)m(B)

slide-91
SLIDE 91

counting fish mixing properties ergodicity

ergodic property

in our context

if the lake population is ergodic

slide-92
SLIDE 92

counting fish mixing properties ergodicity

ergodic property

in our context

if the lake population is ergodic A ⊂ L initial sample

slide-93
SLIDE 93

counting fish mixing properties ergodicity

ergodic property

in our context

if the lake population is ergodic A ⊂ L initial sample 1 N

N−1

  • n=0

m(A ∩ f n(A)) m(A)

slide-94
SLIDE 94

counting fish mixing properties ergodicity

ergodic property

in our context

if the lake population is ergodic A ⊂ L initial sample 1 N

N−1

  • n=0

m(A ∩ f n(A)) m(A) → m(A)

slide-95
SLIDE 95

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-96
SLIDE 96

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-97
SLIDE 97

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-98
SLIDE 98

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-99
SLIDE 99

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-100
SLIDE 100

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-101
SLIDE 101

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-102
SLIDE 102

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-103
SLIDE 103

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-104
SLIDE 104

counting fish mixing properties ergodicity

1 N

N−1

n=0 m(A∩f n(A)) m(A)

→ m(A)

slide-105
SLIDE 105

counting fish mixing properties ergodicity

exercise

exercise

slide-106
SLIDE 106

counting fish mixing properties ergodicity

exercise

exercise

show that f ergodic ⇔

slide-107
SLIDE 107

counting fish mixing properties ergodicity

exercise

exercise

show that f ergodic ⇔ m  

n≥0

f n(A)   = 1 ∀A s.t. m(A) > 0

slide-108
SLIDE 108

counting fish mixing properties stable ergodicity

fragility of ergodicity

irrational traslation on T2

slide-109
SLIDE 109

counting fish mixing properties stable ergodicity

fragility of ergodicity

rational traslation on T2

slide-110
SLIDE 110

counting fish mixing properties stable ergodicity

stable ergodicity

stable ergodicity

slide-111
SLIDE 111

counting fish mixing properties stable ergodicity

stable ergodicity

stable ergodicity

f is stably ergodic

slide-112
SLIDE 112

counting fish mixing properties stable ergodicity

stable ergodicity

stable ergodicity

f is stably ergodic if g ∼ f ⇒ g ergodic

slide-113
SLIDE 113

counting fish mixing properties stable ergodicity

  • pen problem
  • pen problem

stably ergodic ⇒ mixing ?

slide-114
SLIDE 114

counting fish mixing properties stable ergodicity

thank you

slide-115
SLIDE 115

counting fish mixing properties stable ergodicity

thank you

thank you!
