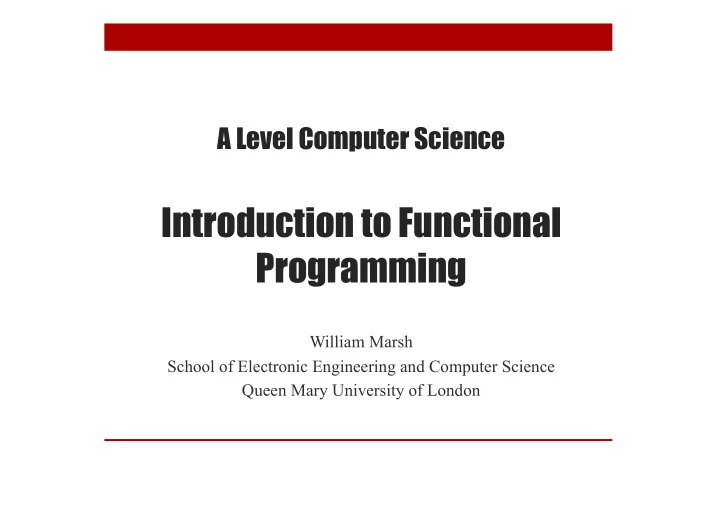

A Level Computer Science

Introduction to Functional Programming

William Marsh School of Electronic Engineering and Computer Science Queen Mary University of London

Aims and Claims

• Flavour of Functional Programming
• …. how it differs from Imperative Programming

(e.g. Python)

• Claim that:
• It is possible to program using functions
• It is useful!
• Better understanding of programming

I hope this is convincing Only simple examples

How This Session Works

• 1. Talk
• 2. Do
• 3. Reflect
• 4. Repeat
• 5. …
• 6. Stop when times up – summarise

Outline

FP Topics

• A first functions
• Composing function
• Lists
• If time (probably not)
• Recursion
• Map, Filter and Fold

Reflections

• Expressions, statements

and variables

• Sequence versus

composition

• How functions work
• Recursion and loops
• The best language

Challenge problems

Functional Languages?

• Many programming languages now have

functional features

1958

First Function

bigger a b = if a > b then a else b

Function name

A Simple Function

• This function gives the larger of two numbers

Argument Is defined as …

Layout

• Like Python, Haskell is layout sensitive
• The following all work

bigger a b = if a > b then a else b bigger a b = if a > b then a else b

Getting Started with WinGHCi

• WinGHCi is a shell
• Use functions interactively
• Use a text editor to edit the program
• Notepad++ is better than notepad if you have it

Practical break

Refection 1: Expressions, Statements and Variables

Expressions and Statement

• Expression à value
• Statement à command
• Python: statements and expressions
• Haskell: only expressions

The Assignment Statement

• The most important statement:
• Update the memory location ‘x’ with its current

value plus 1

• ‘x’ is a variable

x = x + 1 # This is python Haskell has no statements

• No assignment
• No variables

Is it possible to program without variables? Python program is a sequence

• f assignments
• Function may assign, so …
• Expressions are not just

values

No Variables?

• My Haskell program seems to have variables
• ‘a’ and ‘b’ a names for values
• Not memory locations

bigger a b = if a > b then a else b

Functions

Maths (and Haskell)

• Result of a function

depends only on its arguments

• Calling a function does

not change anything

• Calling a function with

the same arguments always gives the same result

Python

• Result of a function may

depend on other variables

• Calling a function may

change variables

• Calling a function a

second time with the same arguments may give a different result

Function Composition

Composing Functions

• One way to write bigger3

bigger3 a b c = bigger (bigger a b) c

Pass results to …

Composing Functions

• Given a functions
• Predict the results of

double a = 2 * a square a = a * a > double (double 5) > double (square 3) > square (double 3)

Composing Functions – Example

• Surface area of a cylinder

circleArea r = pi * r * r circleCircum r = 2 * pi * r rectArea l h = l * h cylinderArea r h = 2 * circleArea r + rectArea (circleCircum r) h

Practical break

Refection 2: Sequence versus Composition

Python’s Invisible Statement

• Sequence of assignments
• Next statements on a new line
• Many languages: S1 ; S2

x = x + 1 # This is python y = x * 2 x = 12

… then … then

Haskell’s Invisible Operator

• Function application

circleArea r = pi * r * r circleCircum r = 2 * pi * r rectArea l h = l * h cylinderArea r h = 2 * circleArea r + rectArea (circleCircum r) h

apply apply apply apply apply apply

Decomposition

Python

• Sequence of statements
• … with names (functions)
• Order of memory updates

Haskell

• Expressions
• … with names (functions)
• Argument and results

Functional composition ≠ sequencing of statements

Python’s Other Invisible Operator

• Function call (application)

def circleArea(r): return math.pi * r * r def circleCircum(r): return 2 * math.pi * r def rectArea(l, h): return l * h def cylinderArea(r, h): return 2 * circleArea(r) + \ rectArea(circleCircum(r), h)

call call call call call

Recursion

Recursion

• Can the definition of a function use the

function being defined?

• This is known as recursion
• It can if
• There is a non-recursive base case
• Each recursive call is nearer the base case

Recursion – Example

• A triangle number

counts the number of dots in an equilateral triangle (see picture)

• We can define by:

trigNum 1 = 1 trigNum n = n + trigNum (n-1)

Base case Recursive; smaller n

Patterns

• The argument can match a pattern
• Equivalent to:

trigNum 1 = 1 trigNum n = n + trigNum (n-1) trigNum n | n == 1 = 1 | otherwise = n + trigNum (n-1)

Pattern

Practical break

Refection 3: How Functions Work

Comparison with dry running a Python program

Example Python Program

• Variables are:
• mark
• total
• min
• average
• grade

# Enter two marks # Save minimum mark = int(input("Mark 1 > ")) total = mark min = mark

• mark = int(input("Mark 2 > "))

if mark < min: min = mark total = total + mark

• # Calculate average

average = total / 2

• # Calculate grade

if min < 30 or average < 50: grade = "fail" else: grade = "pass"

Dry Running a Program

• Table has column for each variable
• Row for each step

Step Variable mark total min average grade 1 35 2 35 3 35 4 45 5 80 6 40 7 fail

Memory Sequence

Rewriting (Reduction)

• Replace each call to a function by its definition
• Replace arguments by expressions

trigNum 1 = 1 trigNum n = n + trigNum (n-1)

trigNum 3 = 3 + trigNum 2 = 3 + 2 + trigNum 1 = 3 + 2 + 1 = 6

Lists

Lists in Haskell

• Haskell has lists … similar to Python
• LISP
• First functional language
• ‘List processing’
• Example: [1, 2, 3]
• Equivalent to:

1 : 2 : 3 : []

Cons Empty list

Useful List Functions

Function Description Example elem Member of list Main> elem 4 [1,2,3,4,5] True Main> elem 4 [1,3,5] False head First element of list Main> head [2,4,6,8] 2 tail List without first element Main> tail [3,5,7,9] [5,7,9] ++ Concatenate two lists Main> [1,2,3] ++ [7,9] [1,2,3,7,9]

Ranges

• Similar to Python

[1 .. 10]

First Last

List Recursion

• Many functions on lists are defined recursively
• Base case: empty list
• Recursive case: apply to tail of list
• - length of a list

len [] = 0 len (x:xs) = 1 + len xs

Recursive call Base case Pattern

• empty

Pattern – not empty

Practical break

Refection 4: Recursion and Loops

How to do without loops

Recursion and Loops

Python

• While and for statements
• Preferred
• Recursion available
• Some overheads

Haskell

• No loops!
• No statements
• Recursion preferred
• Elegant syntax

Iteration & recursion equally expressive

forLoop 0 _ x = x forLoop n f x = forLoop (n-1) f (f n x) sumup n = forLoop n (+) 0

Control value Result so far Function in loop

Map, Filter and Fold

• Functions that abstract common ways of

processing a list

• Called ‘recursive functions’

Two Similar Functions

• Two functions that create a new list from an old one
• The new list is the same length
• Each new element is derived from the corresponding old

element

• - Add 1 to each entry is a list

addOne [] = [] addOne (x:xs) = x+1:addOne xs

• - Square each entry in a list

square [] = [] square (x:xs) = x*x:square xs

Using Map

• A function to apply a function to each element in

a list

inc x = x + 1

• - Add 1 to each entry is a list

addOne ls = map inc ls square x = x * x

• - Square each entry in a list

squares xs = map square xs Function as argument. Map is ‘higher-order’

How is Map Defined?

• Recursive definition of map

map f [] = [] map f x:xs = f x : map f xs map inc [1,2,3] = inc 1 : map inc [2,3] = inc 1 : inc 2 : map inc [3] = inc 1 : inc 2 : inc 3 : map inc [] = inc 1 : inc 2 : inc 3 : [] = [2, 3, 4]

Fold – Reducing a list

• Combine the elements of a list
• - length of a list

len [] = 0 len (x:xs) = 1 + len xs

• - sum of a list

addUp [] = 0 addUp (x:xs) = x + addUp xs

Using Fold – Reducing a list

• Combine the elements of a list

count x y = y + 1

• - length of a list

len xs = foldr count 0 xs add x y = x + y

• - sum of a list

addUp xs = foldr add 0 xs

How is Foldr Defined?

• Recursive definition of foldr

foldr f a [] = a foldr f a x:xs = f x (foldr f a xs) foldr add 0 [1,2,3] = add 1 (foldr add 0 [2,3]) = add 1 (add 2 (foldr add 0 [3])) = add 1 (add 2 (add 3 (foldr add 0 []))) = add 1 (add 2 (add 3 0)) = add 1 (add 2 3) = add 1 5 = 6

Filter

• Select items from a list

moreThan a b = b > a Main> filter (moreThan 3) [3,2,5,1,7,8] [5,7,8]

Predicate

Map, Foldr, Filter – Summary

• These are called recursive operators
• Patterns of recursion
• foldr is more general – it can be used to define

the other two Function Description map Apply function to each list element filter Select elements satisfying a predicate foldr Combine elements using a function Often called reduce

Google Map Reduce

• Very large datasets can be processed using

the Map Reduce framework

• Divide the list of input
• Map function to each list (separate computers)
• Reduce list of results (from the separate

computers) map and reduce (fold) available in many languages

Refection 5: The Best Language?

Programming Language

• Between machine and users
• More abstract
• Haskell is ‘declarative’
• No explicit memory locations
• Performance: requires a good compiler

Machine User

C Java Haskell

Functional Programming in Practice

• Functional languages
• LISP – the original one
• Haskell
• Scala – compiles to JVM
• F♯ – compiles to .NET
• Influences
• Java, Python, C♯
• Python has versions of map and fold (reduce)

Summary

… and teaching FP

Functional Programming

We Have Covered

• Programming with

expressions

• No statements
• No assignment à no

variables

• No sequence à no loops
• Composition of functions
• Possible and practical
• Programs can be shorter
• Map and fold

.. More Ideas

• Map and fold
• List comprehension
• Anonymous functions –

lambda

• Types
• Numbers issue
• Polymorphism
• Input and output

Teaching FP

• Practical skill?
• … is there knowledge otherwise?
• No types
• Focus seems to be on:
• Function definition
• … using recursion
• Program execution by rewriting

Is using FP to reflect on Imperative programming useful?
