A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Delano M. Beder 1 o Ueyama 2 Marcos L. Chaim 2 J 1 Federal University of S ao


slide-1
SLIDE 1

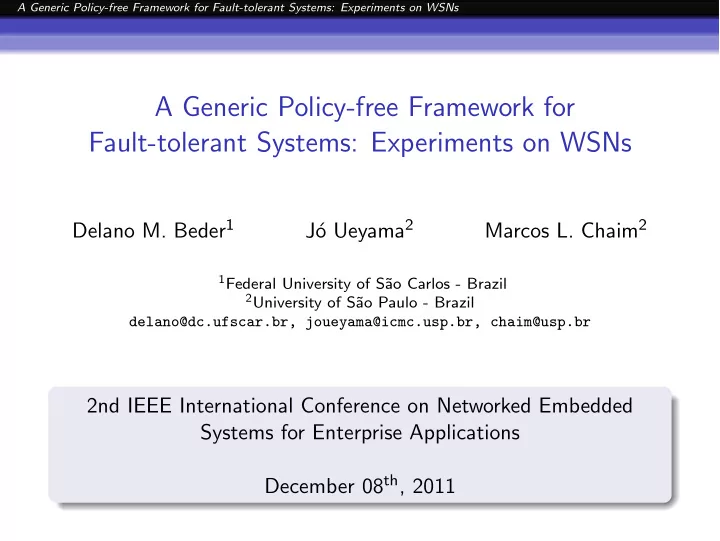

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs

Delano M. Beder1 J´

  • Ueyama2

Marcos L. Chaim2

1Federal University of S˜

ao Carlos - Brazil

2University of S˜

ao Paulo - Brazil delano@dc.ufscar.br, joueyama@icmc.usp.br, chaim@usp.br

2nd IEEE International Conference on Networked Embedded Systems for Enterprise Applications December 08th, 2011

slide-2
SLIDE 2

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs

Outline

1

Motivation

2

FlexFT approach

3

Case Study: Design Diversity

4

FlexFT Framework

5

Concluding remarks

slide-3
SLIDE 3

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Motivation

Motivation

Fault-tolerant systems are expected to run in a variety of devices ranging from standard PCs to embedded devices. The emergence of new software technologies has required these applications to meet the needs of heterogeneous software plat- forms. However, the existing approaches to build fault-tolerant sys- tems are often targeted at a particular platform and software technology.

slide-4
SLIDE 4

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Motivation

Motivation: Heterogeneity

We are concerned with examining two types of heterogeneity: Device heterogeneity. Fault-tolerant systems are often de- ployed on a heterogeneous device which can range from PCs to embedded devices. This heterogeneity is expected to be- come significantly worse with the emergence of new hardware platforms. Software language/middleware heterogeneity. There are now a large number of fault-tolerant policies each of which re- quires a particular procedure and strategy. They are normally based on a heterogeneous programming languages and technol-

  • gy (e.g. publish-subscribe systems, Web service applications,

tuple spaces, message-oriented toolkits).

slide-5
SLIDE 5

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs FlexFT approach

FlexFT approach

A generic tool for constructing reliable systems that can deal with both hardware and software heterogeneity; it consists of a minimal policy-free microkernel where fault tolerance policies are incremented as demanded. The policy is deployed in the form of component plugins, which are destroyed when no longer required.

slide-6
SLIDE 6

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs FlexFT approach

FlexFT research challenges

FlexFT

Java component Pub−Subscribe

... ... ...

Multithreaded component binding applications based on a variety of technologies

based on a variety of technologies unique tool for building applications FlexFT −

developer

slide-7
SLIDE 7

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs FlexFT approach

FlexFT research challenges

applications in multiple devices unique tool for building

... ...

heterogeneous environments mobile phones PDAs sensors etc.

FlexFT − FlexFT developer

slide-8
SLIDE 8

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs FlexFT approach

FlexFT benefits

  • Flexibility. Fault-tolerant systems can be developed and de-

ployed independently of target platforms. The kernel can plugin the targeted platforms implementation of a particular abstrac- tion or behaviour. Reusability/modularity. The developers can reuse existing components and processes employed for particular platforms. Skill transference. The employment of different technologies to build applications for each target device and applicability does not allow transfer of skills across different tools. Technology independent. FlexFT allows heterogeneous com- ponents to be reconfigured e.g. both COM and Java compo- nents.

slide-9
SLIDE 9

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs FlexFT approach

FlexFT Architecture

Reliable Component−based System Fault−Tolerant CFs Component run−time kernel Deployment enviroment (hardware and/or software)

FlexFT

slide-10
SLIDE 10

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Case Study: Design Diversity

Design Diversity

The construction of reliable systems is not a simple task; it requires the use of appropriate techniques during the whole software development cycle. In general, these techniques are based on the provision of redundancy (i.e. to make use of design diversity), both for error detection and error recovery. Design diversity means that multiple functionally equivalent software components are independently generated from the same initial specification. Two or more versions of the software com- ponent are independently developed from this specification, each by a group that does not interact with the others and, whenever possible, employs different algorithms.

slide-11
SLIDE 11

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Case Study: Design Diversity

FlexFT Reliable Component

slide-12
SLIDE 12

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Case Study: Design Diversity

FlexFT Reliable Component

The Variant components consist of variants (multiple func- tionally equivalent software components that are independently generated from the same initial specifications). The component ReliableComponent is a controller that is re- sponsible for coordinating the execution of the variants and invoking the inherent operations (acceptance test, adjudication and so on) of different design diversity techniques. The Binding mechanism connects both the provided and re- quired interfaces. It is worth pointing out that the granularity

  • f this connection is N provided interfaces (IReliable) to 1

required interface (IVariant).

slide-13
SLIDE 13

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Case Study: Design Diversity

N-Version Programming

In an N-version software system, each module is formed of up to N different implementations. Each variant accomplishes the same task, but it is hoped in a different way. Each version then submits its answer to a voter or decider which determines the correct answer (for example, the majority) and returns this as the result of the N-Version component system.

slide-14
SLIDE 14

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Case Study: Design Diversity

N-Version Programming: FlexFT Realization

slide-15
SLIDE 15

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Case Study: Design Diversity

Recovery Blocks

In a system with Recovery Blocks, the system view is broken down into fault recoverable blocks/modules (i.e. reliable system components). For each critical system component should be independently de- veloped alternative variants (modules of differing design aimed at a common specification) and one adjudicator to check (ac- ceptance test) on the results produced by the variants. On entry to a recovery block, the state of the reliable system component (or of the whole system) must be saved to permit backward error recovery, i.e., establish a checkpoint.

slide-16
SLIDE 16

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Case Study: Design Diversity

Recovery Blocks: FlexFT Realization

slide-17
SLIDE 17

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs FlexFT Framework

FlexFT framework classes

FlexFT prototype: it was based on the OpenCOMJ - the Open- COM implementation in Java. OpenCOM is a lightweight, ef- ficient and reflective component model.

slide-18
SLIDE 18

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs FlexFT Framework

FlexFT framework evaluation

The N-Version programming technique (example discussed previously) was implemented (together with other design diversity techniques) and deployed in two different hardware platforms: Standard PC and Sun SPOT

Table 1. Performance and Resource Consumption PC Sun SPOT load/instantiate NVComponent (ms) 6.2 110.1 load/instantiate NVComponent (bytes) 1472 1472 load/instantiate Variants (ms) 7.2 196.6 load/instantiate Variants (bytes) 3004 3004 redundant operation execution (ms) 1.3 10.8 runtime dynamic reconfiguration (ms) 1.2 30.1

slide-19
SLIDE 19

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Concluding remarks

Concluding remarks

FlexFT: a generic component-based framework for the con- struction of adaptive fault tolerant systems that can integrate and re-use technologies and deploy them across heterogeneous devices. Future work:

Incorporate other fault-tolerant techniques into the FlexFT frame- work such as coordinated atomic action, concurrent exception handling, context-based exception handling and so on. Evaluate how the FlexFT framework can fit into the context of critical embedded systems development.

slide-20
SLIDE 20

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs Concluding remarks

A Generic Policy-free Framework for Fault-tolerant Systems: Experiments on WSNs

Delano M. Beder1 J´

  • Ueyama2

Marcos L. Chaim2

1Federal University of S˜

ao Carlos - Brazil

2University of S˜

ao Paulo - Brazil delano@dc.ufscar.br, joueyama@icmc.usp.br, chaim@usp.br

2nd IEEE International Conference on Networked Embedded Systems for Enterprise Applications December 08th, 2011
