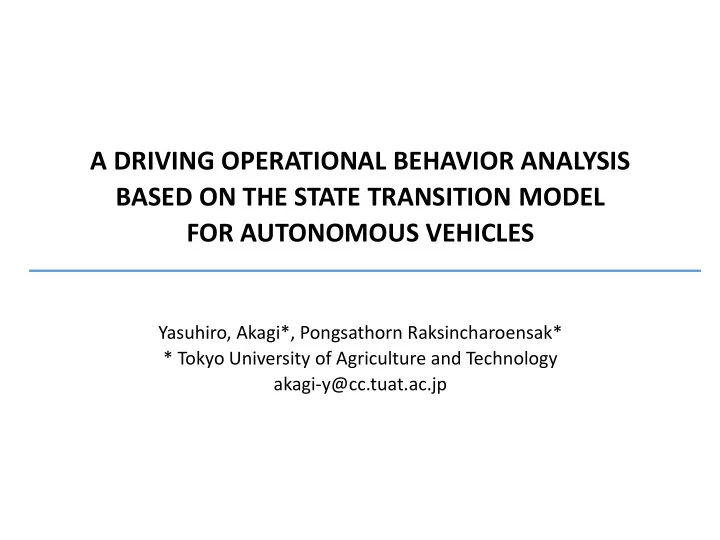

A DRIVING OPERATIONAL BEHAVIOR ANALYSIS BASED ON THE STATE TRANSITION MODEL FOR AUTONOMOUS VEHICLES

Yasuhiro, Akagi*, Pongsathorn Raksincharoensak* * Tokyo University of Agriculture and Technology akagi-y@cc.tuat.ac.jp

slide-2
SLIDE 2

Introduction

Complementing the weak points of both the human and systems realizes safe driving.

Shared control / Cooperative driving

is a practical method for complicated traffic environment like urban areas. Role of systems:

instruct the safe driving plan trough display, sound, haptic and force feedback HMI devices.

Role of human drivers:

follow (override) the system instructions to keep safety. Cooperative

slide-3
SLIDE 3

Problems

If systems present the multiple operational orders to the driver through multiple HMI devices at the same time. It is difficult for the driver to understand the multiple kind instructions in a short time.

Warning:

person approaching!

HUD shows slow down operation. Steering wheel gives force feedback for avoidance operation. Sound explains the situations. Gas pedal gives haptic feedback to release.

slide-4
SLIDE 4

Goal

An evaluation model gives the feasibility of switching driving behaviors by using the state transition model.

0.2 0.4 0.6 0.8 1

Output:

Feasibility to switch

Time Cruising Acceleration Braking C

Continuation probability of the current state = Cruising Transition probability

  • f next state = Braking

Input: state of driving operational behaviors

slide-5
SLIDE 5

State transition model of driving behaviors

C A B

Longitudinal state transition model

H L R

Lateral state transition model

A:Acceleration B:Braking C:Cruising L:Left R:Right H:Holding

C A

P C A

State transition probability is denoted by the conditional probability model.

slide-6
SLIDE 6

C A B H L R

  • r
  • r

H L R C A B

  • r
  • r

This model represents the co-occurrence probability of the state transition of a driving interface (foot pedal or steering wheel) while the driver is operating another interface.

State transition model of driving behaviors

State transition model of the steering wheel

  • perations when a foot pedal is operated.

State transition model of the foot pedal

  • perations when a steering wheel is operated.
slide-7
SLIDE 7

Data collection

Subjects:6 instructors of a driving school Time :9 am, 4 pm Route :4 km × 2 sessions Area : Residential area near the train station

https://www.openstreetmap.org/#map=17/35.70374/139.51991 Station

Elementary School

GNSS positioning Steering wheel angle Gas pedal operation Brake pedal operation Velocity Acceleration Yaw rate

Data types:

slide-8
SLIDE 8

Initial labeling of driving behaviors

Ss 𝜔 = Left Holding Right ( 𝜔 < − 𝜔t) (− 𝜔t ≥ 𝜔 ≥ 𝜔t) ( 𝜔 > 𝜔t)

xi, yi, vi, θi

X

The input motion data is divided every 0.1 second to classify.

Sp a = Acceleration Cruising Braking (a > at) (−at ≥ a ≥ at) (a < −at)

The pedal control state is decided with the acceleration value a.

The steering wheel operation state is decided with the yaw rate

𝜔.

Initial label list: many discontinuous state transitions.

at=0.1 m/s2 ψt=0.05 rad/s Threshold: Threshold:

slide-9
SLIDE 9

Integration of the driver states based on minimum cut algorithm

A A C B B C B A (source) Others (sink) A A C B B C B 1.0

Initial state sequence

Cost for changing state

1.0 1.0 1.0

Physical distance as weight Min-cut

By applying the minimum cut algorithm, the driver states are classified in two states.

B (source) Others (sink) A A C

Min-cut for B or others

B C B C A C B C

slide-10
SLIDE 10

Probabilistic models of the driver state transition C A B

C A B C

P(C|C) P(A|C) P(B|C)

Longitudinal state transition model Source state Destination state

CDFG t,k,θ = γ(k,t/θ) Γ(k) Approximation function:

Cumulative distribution function of Gamma distribution (CDFG)

0.2 0.4 0.6 0.8 1 5 10

k=1,θ=1 k=1,θ=3 k=1,θ=5 k=3,θ=1 k=3,θ=3 k=3,θ=5

× *

  • Time

t: Continues time of the current state γ: Incomplete Gamma function Γ: Gamma function

2 4 6 8 10 0.00 0.25 0.50 0.75 1.00

Transition probability Time (s)

Actual state transition probability P(C|C) P(A|C) P(B|C)

Value of CDFG

slide-11
SLIDE 11

2 4 6 8 10 0.00 0.25 0.50 0.75 1.00

C A B C

P(C|t,C)

P A t,C

P(B|t,C)

A

P(C|t,A) P(A|t,A)

B

P(C|t,B) P(B|t,B)

Results and discussions

Source state Destination state

P A t,C = CDFG t,kca,θca /2 P C t,C = 1 − P A t,C − P B t,C P B t,C = CDFG t,kcb,θcb /2 P C t,A = CDFG t,kac,θac P A t,A = 1 − P C t,A P C t,B = CDFG t,kbc,θbc P B t,B = 1 − P C t,B

2 4 6 8 10 0.00 0.25 0.50 0.75 1.00

P A t,C P B t,C P C t,C

2 4 6 8 10 0.00 0.25 0.50 0.75 1.00

P C t,B P B t,B

data$AccOrg data$IdolOrg data$Acc

10 20 30 40 0.00 0.25 0.50 0.75 1.00

data$Idol

P C t,A P A t,A

Transition probability Time (s)

slide-12
SLIDE 12

H L R H

P(H|t,H) P(L|t,H) P(R|t,H)

L

P(H|t,L) P(L|t,L)

R

P(H|t,R) P(R|t,R)

Source state Destination state

P L t,H = CDFG t,khl,θhl /2 P H t,H = 1 − P L t,H −P R t,H P R t,H = CDFG t,khr,θhr /2 P H t,L = CDFG t,klh,θlh P L t,L = 1 − P H t,L P H t,R = CDFG t,krh,θrh P R t,R = 1 − P H t,R

5 10 15 20 25 30 0.00 0.25 0.50 0.75 1.00

P L t,H P R t,H P H t,H

1 2 3 4 5 6 7 0.00 0.25 0.50 0.75 1.00

P H t,L P L t,L

1 2 3 4 5 6 7 0.00 0.25 0.50 0.75 1.00

P H t,R P R t,R

Transition probability Time (s)

Results and discussions

slide-13
SLIDE 13

Latc C

P(Latc,C|t,Lat,C)

A

P(Latc,A|t,Lat,A)

B

P(Latc,B|t,Lat,B)

C A B H L R

  • r
  • r

Lat={H ⋃ L ⋃ R}

= CDFG t,klat,θlat

2 4 6 8 10 0.00 0.25 0.50 0.75 1.00

Transition probability Time (s)

State transition model of the steering wheel

  • perations when a foot pedal is operated.

Feasibility of switching the steering wheel

  • peration is not related to the operation

type of the pedals.

Results and discussions

slide-14
SLIDE 14

Lonc H

P(Lonc,H|t,Lon,H)

L

P(Lonc,L|t,Lon,L)

R

P(Lonc,R|t,Lon,R)

H L R C A B

  • r
  • r

Lon={C ⋃ A ⋃ B}

= CDFG t,klonH,θlonH = CDFG t,klonLR,θlonLR

2 4 6 8 10 0.00 0.25 0.50 0.75 1.00 2 4 6 8 10 0.00 0.25 0.50 0.75 1.00

Transition probability Time (s)

State transition model of the foot pedal

  • perations when a steering wheel is operated.

Feasibility of switching the foot pedal

  • peration depends on the operation type
  • f the steering wheel.

Results and discussions

slide-15
SLIDE 15

Longitudinal control state Lateral control state transition K θ transition K θ P A t,C 0.5 1.31 P L t,H 0.43 2.27 P B t,C 1.31 0.82 P R t,H 0.43 2.27 P C t,A 1.18 6.81 P H t,L 0.75 0.95 P C t,B 0.58 2.8 P H t,R 0.68 1.12 Longitudinal co-occurrence state Lateral co-occurrence state P LatC,C t,Lat,C P LatC,A t,Lat,A P LatC,B t,Lat,B 0.31 2.96 P LonC,H t,Lon,H 0.37 9.2 P LonC,L t,Lon,L P LonC,R t,Lon,R 0.63 2.84

Parameters of the state transition probabilities

Results and discussions

slide-16
SLIDE 16

B C B C A C B C R H L H R H L H R H

B C A B C R H L H R L R

Application

Behavior Planner for Autonomous Vehicles

which translates the motion plan can be easier to control by the driver.

Arbitration layer:

replaces the complex operations based on the proposed state transition model.

Input: motion plan generated by a driving support system

  • Frequent
  • Simultaneous
  • peration switching
  • Reduce switching

Is it possible to follow the original path?

slide-17
SLIDE 17

Application

Trajectory Velocity Headway angle X (m) X (m) X (m) Y (m) V (m/s) Input Plan (rad)

50 100 150

  • 3
  • 2
  • 1

1 50 100 150 2 4 6 8 50 100 150

  • 0.15

0.00 0.15

The control parameters are

  • ptimized to minimize the sum
  • f the difference from the input

path plan.

Feasibility threshold (%) Mean error (m) Standard deviation (m) 0.11 0.20 5 0.13 0.30 10 0.17 0.41 15 0.59 1.90 20 1.22 3.87 25 1.97 5.46 Pri,0 = {ai,0, ai,0, ψi,0, ψi,0} Pri,2 = {ai,2, ai,2, ψi,2, ψi,2} Pri,1 = {ai,1, ai,1, ψi,1, ψi,1}

Target section of the state transition. Modification error. Waypoint: Wpi Pei,0 Pei,1 Pei,2

Results:

Simplification level and path error

slide-18
SLIDE 18

Conclusion

  • The state transition models of the driving operations are proposed.
  • The feasibility of the operation switching of drivers can be

approximated by using Cumulative distribution function of Gamma distribution.

  • The driving behavior planner for the arbitration layer between

the motion planner and HMI devices is shown as the application.

  • As a future work, the comparative experiments of the

acceptability of HMI devices equipped with/without the arbitration layer will be performed.

slide-19
SLIDE 19

A DRIVING OPERATIONAL BEHAVIOR ANALYSIS BASED ON THE STATE TRANSITION MODEL FOR AUTONOMOUS VEHICLES

This research is supported by the Center of Innovation (COI) Program from Japan Science and Technology Agency, JST. http://www.coi.nagoya-u.ac.jp/en
