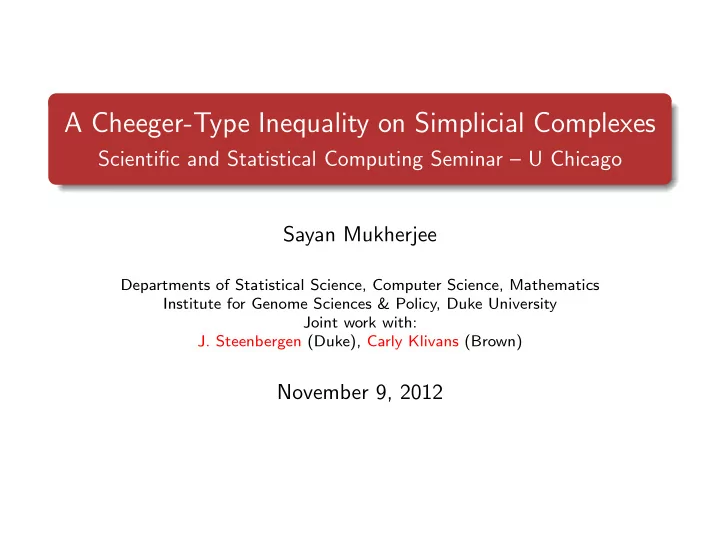

A Cheeger-Type Inequality on Simplicial Complexes

Scientific and Statistical Computing Seminar – U Chicago Sayan Mukherjee

Departments of Statistical Science, Computer Science, Mathematics Institute for Genome Sciences & Policy, Duke University Joint work with:

• J. Steenbergen (Duke), Carly Klivans (Brown)

November 9, 2012

Motivation Definitions Results Open problems Acknowledgements

Dimension reduction algorithm

Examples include:

1

Isomap - 2000

2

Locally Linear Embedding (LLE) - 2000

3

Hessian LLE - 2003

4

Laplacian Eigenmaps - 2003

5

Diffusion Maps - 2004

Laplacian Eigenmaps is based directly on the graph Laplacian.

2,

Motivation Definitions Results Open problems Acknowledgements

Laplacian eigenmaps

Given data points x1, x2, . . . , xn ∈ I Rp which we wish to map into I Rk, k ≪ p,

1 Construct a graph (association matrix) A out of the data

points.

3,

Motivation Definitions Results Open problems Acknowledgements

Laplacian eigenmaps

Given data points x1, x2, . . . , xn ∈ I Rp which we wish to map into I Rk, k ≪ p,

1 Construct a graph (association matrix) A out of the data

points.

2 Compute L = D − A where Dii =

j Aij

4,

Motivation Definitions Results Open problems Acknowledgements

Laplacian eigenmaps

Given data points x1, x2, . . . , xn ∈ I Rp which we wish to map into I Rk, k ≪ p,

1 Construct a graph (association matrix) A out of the data

points.

2 Compute L = D − A where Dii =

j Aij

3 Compute eigenvalues and eigenvectors of L

0 = λ0 ≤ λ1 ≤ λ2 ≤ . . . ≤ λn, f0 = 1, ..., fn

5,

Motivation Definitions Results Open problems Acknowledgements

Laplacian eigenmaps

Given data points x1, x2, . . . , xn ∈ I Rp which we wish to map into I Rk, k ≪ p,

1 Construct a graph (association matrix) A out of the data

points.

2 Compute L = D − A where Dii =

j Aij

3 Compute eigenvalues and eigenvectors of L

0 = λ0 ≤ λ1 ≤ λ2 ≤ . . . ≤ λn, f0 = 1, ..., fn

4 Map the data points into I

Rk by the map xi → (f1(xi), f2(i), . . . , fk(xi))

6,

Motivation Definitions Results Open problems Acknowledgements

Laplacian eigenmaps example

7,

Motivation Definitions Results Open problems Acknowledgements

Laplacian eigenmaps example

8,

Motivation Definitions Results Open problems Acknowledgements

Near 0 homology

Near-Connected Components?

9,

Motivation Definitions Results Open problems Acknowledgements

Clustering

Clusters

10,

Motivation Definitions Results Open problems Acknowledgements

Near 0-homology for graphs

S S Cut

For a graph with vertex set V , the Cheeger number is defined to be h = min

∅SV

|δS| min

• |S|, |S|

.

11,

Motivation Definitions Results Open problems Acknowledgements

Near 0-homology for graphs

S S Cut

For a graph with vertex set V , the Cheeger number is defined to be h = min

∅SV

|δS| min

• |S|, |S|

. h = 0 ⇔ graph is disconnected.

12,

Motivation Definitions Results Open problems Acknowledgements

Near 0-homology for graphs

 ⇔

For a graph with vertex set V , the Fiedler number is defined to be λ = min

f :V →I R

f ⊥1

• u∼v(f (u) − f (v))2
• u(f (u))2

.

13,

Motivation Definitions Results Open problems Acknowledgements

Near 0-homology for graphs

 ⇔

For a graph with vertex set V , the Fiedler number is defined to be λ = min

f :V →I R

f ⊥1

• u∼v(f (u) − f (v))2
• u(f (u))2

. λ = 0 ⇔ graph is disconnected.

14,

Motivation Definitions Results Open problems Acknowledgements

Cheeger inequality for graphs

Theorem (Alon, Milman, Lawler & Sokal, Frieze & Kannan & Polson,...) For any graph with Cheeger number h and Fiedler number λ 2h ≥ λ1 > h2 2M , M = maxu ud, maximum vertex degree.

15,

Motivation Definitions Results Open problems Acknowledgements

Edge expansion

Expander graphs are families of graphs that are sparse and strongly connected.

16,

Motivation Definitions Results Open problems Acknowledgements

Edge expansion

Expander graphs are families of graphs that are sparse and strongly connected. A family of expander graphs G has the property h(G) > ǫ > 0 for all G ∈ G.

17,

Motivation Definitions Results Open problems Acknowledgements

Edge expansion

Expander graphs are families of graphs that are sparse and strongly connected. A family of expander graphs G has the property h(G) > ǫ > 0 for all G ∈ G. Cheeger inequality lets us use λ as criteria λ(G) > 0 for all G ∈ G.

18,

Motivation Definitions Results Open problems Acknowledgements

Higher-dimensional notions

19,

Motivation Definitions Results Open problems Acknowledgements

Homology

0-Homology 1-Homology 2-Homology

β0 = 1, β1 = 0, β2 = 1 β0 = 1, β1 = 1, β2 = 0 β0 = 2, β1 = 0, β2 = 0

Hole Void Connected Components

20,

Motivation Definitions Results Open problems Acknowledgements

Near one homology

21,

Motivation Definitions Results Open problems Acknowledgements

Near one homology

22,

Motivation Definitions Results Open problems Acknowledgements

Simplicial complexes

A k-simplex is the convex hull of k + 1 affinely independent points, σ = {u0, ..., uk}.

23,

Motivation Definitions Results Open problems Acknowledgements

Simplicial complexes

A k-simplex is the convex hull of k + 1 affinely independent points, σ = {u0, ..., uk}. A face τ of σ is the convex hull of a non-empty subset of the ui, τ ≤ σ.

24,

Motivation Definitions Results Open problems Acknowledgements

Simplicial complexes

A k-simplex is the convex hull of k + 1 affinely independent points, σ = {u0, ..., uk}. A face τ of σ is the convex hull of a non-empty subset of the ui, τ ≤ σ. A simplicial complex is a finite collection of simplices K such that σ ∈ K and τ ≤ σ implies τ ∈ K, and σ, σ0 ∈ K implies σ ∩ σ0 is either empty or a face of both.

25,

Motivation Definitions Results Open problems Acknowledgements

Chains and cochains

X = simplicial complex of dimension m, (X) = m. Ck(I F) = {I F-linear combinations of oriented k-simplices} C k(I F) = {I F-valued functions on oriented k-simplices}

26,

Motivation Definitions Results Open problems Acknowledgements

Chains and cochains

X = simplicial complex of dimension m, (X) = m. Ck(I F) = {I F-linear combinations of oriented k-simplices} C k(I F) = {I F-valued functions on oriented k-simplices} Chain Complex: 0 ← − C0

∂1(I F)

← − C1

∂2(I F)

← − · · ·

∂m(I F)

← − Cm ← − 0 Cochain Complex: 0 − → C 0 δ0(I

F)

− → C 1 δ1(I

F)

− → · · ·

δm−1(I F)

− → C m − → 0 I F = I R, Z2

27,

Motivation Definitions Results Open problems Acknowledgements

Chains and cochains

Given a simplicial complex σ = {v0, ..., vk} an orientation of [v0, ..., vk] is the equivalence class of even permutations of ordering.

28,

Motivation Definitions Results Open problems Acknowledgements

Chains and cochains

Given a simplicial complex σ = {v0, ..., vk} an orientation of [v0, ..., vk] is the equivalence class of even permutations of ordering. Boundary map ∂k(I F) : Ck(I F) → Ck−1(I F) ∂k[v0, ..., vk] =

k

• i=1

(−1)i[v0, ..., vi−1, vi+1, ..., vk].

29,

Motivation Definitions Results Open problems Acknowledgements

Chains and cochains

Given a simplicial complex σ = {v0, ..., vk} an orientation of [v0, ..., vk] is the equivalence class of even permutations of ordering. Boundary map ∂k(I F) : Ck(I F) → Ck−1(I F) ∂k[v0, ..., vk] =

k

• i=1

(−1)i[v0, ..., vi−1, vi+1, ..., vk]. Coboundary map δk−1(I F) : C k−1(I F) → C k(I F) is the transpose

• f the boundary map.

30,

Motivation Definitions Results Open problems Acknowledgements

∂(I R)

∂2(R) v1 v2 v4 v3 v1 v2 v4 v3 ∂2(R) [v1, v3, v2] + 2[v2, v4, v3] [v1, v3] + [v2, v1] + 3[v3, v2] +2[v2, v4] + 2[v4, v3] 1 1 3 2 2 1 2

31,

Motivation Definitions Results Open problems Acknowledgements

∂(Z2)

v1 v2 v4 v3 v1 v2 v4 v3 ∂2(Z2) [v1, v2, v3] + [v2, v3, v4] ∂2(Z2) [v1, v2] + [v1, v3] +[v2, v4] + [v3, v4] 1 1 1 1 1 1

32,

Motivation Definitions Results Open problems Acknowledgements

δ(Z2)

v1 v2 v4 v3 v1 v2 v4 v3 δ1(Z2) [v1, v2, v3] + [v2, v3, v4] δ1(Z2) [v1, v2] + [v1, v3] + [v2, v3] 1 1 1 1 1

33,

Motivation Definitions Results Open problems Acknowledgements

δ(I R)

δ1(R) v1 v2 v4 v3 v1 v2 v4 v3 δ1(R) 3[v2, v1] + 4[v3, v1] + 2[v3, v2] [v1, v3, v2] + 2[v2, v4, v3] 4 3 2 1 2

34,

Motivation Definitions Results Open problems Acknowledgements

Cheeger numbers

Z2 homology and cohomology Hk(Z2) = ker∂k im∂k+1 , Hk(Z2) = kerδk imδk+1 .

35,

Motivation Definitions Results Open problems Acknowledgements

Cheeger numbers

Z2 homology and cohomology Hk(Z2) = ker∂k im∂k+1 , Hk(Z2) = kerδk imδk+1 . Coboundary and Boundary Cheeger numbers: hk := min

φ∈C k(Z2)\imδ

• |δφ|

minδφ=δψ |ψ|

• ← distance from kerδk

← distance from imδk−1

36,

Motivation Definitions Results Open problems Acknowledgements

Cheeger numbers

Z2 homology and cohomology Hk(Z2) = ker∂k im∂k+1 , Hk(Z2) = kerδk imδk+1 . Coboundary and Boundary Cheeger numbers: hk := min

φ∈C k(Z2)\imδ

• |δφ|

minδφ=δψ |ψ|

• ← distance from kerδk

← distance from imδk−1 hk := min

φ∈Ck(Z2)\im∂

• |∂φ|

min∂φ=∂ψ |ψ|

• ← distance from ker∂k

← distance from im∂k+1 .

37,

Motivation Definitions Results Open problems Acknowledgements

Cheeger numbers

Z2 homology and cohomology Hk(Z2) = ker∂k im∂k+1 , Hk(Z2) = kerδk imδk+1 . Coboundary and Boundary Cheeger numbers: hk := min

φ∈C k(Z2)\imδ

• |δφ|

minδφ=δψ |ψ|

• ← distance from kerδk

← distance from imδk−1 hk := min

φ∈Ck(Z2)\im∂

• |∂φ|

min∂φ=∂ψ |ψ|

• ← distance from ker∂k

← distance from im∂k+1 . Hk(Z2) = 0 ⇔ hk = 0 and Hk(Z2) = 0 ⇔ hk = 0. h0 is the Cheeger number for graphs. hk defined by Dotterer and Kahle.

38,

Motivation Definitions Results Open problems Acknowledgements

Fiedler numbers

I R homology and cohomology Hk(I R) = ker∂k im∂k+1 , Hk(I R) = kerδk imδk+1 .

39,

Motivation Definitions Results Open problems Acknowledgements

Fiedler numbers

I R homology and cohomology Hk(I R) = ker∂k im∂k+1 , Hk(I R) = kerδk imδk+1 . Coboundary and Boundary Fiedler numbers: λk := min

f ∈C k(I R)\imδ

• δf 2

2

minδf =δg g2

2

• ← distance from kerδk

← distance from imδk−1

40,

Motivation Definitions Results Open problems Acknowledgements

Fiedler numbers

I R homology and cohomology Hk(I R) = ker∂k im∂k+1 , Hk(I R) = kerδk imδk+1 . Coboundary and Boundary Fiedler numbers: λk := min

f ∈C k(I R)\imδ

• δf 2

2

minδf =δg g2

2

• ← distance from kerδk

← distance from imδk−1 λk := min

fi∈Ck(I R)\im∂

• ∂f 2

2

min∂f =∂g g2

2

• ← distance from ker∂k

← distance from im∂k+1 .

41,

Motivation Definitions Results Open problems Acknowledgements

Fiedler numbers

I R homology and cohomology Hk(I R) = ker∂k im∂k+1 , Hk(I R) = kerδk imδk+1 . Coboundary and Boundary Fiedler numbers: λk := min

f ∈C k(I R)\imδ

• δf 2

2

minδf =δg g2

2

• ← distance from kerδk

← distance from imδk−1 λk := min

fi∈Ck(I R)\im∂

• ∂f 2

2

min∂f =∂g g2

2

• ← distance from ker∂k

← distance from im∂k+1 . Hk(I R) = 0 ⇔ λk = 0 and Hk(I R) = 0 ⇔ λk = 0. λ0 is the Fiedler number for graphs.

42,

Motivation Definitions Results Open problems Acknowledgements

Combinatorial Laplacian

The k-th Laplacian of X Lk := ∂k+1δk + δk−1∂k

43,

Motivation Definitions Results Open problems Acknowledgements

Combinatorial Laplacian

The k-th Laplacian of X Lk := ∂k+1δk + δk−1∂k Eigenvalues of Lk measure near (co)homology Theorem (Eckmann) C k = im(∂k+1)

• im(δk−1)
• ker(Lk),

and Hk(I R) ∼ = Hk(I R) ∼ = ker Lk.

44,

Motivation Definitions Results Open problems Acknowledgements

Combinatorial Laplacian

C 1 = im(δ0)

• ker(L1)
• im(∂1).

45,

Motivation Definitions Results Open problems Acknowledgements

Orientability

Two m-simplexes are lower adjacent if they share a common face

46,

Motivation Definitions Results Open problems Acknowledgements

Orientability

Two m-simplexes are lower adjacent if they share a common face Two oriented lower adjacent k-simplexes τ and σ are dissimilar on a face ν if ∂τ and ∂σ assign the same coefficient to ν.

a b c d

47,

Motivation Definitions Results Open problems Acknowledgements

Orientability

Two m-simplexes are lower adjacent if they share a common face Two oriented lower adjacent k-simplexes τ and σ are dissimilar on a face ν if ∂τ and ∂σ assign the same coefficient to ν.

a b c d

If X is a simplicial m-complex and all its m-simplices can be

• riented similarly, then X is called orientable.

48,

Motivation Definitions Results Open problems Acknowledgements

Pseudomanifold

A pseudomanifold is a combinatorial realization of a manifold with singularities.

49,

Motivation Definitions Results Open problems Acknowledgements

Pseudomanifold

A pseudomanifold is a combinatorial realization of a manifold with singularities. A topological space X endowed with a triangulation K is an m-dimensional pseudomanifold if the following conditions hold: (1) X = |K| is the union of all n-simplices. (2) Every (m1)-simplex is a face of exactly two m-simplices for m > 1. (3) X is a strongly connected, there is a path between any pair of m-simplices in K.

50,

Motivation Definitions Results Open problems Acknowledgements

Pseudomanifold

51,

Motivation Definitions Results Open problems Acknowledgements

Positive result: chain complex

Proposition (Steenbergen & Klivans & M) If X is an m-dimensional orientable pseudomanifold then hm ≥ λm ≥ h2

m

2(m + 1).

52,

Motivation Definitions Results Open problems Acknowledgements

Positive result: chain complex

Proposition (Steenbergen & Klivans & M) If X is an m-dimensional orientable pseudomanifold then hm ≥ λm ≥ h2

m

2(m + 1). Discrete analog of the Cheeger inequality for manifolds with Dirichlet boundary condition, every (m − 1)-simplex has at most two cofaces.

53,

Motivation Definitions Results Open problems Acknowledgements

Orientation hypothesis

X is a triangulation of the real projective plane. H2(Z2) = 0 ⇒ h2 = 0 and H2(I R) = 0 ⇒ λ2 = 0.

54,

Motivation Definitions Results Open problems Acknowledgements

Real projective plane

55,

Motivation Definitions Results Open problems Acknowledgements

Orientation hypothesis

Theorem (Gundert & Wagner) There is an infinite family of complexes that are not combinatorially expanding, h = 0, and whose spectral expansion is bounded away from zero, λ > 0.

56,

Motivation Definitions Results Open problems Acknowledgements

Boundary hypothesis

Consider the graph below h1 = 2

3 and λ1 = λ0 ≤ 2 k+1. k vertices k vertices Figure 4. The family of graphs Gk.

57,

Motivation Definitions Results Open problems Acknowledgements

Negative result: cochain complex

Proposition (Steenbergen & Klivans & M) For every m >1, there exist families of pseudomanifolds Xk and Yk

• f dimension m such that

(1) λm−1(Xk) ≥ (m−1)2

2(m+1) for all k but hm−1(Xk) → 0 as k → ∞

58,

Motivation Definitions Results Open problems Acknowledgements

Negative result: cochain complex

Proposition (Steenbergen & Klivans & M) For every m >1, there exist families of pseudomanifolds Xk and Yk

• f dimension m such that

(1) λm−1(Xk) ≥ (m−1)2

2(m+1) for all k but hm−1(Xk) → 0 as k → ∞

(2) λm−1(Yk) ≤

1 mk−1 for k > 1 but hm−1(Yk) ≥ 1 k for all k.

59,

Motivation Definitions Results Open problems Acknowledgements

Buser part

hm−1(Xk) ≤ λm−1(Xk)

X1 X2 X3 X4

60,

Motivation Definitions Results Open problems Acknowledgements

Cheeger part

λm−1(Yk) ≤ hm−1(Yk)

Y1 Y2 Y3

61,

Motivation Definitions Results Open problems Acknowledgements

Open problems

(1) Intermediate values of k – relation of hk and λk or hk and λk for 1 < k < m − 1.

62,

Motivation Definitions Results Open problems Acknowledgements

Open problems

(1) Intermediate values of k – relation of hk and λk or hk and λk for 1 < k < m − 1. (2) High-order eigenvalues – λk,j and hk,j where j > 1 indexes the

• rdering of Fiedler/Cheeger numbers.

(3) Manifolds – The k-dimensional coboundary/boundary Cheeger numbers of a manifold M might be hk = inf

S

Volm−k−1(∂S \ ∂M) inf∂T=∂S Volm−k(T), hk = inf

S

Volk−1(∂S) inf∂T=∂S Volk(T).

63,

Motivation Definitions Results Open problems Acknowledgements

Acknowledgements

Thanks: Matt Kahle, Shmuel Weinberger, Anna Gundert, Misha Belkin, Yusu Wang, Lek-Heng Lim, Yuan Yao, Bill Allard, Anil Hirani Funding: Center for Systems Biology at Duke NSF DMS and CCF AFOSR NIH

64,
