FWW references 7 Habits of highly effective woodworkers Workshop tune-up/makeover Workbench tune-up Storage of tools Tune-up of squares Handplane tune-up Sharpening- bevel angles Cabinet scrapers

slide-1

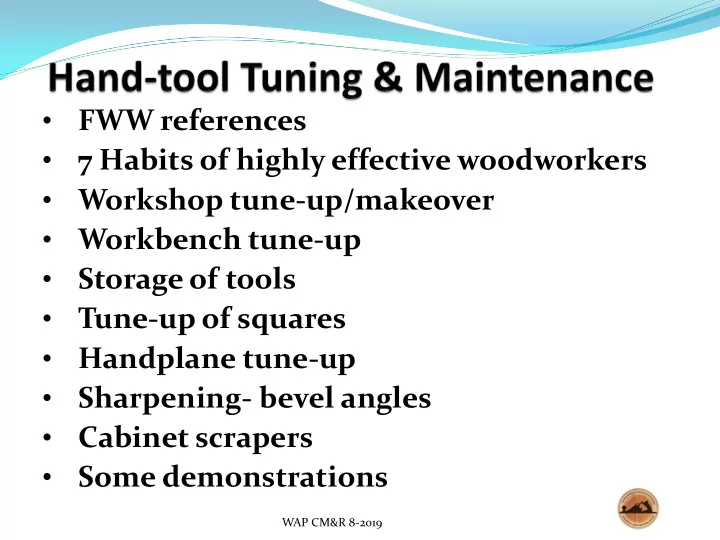

SLIDE 1
  • FWW references
  • 7 Habits of highly effective woodworkers
  • Workshop tune-up/makeover
  • Workbench tune-up
  • Storage of tools
  • Tune-up of squares
  • Handplane tune-up
  • Sharpening- bevel angles
  • Cabinet scrapers
  • Some demonstrations

WAP CM&R 8-2019

slide-2
SLIDE 2
  • Numerous articles on tune-up
  • 20 selected for downloading

WAP CM&R 8-2019

slide-3
SLIDE 3
  • 1. Plan your work
  • 2. Take your time
  • 3. Prepare for mistakes (test pieces)
  • 4. Keep tools where they belong
  • 5. Tap the power of handtools
  • 6. Document your progress
  • 7. Sharpen and tune tools regularly

WAP CM&R 8-2019

slide-4
SLIDE 4

FWW#170

  • Wall panels for tools
  • Group tools for use-

measuring, layout, cutting

WAP CM&R 8-2019

slide-5
SLIDE 5
  • FWW#203
  • You can’t do good

work on a worn out

  • bench. So:
  • Flatten the top
  • Tighten the base
  • Adjust the vises

WAP CM&R 8-2019

slide-6
SLIDE 6
  • FWW#181, 223
  • Drawers
  • Wall mounted

WAP CM&R 8-2019

slide-7
SLIDE 7
  • Drawers with subdivisions FWW#223
  • Rubber mesh

prevents tools from sliding

WAP CM&R 8-2019

slide-8
SLIDE 8

WAP CM&R 8-2019

slide-9
SLIDE 9

WAP CM&R 8-2019

slide-10
SLIDE 10
  • Evolved over 50 yrs

WAP CM&R 8-2019

slide-11
SLIDE 11
  • FWW#59, 148
  • Correcting

WAP CM&R 8-2019

slide-12
SLIDE 12
  • FWW#148

WAP CM&R 8-2019

slide-13
SLIDE 13
  • Metal handplanes
  • FWW#148
  • New blade &

chipbreaker

WAP CM&R 8-2019

slide-14
SLIDE 14
  • FWW#57

WAP CM&R 8-2019

slide-15
SLIDE 15
  • Consult reliable references
  • Sharpening equipment
  • Techniques

WAP CM&R 8-2019

slide-16
SLIDE 16

Cutting action compresses End grain with a blade at too fibres before they fail. steep an angle or dull blade. A sharp blade gives a The force compresses the fibres smoother surface. until they are torn rather than cut.

WAP CM&R 8-2019

slide-17
SLIDE 17
  • Grindstone/Tormek
  • Need to ensure that

the metal is not over- heated (water-cooled)

  • Once the primary

bevel has been formed, it needs honing.

WAP CM&R 8-2019

slide-18
SLIDE 18
  • Microbevel (Secondary bevel) has certain

advantages

  • Microbevel a few degrees larger than main

bevel

  • They add strength to the cutting edge & require

less time and effort to hone

WAP CM&R 8-2019

slide-19
SLIDE 19
  • FWW#232
  • Plane blades &

chisels need a flat & polished back

  • A sharp cutting

edge is the junction

  • f two flat (or curved) & polished surfaces.

WAP CM&R 8-2019

slide-20
SLIDE 20
  • FWW#169, 224
  • Waterstones
  • Diamond stones
  • Oil stones
  • Flatten with a

diamond stone

WAP CM&R 8-2019

slide-21
SLIDE 21
  • FWW#179
  • Various guides/jigs
  • A good sharpening jig

makes it easy to get an edge on chisels & irons.

  • Easy to replicate angle
  • Microbevel?

WAP CM&R 8-2019

slide-22
SLIDE 22

WAP CM&R 8-2019

slide-23
SLIDE 23
  • FWW#181
  • Task determines the bevel angle
  • Mortise

300-400

  • General use

200-300

  • Paring

150-200

  • Keep a record of your bevel angles

& mark them on chisels/irons

WAP CM&R 8-2019

slide-24
SLIDE 24
  • FWW#172, 227

WAP CM&R 8-2019

slide-25
SLIDE 25

WAP CM&R 8-2019

slide-26
SLIDE 26

WAP CM&R 8-2019
