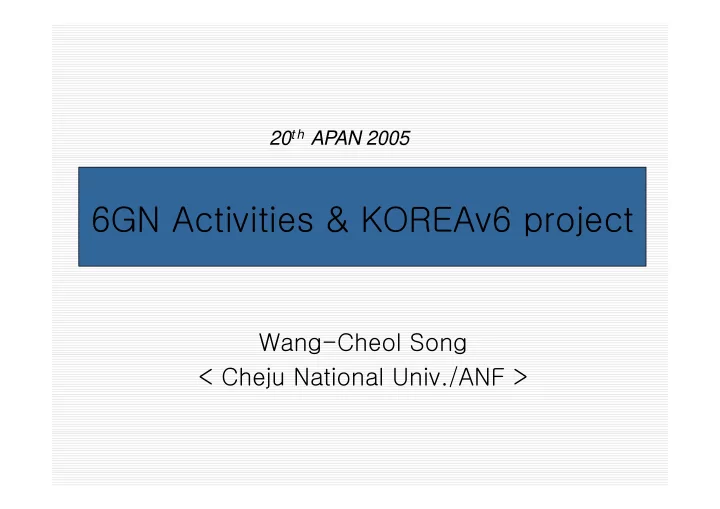

6GN Activities & KOREAv6 project

Wang-Cheol Song < Cheju National Univ./ANF >

20t h APAN 2005

2/38

Contents

IPv6 Network Deployment Status in Korea Gigabit IPv6 Infrastructure Current Activities on 6GN KOREAv6 Future Works & Concluding Remarks

3/38

IPv6 Network Deployment Status

• Experimental IPv6 Network
• 6Bone-KR (since 1998) *www.6bone.ne.kr
• Research & Education IPv6 Network
• KOREN IPv6 Network (Since 1999)
• KREONET2 IPv6 Network (Since 1999) *Operated by KISTI
• TEIN IPv6 Network (Since 2001)
• 6GN (Gigabit IPv6 Infrastructure) (Since 2004)
• Commercial IPv6 Network & Trials
• Pre-Commercial IPv6 network
• KOREAv6 Pilot Project Network (Since 2004)
• IPv6 Internet Exchange
• 6NGIX (IPv6 Next Generation Internet Exchange) (Since 2001)

4/38

Gigabit IPv6 Infrastructure : 6GN (1)

Background

• Needs of advanced IPv6-based network

infrastructure

• Fast adoption to advanced & high-speed IPv6

networking technologies such as Lambda networking

• Needs of validate the various IPv6 services in

advance

Goals

• Deployment of Native Gigabit IPv6 Service in Korea
• Promotion & Facilitation of IPv6 networks and

applications Toward the production level of IPv6 Service

5/38

Gigabit IPv6 Infrastructure : 6GN (2)

What is 6GN?

• 1st High-Performance IPv6 network infra in Korea

Advanced Research & Education Network Gigabit IPv6 Network

• Advanced NGI environment with IPv6

Network Performance & Management over IPv6 High-end IPv6 applications

Coordinated by ANF IPv6 Task Force in Korea

• http://www.anf.ne.kr/~ipv6/

6/38

ANF (Advanced Network Forum)

ANF is voluntarily nonprofit community for users of research & education network in Korea. (2003.2~)

• Activate the domestic Advanced Network
• Participate the international Advanced Network activities
• Representative of Korea for related international events
• Contribute to development of Information and communication

* Chair: Prof. DaeYoung Kim (CNU) IPv6 related Working Groups

• IPv6 Task Force (Chair: SeungYun Lee/ETRI)
• HDTV WG (Chair: Prof. JongWon Kim/GIST)
• KoreaLight WG (Chair: Prof. YongJin Park/HYU)
• Multicast WG (Chair: Prof. DongMan Lee/ICU)

More details: http://www.anf.ne.kr/

7/38

Korea IPv6 Network Status Map

WIDE 6TAP Tokyo XP (NSPIXP-6) sTLA org. NLA org. Oversea network IX Native IPv6 Tunneling IPv6

T 1 155M 1G x 4 1G 512K 155M 1Gx2 1.2G

TEIN

KJ Univ.

6Bone-KR (69 org.s)

S-Net

6Bone-International (15 org.s)

128K 1G

iMnetpia KOREN Hananet6 6KANet KTF KT GNG Networks

GEANT vBNS RENATER2 SingAREN CNNIC (China)

NIDA

2M

KI NX

ETRI

6Bone-KR

R&E Network

International Links

Pre-commercial IPv6 Network KRLINE

MAXIS (Malaysia )

IPv6 wireless trial service

1G x 2 1G

UK6x (BT)

1G

CERNET

155M 622M

KREONET2

HINET (Taiwan) CBN (India)

6NGIX Dacom Han-Internet

KI X

Samsung Networks SKTEL Server Bank

45M E1 1G x 2

Internet2/Abilene

622M

SURFnet6 CA*net4 TWAREN

622M 1.2G

CSTNET

155M

2005.1.15 Seungyun Lee <syl@etri.re.kr>

8/38

Gigabit IPv6 Infrastructure : 6GN

11 members 2 backbones 1 IX

2G/6 CNU KISTI 1G/6 155M/6 1G/6 1G/6 1G/6 1G/6 1G/6 1G/6 1G/6 GIST HYU 1G/6 1G/6 KNU 1G/6 1G/6 1G/6 6NGIX KT TNL 1G/6 NCA 1G/6

6KANet 2G/6 KOREN KREONET2

ICU ETRI KAIST 1G/6 1G/6 KMA

Phase I Phase II

9/38

10Gbps 5Gbps 2.5Gbps KREONet2 Rout er KOREN Rout er GSR 12008 1Gbps Gigabit Switch Rout er

KAIST Seoul Daegu

NIGX#1 GS 4000

NCA

PC Router Linux Netgeer GS 108

Hanyang Univ. Suwon SKKU

Cisco C3550 Cisco 7200

ETRI Daejeon

(OSR 7609) 3COM 4924 Cisco C3550 3COM 3824

다산 5324

KT TNL

Cisco C4500-sup4 (L3) Cisco 3524XL Cisco 3524XL

ICU

Cisco 4506

Kwangju Daejeon

(Ca 6509)

Daegu GIST

Cisco 7206VXR PC Router Windows XP PC Router Linux

Cheju National Univ.

155Mbps 155Mbps

Cisco C3508

KISTI Daejeon

Cisco 3550-12T

KNU

[Ref.] 6GN Network Map

<draft ’ 05. 8.1> layer 2,3 OSR 7609

KMA

CAT3550_12G

Seoul

(Ca 6509)

?

Extreme S ummit200-24 KREONet2 switch ONS 15454

Daejeon Kwangju Seoul Seoul

(OSR 7609) Cisco C3750 Cisco C3550

10/38

Regional Gigabit IPv6 Network

155M (dual stack) 2 x 1G (dual stack) 2 x 2.5G (dual stack) 1G (dual stack) 10G (dual stack) 2 x 622M (dual stack) => 10G (dual stack) 2.5G(dual stack) Hong Kong 4 x 10G (dual stack) 155M (dual stack) 1G (dual stack) China CERNET2, CSTNET2 4.5G + 2.5G (dual stack) USA, Canada Abilene, NLR, CA*net 622M (dual stack) Taiwan TANET2, TWAREN Korea KOREN, KREONET2 Japan JGN2, SINET, WIDE

11/38

Current Activities on 6GN

[1] IPv6 Networking Performance [2] IPv6 Application Development & Deployment [3] IPv6 Network Monitoring & Management [4] IPv6 Multicast Deployment [5] KOREAv6 Project

12/38

[1] IPv6 Networking Performance Issues

IPv4 vs IPv6 Lambda network vs Routed network TCP Reno vs. FAST TCP (vs. BIC TCP) Long distance (e.g., 20,000 or 30,000 km)

KAIST-CERN(window size: 30Mbyte) KAIST-Starlight(window size: 20Mbyte)

Single stream vs Multiple streams

13/38

TCP Reno vs. Fast TCP

no significant difference due to small RTT Window size: 1 Mbyte

903 Mbps 916 Mbps TCP Reno 774 Mbps 792 Mbps FAST TCP FAST TCP TCP Reno FAST TCP TCP Reno 927 Mbps 940 Mbps 815 Mbps 834 Mbps ETRI (KREONET) on VLAN 896 Mbps 927 Mbps IPv6 918 Mbps 940 Mbps IPv4 Kyungpook Univ. (KOREN) KISTI (KREONET) on VLAN

14/38

Throughput from KAIST to domestic members using TCP Reno

[TBD] [TBD] 903 Mbps 916 Mbps Kyungpook Univ. (KOREN) [TBD] [TBD] * 294 Mbps * 306 Mbps ICU (KOREN) 815 Mbps 834 Mbps 60 Mbps 817 Mbps ETRI (KREONET) [TBD] [TBD] 714 Mbps 916 Mbps KOREN NOC (KOREN) 389 Mbps 400 Mbps 60 Mbps 400 Mbps GIST (KREONET) [TBD] 926 Mbps IPv6 on VLAN [TBD] 939 Mbps IPv4 on VLAN * 230 Mbps 70 Mbps IPv6 * 250 Mbps 917 Mbps IPv4 Hanyang Univ. (KOREN) KISTI (KREONET)

15/38

TCP throughput in Long distance

1 10 100 100 200 300 400 500 600 BIC FAST RENO number of streams throughput (Mbps) RTT : 360 ms (5hops) Bandwidth : 622 Mbps

Period : 2004.7.13 ~ 7.25 2004.8.20 ~ 8.25 2004.9.20 ~ 10.10 Organization : KAIST - CERN Average throughput on 5 iterations (each trial for 1 hour) 532 Mbps (86%) 380 Mbps (61%) 385 Mbps (62%)

100 streams

211Mbps (34%) 208 Mbps (33%) 78.6 Mbps(13%)

1 stream

FAST TCP TCP Reno Average Throughput BIC TCP 532 Mbps (86%) 380 Mbps (61%) 385 Mbps (62%)

100 streams

211Mbps (34%) 208 Mbps (33%) 78.6 Mbps(13%)

1 stream

FAST TCP TCP Reno Average Throughput BIC TCP

1 10 100 100 200 300 400 500 600

BIC FAST RENO number of streams throughput (Mbps) RTT : 245 ms (5hops) Bandwidth : 622 Mbps

Period : 2004.7.13 ~ 7.25 2004.8.20 ~ 8.25 2004.9.20 ~ 10.10 Organization : KAIST - Starlight Average throughput on 5 iterations (each trial for 1 hour)

502 Mbps (80%) 357 Mbps (57%) 379 Mbps (61%)

100 streams

137Mbps (22%) 92.6 Mbps (15%) 159.7 Mbps(26%)

1 stream

FAST TCP TCP Reno Average Throughput BIC TCP 502 Mbps (80%) 357 Mbps (57%) 379 Mbps (61%)

100 streams

137Mbps (22%) 92.6 Mbps (15%) 159.7 Mbps(26%)

1 stream

FAST TCP TCP Reno Average Throughput BIC TCP

16/38

[2] IPv6 Application Development & Deployment on 6GN

Target Application

Multimedia Applications

HD class Video-conferencing (20Mbps) HDV Streaming – Live/On-Demand (20Mbps, 220Mbps)

Large File Transfer Application

In HEP (High Energy Physics) application area

Etc.

17/38

IPv6 Application List for 6GN (1/2)

• uc
• mc

RTP/ RTCP RTP RTP RTP Tran- sport ETRI KNU KAIST KAIST ETRI KAIST CNU Org.

진행

wide

Rese arch Chan nel Info. Link 720x480 (30pfs) 2~4M

• Live/On-demand

video streaming 6 1G

• Large file transfer

5 720x480 60 interlaced ~30fps 30M

• DVTS

4

• v6

v4

1270x720 30 progressive 20M (19.2M)

• HDV over IPv6

(HDVTS) 3 19.2M

• QoS Guaranteed

HDTV software decoding 2 1920x1080 (60 interlaced ~30fps) 270M

• HDTV

compressed by SONY codec 1 Resolution Band- width Protocol Application Name No.

18/38

IPv6 Application List for 6GN (2/2)

ETRI 320x240 (15pfs) < 1M RTP/ RTCP

• Conferencing tool

7 ICU 진행

• Multicast

Congestion Control Protocol 11 ETRI KAIST 진행 1080i, 720p 20M x N

• Multi-channel

HDTV 12 ICU 진행

• Multicast Error

Control Protocol 10 KAIST GIST 진행 1920x1080 (60 interlaced ~30fps) 0.7~1.5 G

• Uncompressed

HDTV 9

• uc
• mc

Tran- sport GIST Org. Video LAN 1080i <30M

• VedioLAN

8 Info. Link

v6 v4

Resolution Band- width Protocol Application Name No.

http://anf.ne.kr/~ipv6/application_list.htm

19/38

Iperf test (KNU KT NOC)

20/38

Iperf test (KT NOC KNU)

21/38

File Transfer Test between KNU and KT NOC

22/38

[3] IPv6 Network Monitoring & Management on 6GN

Network Weather Map on 6GN

GUI-based Traffic Monitoring System Separate maps for KOREN and KREONET2

IPv6 Connectivity Test Tool (IPv6 Beacon)

IPv6 Reachability, RTT test

23/38

Network Weather Map on 6GN

http://203.237.53.26/~yskim/weathermap.html

24/38

IPv6 Reachability Test Tool

IPv6 Beacon

• ICMP ping6 reply

based information

http://[2001:310:1a10:3::99]

• r

http://203.237.53.26

25/38

[4] IPv6 Multicast Deployment

• Status and plan

Current status in Korea

IPv6 service in research networks, but no IPv6 multicast Few IPv6 multicast compliant edge routers and hosts No native IPv6 multicast network yet in Korea

Plan for the IPv6 Multicast testbed on 6GN

1st phase: Tunnel based IPv6 multicast (e.g., m6bone) 2nd phase: Native IPv6 multicast (backbone level)

26/38

IPv6 Multicast Deployment

• system Configurations

Participants (7)

• ICU, ETRI, KAIST, GIST, HYU, SKKU, CJNU

PC router platform & S/W

• FreeBSD
• KAME: pim6sd (PIM-SM)
• Zebra

Tunnel-based development

• IPv6/IPv6 tunneling

Target applications

• Reachability test: multicast beacon
• Video streaming: VLC

27/38

• Over 10 hosts participate
• Being tested with PIM-SM
• BSR/RP is deployed in ICU

IPv6 Multicast Deployment

• network Configuration

(Dec. 1, 2004 now)

28/38

IPv6 Multicast Deployment

• multicast Test
• Reachability test with beacon
• To maintain the testbed
• To explore the performance of the testbed
• Video streaming with VLC
• To deploy a practical application

< <Reachability Reachability test with test with Beacon Beacon > > <Video streaming with <Video streaming with VLC VLC> >

29/38

IPv6 Multicast Applications Development

Multi-channel IPv6 HDTV Service (ETRI)

Relay server HDTV client HDTV client HDTV client Relay server

HDTV server

MUX

Multiple HD Sources

Relay server Backbone-level Network Area Access-level Network Area

Multiplexed streams Single stream IPv6 Multicast IPv6 Unicast / Multicast Service components 1. HDTV Server 2. Relay Server (includes Web-server) 3. HDTV Client

HDTV client

IPv6 Unicast / Multicast Single Stream Single stream

30/38

Specifications of IPv6-based Multi-channel HDTV Streaming

• Software MPEG-2 Codec
• OS : Windows 2000/XP
• RTP
• Unicast / Multicast

Client

• MPEG-2 TS
• OS : Linux
• Dual Stack Support
• Demultiplexer
• Unicast / Multicast
• RTP

Relay Server

• MPEG-2 TS
• OS : Linux
• Multiplexer
• Dual Stack Support
• Unicast / Multicast
• RTP

Streaming Server

31/38

[Ref.] Global IPv6 Multicast Experiments

M6bone (operated by Renater, France)

6GN 6GN Multicast Multicast backbone backbone

32/38

[5] KOREAv6 Project

What is KOREAv6 Project?

To facilitate the commercialization and deployment of IPv6 services & equipments

Testing stability and interoperability of IPv6 equipments & solutions in IPv6 network

IPv6 Field Test

Providing IPv6 services for real users at home, campus, and a variety of areas

IPv6 Pilot Service

Achieving phased IPv6 Commercialization from 2005 through successful KOREAv6 Project

33/38

KOREAv6 Project

• Purposes
• Define barriers to deployment of IPv6 services in such areas in

home, office, campus, etc.

• Improve awareness of IPv6 service to the public
• Key contents
• Construct the national-wide IPv6 trial network
• Provide 10 trial services such as Eco System Monitoring, VoDv6,

VoIPv6, Internet gateway service, etc.

• Test the stability and interoperability of 39 equipments such as

routers, switches, VPN and so on

• Outcomes
• Retain operation skill of IPv4/IPv6 network with dual stack, NAT-PT
• Create a market of two-way services such as VoIPv6, Camerav6 etc.
• Enhance the functions of IPv6 equipments (KOREAv6 Logo has

been given to 35 IPv6 equipments)

34/38

KOREAv6 Project

• Phase I (2004) Done
• Construct the nation-wide IPv6 trial network
• Provide VoDv6, VoIPv6, IPv6 internet gateway service and
• Test 39 IPv6 equipment such as routers, switches, VPN etc.
• Phase II (2005) Now
• Applying IPv6 technologies to the 8 services of IT839 such as

WiBro, VoIP, and Home network

• Expanding IPv6 network to the public sector
• Transition of existing IPv4 portal sites and applications into IPv6

based ones

• Phase III (2006) Plan
• Providing large-scale All-IPv6 services to users as far as the 8

services of IT 839

• Supporting the commercialization of IPv6 WiBro contents and

applications

• Facilitating the massive use of IPv6 internet services in the public

sector

35/38

KOREAv6 Project

KOREN KREONET 6KANet

ISP

6NGIX

6GN 6GN is a one of network infrastructure for KOREAv6

36/38

Future Works

Stabilizing of 6GN Infrastructure Operation of IPv6 Network Monitoring Services Testing of Heavy Traffic Transfer (Large File Transfer, HDTV Streaming, etc.) Extending of IPv6 Multicast Network Infra. and Applications Validation of New Transport Protocol over IPv6 International Cooperation (Asia, EU)

37/38

Concluding Remarks

1st Gigabit IPv6 Network Infrastructure in Korea

6GN: a logical network name over KOREN & KREONET

Our Expectations:

To validate the more advanced IPv6 related technologies and applications in advance To facilitate the deployment of IPv6 as a NGI environment To create the new high-end service model on IPv6

Spearhead for the production level of IPv6 services

38/38

Thank you !!
