R. Hegedus and A. Lucat and J. Redon and R. Pacanowski 60 June 22 nd Antoine LUCAT Problematic How to qualify a BRDF measurement ? Graphics Photo vs. Rendering Qualitative error June 22 nd Antoine LUCAT 1 Problematic How to

slide-1
SLIDE 1

June 22nd Antoine LUCAT

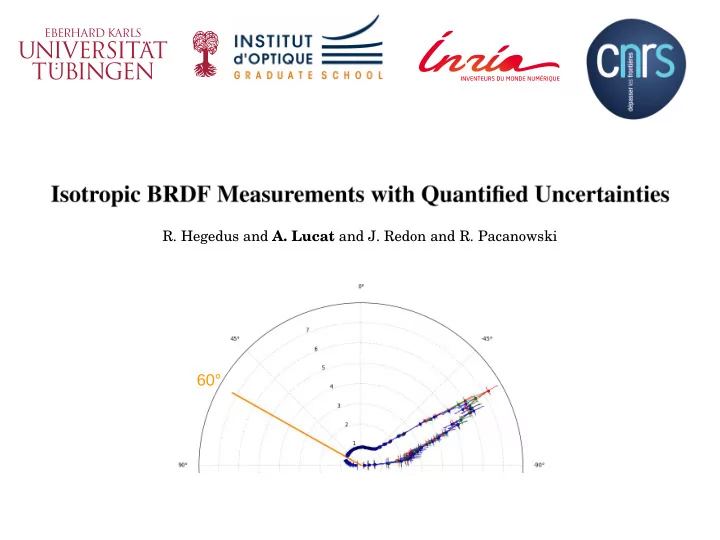

  • R. Hegedus and A. Lucat and J. Redon and R. Pacanowski

60°

slide-2
SLIDE 2

June 22nd Antoine LUCAT

Problematic

 How to qualify a BRDF measurement ?

Graphics Photo vs. Rendering

1

Qualitative error

slide-3
SLIDE 3

June 22nd Antoine LUCAT

Problematic

 How to qualify a BRDF measurement ?

Graphics Two setups = two different BRDFs [Obein15]

1

Photo vs. Rendering Qualitative error

slide-4
SLIDE 4

June 22nd Antoine LUCAT

Problematic

 How to qualify a BRDF measurement ?

Graphics Optics

1

Photo vs. Rendering Quantitative error Qualitative error 30°

slide-5
SLIDE 5

June 22nd Antoine LUCAT

Problematic

 How to qualify a BRDF measurement ?

Optics Aim:

  • Create a database with

quantified uncertainties

  • Material characterization

1

Quantitative error 30°

slide-6
SLIDE 6

June 22nd Antoine LUCAT

The Setup

Inspired by [Matusik03] and [Marschner99]

2

Camera Light Sphere

slide-7
SLIDE 7

June 22nd Antoine LUCAT

The Setup

2

→1 BRDF configuration : 1 pixel + 1 rotation →Isotropic BRDF only Inspired by [Matusik03] and [Marschner99] Camera Sphere Light

slide-8
SLIDE 8

June 22nd Antoine LUCAT

Measurement Principle

Raw image Real setup

3

slide-9
SLIDE 9

June 22nd Antoine LUCAT

Measurement Principle

Virtual setup

3

slide-10
SLIDE 10

June 22nd Antoine LUCAT

Measurement Principle

Measured BRDF

Reconstruction

3 Raytracing

slide-11
SLIDE 11

June 22nd Antoine LUCAT

Uncertainties Propagation

? Initial error Final error

4

slide-12
SLIDE 12

June 22nd Antoine LUCAT

Uncertainties Propagation

Initial error Final error No correlation Perfect correlation

4

slide-13
SLIDE 13

June 22nd Antoine LUCAT

Uncertainties Propagation

Initial error Final error No correlation Perfect correlation

4

Initial error

+error +error +error +error

slide-14
SLIDE 14

June 22nd Antoine LUCAT

Uncertainties Propagation

Initial error Final error No correlation Perfect correlation

4

+error +error +error +error

slide-15
SLIDE 15

June 22nd Antoine LUCAT

Results

slide-16
SLIDE 16

June 22nd Antoine LUCAT

Data & Resolution

Specular Mirror Copper Teflon Spectralon

5

Lambert. Standart

slide-17
SLIDE 17

June 22nd Antoine LUCAT

Data & Resolution

Lambert. Standart Specular Mirror Copper Teflon Spectralon 30° 60°

5

slide-18
SLIDE 18

June 22nd Antoine LUCAT

Data & Resolution

Specular Mirror Copper Teflon Spectralon

5

Lambert. Standart Position uncertainty Value uncertainty

slide-19
SLIDE 19

June 22nd Antoine LUCAT

Data & Resolution

Specular Mirror Copper Teflon Spectralon

5

Uncertainty model results :

Angular resolution : 0.1° → 12° (normal to grazing view angle) Value uncertainty : 3% → 100% Range ( , , ) : (0-85°, 0-90°, 0-360°) ~100 000 000 points for 1° rotation step Lambert. Standart

%

slide-20
SLIDE 20

June 22nd Antoine LUCAT

Uncertainty Analysis

View elevation Light elevation Azimuthal angle

6

slide-21
SLIDE 21

June 22nd Antoine LUCAT

Uncertainty Analysis

View elevation Light elevation Azimuthal angle

6

slide-22
SLIDE 22

June 22nd Antoine LUCAT

Uncertainty Analysis

View elevation Light elevation Azimuthal angle

6

= 0

slide-23
SLIDE 23

June 22nd Antoine LUCAT

Uncertainty Analysis

View elevation Light elevation Azimuthal angle

Light independent

6

= 0

slide-24
SLIDE 24

June 22nd Antoine LUCAT

Uncertainty Analysis

= 0 = 0 = 0 = 0 = 0

View elevation Light elevation Azimuthal angle

Light independent

6

slide-25
SLIDE 25

June 22nd Antoine LUCAT

Uncertainty Analysis

 Unreliable grazing angle measurements

→3 orders of magnitude

= 0 = 0 = 0 = 0 = 0 Light independent

6

103

slide-26
SLIDE 26

June 22nd Antoine LUCAT

Uncertainty Analysis

 Unreliable grazing angle measurements

→3 orders of magnitude

 Main source of error :

→focal and light uncertainties

= 0 = 0 = 0 = 0 = 0 Light independent

6

slide-27
SLIDE 27

June 22nd Antoine LUCAT

Future Work

slide-28
SLIDE 28

June 22nd Antoine LUCAT

Issues and Future Work

 Non-uniformities :

− White light speckle

7

slide-29
SLIDE 29

June 22nd Antoine LUCAT

Issues and Future Work

 Non-uniformities :

− White light speckle

7

Without roughness

slide-30
SLIDE 30

June 22nd Antoine LUCAT

Issues and Future Work

 Non-uniformities :

− White light speckle

7

with roughness

→Surface diffraction

slide-31
SLIDE 31

June 22nd Antoine LUCAT

Issues and Future Work

 Non-uniformities :

− White light speckle − Light field

8

slide-32
SLIDE 32

June 22nd Antoine LUCAT

Issues and Future Work

 Non-uniformities :

− White light speckle − Light field

Light stains

Beam intensity

8

slide-33
SLIDE 33

June 22nd Antoine LUCAT

Issues and Future Work

 Non-uniformities :

− White light speckle − Light field

 Convolution :

− Aperture diffraction →Lens diffraction

9

slide-34
SLIDE 34

June 22nd Antoine LUCAT

Issues and Future Work

 Non-uniformities :

− White light speckle − Light field

 Convolution :

− Aperture diffraction →Lens diffraction

9

time of exposure f-number dynamic range DOF aberrations T r a d e

  • f

f

slide-35
SLIDE 35

June 22nd Antoine LUCAT

Conclusion

 BRDF measurement with quantified

uncertainties

 Absolute definition of the setup's quality of

measurement

 Possible comparison between different

setups

10

slide-36
SLIDE 36

June 22nd Antoine LUCAT

Thank you for your attention

Data will be released on ALTA: http://alta.gforge.inria.fr/data.html

slide-37
SLIDE 37

June 22nd Antoine LUCAT

Reference

[Matusik03]

Matusik W., Pfister H., Brand M., McMillan L. : Efficient isotropic BDRF measurement. In Proc. EGWR '03 (2003), pp. 241-247.

[Marschner98]

Marschner S.R., Westin S.H., Lafortune E.P.F., Torrance K.E., Greenberg D.P.: Image-Based BRDF Measurement Including Human Skin. In Proc. of 10th Eurographics Workshop on Rendering, p.139-152, June 1999.

[Obein15]

Obein G., Audenaert J., Ged G., Leloup F.B. : Metrological issues related to BDRF measurements around the specular direction in the particular case of glossy surfaces. In Proc. SPIE 9398, Measuring, Modeling, and Reproducing Material Appearance 2015, 93980D (March 13, 2015), doi:10.1117/12.2082518.

slide-38
SLIDE 38

June 22nd Antoine LUCAT

Supplemental

 Depth-of-field ?  Other results ?  Formulas ?  Order of errors by parameters (11) ?  Videos ?
