54 SOUTH PORTLAND AVE BROOKLYN, NY 11217 LAWRENCE KANE FORT GREENE PARK LOCATED 275 NORTH OF LAFAYETTE AVENUE THOMAS B. JACKSON C.B. SHELDON DEKALB AVE BLOCK: 2099 CHARLES WERNER LOT: 69 LOT AREA: 2,000 SF WILLIAM B. NICHOLS ZONE:

slide-1
SLIDE 1

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

1

SOUTH PORTLAND AVE SOUTH ELLIOTT PLACE S O U T H O X F O R D S T DEKALB AVE FORT GREENE PARK FORT GREENE HISTORIC DISTRICT

4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 7 13

( 1 1 A )

15 17 19 21 23 25 27 29 29A 31 33 35 37 39 41 43 1867 1866 1866 65 1875 63 1868 45 1866 47 49 51 53 55 57 59 61 1866 1867 91 1868 1875 49 51 53 1862 29 31 31½ 55 57 1864 1878 1880 1861 1864 1866 1872 1869 1873 1868 1867 1864 1864 1866 1875 1875 1883 1852 1852 1853 1876

LAWRENCE KANE THOMAS B. JACKSON C.B. SHELDON CHARLES WERNER WILLIAM B. NICHOLS GEORGE B. BROWN HORACE MOODY CHARLES MUSHLET THOMAS SKELLY JOHN SEELY

  • T. CONNOLLY

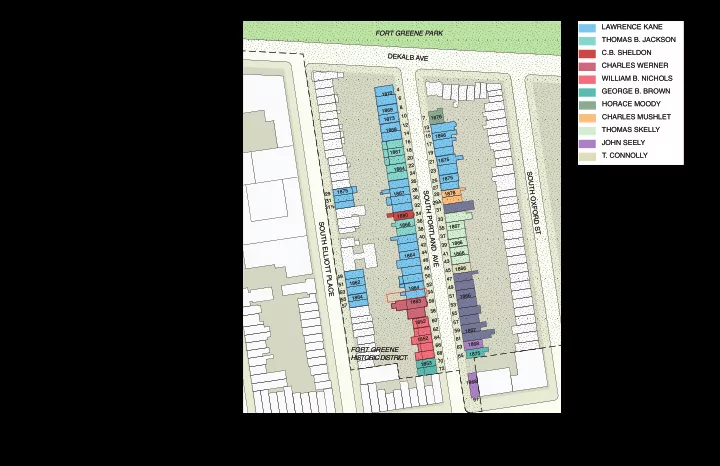

UNKOWN PARTIAL MAP OF FORT GREENE HISTORIC DISTRICT

54 SOUTH PORTLAND AVE BROOKLYN, NY 11217

LOCATED 275’ NORTH OF LAFAYETTE AVENUE BLOCK: 2099 LOT: 69 LOT AREA: 2,000 SF ZONE: R6B MAP: 16C YEAR BUILT: 1900 NUMBER OF BUILDINGS: 1 NUMBER OF FLOORS: 3 EXISTING HEIGHT: 45 FT GROSS FLOOR AREA: 3840 SF RESIDENTIAL UNITS: 2 TOTAL # OF UNITS: 2 LAND USE: ONE AND TWO FAMILY BUILDINGS LANDMARK: FORT GREENE COMMUNITY BOARD: 302 LOCAL LAW: NO CONSTRUCTION CLASS: 3 - NFP

FEMA STATEMENT

54 S PORTLAND AVE BROOKLYN IS NOT LOCATED IN A FLOOD HAZARD AREA PROPERTY IS NOT IN SFHA.

slide-2
SLIDE 2

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

2

GROUND 0'-0" FIRST FLOOR 9' 2-1/4" SECOND FLOOR 21' 9-1/4" ROOF 40' 6-1/2" BASEMENT 0' 7-1/4" THIRD FLOOR 31' 9-1/2" SCALE: 1/8"=1'-0"

EXISTING WEST ELEVATION

54 SOUTH PORTLAND AVE 52 SOUTH PORTLAND AVE 56 SOUTH PORTLAND AVE

  • EXTG. SLIDING PATIO DOOR,

W/ THREE TRANSOM UNITS REMOVE EXTG EXTENSION AND OVERHANG REMOVE STAINED GLASS UNIT REMOVE THREE WOOD DOUBLE HUNG WINDOWS AND METAL SECURITY SCREEN EXTG METAL DECK, HANDRAIL AND STAIRS TO REMAIN

  • No. 52-56

SOUTH PORTLAND AVE REAR ELEVATION

slide-3
SLIDE 3

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

3

GROUND 0'-0" FIRST FLOOR 9' 2-1/4" SECOND FLOOR 21' 9-1/4" ROOF 40' 6-1/2" BASEMENT 0' 7-1/4" THIRD FLOOR 31' 9-1/2" SCALE: 1/8"=1'-0"

PROPOSED WEST ELEVATION

54 SOUTH PORTLAND AVE 52 SOUTH PORTLAND AVE 56 SOUTH PORTLAND AVE

  • EXTG. SLIDING PATIO DOOR,

W/ THREE TRANSOM UNITS REPOINT EXTG BRICK AS REQ NEW MASONRY LINTEL THREE PATIO DOROS, MARVIN CLAD ULTIMATE IN-SWING FRENCH DOORS EXTG METAL DECK, HANDRAIL AND STAIRS TO REMAIN

  • No. 52-56

SOUTH PORTLAND AVE REAR ELEVATION

slide-4
SLIDE 4

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

4

52 S. PORTLAND AVE

  • No. 52

SOUTH PORTLAND AVE

  • No. 52 Built in 1864 by Lawrence Kane
slide-5
SLIDE 5

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

5

54 S. PORTLAND AVE

  • No. 54

SOUTH PORTLAND AVE

  • No. 54 Built in 1864 by Lawrence Kane

54 S. PORTLAND AVE

slide-6
SLIDE 6

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

6

  • No. 54 Built in 1864 by Lawrence Kane

Interior and exterior of rear facade existing window condition

  • No. 54

SOUTH PORTLAND AVE

slide-7
SLIDE 7

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

7

  • No. 54

SOUTH PORTLAND AVE

slide-8
SLIDE 8

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

8

28 1/2" 10'-1 1/4" 64 1/2" 2 1/4" 28 1/4" 4" 4" 2 1/2" 1" 3" 8'-2" 2 1/2" 2 1/2" 2 3/4"

SCALE: 1/2"=1'-0"

PROPOSED DOOR ENLARGED ELEVATION

SCALE: 1/2"=1'-0"

EXISTING WINDOW ENLARGED ELEVATION

2'-0 1/2" 7" 1'-5 1/2" 4 1/4" 7 5/8" 3 1/8" 1'-3" 1 3/4" 3 1/8" 1" 1 3/4" 5" 1'-7 1/4" 6 1/4" 3'-0 1/2" 5 1/2" 2" 1'-8 3/4" 5 3/4" 3'-0" 5 3/4" 1'-8 3/4" 2" 1 5/8" 2 3/8" 2'-1 3/8" 5 1/2" 2'-1 5/8" 2 3/8" 1 5/8" 1" 2'-7" 2'-7 3/8" 2'-7 3/8" 1" 4 7/8" TYP 3" 4" 3" 1'-7 1/4"

SCALE: 1/2"=1'-0"

PROPOSED DOOR ENLARGED PLAN

SCALE: 1/2"=1'-0"

EXISTING WINDOW ENLARGED PLAN

METAL CLADDING METAL SECURITY SCREEN WOOD TRIM WOOD TRIM ASPHALT ROOF COMPOSITE SIDING 3 5/8" 1'-9 7/8" 4 1/4" 1 5/8" 12'-7 3/4" STAIN GLASS UNIT 10'-1 3/8" 2 1/2" 7 7/8" 2 1/4" 8'-2 5/8" 4" 5/8" 3 1/8" 7 7/8" 2 1/2" 2 3/8" 1 3/8" 1 3/8" 1 3

8" BRICKMOLD

MARVIN OUTSWING SCREEN DOORS, BRONZE FINISH W/ HI-TRANSPARENCY MESH MASONRY LINTEL EXTERIOR CLADDING OF MARVIN UNITS TO BE BRONZE EXTERIOR DOOR HARDWARE, OIL RUBBED BRONZE FINISH 2" 1 1/2"

  • No. 54

SOUTH PORTLAND AVE DETAIL DRAWINGS

slide-9
SLIDE 9

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

9

EXTENSION TO BE REMOVED 1" 2 1/2" EXTG STAINED GLASS WINDOW TO BE REMOVED EXTG PROTECTIVE GLAZING TO BE REMOVED 4" 3" 1 3/ METAL SECURITY SCREEN TO BE REMOVED EXTG WOOD DOUBLE HUNG WINDOW TO BE REMOVED 2 1/4" 4" 4" 5/8"

SCALE: 1 1/2"=1'-0"

PROPOSED DOOR SECTION DETAIL

SCALE: 1 1/2"=1'-0"

EXISTING WINDOW SECTION DETAIL

MARVIN DOOR, SEE SCHEDULE THREASHOLD PT BLOCKING W/ MOISTURE VAPOR-PERMEABLE AIR SEALING TAPE 5/8" SELF-ADHERING RUBBERIZED 2 1/2" 2" 7 7/8" MARVIN SCREEN DOOR, SEE SCHEDULE 3 1/8" BRICK MOLD 1 3/8" EXTG MASONRY WALL, LINTELS AND SILLS TO REMAIN CASING, PTD SOLID WD PT BLOCKING W/ MOISTURE VAPOR-PERMEABLE AIR SEALING TAPE JAMB, PTD SOLID WD MINIMAL EXPANSION FOAM SEALANT BACKER ROD SELF-ADHERING RUBBERIZED ASPHALT FLASHING 1" 4 1/4" 1/2"

  • No. 54

SOUTH PORTLAND AVE DETAIL DRAWINGS

slide-10
SLIDE 10

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

10

EXTG MASONRY WALL, TO REMAIN CASING, PTD SOLID WD SELF-ADHERING RUBBERIZED ASPHALT FLASHING PT BLOCKING W/ MOISTURE VAPOR-PERMEABLE AIR SEALING TAPE JAMB, PTD SOLID WD MINIMAL EXPANSION FOAM SEALANT BACKER ROD 1 3/8" 1 5/8" 2 3/8" 4 1/4" EXTG WD DOUBLE HUNG WINDOW TO BE REMOVED 4" 1 1/4" EXTG PROTECTIVE GLAZING TO BE REMOVED EXTG STAINED GLASS UNIT TO BE 2 1/2" 1" 1 1/4"

SCALE: 1 1/2"=1'-0"

PROPOSED DOOR JAMB DETAIL

SCALE: 1 1/2"=1'-0"

EXISTING WINDOW JAMB DETAIL

SCALE: 1 1/2"=1'-0"

EXISTING STAIN GLASS UNIT JAMB DETAIL

  • No. 54

SOUTH PORTLAND AVE DETAIL DRAWINGS

slide-11
SLIDE 11

1631 54 S. PORTLAND AVE 17.03.20

LPC PRESENTATION

11

54 S. PORTLAND AVE 56 S. PORTLAND AVE 58 S. PORTLAND AVE 60 S. PORT. AVE

  • No. 56-60

SOUTH PORTLAND AVE

  • No. 56-58 Built in 1883 by Charles Werner
  • No. 60 Built in 1852 by William B. Nichols
