3DST acceptance without side ECAL/TPC Andriaseta Sitraka (University of Antananarivo) Dr. Guang Yang (Stony Brook University) 1 Geometry A full 3DST set contains side TPC/ECAL and a dipole Magnet Goal of the study : without side, top,

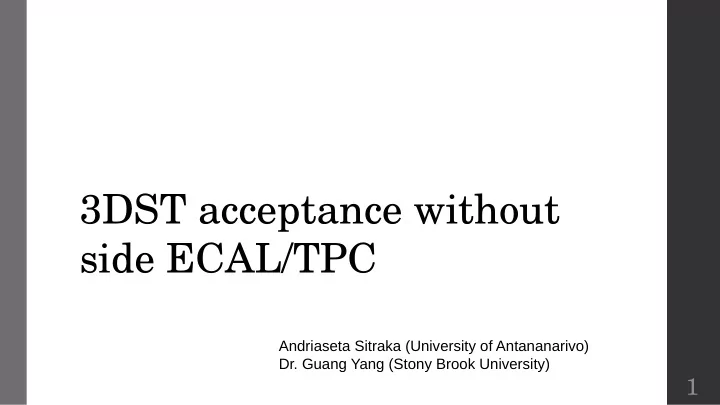

3DST acceptance without side ECAL/TPC Andriaseta Sitraka (University of Antananarivo) Dr. Guang Yang (Stony Brook University) 1
Geometry  A full 3DST set contains side TPC/ECAL and a dipole Magnet  Goal of the study : without side, top, bottom and upstream TPC/ECAL  Understand the efficiency and phase space coverage No Top and bottom TPC/ECAL No side ECAL/TPC 2
Geometry 3  The total volume is 2.4 x 2.4 x 2 m and we used 2 kind of Fiducial Volume is 2.2 x 2.2 x 1.8 m and 1x1x1m 3 3  The efficiency are determined by selected events corresponding to a certain amoung of hadron or lepton energy contain in side, top, bottom and upstream veto region If the energy deposit in this veto region greater than a certain amount, this event is rejected. 3
Lepton Momentum Vs Angle Efficiency ( FV= 2.2x2.2x1.8) -Require a detectable lepton deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 4
Lepton Momentum Vs Angle Efficiency ( FV= 2.2x2.2x1.8) -Require a detectable lepton and hadronic deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 5
Vertex Z Vs Vertex Y Efficiency ( FV= 2.2x2.2x1.8) -Require a detectable lepton deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 6
Vertex Z Vs Vertex Y Efficiency ( FV= 2.2x2.2x1.8) -Require a detectable lepton and hadronic deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 7
Vertex Z Vs Vertex Y yearly loss ( FV= 2.2x2.2x1.8) -Require a detectable lepton deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 8
Lepton Momentum Vs Angle Efficiency ( FV= 1x1x1) -Require a detectable lepton deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 9
Lepton Momentum Vs Angle Efficiency ( FV= 1x1x1) -Require a detectable lepton and hadronic deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 10
Vertex Z Vs Vertex Y Efficiency ( FV= 1x1x1) -Require a detectable lepton deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 11
Vertex Z Vs Vertex Y Efficiency ( FV= 1x1x1) -Require a detectable lepton and hadronic deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 12
Vertex Z Vs Vertex Y yearly loss ( FV= 1x1x1) -Require a detectable lepton deposit -Assume no side, top, bottom and upstream TPC/ECAL/Magnet 13
