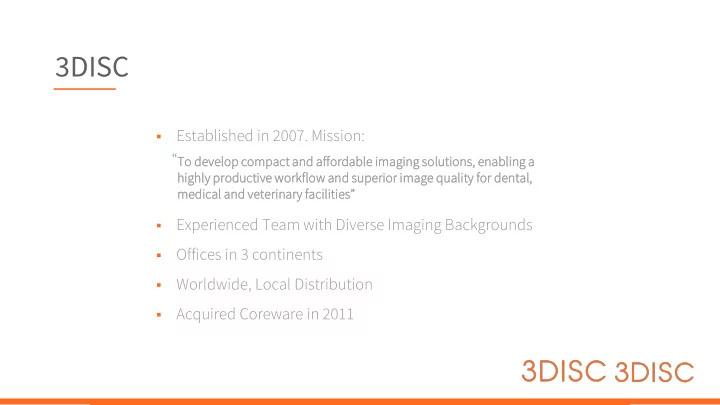

3DISC Established in 2007. Mission: ▪ “ To develop lop compa pact t and affordable rdable imagi ging ng solutio lutions ns, enabli bling ng a highly hly prod oducti ctive ve workflo kflow w and d supe uperi rior or image ge qual ality ity for denta tal, l, medical and veterinary facilities” Experienced Team with Diverse Imaging Backgrounds ▪ Offices in 3 continents ▪ Worldwide, Local Distribution ▪ Acquired Coreware in 2011 ▪
Organization & Facilities ▪ R&D (intraoral 3D scanner) ▪ Management ▪ Production (intraoral 3D scanner) ▪ Sales ▪ Parts warehousing Sterling ling, VA ▪ Technical Support USA ▪ Service & support (Americas) ▪ R&D ▪ Sales (Americas) ▪ Production ▪ Partner training ▪ Production, procurement, logistics and finance ▪ Admin ▪ R&D (computed radiography product lines) ▪ Service ▪ Software development Daejeon on & Wonju ▪ R&D South h Korea ▪ Service and support (Asia) ▪ Production ▪ Service & support (EMEA) ▪ Management ▪ Sales (EMEA and Asia) Allerød ød ▪ Sales & Marketing ▪ Procurement Denma mark rk ▪ Tech Support Service ▪ Partner training ▪ Global Marketing
Company history Focus cus: 3DISC founded by former management from Contex and VIDAR Systems 2007 Development of desktop computerised radiography scanners for primary use in medical and 2008 veterinary settings 2009 Commercialisation of the FireCR product line 2010 Acquisition of CoreWare, a provider of medical imaging software based in Korea 2011 Market break-through with the FireCR+, the second generation CR reader 2012 Commercialisation of the FireCR Dental product line 2013 Roll-out for the FireCR Flash, the 3rd generation CR reader; development of Intraoral 2D HD camera 2014 Roll-out for the FireCR Spark, the 4th generation CR reader; development of Intraoral 3D IOS 2016 Commercialisation of the Heron IOS product line 2018
Product Lines Heron IOS ▪ Human Dental - FireCR Dental Reader ▪ Human and Veterinary - FireCR Spark Readers ▪ Human and Veterinary -
Worldwide Sales Overview Sales & Service Distribution in Products in +50 3DISC +80 Global Countries Countries
Heron IOS Product Specifications October 2018 Manufactured in the United States
Why choose Heron IOS? Unbeatable ble Ergonomic mics The worlds smallest color IOS (150 grams) ▪ Designed for dentist and patient comfort ▪ 360 degree rotating tip for optimal scanning angles ▪ Improved Efficienc ncy Intuitive interface and workflow ▪ Fast and accurate scanning ▪ HD image capture and color scanning ▪ No powder or spray required ▪ Easy workflow Truly open file formats (STL/PLY/OBJ) ▪ Easy lab communication with Exocad Dentalshare ▪ NO license payments ▪
Compact & Lightweight • Weight – Heron IOS: 150 g – Medit i500: 276 g – Carestream CS 3600: 325 g – 3Shape Trios: 340 g • Dimensions – Length: 256 mm – Widest section: 43 mm x 43 mm – Tip height: 19mm Heron IOS Hand-piece
Easy use • Software Requirements Rotating Tip – Windows 10 (Excluding Windows 10 S) Scan Button – Administrative rights (for installation) • Hardware Requirements – 12 GB of RAM (DDR4 or better) – > 2 GB of free disk space Tip Installation Button – 4 Core Intel i7 or AMD Ryzen Processor (at >= 2.8 GHz clock or >=3.2 GHz turbo clock) – NVIDIA Graphics Processor (1000 Series: Air-vent for lens anti-fogging 1070 or Greater - Mobile Series: 1070 or Greater) USB 3.0 Cable
Rotating Tip & Ergonomic Design • Scanner tip rotates full 360 ⁰ to improve user comfort when scanning hard-to-reach areas • Ergonomic handpiece suited for pen-grip or spatula-grip Tip release button
Sterilization of Tip • Autoclavable tip (50Cyc) can be cleaned with disinfectant wipes • Scratch-resistant mirror coated with Titanium dioxide • Biocompatible construction – ISO 10993-5:2009 – Tests for cytotoxicity – ISO 10993-10:2010 – Tests for irritation and skin sensitization
Continuous & Fast Scanning • Scanning mode: continuous scanning (uncompressed video) • Scanning distance: 0 to 10 mm • Scanning time: <3minutes for a full arch – less for experienced user
Workflow 1/3: Input Patient Information & Notes • Manage your patient’s project with QuantorClinic ’s Exocad OEM Chairside platform
Workflow 2/3: Scan and Light Edit • Multiple user feedbacks : – Live 3D – Live video – Audio – Color-coded scan area • Ability to stop scan and restart scan • Auto lock-on feature • Tools for light editing : crop, erase, fill holes • Touchscreen compatible
Workflow 3/3: Send Scans & Report To Lab • File sharing based on Exocad’s DentalShare platform • Package includes report : patient info, job info, notes to lab
Software: 2 Dongles • QuantorClinic TM – No license activations – No license annuities – Free upgrades • Exocad OEM – Chairside Platform to manage your patient and project – Dental Share to instantly send to Exocad recipient labs – No license renewal – Flexibility seamlessly integrated to Exocad’s complete software solution for digital dentistry
Open Architecture & Compact File Size • Output file formats: – STL – PLY ( color scan ) – OBJ (standard 3D image format) • Files can be shared openly • Compatible with most dental CAD systems • Typical STL file size: – Half-arch: ~10MB – Full-arch: ~20MB
Half-Arch Experimental Case: Accuracy & Precision Previous results March 2018 • Experimental conditions: • Gypsum model • Half-arch area • Ground truth captured using lab scanner Identica T-Series • Results (as of March 2018) • Accuracy: 25 microns Gypsum model • Precision: 18 microns (scanned area is indicated) Accuracy Map
ISO 12836 Standard: Accuracy & Precision Latest results Aug 2018 • Full evaluation in progress • Early results indicate: – Accuracy better than 25 microns – Precision better than 18 microns ISO 12836 ISO 12836 inlay-cavity die crown-and-bridge preparation die
What Is In The Box Customizable/OEM “welcome” insert QuantorClinic TM software licensing USB dongle Three autoclavable tips Customizable/OEM quick start guide Docking station Box with magnetic flap
Support Service Summary Our end2end support services Tech & product Support Training Sales Support Marketing P2P Online Support Support
Certifications • Designed and manufactured in the United States (Sterling, VA) • Certified ISO 13485:2016 • CE (safety and EMC) • IEC 10993 (biocompatibility) • ISO 17664 (sterilization) • IEC 62471 (photobiological safety)
Awards • 2017 Inside Dental Technology (IDT) Reader’s Choice Award – Heron IOS was showcased as popular and exciting technology product • 2018 Global Value-based Digital Dental Competitive Strategy Innovation and Leadership Award – Frost & Sullivan recognized 3DISC with the Global Competitive Strategy Innovation and Leadership Award for Its Digital Dental Solution
Meet us at GNYDM Booth 2522
