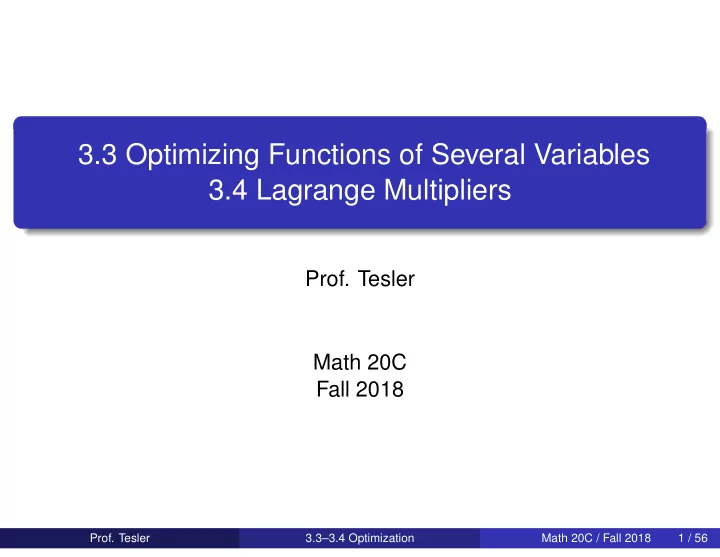

3.3 Optimizing Functions of Several Variables 3.4 Lagrange Multipliers

• Prof. Tesler

Math 20C Fall 2018

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 1 / 56

Optimizing y = f(x)

In Math 20A, we found the minimum and maximum of y = f(x) by using derivatives. First derivative: Solve for points where f ′(x) = 0. Each such point is called a critical point. Second derivative: For each critical point x = a, check the sign of f ′′(a):

f ′′(a) > 0: The value y = f(a) is a local minimum. f ′′(a) < 0: The value y = f(a) is a local maximum. f ′′(a) = 0: The test is inconclusive.

Also may need to check points where f(x) is defined but the derivatives aren’t, as well as boundary points. We will generalize this to functions z = f(x, y).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 2 / 56

Local extrema (= maxima or minima)

Consider a function z = f(x, y). The point (x, y) = (a, b) is a local maximum when f(x, y) f(a, b) for all (x, y) in a small disk (filled-in circle) around (a, b); global maximum (a.k.a. absolute maximum) when f(x, y) f(a, b) for all (x, y); local minimum and global minimum are similar with f(x, y) f(a, b). A, C, E are local maxima (plural of maximum) E is the global maximum D, G are local minima G is the global minimum B is maximum in the red cross-section but minimum in the purple cross-section! It’s called a saddle point.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 3 / 56

Critical points on a contour map

1 1

• P
• Q
• R
• S

Classify each point P, Q, R, S as local maximum or minimum, saddle point, or none. Isolated max/min usually have small closed curves around them. Values decrease towards P, so P is a local minimum. Values increase towards Q, so Q is a local maximum.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 4 / 56

Critical points on a contour map

1 1

• P
• Q
• R
• S

The crossing contours have the same value, 1. (If they have different values, the function is undefined at that point.) Here, the crossing contours give four regions around R. The function has

a local min. at R on lines with positive slope (goes from >1 to 1 to >1) a local max. at R on lines with neg. slope (goes from <1 to 1 to <1).

Thus, R is a saddle point.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 5 / 56

Critical points on a contour map

1 1

• P
• Q
• R
• S

S is a regular point. Its level curve ≈ 8 is implied but not shown. The values are bigger on one side and smaller on the other. P: local min Q: local max R: saddle point S: none

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 6 / 56

Contour map of z = y/x: crossing lines

−10 −5 5 10 −10 −5 5 10 1 1 − 1 − 1 1 1 − 1 − 1 2 2 −2 −2 1/2 1/2 −1/2 −1/2 3 3 −3 −3 1/3 1/3 −1/3 −1/3 7 7 −7 −7 1/7 1/7 −1/7 −1/7

Contours of z = y/x are diagonal lines: z = c along y = cx. Contours cross at (0, 0) and have different values there. Function z = y/x is undefined at (0, 0).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 7 / 56

Contour map of z = sin(y)

Minimum and maximum form curves, not just isolated points

−4 −2 2 4 −4 −2 2 4 −1.00 −1.00 −1.00 −1.00 −0.75 −0.75 −0.75 −0.50 −0.50 −0.50 −0.25 −0.25 −0.25 0.00 0.00 0.00 0.25 0.25 0.25 0.50 0.50 0.50 0.75 0.75 0.75 1.00 1.00 1.00 1.00

Contours of z = f(x, y) = sin(y) are horizontal lines y = arcsin(z) Maximum at y = (2k + 1

2)π for all integers k

Minimum at y = (2k − 1

2)π

These are curves, not isolated points enclosed in contours.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 8 / 56

Finding the minimum/maximum values of z = f(x, y)

The tangent plane is horizontal at a local minimum or maximum: f(a, b) + fx(a, b)(x − a) + fy(a, b)(y − b) − z = 0. The normal vector

• fx(a, b), fy(a, b), −1
• z-axis

when fx(a, b) = fy(a, b) = 0, or ∇f(a, b) = 0. At points where ∇f 0, we can make f(x, y)

larger by moving in the direction of ∇f; smaller by moving in the direction of −∇f.

(a, b) is a critical point if ∇f(a, b) is 0 or is undefined. These are candidates for being maximums or minimums. Critical points found in the same way for f(x, y, z, . . .).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 9 / 56

Completing the squares review

(x + m)2 = x2 + 2mx + m2 For a quadratic x2 + bx + c, take half the coefficient of x: b/2 Form the square: (x + b/2)2 = x2 + bx + (b/2)2 Adjust the constant term: x2 + bx + c = (x + b/2)2 + d where d = c − (b/2)2

Example: x2 + 10x + 13

Take half the coefficient of x: 10/2 = 5 Expand (x + 5)2 = x2 + 10x + 25 Add/subtract the necessary constant to make up the difference: x2 + 10x + 13 = (x + 5)2 − 12

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 10 / 56

Completing the squares review

For ax2 + bx + c, complete the square for a(x2 + (b/a)x) and then adjust the constant.

Example: 10y2 − 60y + 8

10y2 − 60y + 8 = 10(y2 − 6y) + 8 y2 − 6y = (y − 3)2 − 9 10y2 − 60y + 8 = 10(y − 3)2 + ? 10(y − 3)2 = 10(y2 − 6y + 9) = 10y2 − 60y + 90 10y2 − 60y + 8 = 10(y − 3)2 − 82

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 11 / 56

Critical points

Let f(x, y) = x2 − 2x + y2 − 4y + 15 ∇f = 2x − 2, 2y − 4 ∇f = 0 at x = 1, y = 2, so (1, 2) is a critical point. Use (x − 1)2 = x2 − 2x + 1 (y − 2)2 = y2 − 4y + 4 f(x, y) = (x − 1)2 + (y − 2)2 + 10 We “completed the squares”: x2 − ax = (x − a

2)2 − (a 2)2

f(x, y) 10 everywhere, with global minimum 10 at (x, y) = (1, 2).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 12 / 56

Second derivative test for functions of two variables

How to classify critical points ∇f(a, b) = 0 as local minima/maxima or saddle points

Compute all points where ∇f(a, b) = 0, and classify each as follows: Compute the discriminant at point (a, b): D =

• ∂2f

∂x2 ∂2f ∂y ∂x ∂2f ∂x ∂y ∂2f ∂y2

• Determinant of “Hessian matrix” at (x, y)=(a, b)

= fxx(a, b) fyy(a, b) − ( fxy(a, b))2 If D > 0 and fxx > 0 then z = f(a, b) is a local minimum; If D > 0 and fxx < 0 then z = f(a, b) is a local maximum; If D < 0 then f has a saddle point at (a, b); If D = 0 then it’s inconclusive; min, max, saddle, or none of these, are all possible.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 13 / 56

Example: f(x, y) = x2 − y2

Find the critical points of f(x, y) = x2 − y2 and classify them using the second derivatives test. ∇f = 2x, −2y = 0 at (x, y) = (0, 0). The x = 0 cross-section is f(0, y) = −y2 0. The y = 0 cross-section is f(x, 0) = x2 0. It is neither a minimum nor a maximum. fxx(x, y) = 2 and fxx(0, 0) = 2 fyy(x, y) = −2 and fyy(0, 0) = −2 fxy(x, y) = 0 and fxy(0, 0) = 0 D = fxx(0, 0) fyy(0, 0) − (fxy(0, 0))2 = (2)(−2) − 02 = −4 < 0 so (0, 0) is a saddle point

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 14 / 56

Example: f(x, y) = x2 − y2

∇f = 2x, −2y points in the direction of greatest increase of f(x, y). The function increases as we move towards the x-axis and away from the y-axis. At the origin, it increases or decreases depending

• n the direction of approach.

Detailed direction General direction Contour plot

• f gradient
• f gradient

−2 −1 1 2 −2 −1 1 2 −2 −1 1 2 −2 −1 1 2

!

−2 −1 1 2 −2 −1 1 2

!(0,0)

fx > 0 fx < 0 fy < 0 fy > 0 fx = 0: 2x = 0 fy = 0: !2y = 0 "f

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 15 / 56

Example: f(x, y) = 8y3 + 12x2 − 24xy

Find the critical points of f(x, y) and classify them using the second derivatives test. Solve for first derivatives equal to 0: fx = 24x − 24y = 0 gives x = y fy = 24y2 − 24x = 0 gives 24y2 − 24y = 24y(y − 1) = 0 so y = 0 or y = 1 x = y so (x, y) = (0, 0) or (1, 1) Critical points: (0, 0) and (1, 1) Second derivative test: (D = fxx fyy − (fxy)2) Crit pt f fxx = 24 fyy = 48y fxy = −24 D Type (0, 0) 24 −24 −576 D < 0 saddle (1, 1) −4 24 48 −24 576 D > 0 and fxx > 0 local minimum No absolute min or max: f(0, y) = 8y3 ranges over (−∞, ∞)

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 16 / 56

Example: f(x, y) = x3 + y3 − 3x − 3y2 + 1

Find the critical points of f(x, y) and classify them using the second derivatives test. Solve for first derivatives equal to 0: fx = 3x2 − 3 = 0 gives x = ±1 fy = 3y2 − 6y = 3y(y − 2) = 0 gives y = 0 or y = 2 Critical points: (−1, 0), (1, 0), (−1, 2), (1, 2) Second derivative test: (D = fxx fyy − (fxy)2) Crit pt f fxx = 6x fyy = 6y − 6 fxy = 0 D Type (−1, 0) 3 −6 −6 36 D>0 and fxx <0: local max (1, 0) −1 6 −6 −36 D<0: saddle (−1, 2) −1 −6 6 −36 D<0: saddle (1, 2) −5 6 6 36 D>0 and fxx >0: local min

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 17 / 56

Example: f(x, y) = xy(1 − x − y)

Find the critical points of f(x, y) and classify them. Solve for first derivatives equal to 0: f = xy − x2y − xy2 fx = y − 2xy − y2 = y(1 − 2x − y) gives y = 0 or 1 − 2x − y = 0 fy = x − x2 − 2xy = x(1 − x − 2y) gives x = 0 or 1 − x − 2y = 0 Two solutions of fx =0 and two of fy =0 gives 2·2=4 combinations:

y = 0 and x = 0 gives (x, y) = (0, 0). y = 0 and 1 − x − 2y = 0 gives (x, y) = (1, 0). 1 − 2x − y = 0 and x = 0 gives (x, y) = (0, 1). 1 − 2x − y = 0 and 1 − x − 2y = 0: The 1st equation gives y = 1 − 2x. Plug that into the 2nd equation: 0 = 1 − x − 2y = 1 − x − 2(1 − 2x) = 1 − x − 2 + 4x = 3x − 1 so x= 1

3 and y=1−2x=1−2( 1 3)= 1 3

gives (x, y) = ( 1

3, 1 3).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 18 / 56

Example: f(x, y) = xy(1 − x − y)

Classify the critical points using the second derivatives test. Derivatives: f = xy − x2y − xy2 fx = y − 2xy − y2 fy = x − x2 − 2xy fxx = −2y fyy = −2x fxy = fyx = 1 − 2x − 2y Second derivative test: (D = fxx fyy − (fxy)2) Crit pt f fxx fyy fxy D Type (0, 0) 1 −1 D < 0: saddle (1, 0) −2 −1 −1 D < 0: saddle (0, 1) −2 −1 −1 D < 0: saddle (1/3, 1/3) 1/27 −2/3 −2/3 −1/3 1/3 D > 0 and fxx < 0: local maximum

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 19 / 56

Boundary of a region

Boundary A B

Consider a region A ⊂ Rn. A point is a boundary point of A if every disk (blue) around that point contains some points in A and some points not in A. A point is an interior point of A if there is a small enough disk (pink) around it fully contained in A. In both A and B, the boundary points are the same: the perimeter

• f the hexagon.

∂A denotes the set of boundary points of A.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 20 / 56

Extreme Value Theorem

Closed Open Neither

A region is bounded if it fits in a disk of finite radius. A region is closed if it contains all its boundary points and open if every point in it is an interior point. Open and closed are not opposites: e.g., R2 is open and closed! The third example above is neither open nor closed.

Extreme Value Theorem

If f(x, y) is continuous on a closed and bounded region, then it has a global maximum and a global minimum within that region. To find these, consider the local minima/maxima of f(x, y) that are within the region, and also analyze the boundary of the region.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 21 / 56

Example: f(x, y) = x3 + y3 − 3x − 3y2 + 1 in a triangle

Find the global minimum and maximum of f(x, y) = x3 + y3 − 3x − 3y2 + 1 in the triangle with vertices (0, 0), (0, 3), (3, 3).

Critical points inside the region

First find and classify the critical points of f. (We already did.) f(1, 2) = −5 is a local minimum and is inside the triangle. Ignore the other critical points since they’re outside the triangle. Ignore the saddle points.

−1 1 2 3 1 2 3

! ! ! !

f(1,2)=−5 loc min (1,0) saddle (−1,2) saddle f(−1,0)=3 loc max

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 22 / 56

Example: f(x, y) = x3 + y3 − 3x − 3y2 + 1 in a triangle

Find the global minimum and maximum of f(x, y) = x3 + y3 − 3x − 3y2 + 1 in the triangle with vertices (0, 0), (0, 3), (3, 3).

!

f(1,2)=−5 loc min

! ! !

(0,0) (0,3) (3,3) Top y = 3 x ! 3 0 ! Diagonal y = x x ! 3 0 ! Left x = 0 y ! 3 0 !

Extrema on left edge: x = 0 and 0 y 3

Set g(y) = f(0, y) = y3 − 3y2 + 1 for 0 y 3 g′(y) = 3y2 − 6y = 3y(y − 2) g′(y) = 0 at y = 0 or 2. We consider y = 0 and 2 by that test. We also consider boundaries y = 0 and 3. Candidates: f(0, 0) = 1 f(0, 2) = −3 f(0, 3) = 1 We could use the second derivatives test for

• ne variable, but we’ll do it another way.
• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 23 / 56

Example: f(x, y) = x3 + y3 − 3x − 3y2 + 1 in a triangle

Find the global minimum and maximum of f(x, y) = x3 + y3 − 3x − 3y2 + 1 in the triangle with vertices (0, 0), (0, 3), (3, 3).

!

f(1,2)=−5 loc min

! ! !

(0,0) (0,3) (3,3) Top y = 3 x ! 3 0 ! Diagonal y = x x ! 3 0 ! Left x = 0 y ! 3 0 !

Extrema on top edge: y = 3 and 0 x 3

Set h(x) = f(x, 3) = x3 + 27 − 3x − 27 + 1 = x3 − 3x + 1 for 0 x 3 h′(x) = 3x2 − 3 h′(x) = 0 at x = ±1 (but −1 is out of range) Also consider the boundaries x = 0 and 3. Candidates: f(0, 3) = 1 f(1, 3) = −1 f(3, 3) = 19

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 24 / 56

Example: f(x, y) = x3 + y3 − 3x − 3y2 + 1 in a triangle

Find the global minimum and maximum of f(x, y) = x3 + y3 − 3x − 3y2 + 1 in the triangle with vertices (0, 0), (0, 3), (3, 3).

!

f(1,2)=−5 loc min

! ! !

(0,0) (0,3) (3,3) Top y = 3 x ! 3 0 ! Diagonal y = x x ! 3 0 ! Left x = 0 y ! 3 0 !

Diagonal edge: y = x for 0 x 3

For 0 x 3, set p(x) = f(x, x) = 2x3 − 3x − 3x2 + 1 = 2x3 − 3x2 − 3x + 1 p′(x) = 6x2 − 6x − 3 p′(x) = 0 at x = 1±

√ 3 2

≈ −0.366, 1.366 (but 1−

√ 3 2

is out of range) Also consider the boundaries x = 0 and 3. Candidates: f(0, 0) = 1 f(3, 3) = 19 f

• 1+

√ 3 2

, 1+

√ 3 2

• = −1 − 3

√ 3 2

≈ −3.598

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 25 / 56

Example: f(x, y) = x3 + y3 − 3x − 3y2 + 1 in a triangle

Find the global minimum and maximum of f(x, y) = x3 + y3 − 3x − 3y2 + 1 in the triangle with vertices (0, 0), (0, 3), (3, 3).

Compare all candiate points

f(1, 2) = −5: The global minimum is −5. It occurs at (x, y) = (1, 2). f(3, 3) = 19: The global maximum is 19. It occurs at (x, y) = (3, 3).

−1 1 2 3 1 2 3

! ! ! !

f(1,2)=−5 loc min (1,0) saddle (−1,2) saddle f(−1,0)=3 loc max

! ! ! ! ! !

f(0,0)=1 f(0,2)=−3 f(0,3)=1 f(3,3)=19 f(1,3)=−1 f(1.366,1.366) =−3.598

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 26 / 56

Extrema of f(x, y) = |xy|: ∇f isn’t defined everywhere

f=0 f(−1,−2)=2 f(−1,2)=2 f=0 f(1,−2)=2 f(1,2)=2

−2 2 1 −1

Extrema of f(x, y) = |xy| on rectangle −1 x 1, −2 y 2

1st & 3rd quadrants: f(x, y) = xy and ∇f = y, x. 2nd & 4th quadrants: f(x, y) = −xy and ∇f = −y, x. Away from the axes, ∇f 0. On the axes, ∇f is undefined.

f(x, 0) = f(0, y) = 0 on the axes. All points on the axes are tied for global minimum.

On the perimeter, f(±1, y) = |y| and f(x, ±2) = 2|x|:

Minimum f = 0 at (±1, 0) and (0, ±2). Maximum f = 2 at (1, 2), (1, −2), (−1, 2), (−1, −2).

The global maximum is f = 2 at (1, 2), (1, −2), (−1, 2), (−1, −2).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 27 / 56

Extrema of f(x, y) = |xy|: ∇f isn’t defined everywhere

f=0 f(−1,−2)=2 f(−1,2)=2 f=0 f(1,−2)=2 f(1,2)=2

−2 2 1 −1

Extrema of f(x, y) = |xy| on open rectangle −1 < x < 1, −2 < y < 2

Global minimum is still f = 0 on axes. No global maximum. While f(x, y) gets arbitrarily close to 2, it never reaches 2 since those corners are not in the open rectangle.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 28 / 56

Optional: Second derivative test for f(x, y, z, . . .)

Full coverage requires Linear Algebra (Math 18)

The Hessian matrix of f(x, y, z) is      

∂2f ∂x2 ∂2f ∂y ∂x ∂2f ∂z ∂x ∂2f ∂x ∂y ∂2f ∂y2 ∂2f ∂z ∂y ∂2f ∂x ∂z ∂2f ∂y ∂z ∂2f ∂z2

      For f : Rn → R, it’s an n × n matrix of 2nd partial derivatives. For each point with ∇f = 0, compute the determinants of the upper left 1 × 1, 2 × 2, 3 × 3, . . . , n × n submatrices.

If the n × n determinant is zero, the test is inconclusive. If the determinants are all positive, it’s a local minimum. If signs of determinants alternate −, +, −, . . . , it’s a local maximum. Otherwise, it’s a saddle point. We did 2 × 2 and 3 × 3 determinants. For 1 × 1, det[x] = x. n × n determinants are covered in Linear Algebra (Math 18).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 29 / 56

Optional example: f(x, y, z) = x2 + y2 + z2 + 2xyz + 10

Solve ∇f = 0: ∇f = 2x + 2yz, 2y + 2xz, 2z + 2xy = x = −yz, y = −xz, z = −xy. There are five solutions (x, y, z) of ∇f = 0 (work not shown): (0, 0, 0), (1, 1, −1), (−1, 1, 1), (1, −1, 1), (−1, −1, −1). Hessian =   2 2z 2y 2z 2 2x 2y 2x 2   At (0, 0, 0):   2 2 2   det

• 2
• = 2

det 2 2

• = 4

det   2 2 2   = 8 All positive, so f(0, 0, 0) = 10 is a local minimum.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 30 / 56

Optional example: f(x, y, z) = x2 + y2 + z2 + 2xyz + 10

Hessian =   2 2z 2y 2z 2 2x 2y 2x 2   At (1, 1, −1):   2 −2 2 −2 2 2 2 2 2   det

• 2
• = 2

det 2 −2 −2 2

• = 0

det   2 −2 2 −2 2 2 2 2 2   = −32 Signs +, 0, −, so saddle point. Critical points (−1, 1, 1), (1, −1, 1), (−1, −1, −1) give the same determinants 2, 0, −32 as this case, so they’re also saddle points.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 31 / 56

Optimization with a constraint

−1.0 −0.5 0.0 0.5 1.0 −1.0 −0.5 0.0 0.5 1.0

A hiker hikes on a mountain z = f(x, y) =

• 1 − x2 − y2.

Plot their trail on a topographic map: x2 + 4y2 = 1 (red ellipse). What is the minimum and maximum height reached, and where? On the ellipse, y2 = (1 − x2)/4 and −1 x 1, so z =

• 1 − x2 − (1 − x2)/4 =
• 3

4(1 − x2)

Minimum at x = ±1

y2 = (1 − (±1)2)/4 = 0 so y = 0 z =

• (3/4)(1 − (±1)2) = 0

Min: z = 0 at (x, y) = (±1, 0)

Maximum at x = 0

y2 = (1 − 02)/4 = 1/4 so y = ± 1

2

z =

• 3

4(1 − 02) =

• 3

4 = √ 3 2

Max: z =

√ 3 2 at (x, y) = (0, ± 1 2)

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 32 / 56

3.4. Lagrange Multipliers

General problem

Find the minimum and maximum of f(x, y, z, . . .) subject to the constraint g(x, y, z, . . .) = c (constant)

This problem

Find the minimum and maximum of f(x, y) =

• 1 − x2 − y2

subject to the constraint g(x, y) = x2 + 4y2 = 1

Approaches

Use the constraint g to solve for one variable in terms of the

• ther(s), then plug into f and find its extrema.

New method: Lagrange Multipliers

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 33 / 56

Lagrange Multipliers

−1.0 −0.5 0.0 0.5 1.0 −1.0 −0.5 0.0 0.5 1.0

On the contour map, when the trail (g(x, y) = c, in red) crosses a contour of f(x, y), f is lower on one side and higher on the other. The min/max of f(x, y) on the trail occurs when the trail is tangent to a contour of f(x, y)! The trail goes up to a max and then back down, staying on the same side of the contour of f. Recall ∇f ⊥ contours of f ∇g ⊥ contours of g So contours of f and g are tangent when ∇f∇g, or ∇f = λ ∇g for some scalar λ (called a Lagrange Multiplier).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 34 / 56

Lagrange Multipliers for the ellipse path

Find the minimum and maximum of z =

• 1 − x2 − y2

subject to the constraint x2 + 4y2 = 1. This is equivalent to finding the extrema of z2 = 1 − x2 − y2. Set f(x, y) = 1 − x2 − y2 ∇f = −2x, −2y and g(x, y) = x2 + 4y2 ∇g = 2x, 8y (constraint: = 1). Solve ∇f = λ ∇g and g(x, y) = c for x, y, λ: −2x = 2λx −2y = 8λy x2 + 4y2 = 1 2x(1 + λ) = 0 y(2 + 8λ) = 0 x = 0 or λ = −1 y = 0 or λ = −1/4 Solutions:

x = 0 gives y = ± √ 1 − 02/2 = ± 1

2,

λ = −2/8 = −1/4, z =

• 1 − 02 − (1/2)2 =

√ 3/2. λ = −1 gives y = 0, x = ±

• 1 − 4(0)2 = ±1,

z =

• 1 − (±1)2 − 02 = 0.
• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 35 / 56

Lagrange Multipliers for the ellipse path

• 1 − x2 − y2 is continuous along the closed path x2 + 4y2 = 1, so

z =

√ 3 2 at (x, y) = (0, ± 1 2) are absolute maxima

z = 0 at (x, y) = (±1, 0) are absolute minima

λ is a tool to solve for the extremal points; its value isn’t important.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 36 / 56

Lagrange Multipliers on Closed Region with Boundary

Find the extrema of z =

• 1 − x2 − y2

subject to the constraint x2 + 4y2 1.

−1.0 −0.5 0.0 0.5 1.0 −1.0 −0.5 0.0 0.5 1.0

• Analyze interior points and boundary points separately.

Then select the minimum and maximum out of all candidates. In x2 + 4y2 < 1 (yellow interior), use critical points to show the maximum is f(0, 0) = 1. On boundary x2 + 4y2 = 1 (red ellipse), use Lagrange Multipliers. minimum f(±1, 0) = 0, maximum f(0, ± 1

2) = √ 3 2 ≈ 0.866.

Comparing candidates (red spots) gives absolute minimum f(±1, 0) = 0, absolute maximum f(0, 0) = 1.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 37 / 56

Example: Rectangular box

Method 1: Critical points

An open rectangular box (5 sides but no top) has volume 500 cm3. What dimensions give the minimum surface area, and what is that area?

y z x

Volume V = xyz = 500 Area bottom + left & right + front & back A = xy + 2xz + 2yz Physical intuition says there is some minimum amount of material needed in order to hold a given volume. We will solve for this. There’s no maximum, though: e.g., let x = y, z = 500

xy = 500 x2 , and let x → ∞. Then A → ∞.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 38 / 56

Example: Rectangular box

Method 1: Critical points

An open rectangular box (5 sides but no top) has volume 500 cm3. What dimensions give the minimum surface area, and what is that area?

y z x

Dimensions x, y, z > 0 Volume V = xyz = 500 Area A = xy + 2xz + 2yz The volume equation gives z = 500

xy

Plug that into the area equation: A = xy + 2x · 500 xy + 2y · 500 xy = xy + 1000 y + 1000 x

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 39 / 56

Example: Rectangular box

Method 1: Critical points

A = xy + 1000 y + 1000 x Find first derivatives: Ax = y − 1000 x2 Ay = x − 1000 y2 Solve Ax = Ay = 0: Plug y = 1000/x2 into x = 1000/y2 to get x = 1000 (1000/x2)2 = x4 1000 x4 − 1000x = 0 x(x3 − 1000) = 0 so x = 0 or x = 10 (and two complex solutions) x = 0 violates V = xyz = 500. Also, we need x > 0 for a real box. x = 10 gives y = 1000

x2

= 1000

102 = 10

and z = 500

xy = 500 (10)(10) = 5

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 40 / 56

Example: Rectangular box

Method 1: Critical points

A = xy + 1000 y + 1000 x Check if x = y = 10 is a critical point: Ax = y − 1000 x2 = 10 − 1000 102 = 10 − 10 = 0 Ay = x − 1000 y2 = 10 − 1000 102 = 10 − 10 = 0 Yes, it’s a critical point. Solution of original problem: Dimensions x = y = 10 cm, z = 5 cm Volume V = xyz = (10)(10)(5) = 500 cm3 Area A = xy + 2xz + 2yz = (10)(10) + 2(10)(5) + 2(10)(5) = 300 cm2

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 41 / 56

Example: Rectangular box

Method 1: Critical points

A = xy + 1000 y + 1000 x Second derivatives test at (x, y) = (10, 10): Axx = 2000 x3 = 2000 103 = 2 Ayy = 2000 y3 = 2000 103 = 2 Axy = 1 D = (2)(2) − 12 = 3 > 0 and Axx > 0 so local minimum

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 42 / 56

Example: Rectangular box

Method 1: Critical points Using gradients instead of 2nd derivatives test

A = xy + 1000 y + 1000 x Ax = y − 1000 x2 Ay = x − 1000 y2

! (10,10)

Ax < 0 Ax > 0 Ay > 0 Ay < 0 y = 1000 x2 x = 1000 y2 !A

The signs of Ax, Ay split the first quadrant into four regions. ∇A(x, y) points away from (10, 10) in each region. A(x, y) increases as we move away from (10, 10) in each region. So (10, 10) is the location of the global minimum.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 43 / 56

Example: Rectangular box

Method 2: Lagrange Multipliers

An open rectangular box (5 sides but no top) has volume 500 cm3. What dimensions give the minimum surface area, and what is that area?

y z x

Dimensions x, y, z > 0 Volume V = xyz = 500 Area A = xy + 2xz + 2yz Solve ∇A = λ ∇V and V = xyz = 500 for x, y, z, λ. Solve y + 2z, x + 2z, 2x + 2y = λ yz, xz, xy and V = xyz = 500 Solve for λ: λ = y + 2z yz = x + 2z xz = 2x + 2y xy λ = 1 z + 2 y = 1 z + 2 x = 2 y + 2 x There is no division by 0 since xyz = 500 implies x, y, z 0.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 44 / 56

Example: Rectangular box

Method 2: Lagrange Multipliers

λ = 1 z + 2 y = 1 z + 2 x = 2 y + 2 x Taking any two of those at a time gives 1 z = 2 y = 2 x so x = y = 2z. Combine with xyz = 500: (2z)(2z)(z) = 4z3 = 500 z3 = 500/4 = 125 and z = 5 x = y = 2z = 10 (x, y, z) = (10, 10, 5) cm Area: (10)(10) + 2(10)(5) + 2(10)(5) = 300 cm2. This method doesn’t tell you if it’s a minimum or a maximum! Use your intuition (in this case, there is a minimum area that can encompass the volume, but not a maximum) or test nearby values.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 45 / 56

Example: Rectangular box

Method 2: Lagrange Multipliers

This method doesn’t tell you if it’s a minimum or a maximum! Use your intuition (in this case, there is a minimum area that can encompass the volume, but not a maximum) or test nearby values. Surface xyz = 500 (with x, y, z > 0) is not bounded, so Extreme Value Theorem doesn’t apply. No guarantee there’s a global min/max in the region. Only one candidate point, so we can’t compare candidates. Pages 197–201 extend the 2nd derivatives test to constraint equations, but it uses Linear Algebra (Math 18).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 46 / 56

Example: Function of 10 variables

Find 10 positive #’s whose sum is 1000 and whose product is maximized: Maximize f(x1, . . . , x10) = x1 x2 . . . x10 ∇f =

• f

x1 , . . . , f x10

• Subject to

g(x1, . . . , x10) = x1 + · · · + x10 = 1000 ∇g = 1, . . . , 1 Solve ∇f = λ ∇g:

f x1 = · · · = f x10 = λ · 1

x1 = · · · = x10 Combine with constraint g = x1 + · · · + x10 = 1000: 10 x1 = 1000 so x1 = · · · = x10 = 100 The product is 10010 = 1020. This turns out to be the maximum. Minimum: as any of the variables approach 0, the product approaches 0, without reaching it. So, in the domain x1, . . . , x10 > 0, the minimum does not exist.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 47 / 56

Closest point on a plane to the origin

x z y O P Q

What point on the plane x + 2y + z = 4 is closest to the origin? Physical intuition tells us there is a minimum but not a maximum. No max: plane has infinite extent, with points arbitrarily far away. Approaches: vector projections (Chapter 1.2), critical points (3.3), and Lagrange Multipliers (3.4). Generalization: Given a point A, find the closest point to A on surface z = f(x, y).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 48 / 56

Closest point on a plane to the origin

Method 1: Projection

x z y O P Q

What point on the plane x + 2y + z = 4 is closest to the origin? Pick any point Q on the plane; let’s use Q = (1, 1, 1). Form the projection of a = − → OQ = 1, 1, 1 along the normal vector

• n = 1, 2, 1 to get −

→ OP, where P is the closest point: − → OP = ( a · n) n

• n2

= (1 · 1 + 1 · 2 + 1 · 1) n 12 + 22 + 12 = 4 n 6 = 2 3, 4 3, 2 3

• Closest point is P = O + −

→ OP = (2

3, 4 3, 2 3).

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 49 / 56

Closest point on a plane to the origin

Method 2: Critical points

What point on the plane x + 2y + z = 4 is closest to the origin? For (x, y, z) on the plane, the distance to the origin is f(x, y, z) =

• (x − 0)2 + (y − 0)2 + (z − 0)2 =
• x2 + y2 + z2

This is minimized at the same place as its square: g(x, y, z) = x2 + y2 + z2 On the plane, z = 4 − x − 2y. So find (x, y) that minimize h(x, y) = x2 + y2 + (4 − x − 2y)2 Then plug the solution(s) of (x, y) into z = 4 − x − 2y.

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 50 / 56

Closest point on a plane to the origin

Method 2: Critical points

What point on the plane x + 2y + z = 4 is closest to the origin? Minimize h(x, y) = x2 + y2 + (4 − x − 2y)2. First derivatives: hx = 2x − 2(4 − x − 2y) = 4x + 4y − 8 hy = 2y + 2(−2)(4 − x − 2y) = 4x + 10y − 16 Critical points: solve hx = hy = 0: hx = 0 gives y = 2 − x hy = 0 becomes 4x + 10(2 − x) − 16 = 4x + 20 − 10x − 16 = −6x + 4 = 0 so x = 2/3 and y = 2 − 2/3 = 4/3 This gives z = 4 − x − 2y = 4 − (2/3) − 2(4/3) = 2/3. The point is (2

3, 4 3, 2 3) .

Its distance to the origin is

• (2

3)2 + ( 4 3)2 + ( 2 3)2 = √ 24 3

= 2

√ 6 3 .

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 51 / 56

Closest point on a plane to the origin

Method 2: Critical points

2nd derivative test

h(x, y) = x2 + y2 + (4−x−2y)2 hx = 4x + 4y − 8 hy = 4x + 10y − 16 hxx = 4 hyy = 10 hxy = 4 D = (4)(10) − 42 = 24 Since D > 0 and hxx > 0, it’s a local minimum.

Gradient diagram

The plane is split into four regions, according to the signs of hx and hy. h increases as we move away from (2

3,4 3),

so it’s an absolute minimum.

−1 1 2 3 4 −1 1 2 3 4

!(2/3,4/3)

hx > 0 hx < 0 hy > 0 hy < 0 hx = 0: y = 2 ! x hy = 0: y = (16 ! 4x) 10 "h

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 52 / 56

Closest point on a plane to the origin

Method 3: Lagrange Multipliers

What point on the plane z = 4 − x − 2y is closest to the origin? Rewrite this as a constraint function = constant: x + 2y + z = 4 Minimize f(x, y, z) = x2 + y2 + z2 (square of distance to origin) Subject to g(x, y, z) = x + 2y + z = 4 (constraint: on plane) Solve ∇f = λ∇g and x + 2y + z = 4: 2x, 2y, 2z = λ 1, 2, 1 x + 2y + z = 4 2x = λ · 1 2y = λ · 2 2z = λ · 1 x = λ

2

y = λ z = λ

2 λ 2 + 2λ + λ 2 = 3λ = 4 so λ = 4 3

x = 2

3

y = 4

3

z = 2

3

The closest point is (2

3, 4 3, 2 3).

Its distance to the origin is

• (2

3)2 + ( 4 3)2 + ( 2 3)2 =

• 24

9 = 2 √ 6 3 .

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 53 / 56

Closest point on a surface to a given point

What point Q on the paraboloid z = x2 + y2 is closest to P = (1, 2, 0)?

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 54 / 56

Closest point on a surface to a given point

What point Q on the paraboloid z = x2 + y2 is closest to P = (1, 2, 0)? Minimize the square of the distance of P to Q = (x, y, z) f(x, y, z) = (x − 1)2 + (y − 2)2 + (z − 0)2 subject to the constraint g(x, y, z) = x2 + y2 − z = 0 ∇f = 2(x − 1), 2(y − 2), 2z ∇g = 2x, 2y, −1 Solve ∇f = λ∇g and g(x, y, z) = 0 for x, y, z, λ: 2(x − 1) = λ(2x) 2(y − 2) = λ(2y) 2z = −λ x2 + y2 − z = 0 Note x 0 since the 1st equation would be −2 = 0. Similarly, y 0. So we may divide by x and y. The first three give λ = 1 − 1

x = 1 − 2 y = −2z

so y = 2x Constraint gives z = x2 + y2 = x2 + (2x)2 = 5x2

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 55 / 56

Closest point on a surface to a given point

What point Q on the paraboloid z = x2 + y2 is closest to P = (1, 2, 0)? So far, y = 2x, z = 5x2, and λ = 1 − 1

x = 1 − 2 y = −2z.

Then 1 − 1

x = −2z = −2(5x2) gives 1 − 1 x = −10x2, so

10x3 + x − 1 = 0 Solve exactly with the cubic equation or approximately with a numerical root finder.

https://en.wikipedia.org/wiki/Cubic_function#Roots_of_a_cubic_function

It has one real root (and two complex roots, which we discard): x = α 30 − 1 α ≈ 0.3930027 where α =

3

• 1350 + 30

√ 2055 y = 2x ≈ 0.7860055 z = 5x2 ≈ 0.7722557 Q = (x, 2x, 5x2) ≈ (0.3930027, 0.7860055, 0.7722557)

• Prof. Tesler

3.3–3.4 Optimization Math 20C / Fall 2018 56 / 56
