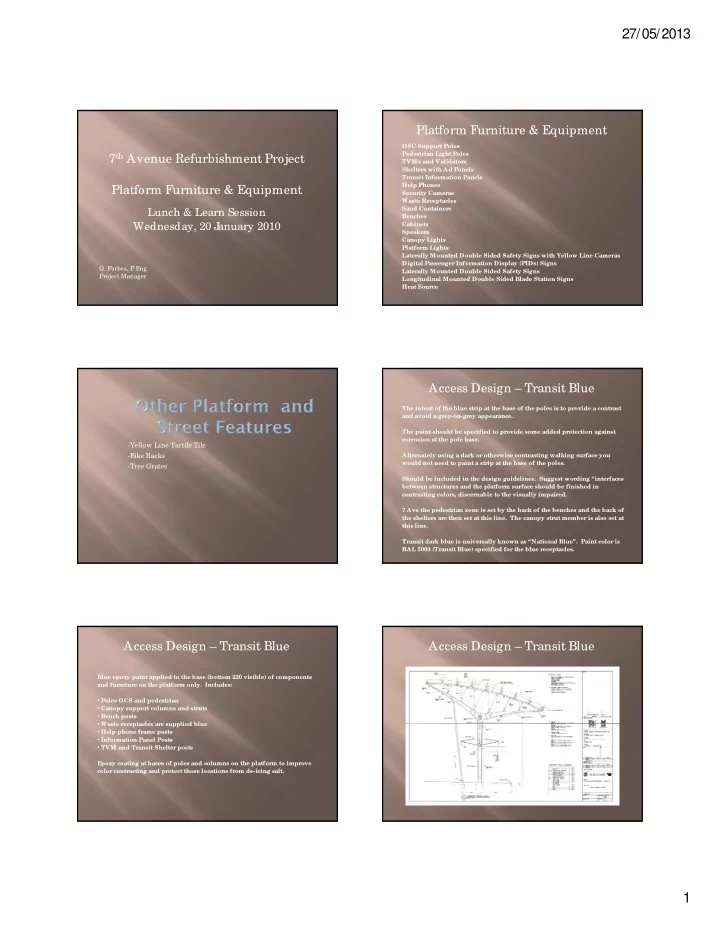

7th Avenue Refurbishment Project Platform Furniture & Equipment

h Lunch & Learn Session Wednesday, 20 J anuary 2010

• G. Forbes, P.Eng

Project Manager OSC Support Poles Pedestrian Light Poles TVMs and Validators Shelters with Ad Panels Transit Information Panels Help Phones Security Cameras Waste Receptacles Sand Containers

Platform Furniture & Equipment

Sand Containers Benches Cabinets Speakers Canopy Lights Platform Lights Laterally Mounted Double Sided Safety Signs with Yellow Line Cameras Digital Passenger Information Display (PIDs) Signs Laterally Mounted Double Sided Safety Signs Longitudinal Mounted Double Sided Blade Station Signs Heat Source

• Yellow Line Tactile Tile
• Bike Racks

Tree Grates

• Tree Grates

Access Design – Transit Blue

The intent of the blue strip at the base of the poles is to provide a contrast and avoid a grey-on-grey appearance. The paint should be specified to provide some added protection against corrosion at the pole base. Alternately using a dark or otherwise contrasting walking surface you would not need to paint a strip at the base of the poles. p p p Should be included in the design guidelines. Suggest wording “interfaces between structures and the platform surface should be finished in contrasting colors, discernable to the visually impaired. 7 Ave the pedestrian zone is set by the back of the benches and the back of the shelters are then set at this line. The canopy strut member is also set at this line. Transit dark blue is universally known as “National Blue”. Paint color is RAL 5003 (Transit Blue) specified for the blue receptacles.

Access Design – Transit Blue

Blue epoxy paint applied to the base (bottom 220 visible) of components and furniture on the platform only. Includes:

• Poles OCS and pedestrian
• Canopy support columns and struts
• Bench posts
• Waste receptacles are supplied blue
• Waste receptacles are supplied blue
• Help phone frame posts
• Information Panel Posts
• TVM and Transit Shelter posts

Epoxy coating at bases of poles and columns on the platform to improve color contrasting and protect those locations from de-icing salt.

Access Design – Transit Blue

27/05/2013 2

Access Design – Transit Blue Access Design – Transit Blue OCS Support Poles

• Designer Poles with fins.
• 30 M apart. One OCS support can be from the canopy.
• Five on Platform
• Six on Street

Every second pole is a feeder pole

• Every second pole is a feeder pole.
• Pole Accessories
• Banner Supports
• Speaker & Camera Mounts
• Sign Supports
• Light Fixture Supports
• Pole Partitions for Traction Power & Traffic Signals
• Mounts for Traffic Signals

OCS Support Corner Pole OCS Support Feeder Pole OCS Support Feeder & Corner Pole

27/05/2013 3

OCS Support Poles Pedestrian Light Poles

• 15 M spacing for lights.
• Five Street Pedestrian Poles located between OCS poles.
• Around seven Platform Poles located outside canopy and on sloped

sidewalks.

• Pole Accessories
• Banner Supports
• Speaker & Camera Mounts
• Sign Supports
• Light Fixture Supports

Street Pedestrian Light Poles Platform Pedestrian Light Poles Pedestrian Light Poles with Speaker TVMs and Validators

• Four evenly spaced at each end with TVM shelter and single sided ad

panel.

27/05/2013 4

TVM and Validator with Shelter New Model TVM with Validator with Shelter Old Model Shelters

• Enseicom Single Source Provider
• Four Transit shelters on Platforms: evenly spaced.
• two unheated with bench and
• two heated, no bench (taller)
• Heater push button control
• Four TVM Shelters with One Sided Ad Panel
• Delete “No Smoking” logo – and Transit blue band on the TVM

shelters

TVM Shelter TVM Shelter - Illuminated Ad Panel

27/05/2013 5

Unheated Shelter with Bench Unheated Shelter with Bench Heated Shelter

27/05/2013 6

Heated Shelter Transit Information Panels

• Three evenly spaced on platform.

27/05/2013 7

Transit Information Panels Help Phones

• Two with security camera at each end. One per two LRT vehicles.
• Help phones to face majority of the two LRT vehicles and camera to view

full width of platform.

• Modifications to Help Phones are not included in 7 Avenue

Refurbishment as yet Refurbishment as yet.

Help Phone and Frame Help Phone and Frame Help Phone and Information Panels

27/05/2013 8

CCTV Security Cameras

• Two CCTV cameras to view help phones. Cameras to view the help

phone and full width of platform at help phone.

• Three CCTV cameras along platform edge on yellow line facing west to

view the loading zone. Yellow line cameras; one at east end at sloped sidewalk two on laterally

• Yellow line cameras; one at east end at sloped sidewalk, two on laterally

mounted double sided safety signs hung from canopy.

• Keep equipment above 2500mm the vandal height and below 3000mm for

OH&S for maintenance .

CCTV Yellow Line Camera CCTV Yellow Line Cameras

27/05/2013 9

27/05/2013 10

Waste Receptacles

• Two each end on street at OCS poles.
• Two top of sloped sidewalks (optional) at poles.
• Five under canopy at alternate supports.

One to two evenly spaced on platform or at centre outside canopy

• One to two evenly spaced on platform or at centre outside canopy.
• Needs grounding.

Waste Receptacles

27/05/2013 11

Recycle Receptacles

• Two recycle receptacles at each platform near the bottom of the sloped

sidewalks.

• Larger black receptacles supplied by Transit and installed by the

contractor. Need grounding

• Need grounding.

Recycle & Waste Receptacles

• n Platform

Sand Receptacles

• Currently not using on 7 Avenue
• Two each end near sloped sidewalks. One to two evenly spaced on

platform or at centre. Not under canopy.

27/05/2013 12

Benches

• Six evenly spaced in pairs in middle portion of platform.
• Lei side of shelters.

27/05/2013 13

Platform Cabinets

• Signals and Communications Cabinet combined
• Power Cabinet
• The communications and signals cabinets are combined and to be sized

as small as possible for current and future equipment. The power cabinet is to be close to power sources Locate so as not to obstruct stakeholders is to be close to power sources. Locate so as not to obstruct stakeholders front entrances.

Platform Comms & Signals Cabinet Platform Power Cabinet

27/05/2013 14

PA Speakers

• Eight to ten in alternate bays under canopy without station sign.
• Three to six on platform outside canopy on poles.
• As required to be clearly audible for the whole platform.

Canopy PA Speakers & Lights Canopy Lights

• Two each bay under canopy.

Canopy Lights with Station Sign

27/05/2013 15

Platform Lights

• On pedestrian poles and platform OCS poles outside canopy.

Platform Light with Camera & Banner

27/05/2013 16

Laterally Mounted Double Sided Safety Signs with Yellow Line Cameras

• Hung from canopy; one at end of canopy about centre of platform length;

the other to give equal viewing distance to remainder of platform the other to give equal viewing distance to remainder of platform.

• Leave adjacent supports free for site lines.

27/05/2013 17

Laterally Mounted Double Sided Safety Signs

.

• Two hung from canopy evenly spaced at alternate support locations.
• Along the yellow line.

Yellow Line Safety Signs

27/05/2013 18

Digital Passenger Information Display (PIDs) Signs

• Two hung from canopy located with equal viewing distances.
• One currently used and one future location.

Longitudinal Mounted Double Sided Blade Station Signs

• Two per LRT vehicle
• Four under canopy in alternate bays without speakers
• Four outside canopy evenly spaced and mounted on poles.

27/05/2013 19

Skateboard Deterrents Skateboard Deterrents

27/05/2013 20

• 7 Avenue uses spiked bird deterrents
• Somerset Bridlewood Station uses an electronic system under the

Canopy to shock the birds to keep them from perching or nesting and some rotating devices on top of the shelters. g p

• McKnight Station is using a sound system.

27/05/2013 21

Heat Tracing on all Stairs Yellow Line Tactile Tile

• Layout is actually two different tiles.

Platform Edge Strip Yellow Tile Platform Edge Strip Yellow Tile Platform Edge Strip Yellow Tile Platform Edge Strip Tile

27/05/2013 22

Platform Edge Strip Tile Platform Edge Strip Tile Steel Bike Rack Tree Grate

Custom 1200 x 1220 square tree grate, smaller openings to meet the Barrier Free Design Guidelines. Rectangular 1200 x 1828 tree grates with small openings as recommended by Parks and meeting the Barrier Free Design Guidelines. Cost $1,100 each.

Tree Grate Custom Tree Grate

Provide the mould and pattern at $6,000 and two custom made tree grates at $1,200 each.

27/05/2013 23

Tree Grate
