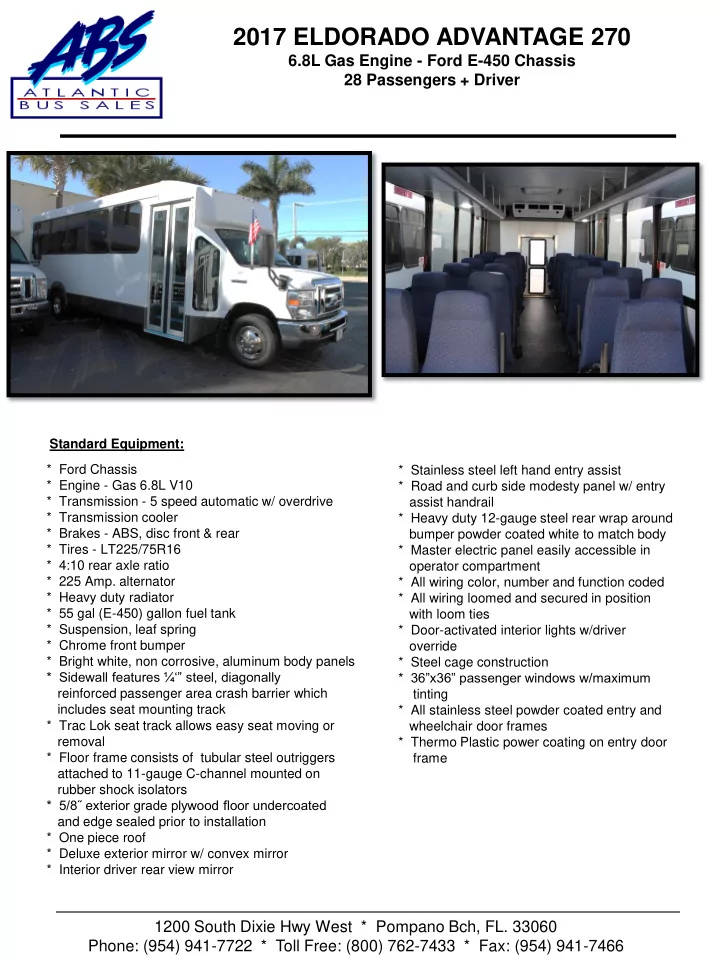

2017 ELDORADO ADVANTAGE 270 6.8L Gas Engine - Ford E-450 Chassis 28 - - PDF document

1200 South Dixie Hwy West * Pompano Bch, FL. 33060 Phone: (954) 941-7722 * Toll Free: (800) 762-7433 * Fax: (954) 941-7466

Standard Equipment:

2017 ELDORADO ADVANTAGE 270

6.8L Gas Engine - Ford E-450 Chassis 28 Passengers + Driver

* Stainless steel left hand entry assist * Road and curb side modesty panel w/ entry assist handrail * Heavy duty 12-gauge steel rear wrap around bumper powder coated white to match body * Master electric panel easily accessible in

• perator compartment

* All wiring color, number and function coded * All wiring loomed and secured in position with loom ties * Door-activated interior lights w/driver

• verride

* Steel cage construction * 36”x36” passenger windows w/maximum tinting * All stainless steel powder coated entry and wheelchair door frames * Thermo Plastic power coating on entry door frame * Ford Chassis * Engine - Gas 6.8L V10 * Transmission - 5 speed automatic w/ overdrive * Transmission cooler * Brakes - ABS, disc front & rear * Tires - LT225/75R16 * 4:10 rear axle ratio * 225 Amp. alternator * Heavy duty radiator * 55 gal (E-450) gallon fuel tank * Suspension, leaf spring * Chrome front bumper * Bright white, non corrosive, aluminum body panels * Sidewall features ¼‘” steel, diagonally reinforced passenger area crash barrier which includes seat mounting track * Trac Lok seat track allows easy seat moving or removal * Floor frame consists of tubular steel outriggers attached to 11-gauge C-channel mounted on rubber shock isolators * 5/8˝ exterior grade plywood floor undercoated and edge sealed prior to installation * One piece roof * Deluxe exterior mirror w/ convex mirror * Interior driver rear view mirror

1200 South Dixie Hwy West * Pompano Bch, FL. 33060 Phone: (954) 941-7722 * Toll Free: (800) 762-7433 * Fax: (954) 941-7466 Included Extra Features & Upgrades:

• 36” Electric Entry Door
• 36x36 Solid Pane Window Package w/ Blackout Paint
• 82,000 BTU Air Conditioning
• 65,000 BTU Heat
• Freedman Hi-Back Passenger Seating
• (2) Freedman Notchback Flip Seats
• Arm Rests – Aisle Side
• Level 3 - #131 La France Asteroid Navy
• Manual Seat Beats – All Passengers
• Freedman Shield Driver’s Seat – Matching Passenger Seats
• Radio – AM/FM/CD
• Backup Camera
• Reverse Alarm
• Front End Alignment
• Tire Valve Extensions
• Sideside Exhaust
• Rear Step Bumper
• Stainless Steel Screws – Exterior
• Rear Door w/ Door Ajar Light
• Removable Luggage Net
• Overhead Luggage Racks
• Storage Area over Driver
• Right Hand Entry Assist
• Roof Escape Hatch
• Interior 6”x16” Rear View Mirror
• Exterior & Interior LED Light Package
• Gerflor Flooring - #1584 Harmonia Mineral Losa Anthractie
• Painted Skirt – Charcoal Gray
• Safety Package: First Aid Kit, Fire Extinguisher & Triangle Kit

1200 South Dixie Hwy West * Pompano Bch, FL. 33060 Phone: (954) 941-7722 * Toll Free: (800) 762-7433 * Fax: (954) 941-7466
