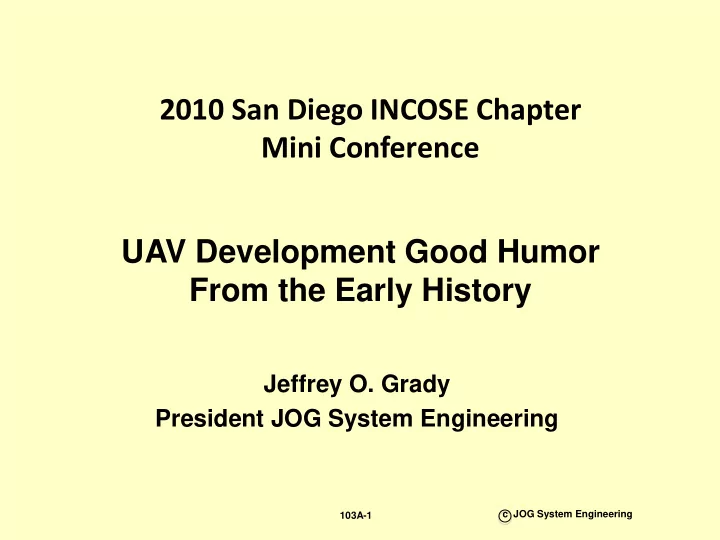

UAV Development Good Humor From the Early History

Jeffrey O. Grady President JOG System Engineering

c JOG System Engineering 103A-1

2010 San Diego INCOSE Chapter Mini Conference

c JOG System Engineering 103A-2

Who Is Jeff Grady?

CURRENT POSITION

President, JOG System Engineering System Engineering Assessment, Consulting, and Education Firm

PRIOR EXPERIENCE

U.S. Marines 1964 - 1965 General Precision, Librascope Division

Customer Training Instructor, SUBROC and ASROC ASW Systems

1965 - 1982 Teledyne Ryan Aeronautical

Field Engineer, AQM-34 Series Special Purpose Aircraft Project Engineer and System Engineer, Unmanned Aircraft Systems

1982 - 1984 General Dynamics, Convair Division

System Engineer, Cruise Missile, Advanced Cruise Missile

1984 - 1993 General Dynamics, Space Systems Division

Engineering Manager, Systems Development Department

FORMAL EDUCATION

SDSU BA Math; UCSD System Engineering Certificate; USC MS Systems Management with Information Systems Certificate

INCOSE

First Elected Secretary, Fellow, Founder, Expert System Engineering Professional

AUTHOR System Requirements Analysis (2), System Integration, System Validation and

Verification, System Engineering Planning and Enterprise Identity, System Engineering Deployment, System Verification, System Management (2010), and System Synthesis (2010)

The Ryan Family

c JOG System Engineering 103A-3

The Ryan BQM-34A Target Drone

The Family Beginning

c JOG System Engineering 103A-4

c JOG System Engineering 103A-5

Some Ryan War Birds

USAF/Ryan Models 147G, NX, H, and J at Bien Hoa, SVN in 1968 U.S. Navy/Ryan Model 147SK USAF/Ryan BGM-34C USAF/Ryan Aeronautical AQM-34L 58 Combat Missions

• 1. Program Names
• Air Force program names

– The first Ryan unmanned reconnaissance program was code named Red Wagon – U2 Giant Dragon versus unmanned aircraft Bumpy Action – Other similar names

• The toy factory

c JOG System Engineering 103A-6

• 2. China Defeats SPA Guidance

Why are we missing targets?

1 MIN TIMER STEPPER SWITCH PATCH PANEL AUTOTUNE SYNCRO MA-1 COMPASS EARTH MAGNETIC FIELD ROLL AXIS c JOG System Engineering 103A-7

• Ryan tech rep story
• OL Commander action
• Post retirement job

Preset During Preflight

• 3. The Modification That Took Ten Years

to Correct

c JOG System Engineering 103A-8

Mekong River Command Guidance Ground Director Returning flight ground track LAOS THAILAND Planned recovery location when flying with or without external tanks Fuel out recovery experienced when flying without external tanks

• 3. The Modification That Took Ten Years

to Correct

Fuel Cell Equipment Compartment Added 30 inch fuel cell section Captive fuel vent quick disconnect Original design bulkhead Added longitudinal stiffeners New forward bulkhead of added section Fuel Sump and Dump Valve 750VA Inverter

c JOG System Engineering 103A-9

Missing ullage vent hole

• 4. Just What is the Right Color for These

Birds?

c JOG System Engineering 103A-10

Ryan Navy model 147SK with

• riginal

camouflage grey paint during flight test from USS Bennington with added flight test colors

• 4. Just What is the Right Color for These

Birds?

c JOG System Engineering 103A-11

High Altitude AQM-34R/147TF Used for Signal Intelligence in Flat Black Paint Job

A Chase Pilot's Story

• Navy studies indicated strike aircraft survived well

with colored paint jobs even using bright colors

• First few production 147SK birds had camouflage

paint jobs but later deliveries used glossy black

• Chase pilots assigned to unmanned recce flights

because of a problem later traced to poor E2B remote control antenna pattern

• Chase pilot had chased a black drone earlier and had

no problem following it through its mission

• Same pilot chased a camouflage grey vehicle and

complained he could not see it in the grey skies over Vinh unless he was very close

c JOG System Engineering 103A-12

• 5. When SAC and Heaven Were

Neighbors

c JOG System Engineering 103A-13

VERTICAL STABILIZER FIN CAP AND MCGS ANTENNA FAIRING DAMAGE FROM HAIL "In the future there shall be no hail storms in the path of the vehicle"

• 6. Money to Burn

c JOG System Engineering 103A-14

• Crate of North Vietnam 5 Dong

bills in the hangar

• Picture and psywar message
• Alternative use of the money

• 7. Flying a Bit Too Low

c JOG System Engineering 103A-15

THE FAA FROWNS ON THIS SHIT!

• 8. Falling Out of the Air
• Stall before completing post launch acceleration
• Is it an aero or mass properties problem?
• We all understood mass
• The next tech rep scheduled for deployment gets the

job

• Ballast briefing

c JOG System Engineering 103A-16

• 9. Safety First at All Times
• Target service for the whole world
• Automatic launcher braking debunked
• Bomb assembly on the mess deck and loading on

the flight deck

• BGM-34C booster armed alert

c JOG System Engineering 103A-17

• 10. Destructive Design Change
• Ground launchers had to have an engine inlet scoop

to avoid engine stagnation during run up to launch rpm

• One designed into Model 147SK launcher
• Model 147SK vehicle used ASROC booster because
• f greater weight than BQM-34A
• On first launch, ASROC booster blast tore the inlet

scoop completely off from the launcher

• Decision to eliminate scoop schedule driven

c JOG System Engineering 103A-18

• 11. A Hard Sale
• Top marketeer goes to Israel to make unmanned

aircraft sale

• Golf courses
• Pyramids
• Please leave
• Two field engineers to the rescue – one of whom had

been told to leave OL-20 before the sun went down in the beginning of this story

c JOG System Engineering 103A-19

• 12. Misunderstood Humor
• Model 147SK first launch

– Engine exhaust impingement on ASROC booster misjudged – Mark on booster telling direction of exhaust misalignment not clearly understood – Interesting launch trajectory – Admiral's new red Cadillac

• Model 124I first launch

– Launcher position at Bir Gif Gaffa – Launch trajectory disappointing but hilarious to some - "We may have overcompensated a little."

c JOG System Engineering 103A-20

• 13. Scared to Death
• Mother of tech rep deployed to Bien Hoa for super

secret black box dies

• Good son returns to states
• No flights except Air France
• Air France alternate landing rights in Hanoi
• Engine trouble

c JOG System Engineering 103A-21

• 14. For the Love of a Program Manager
• Pilot reminiscing about prior unlucky launches with

Ryan field engineer

• First launch of new Model 147J low altitude photo

reconnisance aircraft from DC-130 in flight test

• Program Manager goes on flight with Ryan field

engineer

• Field engineer draws his parachute
• At launch the bird took off the DC-130 number 3

engine

• Program Manager, who did not draw a chute, had the

field engineer's chute on very quickly

c JOG System Engineering 103A-22

• 15. How to Talk to a Dancing Bear
• Rat in the rain barrel
• Hum three bars and I’ll take it from there
• Let’s make it out of balonium
• We’ve bent our pick
• Load down the wagon
• Snapping your fingers to keep the elephants away
• Big fat umbilical
• Little bit of blood
• Lets make sure that we get the goose grease on it before you pluck

the tail feathers

• Bit in the rump
• Couldn’t get ten bucks for a Rolls Royce with this name on it
• Another ladle in the well

c JOG System Engineering 103A-23

Some Real History

• "Lightning Bugs and Other Reconnisance Drones"
• William Wagner
• Aero Publishers, 1982

c JOG System Engineering 103A-24
