1 Professional mobile refrigeration

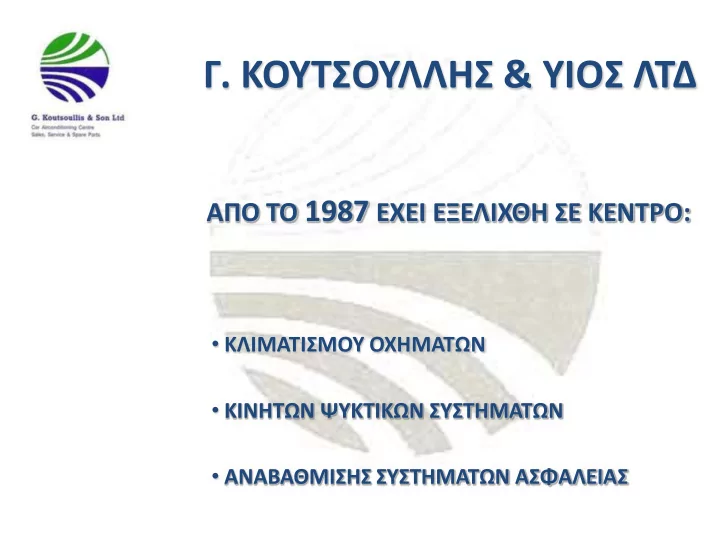

ΑΠΟ ΣΟ 1987 ΕΧΕΙ ΕΞΕΛΙΧΘΗ Ε ΚΕΝΣΡΟ:
2 Professional mobile refrigeration
3 Professional mobile refrigeration
4 Professional mobile refrigeration
5 Professional mobile refrigeration
6 Professional mobile refrigeration
7 Professional mobile refrigeration
New refrigerated transport solutions for the food and pharmaceutical professionals
8 Professional mobile refrigeration
The “Cold Chain” Temperature sensitive products (food, pharmaceuticals) must be refrigerated or frozen after processing and before shipment to inhibit spoilage, growth of pathogen or loss of potential (vaccines). From production to consumer a temperature-controlled supply chain (the “Cold Chain”) shall be settled. An unbroken cold chain is an uninterrupted series of storage and distribution activities which maintain a given temperature range.
(Farm cold storages) Processing plant cold storages Distribution cold storages Consumer
9 Professional mobile refrigeration
Food hygiene and food transport legislation For us Europeans, the main regulator about food hygiene , pharmaceutical distribution and Cold Chain related issues is the European Union. The main norm about food hygiene is the Directive 93/43/EEC (The “HACCP” Directive: Hazard analysis and critical control points) updated the Regulation (EC) 852/2004 Annex II, Chapter IV of 93/43/EEC is dedicated to transport:
maintained in good repair and condition to protect foodstuffs from contamination and are, where necessary, to be designed and constructed to permit adequate cleaning and/or disinfection.
capable of maintaining foodstuffs at appropriate temperatures and allow those temperatures to be monitored Another norm of interest is the Directive 89/108/EEC, about quick-frozen foodstuffs for human consumption Article 5 1. The temperature of quick-frozen foodstuffs must be stable and maintained, at all points in the product, at −18ºC or lower, with possibly brief upward fluctuations of no more than 3ºC during transport.
10 10 Professional mobile refrigeration
Another very important norm about the transport of perishable items is the ATP agreement (United Nations / European Commission Inland Transport Committee: Agreement
the International Carriage of Perishable Foodstuffs and on the Special Equipment to be Used for such Carriage, ECE/TRANS/165). The ATP applies to the carriage of perishable foodstuffs performed on the territory of at least two Contracting States not only by road, but also by rail and by sea. In addition, a number of countries (like France, Italy, Spain) have also adopted the ATP as the basis for their national legislation. The ATP establishes the appropriate temperatures under which the various types of perishable foodstuffs should be carried. It also lays down the requirements for the equipment, including its refrigerating capacity, insulating capacity (“K” insulation coefficient) and efficiency of thermal appliances as well as the methods and procedures for measuring and checking them. The ATP agreement is the only norm that is setting “performance” values about the construction and insulation of “isothermal” vehicles and cargos. For such a reason ATP is becoming more and more a reference for the market.
11 11 Professional mobile refrigeration
Pharmaceutical logistic legislation An increasing number
medicinal products require controlled storage and transportation conditions of between +2ºC and +8ºC. Meanwhile, the effect of elevated temperatures on the chemical stability of medicines is well recognized by those in the supply chain, but elevated temperatures can also have an adverse effect on the physical properties of some formulation types. Separation of emulsion systems and sedimentation of active ingredients in suspensions and semi-solids are among the changes that can occur. Some companies do not pay sufficient attention to monitoring and controlling temperatures in their warehouses - nor do they have the right knowledge of the temperature distribution therein. On a sunny day in Summer, temperatures in a van can vary reach up +45ºC near the roof. European Legislation about the transport of pharmaceuticals is not so stringent like the one about food hygiene. The norm of reference is the Directive 92/25/EEC, with the relevant “Guidelines on Good Distribution Practice of Medicinal Products for Human Use” (94/C 63/03):
appropriately specialized means.
12 12 Professional mobile refrigeration
About blood products the norm of reference is the Recommendation R (95) 15 “Guide to the preparation, use and quality assurance of blood components”: Blood components are stored at +20°C to +24°C, at +2°C to +6°C or at different temperatures below 0°C. The containers used in transport should be well insulated, easy to clean and easy to handle. After collection, blood should be kept at a controlled temperature, between +2°C and +6°C. Validated transport systems should ensure that at the end of a maximum transit time of 24 hours the temperature should not have exceeded +10 °C. Alternatively, whole blood can be kept up to 24 hours in conditions validated to maintain temperature between +20°C and +24°C, a prerequisite for the production of platelet preparations from whole blood. Red cell components should be kept between +2°C and +6°C. Validated transport systems should ensure that at the end of a maximum transit time of 24 hours the temperature should not have exceeded +10°C. Transport by a non-refrigerated vehicle requires a cooled and insulated container.
13 13 Professional mobile refrigeration
Up to now the solution of choice for the transport of perishable items was the conversion of vans, with the use of insulated linings and refrigeration units. Costly solution if you have to transport only limited volume of goods, considering also the financial immobilization involved and the limited resale value of the used refrigerated van. A new solution for the transport of perishable items: the use of a mobile fridge/freezer, with professional specifications and 12-24V compressor on board of a standard van: flexibility and intelligent use of resources at its best. The professional mobile fridge can be used for the purpose loaded on the van, connected to the battery and properly fixed with straps to anchoring rings inside the van. Then easily unloaded to allow the use of the van for purpose others than for the transport of perishables.
14 14 Professional mobile refrigeration
The Euroengel concept To mix together the best DC compressor technology (Danfoss), the high insulation efficiency requested by “ATP” International norm, the ease of cleaning and hyigienization requested by HACCP norms, the set and control of internal temperature requested by “Cold-chain” norms, also adding clever details to help professional operators to manage their daily business. The result is a range of models with inner volumes from 22 to 915 litres, 12-24Vdc and 100-240Vac 50-60Hz voltage, reinforced PU insulation with thickness from 65 to 130 mm, internal temperatures adjustable down to
digital controller, based on rotomoulded single piece sturdy containers, easy to be cleaned, with internal dimensions according to food industry norms (Gastronorm, Euronorm).
15 15 Professional mobile refrigeration
Who are the potential users? The Euroengel concept has already convinced several type of customers: ‒ Catering & Banqueting companies ‒ Vending operators for mixed ref/no-ref transport ‒ Van rental companies ‒ Food industries for transport of samples by sales reps ‒ Small food producers for direct transport to selected shops or restaurants ‒ Food distributors for direct deliveries to selected shops or restaurants, specially in traffic restriction areas ‒ Small ice cream laboratories for transport of ice cream and sorbets to selected hotels & restaurants ‒ Home delivery services (web shops or supermarkets) ‒ Health Authorities for transport of samples of biological products to Central Laboratories or transport of blood or plasma at stable temperature ‒ Pharmaceutical logistic companies for deliveries to pharmacies
vaccines and +4°C medicines by use of standard vans ‒ Army and Emergency Medical Detachments and Logistic Corps
16 16 Professional mobile refrigeration
The 2011 product range: the top loaders, from 22 up to 82 liters:
89/108/EEC) with +32°C ambient
cooling/heating version available as anti-freeze for transport
pharmaceuticals in cold ambient conditions
easy set and check
internal temperature T0022 and T0032 are the best solution for transport
refrigerated
frozen samples, while the T0056 and T0082 are perfect multipurpose units.
17 17 Professional mobile refrigeration
18 18 Professional mobile refrigeration
19 19 Professional mobile refrigeration
20 20 Professional mobile refrigeration
The 2011 product range: the 140 liters:
to 89/108/EEC) with +32°C ambient
cooling/heating version available as anti-freeze for transport
pharmaceuticals in cold ambient conditions
PU insulation (80
mm); “K” = 0,349 W/m2K
and check of internal temperature
accessories for Gastronorm and 60x40 pans available
21 21 Professional mobile refrigeration
22 22 Professional mobile refrigeration
23 23 Professional mobile refrigeration
The 2011 product range: the 330 liters:
to 89/108/EEC) with +32°C ambient
cooling/heating version available as anti-freeze for transport
pharmaceuticals in cold ambient conditions
W/m2K
and check of internal temperature
accessories for 60x40 crates available
24 24 Professional mobile refrigeration
25 25 Professional mobile refrigeration
26 26 Professional mobile refrigeration
27 27 Professional mobile refrigeration
28 28 Professional mobile refrigeration The new large models, F0750/NDN, F0785/NDN, F0915/NDN
29 29 Professional mobile refrigeration
The 2011 product range: the large models:
conversion of small vans
and 100- 240Vac 50-60 Hz
mm); “K” = 0,285 W/m2K
thermostat with display for an easy set and check
internal temperature
door for an easy access to the load
30 30 Professional mobile refrigeration
31 31 Professional mobile refrigeration
32 32 Professional mobile refrigeration
33 33 Professional mobile refrigeration
34 34 Professional mobile refrigeration
35 35 Professional mobile refrigeration
36 36 Professional mobile refrigeration
The single piece double walls hollow containers are made by rotomoulded food grade medium density polyethylene (LMDPE), UV stabilized. The result is a very sturdy construction, with all internal rounded corners, that fully meets the highest hygienic requests and can be easily cleaned.
37 37 Professional mobile refrigeration
38 38 Professional mobile refrigeration
Insulation is made by expanded polyurethane foam CFC free, with a density of ab. 40 kg/m3, and with thickness from 65 up to 130 mm. Specification
the containers are in line with the “IR” (reinforced insulation) class
the ATP international norm, with the “K” heat transfer coefficient value less than 0,4 Wm2K.
39 39 Professional mobile refrigeration
Cooling units are equipped with hermetic Danfoss compressors (12-24Vdc), specially developed for vehicle uses, with low current consumption, vibration resistance and able to work with angles up to 30°. An integrated AC>DC rectifier with an AC automatic priority circuit allows an easy use from the mains (110-240Vac 50-60Hz).The refrigerant gas is R134a, not inflammable and CFC free All assembled units have to positively pass the electric safety (Ground bond, Insulation Resistance, Dielectric withstand, Line Leakage) and current consumption tests.
40 40 Professional mobile refrigeration
41 41 Professional mobile refrigeration
Units are controlled by means
an electronic thermostat; the digital display shows the real and the set internal temperature. No data recording device is included inside the unit as customers can choose, among all different solutions
local or centralized reporting, portable or integrated printers, GPS localization, GSM alarm system, software integration) the one best suited to their specific needs.
42 42 Professional mobile refrigeration
Some info about Euroengel srl Euroengel was established in 1993 in Brescia (North of Italy) as a JV with Japanese companies for the assembly of small portable refrigerators for the European market with the use of a Japanese 12Vdc compressor. After the termination of JV contract operation was continued by Italian partners for the production
It was in 2000 that Euroengel produced the first small fridge by the use of rotational moulding technology. In 2005 the management decided to focus the activity of Euroengel on the very promising professional mobile refrigeration market, launching a 5 years investment plan that was including the re-organization of the production plant and the design and production of a complete range of models with professional features. With the starting of the production of the new F0915 and the completion of the new foaming hall, the first 5 years investment plan is now almost completed and the company is in the condition to play a major role in the world market.
43 43 Professional mobile refrigeration
Euroengel is in full control of all the know-how required to develop and produce a quality insulated container using the rotational molding technology. The technical staff of Euroengel is managing every step
the development
a new mobile professional refrigerator: – the definition of technical specifications together with the management and prospective customer – the 3D CAD design of the unit – the 3D CAD design of the production tools (for both rotational moulding and foaming) – the co-ordination
the production
the manufacturing tools – the definition of the production cycle instructions – the functional tests on prototypes – the homologation process, when required
44 44 Professional mobile refrigeration
The Euroengel’s production facility is ISO 9001:2008 certified. Samples of models were tested by TÜV SÜD Italy according to electric safety norms; the “Production monitored – Safety tested” Certification Mark was granted.
45 45 Professional mobile refrigeration
Euroengel is a producer
Refrigerated Containers (Certificate 12/2010 issued by the Italian Ministry of Transport under the ATP international Agreement). The models F0785/NDN and F0915/ND have received the international ATP Homologation as class FRA refrigerated containers.
46 46 Professional mobile refrigeration
Over the last few years the Euroengel units were tested and acquired by several top international customers, that were looking for professional tools able to satisfy their need of high performance flexible transportation of small quantity of perishable items in accordance to the Norms and Regulations of their market segment. Euroengel has been collaborating with Ferrero SpA since 2005. Hundreds of the 22 and 32 liters models are normally used by Ferrero’s lab personnel and by sales reps for the safe transportation of samples at the required temperature. 120 small Euroengel top loaders were acquired by SAAB Aerotech in 2009 and supplied to the Swedish Defence Forces; they are used for the transportation
by mobile medical
AAH is the leading UK distributor of pharmaceutical and healthcare products and services to pharmacy, hospitals and doctors. More than five hundreds of top loaders are daily used on board of standard vans for deliveries of sensitive medicines and vaccines. Gruppo Argenta, as most of the Italian vending companies, has been using Euroengel units for a long period of time. Hundreds of 140 liters fridges are used on board of standard vans for the transport of sandwiches, yoghurts and fruit salads used in the daily replenishment
47 47 Professional mobile refrigeration
Euroengel is a qualified partner
FIAT Professional, the LCV brand
Right: an Euroengel F0330/FDN shown inside a FIAT Fiorino mini van in the FIAT booth at SIGEP 2010, the International Ice Cream and Pastry Exhibition, Rimini January 2010
48 48 Professional mobile refrigeration
An active business co-operation was established with the FIAT Professional dealers’ network.
49 49 Professional mobile refrigeration
The partnership is also developing with Peugeot Professional Peugeot Italy has this launched month a marketing campaign focused on the “package” Partner van plus F0785.
50 50 Professional mobile refrigeration
Euroengel srl Paid capital Euro 1.800.000,00 VAT I03231780176 REA BS 345429 Chambre of Commerce BS 51866 Head Office Via Ferrini 14 25128 Brescia Italy tel +39 0302005058 fax +39 0302007433 info@euroengel.it http://www.euroengel.it Production site Via G. Galilei trav. III, n. 35 25010 San Zeno Naviglio (BS)
