slide-1

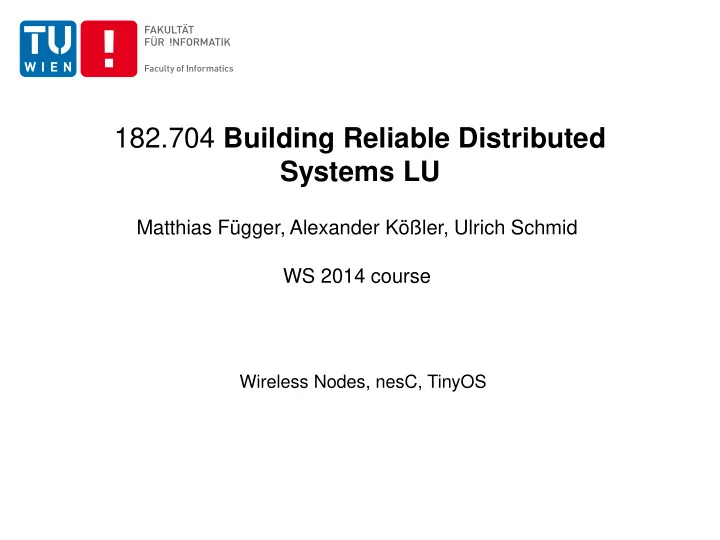

SLIDE 1

182.704 Building Reliable Distributed Systems LU

Matthias Függer, Alexander Kößler, Ulrich Schmid WS 2014 course

Wireless Nodes, nesC, TinyOS

slide-2
SLIDE 2

The target systems Wireless motes cluster ATAVRRZ200 demonstration kit from Atmel >= 4 motes a single mote AT86RF230 radio transceiver 2450 MHz band ATmega 1281V MC

slide-3
SLIDE 3

First steps

  • 1. get your accounts
  • 2. login to a PC in ECS lab and get a copy of TinyOS

git clone ssh://trac/ecs/repo/git/lva/brds/tinyos

  • 3. set environment variables (.bashrc)

export TOSROOT="/homes/koe/tinyos" export TOSDIR="$TOSROOT/tos" export MAKERULES="$TOSROOT/support/make/Makerules"

  • 4. in apps/Blink/ execute

make rz200

  • 5. connect mote via programmer and execute

make rz200 install

Binary is generated and downloaded via avrdude

slide-4
SLIDE 4

ncc – nesc compiler for tinyos

> make iris

ncc -o build/iris/main.exe -Os -Wall -Wshadow -Wnesc-all -target=iris

  • fnesc-cfile=build/iris/app.c -board=micasb
  • DDEFINED_TOS_AM_GROUP=0x22
  • -param max-inline-insns-single=100000 -DIDENT_APPNAME=\"BlinkAppC\"
  • DIDENT_USERNAME=\"fuegger\" -DIDENT_HOSTNAME=\"ecslab6\„
  • DIDENT_USERHASH=0x894ea284L -DIDENT_TIMESTAMP=0x4bc706feL
  • DIDENT_UIDHASH=0xee40a21fL -fnesc-dump=wiring
  • fnesc-dump='interfaces(!abstract())' -fnesc-dump='referenced(interfacedefs,

components)' -fnesc-dumpfile=build/iris/wiring-check.xml BlinkAppC.nc -lm compiled BlinkAppC to build/iris/main.exe 2268 bytes in ROM 51 bytes in RAM avr-objcopy --output-target=srec build/iris/main.exe build/iris/main.srec avr-objcopy --output-target=ihex build/iris/main.exe build/iris/main.ihex writing TOS image ncc calls nescc, which calls gcc

slide-5
SLIDE 5

Memory requirements

ATmega1281/V usage: Flash: 128KB EEPROM: 4KB RAM: 8KB

2268 bytes in ROM = 2.3 KB (1.7%) [.text segment size] 51 bytes in RAM = 0.05 KB (0.4%) [.bss segment size] This is quite bad for a blinking application, but good for an operating system!

slide-6
SLIDE 6

A threaded version in apps/tosthreads/apps/Blink/ execute

> make rz200 threads

tells nesc to use thread lib instead 

5358 bytes in ROM = 5.3 KB (4.1%) 993 bytes in RAM= 1.0 KB (12.1%) The latter is problematic (only static variables, no dynamic varibles yet). Context switching needs quite some memory!

slide-7
SLIDE 7

Where to find code? apps/ example applications apps/tosthreads/apps/ example TOSthreads applications tos/interfaces all the interfaces tos/system/ major hardware independent code, implementing interfaces tos/chips + tos/platforms hardware dependent code tos/lib/ TinyOS add-ons (timer, radio transceiver, TOSthreads, …)

slide-8
SLIDE 8

Example Blink

BlinkC.nc

#include "Timer.h" module BlinkC { uses interface … provides interface … }

BlinkC

slide-9
SLIDE 9

Example Blink

BlinkC.nc

#include "Timer.h" module BlinkC { uses interface Timer<TMilli> as Timer0; uses interface Timer<TMilli> as Timer1; uses interface Timer<TMilli> as Timer2; } interface Timer<precision_tag> { command void startPeriodic(uint32_t dt); command void startOneShot(uint32_t dt); command void stop(); event void fired(); command bool isRunning(); command bool isOneShot(); command void startPeriodicAt(uint32_t t0, uint32_t dt); command void startOneShotAt(uint32_t t0, uint32_t dt); command uint32_t getNow(); command uint32_t gett0(); command uint32_t getdt(); }

interfaces can be typed

  • general interfaces
  • for compile-time wiring checking

more than 1 interface per module possible! BlinkC Timer0 command event

slide-10
SLIDE 10

Command/event model

Command/event model functions, commands, events, tasks function (inside Module)

uint8_t myFunction(uint8_t x) {…} y = myFunction(x);

command (between Modules)

(async) command uint8_t myInterface.myCommand(uint8_t x) {…} y = call myInterface.myCommand(x);

event (between Modules)

(async) event void myInterface.mySignal(uint8_t x) {…} signal myInterface.mySignal(x);

task (inside Module – main execution primitive)

task void myTask() {…} post myTask();

slide-11
SLIDE 11

Command/event model

Split phase (call back) a longer computation (1) (2)

f(x) call f(x) returns; y = f(x) start f(x) call f(x) signals f(x); y = f(x) returns f(x) done

slide-12
SLIDE 12

Command/event versus task

What to do and what not (deferred procedure calls) (1) (2)

f(x) call f(x); signal/call g(y); g(y) etc... f(x) call f(x); post g(); g(y)

slide-13
SLIDE 13

Command/event versus task

What to do and what not (deferred procedure calls)

in some module’s implementation that provides the interface Someone:

x:= 0; // in implementation scope command error_t Someone.doThis() { // do it and obtain x x := f(.); signal Someone.done(x); }

some other module which uses Someone to repeatedly do this:

.... for (uint8_t i=0; i++; i < 10) { Someone.doThis(); } .... event void Someone.done(uint8_t x) { // obtain x }

slide-14
SLIDE 14

Command/event versus task

What to do and what not (deferred procedure calls)

in some module’s implementation that provides the interface Someone:

command error_t Someone.doThis() { // dot it and obtain x x = 1; signal Someone.done(x); }

a “clever” solution:

... i:= 0; Someone.doThis(); ... event void Someone.done(uint8_t x) { // obtain x i++; if (i < 10) { Someone.doThis(); } }

slide-15
SLIDE 15

Command/event versus task

What to do and what not (deferred procedure calls)

in some module’s implementation that provides the interface Someone:

  • riginal implementation

task implementation now we can use:

... i:= 0; Someone.doThis(); ... event void Someone.done(uint8_t x) { // obtain x i++; if (i < 10) { Someone.doThis(); } } command error_t Someone.doThis() { // dot it and obtain x x = 1; signal Someone.done(x); } command error_t Someone.doThis() { // dot it and obtain x x = 1; return post Someone.doneTask; } task void doneTask() { signal Someone.done(x); }

slide-16
SLIDE 16

Example Blink

BlinkC.nc #include "Timer.h" module BlinkC { uses interface Timer<TMilli> as Timer0; uses interface Timer<TMilli> as Timer1; uses interface Timer<TMilli> as Timer2; uses interface Leds; uses interface Boot; } implementation { event void Boot.booted() { call Timer0.startPeriodic( 250 ); call Timer1.startPeriodic( 500 ); call Timer2.startPeriodic( 1000 ); } event void Timer0.fired() { call Leds.led0Toggle(); } event void Timer1.fired() { call Leds.led1Toggle(); } event void Timer2.fired() { call Leds.led2Toggle(); } }

BlinkC Timer0 Timer1 Timer2 Leds Boot uses

slide-17
SLIDE 17

Example Blink

BlinkC.nc

#include "Timer.h" module BlinkC { uses interface Timer<TMilli> as Timer0; uses interface Timer<TMilli> as Timer1; uses interface Timer<TMilli> as Timer2; uses interface Leds; uses interface Boot; }

BlinkC Timer0 Timer1 Timer2 Leds Boot

BlinkAppC.nc

configuration BlinkAppC { } implementation { components MainC, BlinkC, LedsC; components new TimerMilliC() as Timer0; components new TimerMilliC() as Timer1; components new TimerMilliC() as Timer2; BlinkC -> MainC.Boot; BlinkC.Timer0 -> Timer0; BlinkC.Timer1 -> Timer1; BlinkC.Timer2 -> Timer2; BlinkC.Leds -> LedsC; }

TimerMilliC TimerMilliC TimerMilliC MainC LedsC uses provides

  • > wiring

from user to provider

long version: BlinkC.Boot -> MainC.Boot; BlinkC.Timer0 -> Timer0.Timer; BlinkC.Timer1 -> Timer1.Timer; BlinkC.Timer2 -> Timer2.Timer; BlinkC.Leds -> LedsC.Leds;

slide-18
SLIDE 18

Booting

tos/system/MainC

#include "hardware.h" configuration MainC { provides interface Boot; uses interface Init as SoftwareInit; } implementation { components PlatformC, RealMainP, TinySchedulerC; RealMainP.Scheduler -> TinySchedulerC; RealMainP.PlatformInit -> PlatformC; // Export the SoftwareInit and Booted for applications SoftwareInit = RealMainP.SoftwareInit; Boot = RealMainP; }

slide-19
SLIDE 19

Booting

tos/system/RealMainC

module RealMainP @safe() { provides interface Boot; uses interface Scheduler; uses interface Init as PlatformInit; uses interface Init as SoftwareInit; } implementation { int main() @C() @spontaneous() { atomic { platform_bootstrap(); call Scheduler.init(); call PlatformInit.init(); while (call Scheduler.runNextTask()); call SoftwareInit.init(); while (call Scheduler.runNextTask()); } __nesc_enable_interrupt(); signal Boot.booted(); call Scheduler.taskLoop(); return -1; } default command error_t PlatformInit.init() { return SUCCESS; } default command error_t SoftwareInit.init() { return SUCCESS; } default event void Boot.booted() { } }

slide-20
SLIDE 20

TinyOS Scheduling Policies

  • Non-Preemptive FIFO
  • Small
  • Easy
  • Fast
  • Thread Based Priority Queues using Preemptive Jobs
  • Bigger
  • Not that easy
  • „Slow“
slide-21
SLIDE 21

Concurrency in nesC

  • Execution model in nesC is „run-to-completion“ tasks
  • No preemption
  • Atomic with respect to other tasks
  • Not atomic with respect to interrupt handlers
  • Code divided into two parts:
  • Syncronous Code: functions, commands, events, tasks that are only

reachable from tasks

  • Asyncronous Code: used in interrupt handlers (must be marked async)
  • Race conditions:
  • No race conditions between tasks
  • Avoid race conditions by protection through an atomic statement
  • Calls to functions are only protected if every call is protected
  • Compiler detects race conditions
slide-22
SLIDE 22

nesC Tasks in TinyOS 2.x

post processTask(); … task void processTask() { //do work if (moreToProcess){ post processTask(); } } post will only fail iff the task is already posted but execution has not started yet

slide-23
SLIDE 23

Another Push Task Example

module BlinkTaskC { … } implementation { task void toggle() { call Leds.led0Toggle(); } event void Boot.booted(){ call Timer0.startPeriodic( 1000 ); } event void Timer0.fired(){ post toggle(); } }

slide-24
SLIDE 24

What Really Happens

command void Scheduler.init() { atomic { memset( (void *)m_next, NO_TASK, sizeof(m_next) ); m_head = NO_TASK; m_tail = NO_TASK; } } bool pushTask( uint8_t id ) { if( !isWaiting(id) ) { if( m_head == NO_TASK ) { m_head = id; m_tail = id; } else { m_next[m_tail] = id; m_tail = id; } return TRUE; } else { return FALSE; } } async command error_t TaskBasic.postTask[uint8_t id]() { atomic { return pushTask(id) ? SUCCESS : EBUSY; } } command void Scheduler.taskLoop() { for (;;) { uint8_t nextTask; atomic { while ((nextTask = popTask()) == NO_TASK) { call McuSleep.sleep(); } } signal TaskBasic.runTask[nextTask](); } }

slide-25
SLIDE 25

Example of Splitting Computation

task void computeTask() { uint32_t i; for (i = 0; i < 400001; i++) { … } } task void computeTask() { static uint32_t i; uint32_t start = i; for (;i < start + 10000 && i < 400001; i++) { … } if (i >= 400000) { i = 0; } else { post computeTask(); } }

slide-26
SLIDE 26

Non-Preemptive FIFO Scheduler

  • Every task is posted into the task queue
  • Queue is processed in FIFO ordering
  • Every task can only be posted once
  • Every task consumes only 1 byte in the task queue
  • Limited to 255 tasks
  • Task queue length is evaluated at compile time [ unique() ]
  • Every task runs „to-completion“
  • Dispatch long operations in multiple seperate tasks
  • What about context switches?
slide-27
SLIDE 27

Thread Model

  • ${TINYOSBASE}/tos/lib/tosthreads holds nearly the

complete tinyos structure again …

  • … but now with thread support
  • 2 Priorities:
  • High Priority: Tasks
  • Low Priority: Threads
  • Switching between done by timer interrupt every 5ms
slide-28
SLIDE 28

Thread Implementation

  • Platform independent part:
  • Thread queue (implemented as linked list)
  • Threads
  • Thread context (GPR, SP, SREG)

struct thread { //***** next_thread must be at first position in struct for casting purposes ******* volatile struct thread* next_thread; //Pointer to next thread for use in queues when blocked thread_id_t id; //id of this thread for use by the thread scheduler init_block_t* init_block;

//Pointer to an initialization block from which this thread was spawned

stack_ptr_t stack_ptr;

//Pointer to this threads stack

volatile uint8_t state;

//Current state the thread is in

volatile uint8_t mutex_count;

//A reference count of the number of mutexes held by this thread

void (*start_ptr)(void*);

//Pointer to the start function of this thread

void* start_arg_ptr;

//Pointer to the argument passed as a parameter to the start function of this thread

syscall_t* syscall;

//Pointer to an instance of a system call

thread_regs_t regs;

//Contents of the GPRs stored when doing a context switch

};

slide-29
SLIDE 29

Thread Implementation (2)

Platform dependent part (the „real“ context switching)

//Save stack pointer #define SAVE_STACK_PTR(t) \ __asm__("in %A0, __SP_L__\n\t„ \ "in %B0, __SP_H__\n\t" \ :"=r"((t)->stack_ptr) : ); //Save status register #define SAVE_STATUS(t) \ __asm__("in %0,__SREG__ \n\t" : "=r" ((t)->regs.status) : ); #define SAVE_TCB(t) \ SAVE_GPR(t); \ SAVE_STATUS(t); \ SAVE_STACK_PTR(t) #define RESTORE_TCB(t) \ RESTORE_STACK_PTR(t); \ RESTORE_STATUS(t); \ RESTORE_GPR(t) #define SWITCH_CONTEXTS(from, to) \ SAVE_TCB(from); \ RESTORE_TCB(to) //Save General Purpose Registers #define SAVE_GPR(t) \ __asm__("mov %0,r0 \n\t" : "=r" ((t)->regs.r0) : ); \ __asm__("mov %0,r1 \n\t" : "=r" ((t)->regs.r1) : ); \ __asm__("mov %0,r2 \n\t" : "=r" ((t)->regs.r2) : ); \ __asm__("mov %0,r3 \n\t" : "=r" ((t)->regs.r3) : ); \ __asm__("mov %0,r4 \n\t" : "=r" ((t)->regs.r4) : ); \ __asm__("mov %0,r5 \n\t" : "=r" ((t)->regs.r5) : ); \ __asm__("mov %0,r6 \n\t" : "=r" ((t)->regs.r6) : ); \ __asm__("mov %0,r7 \n\t" : "=r" ((t)->regs.r7) : ); \ __asm__("mov %0,r8 \n\t" : "=r" ((t)->regs.r8) : ); \ __asm__("mov %0,r9 \n\t" : "=r" ((t)->regs.r9) : ); \ __asm__("mov %0,r10 \n\t" : "=r" ((t)->regs.r10) : ); \ __asm__("mov %0,r11 \n\t" : "=r" ((t)->regs.r11) : ); \ __asm__("mov %0,r12 \n\t" : "=r" ((t)->regs.r12) : ); \ __asm__("mov %0,r13 \n\t" : "=r" ((t)->regs.r13) : ); \ __asm__("mov %0,r14 \n\t" : "=r" ((t)->regs.r14) : ); \ __asm__("mov %0,r15 \n\t" : "=r" ((t)->regs.r15) : ); \ __asm__("mov %0,r16 \n\t" : "=r" ((t)->regs.r16) : ); \ __asm__("mov %0,r17 \n\t" : "=r" ((t)->regs.r17) : ); \ __asm__("mov %0,r18 \n\t" : "=r" ((t)->regs.r18) : ); \ __asm__("mov %0,r19 \n\t" : "=r" ((t)->regs.r19) : ); \ __asm__("mov %0,r20 \n\t" : "=r" ((t)->regs.r20) : ); \ __asm__("mov %0,r21 \n\t" : "=r" ((t)->regs.r21) : ); \ __asm__("mov %0,r22 \n\t" : "=r" ((t)->regs.r22) : ); \ __asm__("mov %0,r23 \n\t" : "=r" ((t)->regs.r23) : ); \ __asm__("mov %0,r24 \n\t" : "=r" ((t)->regs.r24) : ); \ __asm__("mov %0,r25 \n\t" : "=r" ((t)->regs.r25) : ); \ __asm__("mov %0,r26 \n\t" : "=r" ((t)->regs.r26) : ); \ __asm__("mov %0,r27 \n\t" : "=r" ((t)->regs.r27) : ); \ __asm__("mov %0,r28 \n\t" : "=r" ((t)->regs.r28) : ); \ __asm__("mov %0,r29 \n\t" : "=r" ((t)->regs.r29) : ); \

slide-30
SLIDE 30

wireless communication IEEE 802.15.4 (ZigBee)

“Wireless Medium Access Control (MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (WPANs)” Data rates 250, 100, 40 and 20 kb/s Communication graph star (PAN coordianator) p2p (also PAN coordinator, arb. comm.) Device types FFD = fully functional device RFD = reduced functional device (can talk to FFD only)

slide-31
SLIDE 31

wireless communication IEEE 802.15.4 (ZigBee)

PHY and MAC layer specified PHY: In unlicensed 2.4 GHz band and others modulation depends, in 2.4 GHz band: O-QPSK MAC: Provides services to application:

  • beacon management
  • channel access (CSMA-CA)
  • ACKed messages
  • CRC
slide-32
SLIDE 32

wireless communication (optional) superframe structure

Frame beacons sent by PAN coordinator

from [4]

slide-33
SLIDE 33

wireless communication Non beacon mode

CSMA-CA random backoff time

from [4]

slide-34
SLIDE 34

wireless communication

PHY & MAC packet

from [5]

slide-35
SLIDE 35

wireless communication

IEEE 802.15.4 (ZigBee) In RZ200: Atmel AT86RF230

from [4]

slide-36
SLIDE 36

wireless communication

The controller issuing commands

from [5]

slide-37
SLIDE 37

wireless communication

The controller accessed in tos/chips/rf230/RF230LayerP.nc

from [5]

slide-38
SLIDE 38

wireless communication

Typical Communication Scenario

slide-39
SLIDE 39

wireless communication

Typical Communication Scenario (with ACKs enabled) Retransmission wait for timeout, retransmit if no ACK received, and not max count exceeded.

slide-40
SLIDE 40

wireless communication

In TinyOS uses only the basic features of RF230

  • no ACKed messages
  • no beacon/slotted transfer

ACKs are implemented in software, e.g. in

tos/chips/rf230/SoftwareAckLayerP

slide-41
SLIDE 41

wireless communication

In TinyOS

initially

call ActiveMessageC.start();

sending a message

message_t packet; if (locked) { return; } else { msg_t* msg; msg = (msg_t*)call Packet.getPayload(&packet, sizeof(msg_t)); if (msg == NULL) { return; } msg->data = 42; if (call AMSend.send(AM_BROADCAST_ADDR, &packet, sizeof(msg_t)) == SUCCESS) { locked = TRUE; } }

slide-42
SLIDE 42

TinyOS and Ethernet/WLAN

bigAVR6 Platform Only (Networking already stable) See UDP Example () Uses TOS_NODE_ID as part of MAC address and IP address make bigAVR6_1280 install,<id> (no space between , and the id!) Alternative Tasks possible (maybe?) Implementation of am_message interface on top of ip/udp/… Zigbee Transceiver available (driver missing – lib compatible to rz200?)

slide-43
SLIDE 43

Resources

[1] NesC reference manual nescc.sourceforge.net/papers/nesc-ref.pdf [2] TinyOS (lots of tutorials!) www.tinyos.net/ [3] TinyOS programming manual www.tinyos.net/tinyos-2.x/doc/pdf/tinyos-programming.pdf [4] IEEE 802.15.4-2006 standard [5] Atmel AT86RF230 manual
