1

12.11.18

424 BROADWAY STOREFRONT - SOHO CAST IRON DISTRICT EXTENSION LP-2362

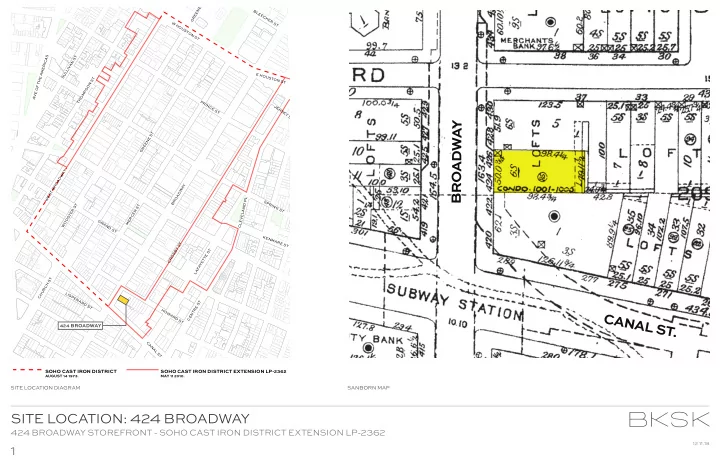

SITE LOCATION: 424 BROADWAY

SITE LOCATION DIAGRAM

424 BROADWAY

CANAL ST HOWARD ST GRAND ST PRINCE ST W HOUSTON ST E HOUSTON ST BLEECKER ST GREENE ST E WEST BROADWAY WOOSTER ST GREENE ST MERCER ST BROADWAY CROSBY ST LAFAYETTE ST CENTRE ST C L E V E L A N D P L J E R S E Y S T SPRING ST K E N M A R E S T LISPENARD ST THOMPSON ST SULLIVAN ST AVE OF THE AMERICAS CHURCH ST

SANBORN MAP

SOHO CAST IRON DISTRICT

AUGUST 14 1973.

SOHO CAST IRON DISTRICT EXTENSION LP-2362

MAY 11 2010.

B R O A D W A Y CANAL ST.

424 BROADWAY STOREFRONT

2

12.11.18

EXISTING CONDITION

EXISTING CONDITION

424 BROADWAY STOREFRONT

3

12.11.18

EXISTING CONDITION

EXISTING CONDITION HISTORIC BUILDING 1868 OMG STOREFRONT 2012

424 BROADWAY STOREFRONT

4

12.11.18

HISTORIC PHOTOGRAPHS

DELEEUWS BOTH SIDES OF BROADWAY - 1910 DELEEUWS BOTH SIDES OF BROADWAY - 1910 - DETAIL FROM LPC DESIGNATION REPORT DETAIL FROM ARTHUR HOSKING - BROADWAY SERIES - 1920

FROM LPC DESIGNATION REPORT

± 15’ - 6” ± 4’ - 0”

424 BROADWAY STOREFRONT

5

12.11.18

HISTORIC PHOTOGRAPHS

NYC TAX PHOTO - 1940s NYC TAX PHOTO - 1940s - DETAIL FROM LPC DESIGNATION REPORT

424 BROADWAY STOREFRONT

6

12.11.18

TYPICAL WOOLWORTH SIGNAGE CIRCA 1920’S

5TH AVE & 40TH ST BROADWAY AND 35TH 5TH AVE & 40TH ST - DETAIL 22 E 14TH ST

424 BROADWAY STOREFRONT

7

12.11.18

TYPICAL WOOLWORTH SIGNAGE

NYC TAX PHOTO - 1940 NYC TAX PHOTO - 1940 - DETAIL

THICKER SIGNAGE BAND OVER EXISTING CORNICE 3 CENTRAL COLUMNS

• REMOVED. REPLACED

WITH THIN PLAIN COLUMNS BEHIND GLASS STOREFRONT STOREFRONT RECESSED BEHIND NEW CENTRAL COLUMN DOOR LOCATIONS (CONJECTURAL) ROLL DOWN GRILL OVER HOISTWAY (CONJECTURAL) DOOR LOCATION (CONJECTURAL)

424 BROADWAY STOREFRONT

8

12.11.18 SCALE: 1/8” = 1’-0” HISTORIC ELEVATION (±1921 - 1940)

HISTORIC ELEVATIONS

0’ 4’ 8’ 16’ 32’ HISTORIC ELEVATION (PRE 1920’S)

• EXIST. HISTORIC CORNICE
• EXIST. HISTORIC BRACKETS
• EXIST. HISTORIC METALWORK
• EXIST. HISTORIC 2ND FLOOR

COINS

• EXIST. HISTORIC 2ND FLOOR

COLUMNS UP UP UP

424 BROADWAY STOREFRONT

9

12.11.18 SCALE: 3/16” = 1’-0” EXISTING STOREFRONT ELEVATION EXISTING STOREFRONT PLAN

CURRENT CONDITION

0’ 4’ 8’ 16’

PROBE 1 - EXTERNAL PROBE 2 - EXTERNAL PROBE 3 - EXTERNAL PROBE 4 - EXTERNAL PROBE 5 - INTERNAL PROBE 6 - EXTERNAL = APPROXIMATE LOCATION OF PROBE TO BE CONDUCTED

1/2" = 1'-0"

424 Broadway Storefront

Project No.: 1817 06/28/18

P-117 - Probe Location Diagram

424 BROADWAY STOREFRONT

10

12.11.18

STOREFRONT PROBES

PROBE LOCATIONS OVERVIEW

SOUTHERNMOST COLUMN BASE PROBE 6 PROBE 4 PROBE 2 - LOOKING AT LOCATION 1 NORTHERNMOST PILASTER BASE SOUTHERNMOST COLUMN CAPITAL SOUTHERNMOST PILASTER CAPITAL SOUTHERNMOST PILASTER BASE PROBE 2 PROBE 3

424 BROADWAY STOREFRONT

11

12.11.18

STOREFRONT PROBES

1' - 2"

As indicated

Broadway Storefront

Project No.: 1817 09/06/18

202 - Proposed Phase 1 - Drawings

3/16" = 1'-0" 1 Proposed Elevation - Phase 1 3/8" = 1'-0" 2 Preferred Plan

424 BROADWAY STOREFRONT

12

12.11.18 SCALE: 3/16” = 1’-0” PHASE 1 PLAN PHASE 1 ELEVATION

PROPOSED STOREFRONT - PHASE 1

0’ 4’ 8’ 16’

424 BROADWAY STOREFRONT

13

12.11.18 PHASE 1 - 3D VIEWS

PROPOSED STOREFRONT - PHASE 1

As indicated

Broadway Storefront

Project No.: 1817 09/05/18

200 - Proposed Storefront - Elevation

3/16" = 1'-0" 1 Proposed Elevation 3/8" = 1'-0" 2 Preferred Plan

COMPLETED PHASE 2 PLAN COMPLETED PHASE 2 ELEVATION 0’ 4’ 8’ 16’

424 BROADWAY STOREFRONT

14

12.11.18 SCALE = 3/16” = 1’-0”

NOT IN CONTRACT POTENTIAL EXPANSION/PHASE 2

424 BROADWAY STOREFRONT

15

12.11.18 PROPOSED PHASE 2 VIEWS

NOT IN CONTRACT POTENTIAL EXPANSION/PHASE 2

11' - 8" 2' - 11 1/4" 2' - 3 1/4"

0’ 2’ 4’ 8’ PIN MOUNTED LETTERS FACE MOUNTED COVE LIGHT PAINTED METAL COLUMN COLOUR EXISTING HISTORIC CORNICE FACE MOUNTED COVE LIGHT PAINTED METAL DOORS PAINTED METAL COLUMN BASE CUSTOM DOOR HANDLES 18" FROM BUILDING FACE PAINTED METAL COLUMN COVERS NEW PAINTED METAL DOUBLE DOORS

6' - 9 3/8" 1' - 0"

2' - 1 1/4"

SURFACE MOUNTED LED COVE LIGHT 2 1 1/2" 5" 3 1/4" 3" SIGN BOARD 1" PIN MOUNTED LETTERS PAINTED METAL SURFACE MOUNTED LED COVE LIGHT 2 3/4" 1 1/2" 5" 3 1/4" 3" 1" PIN MOUNTED LETTERS PAINTED METAL TRIM 2 3/4"

424 BROADWAY STOREFRONT

16

12.11.18

DETAIL VIEWS

DETAIL SECTION @ 3/8” = 1’-0” DETAIL PLAN/ELEVATION @ 3/8” = 1’-0”

2' - 3 1/4" 2' - 10 1/2" 9' - 6 3/8" 2' - 0 3/8" EQ. EQ. 1' - 2" PIN MOUNTED LETTERS FACE MOUNTED COVE LIGHT PAINTED METAL COLUMN - PT -1 EXISTING HISTORIC CORNICE - PT-1 FINISH FACE MOUNTED COVE LIGHT METAL FRAMED WINDOW - PT -1 PAINTED METAL COLUMN BASE - PT 2 PAINTED METAL BULKHEAD - PT 1 EXISTING HISTORIC COLUMNS - PT-1 EXISTING HISTORIC COLUMN BASE - PT -2 2' - 3 1/4" 2' - 10 1/2" 9' - 7 1/8" 18" FROM BUILDING FACE 1' - 6" METAL PANEL SCRIBED TO EXISTING COLUMN 0' - 2" 6' - 0 7/8" 1' - 0"

DETAIL SECTION @ 3/8” = 1’-0” DETAIL PLAN/ELEVATION @ 3/8” = 1’-0”

1'-10 3/4" 2" 1 1/2" 1 1/2" 1 1/2" SIGN BOARD PAINTED METAL SURFACE MOUNTED LED COVE LIGHT 3" 2 3/4"

SIGN BOARD

1" PIN MOUNTED LETTERS PAINTED METAL SURFACE MOUNTED LED COVE LIGHT 2 3/4" 1 1/2" 5" 3 1/4" 3" 1" PIN MOUNTED LETTERS

PAINTED METAL TRIM 2 3/4"

424 BROADWAY STOREFRONT

17

12.11.18

DETAIL VIEWS

0’ 2’ 4’ 8’

424 BROADWAY STOREFRONT

18

12.11.18 EXISTING STOREFRONT

EXISTING STOREFRONT

424 BROADWAY STOREFRONT

19

12.11.18 RENDER OF PROPOSED STOREFRONT WITH CURRENT OWNERSHIP PORTION COMPLETED

PROPOSED STOREFRONT - PHASE 1

424 BROADWAY STOREFRONT

20

12.11.18 RENDER OF PROPOSED COMPLETED STOREFRONT PHASE 2 - NOT IN CONTRACT

NOT IN CONTRACT POTENTIAL EXPANSION/PHASE 2

TNEMEC 32GR - LIGHT GREY BENJAMIN MOORE HC-168 OR SIMILAR PAINTED METAL STOREFRONT - COLORS PT - 1: METAL FINS. WINDOW FRAMES, HISTORIC COLUMNS PT - 2: NEW AND HISTORIC COLUMN BASES CUSTOM ROCKWOOD PULL

424 BROADWAY STOREFRONT

21

12.11.18

MATERIAL SELECTION
