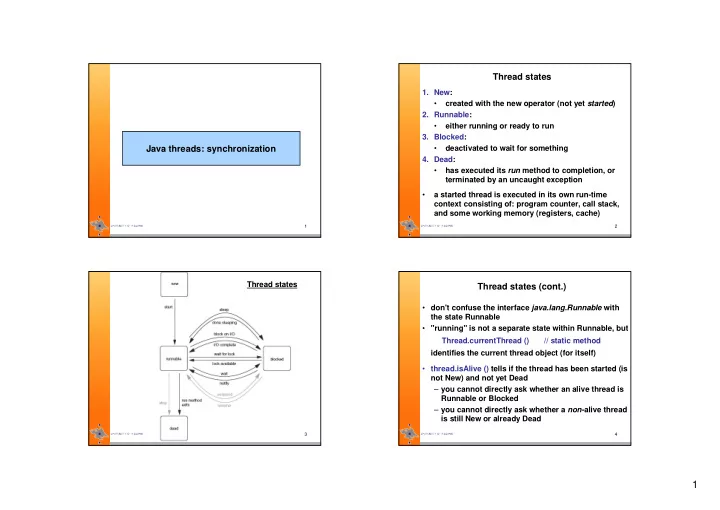

Java threads: synchronization

2

Thread states

• 1. New:
• created with the new operator (not yet started)
• 2. Runnable:
• either running or ready to run
• 3. Blocked:
• deactivated to wait for something
• 4. Dead:
• has executed its run method to completion, or

terminated by an uncaught exception

• a started thread is executed in its own run-time

context consisting of: program counter, call stack, and some working memory (registers, cache)

3

Thread states

4

Thread states (cont.)

• don't confuse the interface java.lang.Runnable with

the state Runnable

• "running" is not a separate state within Runnable, but

Thread.currentThread () // static method identifies the current thread object (for itself)

• thread.isAlive () tells if the thread has been started (is

not New) and not yet Dead – you cannot directly ask whether an alive thread is Runnable or Blocked – you cannot directly ask whether a non-alive thread is still New or already Dead

2

5

Entering the Blocked state

A thread enters the blocked state when:

• 1. the thread goes to sleep by calling the sleep method
• 2. the thread calls an operation that blocks until IO
• perations are complete
• 3. the thread tries to acquire a lock that is currently

held by another thread (mutual exclusion)

• 4. the thread waits for a condition

6

Transition from Blocked to Runnable

A blocked thread moves into the Runnable state when

• 1. if in sleep, the specified number of milliseconds

have been expired

• 2. if waiting for the completion of an IO operation, the

IO operation have finished

• 3. if waiting for a lock that was owned by another

thread, the other thread have released its ownership

• f the lock
• 4. if waits for a condition, another thread signals that

the condition (may) have changed – additionally, can wait for a lock or a condition with a timeout

7

Java Memory Model

• computers can temporarily hold memory values in

registers or local memory caches, and the compiler can reorder instructions to optimize throughput – without synchronization, threads (interleaved or parallel) may see out-of-date and/or out-of-order values for the same memory locations

• locks always ensure that all calculated results are

visible to other threads (flushing of caches, etc.)

• alternatively, you can declare a flag field as volatile:

private volatile boolean done; . . public boolean isDone () { return done; }

• a write to a volatile variable synchronizes with all

subsequent reads of that same variable (all reads and writes are atomic, even for long and double)

8

Mutual exclusion from critical code

• basic way to protecting a shared code block:

myLock.lock (); // a ReentrantLock object try { critical section } finally { myLock.unlock (); }

• only one thread at a time can enter the critical section

(identified and protected by this particular lock)

• any other threads calling on this lock, are blocked

until the first thread unlocks

• the finally clause makes sure the lock is unlocked

even if an exception is thrown

3

9

Fairness

• you can specify that you want a fair locking policy:

Lock fairLock = new ReentrantLock (true);

• a fair lock favors the thread that has been waiting

for the longest time

• by default, locks are not required to be fair

– for implementation reasons fair locks can be much slower than regular locks – anyway, you have no guarantee that the thread scheduler provided by the plarform is fair

• so if the thread scheduler neglects a thread,

it may not get the chance to be treated fairly by the lock

10

Condition objects

• a lock protects sections of code, allowing only one

thread to execute the code at a time – a lock manages threads that are trying to enter a protected code segment

• a lock can have one or more associated condition
• bjects

– each condition object manages threads that have entered a protected code section but that cannot proceed for some reason (usually, lack of data / resource)

11

Condition objects (cont.)

• use a condition object to manage threads that have

acquired a lock but cannot proceed with useful work Condition cond = lock.newCondition (); . . lock.lock (); try { while (!(ok to proceed)) // try until succeeds cond.await (); // data available: do something useful } finally { lock.unlock (); }

• must itself check that the condition is (still) valid

12

Condition objects (cont.)

• some other thread must call the signalAll method to

wake up any waiting threads change some item used in condition test . . cond.signalAll (); // or rarely: signal ()

• the condition wait must always be done in a loop

while (! condition) cond.await ();

• multiple threads may compete to acquire the lock
• the first one can use up resources, and so others

must then enter back to the blocked state to wait

• additionally, a "spurious wakeup" (without signal) is

permitted to occur (depending on the OS)

4

13

Keyword "synchronized"

• since version 1.0, every object has an implicit lock to

be used in so-called monitor methods: public synchronized void method () { body } this is the equivalent of the following pseudocode: public void method () { // use explicit lock this.implicitLock.lock (); // pseudocode try { body } finally { this.implicitLock.unlock(); } }

14

Keyword synchronized (cont.)

• the monitor lock also has a single implicit associated

condition with the following operations – wait adds a thread to its set of waiting threads – notifyAll unblocks all waiting threads to compete for access

• these correspond to the following lock calls

– implicitCondition.await (); // pseudocode – implicitCondition.signalAll ();

• the wait and notifyAll methods are final methods in

Object – so the Condition methods had to be renamed differently: await and signalAll

15

Synchronized code blocks

• an implicit lock can be acquired also by entering a

code block synchronized by an object lock: synchronized (obj) { // any object critical section // implicit lock and unlock }

• the lock is reentrant: if a thread has acquired the

lock, it can acquire it again (increments a count)

• similarly, a monitor method can call other monitor

methods with the same implicit lock without waiting

• you can declare a static monitor method: it uses the

the associated class object ("X.class") as its lock

16

Limitations of implicit locks and conditions

• you cannot interrupt a thread that is waiting to

acquire a lock

• you cannot specify a timeout when trying to acquire

a lock

• having only one single condition per lock can be

inefficient – cannot separate buffer empty (cannot take) vs. buffer full (cannot put) conditions

• the virtual machine locking primitives do not map

well to the most efficient locking mechanisms available in modern hardware

5

17

Lock testing and timeouts

• can be cautious about acquiring a lock:

if (myLock.tryLock ()) { // now the thread owns the lock try { do something } finally { myLock.unlock (); } } else { do something else }

• can call tryLock with a timeout parameter:

if (myLock.tryLock(10,TimeUnit.MILLISECONDS)) . . . – TimeUnit can be: SECONDS, MILLISECONDS, MICROSECONDS, or NANOSECONDS.

18

Lock testing and timeouts (cont.)

• if you call tryLock with a timeout, then it can throw

InterruptedException when interrupted – can try to break up deadlocks and such – the lockInterruptibly method has the same meaning as tryLock with an infinite timeout

• can also supply a timeout for a condition wait;

myCondition.await (10, TimeUnit.MILLISECONDS)); – returns if another thread has called signalAll - or if the given timeout has elapsed – await methods throw an InterruptedException if the thread is interrupted (but awaitUninterruptibly)

19

Summary of synchronization operations

• synchronized (lock) { . . use shared data }
• synchronized void method () { . . use shared data }
• lock.lock () { . . } finally { lock.unlock (); } // explicit
• waiting for a condition to proceed:

try { . . while (!(cannot proceed)) wait (); . . // means: this.wait (); } catch (InterruptedException e) { . .

• either anyObject.wait ();
• r condition.await ();
• either anyObject.notifyAll (); or condition.signalAll ();

20

Recommendations

• 1. it is best to use neither lock/condition nor the old

monitor methods/code blocks ("synchronized")

• in many situations, better to use mechanisms of

the java.util.concurrent package that do all the locking and synchronization for you

• for example, a blocking queue can synchronize

threads that work on a common pipeline

• 2. if the monitor methods work for your situation,

prefer using them:

• less code to write and so less room for error
• 3. use explicit locks/conditions only if you need the

additional power of these constructs

6

21

java.util.concurrent: thread management tools

• ReentrantReadWriteLock provides shared access for readers,

and exclusive access for a writer

• BlockingQueue <E> can cause a thread to block when trying to

add to a full queue or trying to remove from empty one – ConcurrentLinkedQueue <E> and ArrayBlockingQueue <E> provide optionally-bounded/bounded thread-safe queues

• interface ConcurrentMap <K,V> implemented efficiently by

– ConcurrentHashMap and ConcurrentSkipListMap

• CopyOnWriteArrayList <E> and CopyOnWriteArraySet <E>

provide thread-safe collections (reads outnumber mutations)

• Callable <T> plus Future <T> can return and hold the result of

an asynchronous computation (can test, time-out, and cancel)

• you can give a Runnable to a thread pool, and one of its idle

threads executes it; afterwards, that thread can serve again

• synchronizers: CyclicBarrier, CountDownLatch, Exchanger,

SynchronousQueue, and Semaphore

• AtomicInteger, AtomicLong, AtomicReference, etc.: lock-free

thread-safe programming on single variables

22

Atomic variables

• support lock-free thread-safe programming on single

variables (objects) – extends the notion of volatile: provide atomic and synchronized access to single values (visibility!)

• enable implementations to use efficient atomic

machine instructions that available on processors (but no guarantees: might entail internal locking ..) AtomicLong seqNo = new AtomicLong (0); . . long next () { return seqNo.getAndAdd(1); } // atomic – may not work when state involves invariants..

• atomic variables do not replace Integer, Long, etc.

– do not provide hashCode or compareTo (since expected to change, no good as Map keys)

23

A producer-consumer solution

class IntProducer implements Runnable { private BlockingQueue <Integer> queue; public IntProducer (BlockingQueue <Integer> q) { queue = q; new Thread (this).start (); } public void run () { try { // "put" may block for (int x = 0; x < 100; x++) { Thread.sleep (delay); . . queue.put (x); } } catch (InterruptedException e) { } } }

24

A producer-consumer solution (cont.)

class IntConsumer implements Runnable { private BlockingQueue <Integer> queue; public IntConsumer (BlockingQueue <Integer> q) { queue = q; new Thread (this).start (); } public void run () { try { // "take" may block while (true) { int value = queue.take (); . . } } catch (InterruptedException ex) { } } } . . BlockingQueue <Integer> q = new ArrayBlockingQueue <Integer> (10); // capacity
