7/10 - 05 Distributed systems - Jonny Pettersson, UmU 1

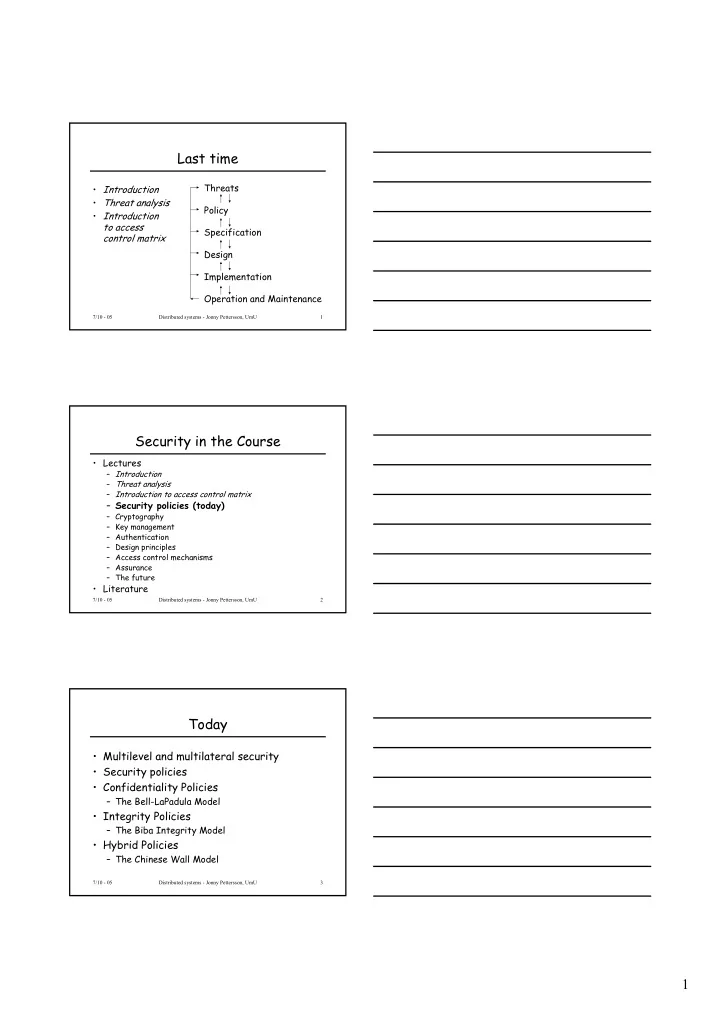

Last time

• Introduction
• Threat analysis
• Introduction

to access control matrix Threats Policy Specification Design Implementation Operation and Maintenance

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 2

Security in the Course

• Lectures

– Introduction – Threat analysis – Introduction to access control matrix

– Security policies (today)

– Cryptography – Key management – Authentication – Design principles – Access control mechanisms – Assurance – The future

• Literature

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 3

Today

• Multilevel and multilateral security
• Security policies
• Confidentiality Policies

– The Bell-LaPadula Model

• Integrity Policies

– The Biba Integrity Model

• Hybrid Policies

– The Chinese Wall Model

2

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 4

Multilevel Security

• Different security levels for resources
• Important systems

– A lot of research is done – Products for military applications can have a second chance

• Firewalls, web servers, etc.

– Often applied in the wrong context and in the wrong way

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 5

Multilateral Security

• To protect information from leaking

between compartments on the same level

• Different types

– Organizations – Privilege-based – A mix

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 6

Security Policy

• Purpose and goal
• A foundation for the choice of security

mechanisms

• Who is responsible for what
• What is allowed and what is not allowed
• Why the policy looks like it do – important!

A security policy defines “secure” for a system or a set of system.

3

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 7

Security Policy

• Def. A security policy is a statement that partitions the states
• f the system into a set of authorized, or secure, states and a

set of unauthorized, or nonsecure, states.

• Def. A secure system is a system that starts in an authorized

state and cannot enter an unauthorized state.

• Def. A breach of security occurs when a system enters an

unauthorized state.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 8

Confidentiality

• Def. Let X be a set of entities and let I be some information.

Then I has the property of confidentiality with respect to X if no member of X can obtain information about I.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 9

Integrity

• Def. Let X be a set of entities and let I be some information or

a resource. Then I has the property of integrity with respect to X if all members of X trust I.

4

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 10

Availability

• Def. Let X be a set of entities and let I be a resource. Then I

has the property of availability with respect to X if all members of X can access I.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 11

Types of security policies

• Confidentiality policy

– Identifies those states that can leak information

• Integrity policy

– Identifies authorized ways in which information may be altered and entities authorized to alter it

• Formal statement of the policy

– If the system is to be provably secure

• In practice

– Informal statements that assumes that the reader understands the context in which the policy is issued

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 12

Security Mechanism and Model

• Def. A security mechanism is an entity or procedure that

enforces some part of the security policy.

• Def. A security model is a model that represents a particular

policy or set of policies.

5

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 13

Types of security policies

• Def. A military security policy (also called a governmental

security policy) is a security policy developed primarily to provide confidentiality.

• Def. A commercial security policy is a security policy

developed primarily to provide integrity.

• Def. A confidentiality policy is a security policy dealing only

with confidentiality.

• Def. A integrity policy is a security policy dealing only with

integrity.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 14

The Role of Trust

• An example: A system administrator

receives a security patch

– Assumes that the patch came from the vendor and was not tampered in transit – Assumes that the vendor tested the patch thoroughly – Assumes that the vendor’s test environment corresponds to her environment – Assumes that the patch is installed correctly

• Any security policy, mechanism, or

procedure is based on assumptions

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 15

Types of Access Control

• Def. If an individual user can set an access control mechanism to allow or

deny access to an object, that mechanism is a discretionary access control (DAC), also called an identity-based access control (IBAC).

• Def. When a system mechanism controls access to an object and an

individual user cannot alter that access, the control is a mandatory access control (MAC), occasionally called a rule-based access control.

• Def. An originator controlled access control (ORCON or ORGCON)

bases access on the creator of an object (or the information it contains).

6

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 16

Discretionary Access Control

ACL Foo Bar Sam RWX RWX Alice

• -X
• -X

Bob

R-X R-- Capabilities

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 17

Confidentiality Policies

• Common in military systems
• Also called information flow policy
• Models

– The Bell-LaPadula Model – Extensions of the Bell-LaPadula Model

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 18

The Bell-LaPadula Security Policy Model

• The simplest and most known, 1973
• Trusted Computing Base (TCB)

– The set of components you trust

• Classification and clearance
• Information flow control

– No process can read information on a higher level – no-read-up – No process can write information to a lower level – no-write-down

7

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 19

The Bell-LaPadula Model

• Classify information

–

A subject has a security clearance

• In a linear ordering:

–

The higher the security clearance, the more sensitive the information

–

An object has a security classification

• Also in a linear ordering
• The goal is to prevent read access to objects at a

security classification higher than the subject’s clearance

• Combines mandatory and discretionary access

control

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 20

The Bell-LaPadula Model

• Notation

–

L(S) = ls : security clearance of subject S

–

L(O) = lo : security classification of object O

• Linear ordering

–

For all security classifications li, i = 0, ..., k – 1, li < li+1

Simple Security Condition (prel): S can read O iff lo ≤ ls and S has discretionary read access to O. *-property (prel): S can write O iff ls ≤ lo and S has discretionary write access to O.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 21

Expanding The Bell-LaPadula Model

• Add categories

– From the “need to know”-principle

• Example

– Categories: NUC, EUR and US give these

combinations

• {}, {NUC}, {EUR}, {US}, {NUC, EUR}, {NUC, US}, {EUR,

US} and {NUC, EUR, US}

– Alice is cleared into: (SECRET, {EUR}) – Bob: (TOP SECRET, {NUC, US}) – DocA is classified as: (CONFIDENTIAL, {EUR})

8

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 22

Expanding The Bell-LaPadula Model

*-property: S can write O iff O dom S and S has discretionary write access to O.

• Def. The security level (L, C) dominates (dom) the security

level (L', C') iff L' ≤ L and C' ⊆ C. Simple Security Condition: S can read O iff S dom O and S has discretionary read access to O.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 23

The Basic Security Theorem

• Theorem. Let Σ be a system with a secure initial state σ0, and

let T be a set of state transformations. If every element of T preserves the simple security condition and the *-property, then every σi, i ≥ 0, is secure.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 24

Criticism of the Bell-LaPadula Model

• The principle of tranquility states that

subjects and objects may not change their security levels once they have been instantiated

• The Bell-LaPadula model (as presented)

says nothing about changing security levels

• Strong and weak tranquility
• There are other controversies also
• But still the simplest, and yet so hard to

implement

9

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 25

Integrity Policies

• Commercial requirements differ from military
• 1. Users will not write their own programs, but will use

existing production programs and databases

• 2. Programmers will develop and test programs on a

nonproduction system

• 3. A special process must be followed to install a program

from the development system onto the production system

• 4. The special process in (3) must be controlled and

audited

• 5. The managers and auditors must have access to both the

system state and the system logs that are generated

• Accuracy is much more important than disclosure

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 26

Integrity Policies

• Principles of Operation

– Separation of duty – Separation of function – Auditing

• Models

– Biba Integrity Model – Lipner’s Integrity Matrix Model – Clark-Wilson Integrity Model

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 27

The Biba Integrity Model

• Bell-LaPadula upside down
• Handles integrity and ignores

confidentiality

• Read-up, write-down
• Many ”real” systems use this model

10

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 28

The Biba Integrity Model

• A system consists of a set S of subjects, a

set O of objects, and a set I of integrity levels

– The integrity levels are ordered – The higher the level, the more confidence that

a program will execute correctly

– Data at a higher level is more accurate and/or

reliable than data at a lower level

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 29

The Biba Integrity Model

• Functions:

–

min: I × I → I

• Gives the lesser of the two integrity levels

–

i: S ∪ O → I

• Returns the integrity level of an subject or object
• Relations:

–

r ⊆ S × O

• Defines the ability of a subject to read an object

–

w ⊆ S × O

• Defines the ability of a subject to write to an object

–

x ⊆ S × O

• Defines the ability of a subject to invoke (execute) another

subject

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 30

The Biba Integrity Model

• Low-Water-Mark Policy

1. s ∈ S can write to o ∈ O iff i(o) ≤ i(s)

• 2. If s ∈ S reads o ∈ O, then i'(s) = min(i(s), i(o)),

where i'(s) is the subject's integrity level after the read

• 3. s1 ∈ S can execute s2 ∈ S iff i(s2) ≤ i(s1)

11

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 31

The Biba Integrity Model

• Ring Policy

1. Any subject may read any object, regardless

• f integrity levels
• 2. s ∈ S can write to o ∈ O iff i(o) ≤ i(s)
• 3. s1 ∈ S can execute s2 ∈ S iff i(s2) ≤ i(s1)

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 32

The Biba Integrity Model

• Biba’s Model (Strict Integrity Policy)

1. s ∈ S can read o ∈ O iff i(s) ≤ i(o)

• 2. s ∈ S can write to o ∈ O iff i(o) ≤ i(s)
• 3. s1 ∈ S can execute s2 ∈ S iff i(s2) ≤ i(s1)

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 33

Hybrid Policies

• Many organizations desire both confidentiality and

integrity

• Conflict of interest

–

Chinese Wall Model

• Medical ethics and laws about dissemination of

patient data

–

Clinical Information Systems

• Originator controlled access control

–

Lets the creator determine (or assign) who should access the data and how

• Role-based access control

–

The ability, or need, to access information may depend on

• ne’s job functions

12

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 34

The Chinese Wall Model

• To prevent a conflict of interest

– Example: Investment house

–

Information about companies is stored in database

• Definitions

–

The objects of the database are items of information related to a company.

–

A company dataset (CD) contains objects related to a single company.

–

A conflict of interest (COI) class contains the datasets

• f companies in competition.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 35

The Chinese Wall Model

• History is important
• PR(S) is set of objects that S has read

CW-Simple Security Condition. S can read O iff any of the following holds.

• 1. There is an object O' such that S has accessed O' and

CD(O') = CD(O).

• 2. For all objects O', O' ∈ PR(S) ⇒ COI(O') ≠ COI(O).
• 3. Object O is a sanitized object.

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 36

The Chinese Wall Model

CW-*-property. A subject S may write to an object O iff both of the following conditions hold.

• 1. The CW-simple security condition permits S to read

O.

• 2. For all unsanitized objects O', S can read O' ⇒

CD(O') = CD(O)

13

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 37

Summary

• Multilevel and multilateral security
• Security policies
• Confidentiality Policies

– The Bell-LaPadula Model

• Integrity Policies

– The Biba Integrity Model

• Hybrid Policies

– The Chinese Wall Model

7/10 - 05 Distributed systems - Jonny Pettersson, UmU 38

Next Time

• Cryptography
• Key management
• Authentication
