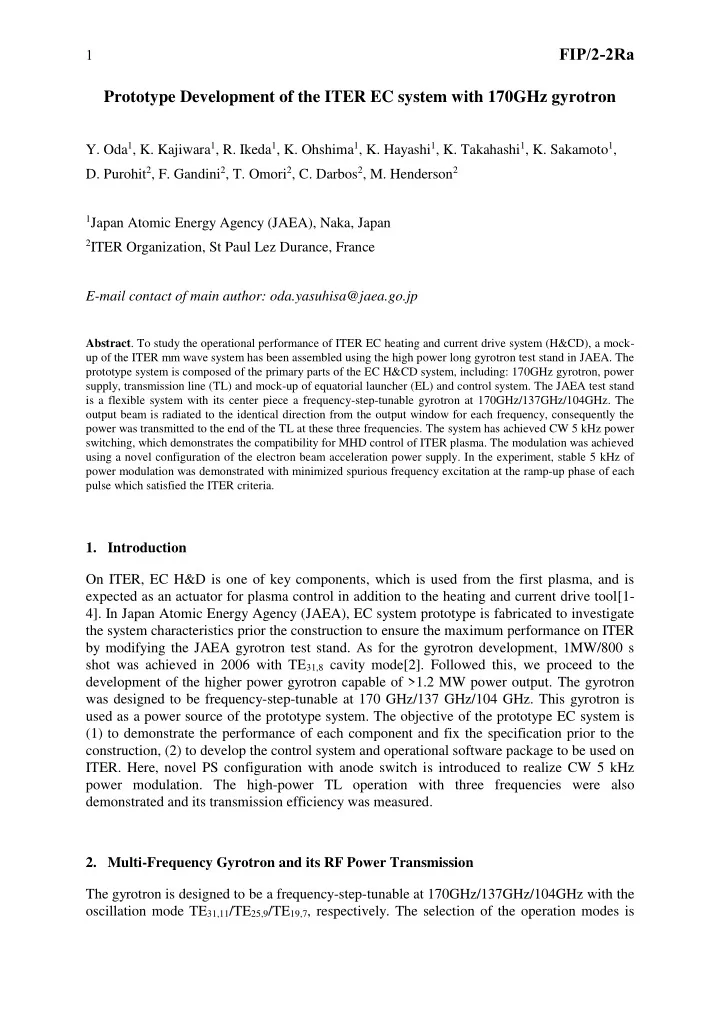

FIP/2-2Ra Prototype Development of the ITER EC system with 170GHz gyrotron

• Y. Oda1, K. Kajiwara1, R. Ikeda1, K. Ohshima1, K. Hayashi1, K. Takahashi1, K. Sakamoto1,
• D. Purohit2, F. Gandini2, T. Omori2, C. Darbos2, M. Henderson2

1Japan Atomic Energy Agency (JAEA), Naka, Japan 2ITER Organization, St Paul Lez Durance, France

E-mail contact of main author: oda.yasuhisa@jaea.go.jp

• Abstract. To study the operational performance of ITER EC heating and current drive system (H&CD), a mock-

up of the ITER mm wave system has been assembled using the high power long gyrotron test stand in JAEA. The prototype system is composed of the primary parts of the EC H&CD system, including: 170GHz gyrotron, power supply, transmission line (TL) and mock-up of equatorial launcher (EL) and control system. The JAEA test stand is a flexible system with its center piece a frequency-step-tunable gyrotron at 170GHz/137GHz/104GHz. The

• utput beam is radiated to the identical direction from the output window for each frequency, consequently the

power was transmitted to the end of the TL at these three frequencies. The system has achieved CW 5 kHz power switching, which demonstrates the compatibility for MHD control of ITER plasma. The modulation was achieved using a novel configuration of the electron beam acceleration power supply. In the experiment, stable 5 kHz of power modulation was demonstrated with minimized spurious frequency excitation at the ramp-up phase of each pulse which satisfied the ITER criteria.

• 1. Introduction

On ITER, EC H&D is one of key components, which is used from the first plasma, and is expected as an actuator for plasma control in addition to the heating and current drive tool[1- 4]. In Japan Atomic Energy Agency (JAEA), EC system prototype is fabricated to investigate the system characteristics prior the construction to ensure the maximum performance on ITER by modifying the JAEA gyrotron test stand. As for the gyrotron development, 1MW/800 s shot was achieved in 2006 with TE31,8 cavity mode[2]. Followed this, we proceed to the development of the higher power gyrotron capable of >1.2 MW power output. The gyrotron was designed to be frequency-step-tunable at 170 GHz/137 GHz/104 GHz. This gyrotron is used as a power source of the prototype system. The objective of the prototype EC system is (1) to demonstrate the performance of each component and fix the specification prior to the construction, (2) to develop the control system and operational software package to be used on

• ITER. Here, novel PS configuration with anode switch is introduced to realize CW 5 kHz

power modulation. The high-power TL operation with three frequencies were also demonstrated and its transmission efficiency was measured.

• 2. Multi-Frequency Gyrotron and its RF Power Transmission

The gyrotron is designed to be a frequency-step-tunable at 170GHz/137GHz/104GHz with the

• scillation mode TE31,11/TE25,9/TE19,7, respectively. The selection of the operation modes is

2

FIP/2-2Ra

the key point of the multi frequency gyrotron design which has to adapt the restrictions of 1) window thickness, 2) cavity size, and 3) built-in mode converter. Firstly the operation frequency was selected according to thickness of single disk diamond window. The selected frequencies were transparent through the diamond window of 1.853mm in thickness. Then the cavity size and mode was determined to be operated with similar electron beam radius at the

• cavity. The triode electron gun has advantage in its wide operation region compared to diode

gun since its pitch factor can be optimized for the selected mode under different magnetic

• field. To adapt the restriction of the built-in mode converter, we selected these modes which

have similar rotational angle in the beam tunnel. In our gyrotron, the rotational angles of the selected three modes have less than 0.1 degree difference to each other. When the rotational angle is similar, the built-in mode converter works similarly for all the operation frequencies. [5] Figure 1 shows the beam profile at the output window of the gyrotron measured using a thermal imaging camera. The output beams locate at the center of the window and radiated to the identical direction for each frequency. The output power at 2s operation was obtained up to 1.2 MW, 1.0 MW, and 1.0 MW at 170 GHz, 137 GHz, and 104 GHz respectively. The pulse duration was extended up to 1000 s at 510 kW, 250 s at 330 kW and 20 s at 260 kW for 170 GHz, 137 GHz, and 104 GHz,

• respectively. The waveform of long pulse operation were shown in Fig.2.

170 GHz 137 GHz 110 GHz

Fig.1 Output beam profile of multi-frequency gyrotron

170 GHz / 1000 s / 510 kW 137 GHz / 250 s / 330 kW 104 GHz / 20 s / 260 kW

• Fig. 2 Waveforms of long pulse operation of multi-frequency gyrotron

3

FIP/2-2Ra

Consequently the power was transmitted to the end of the TL for these three frequencies. Figure 3 shows the TL test stand which have short line (7 m) and long line (40 m) and both lines are connected using a waveguide switch. The dummy loads for 1MW-class CW

• peration are connected at both end of short and long lines. The gyrotron produced 20 s high

power RF pulses with all the three frequencies and transmitted RF to the dummy loads and loss in TL components and matching optical unit (MOU) were measured. The identical MOU mirror and the same mirror angle adjustment setting was utilized for the different frequency

• peration. The transmission efficiencies for each line were deduced from the measured power

and loss and the result is listed in table 1. The transmission efficiencies in long line composed

• f waveguides were the same values among different frequencies. On the other hand, the

transmission efficiency in MOU was varied on frequency and the efficiency decreased with increase of wavelength since the MOU mirror was designed for 170 GHz and the deflection loss of quasi-optical transmission in MOU was increased. As total transmission efficiency

Fig.3 Schematic of TL test stand in JAEA Table 1 Efficiency of TL at multi frequency operation 170 GHz 137 GHz 104 GHz Transmission power efficiency Transmission efficiency at MOU 96.7 % 94.2 % 90.2 % Transmission efficiency at Long TL 93.8 % 95.1 % 93.7 % Total transmission efficiency (MOU+LongTL) 90.7 % 89.6 % 84.5 % Mode purity LP01 mode purity at MOU output 94.4 % 92.6 % 92.7 % LP01 mode purity at Long TL end 93.1 % 92.5 % 94.0 %

4

FIP/2-2Ra

The transmission mode purity is the key issue of RF transmission design in ITER launchers since the ITER launcher is designed based on quasi-optical transmission system and the mode contents affect the characteristics of the radiated beam profile. The mode content at the inlet

• f TL and outlet of long line were measured for all the frequencies and the result is listed in

table 1. The input mode purity of the fundamental transmission mode, LP01, was 94% at 170 GHz, the designed frequency, and >90% were obtained for both 137 GHz and 104 GHz. Since the gyrotron produced the similar beam profile for three frequencies as shown in Fig.1, the identical MOU mirror could couple the RF power to TL at high efficiency and TL caused small mode conversion loss.[6] These results indicate that the TL system and components are adaptable for the high-power multi-frequency operation. In addition, the multi-frequency gyrotron can operate high-power long-pulse with the single set of MOU mirror to couple RF power without any adjustment while different frequency operation.

• 3. 5 kHz modulation and ITER relevant PS configuration

The 5 kHz power modulation is carried out with the electron beam switching using the anode voltage control. The electron beam is completely suppressed when anode is short-circuited to cathode voltage and this is a great advantage of triode gyrotrons. The power supply configuration with shortcut-circuit switch device, namely anode switch, is promising system for high frequency power modulation and the modulation operation was demonstrated. The issue of the modulation is the excitation of spurious frequency (167GHz; TE30,11 mode) at the ramp-up phase of the anode voltage. The reduction of spurious mode is mandatory for high efficient gyrotron operation and protection of plasma measurement devices.[7]

Fig.4 Configuration plan of HVPSs for gyrotorn operation in ITER.

5

FIP/2-2Ra

To suppress the spurious frequency, novel configuration of the power supply is developed as shown in Fig.4. The double anode switch is adopted and the anode PS is applied to feed the anode voltage without interference from body and main PSs. These are effective to minimize the capacity of the circuit which is a main cause to prevent the quick ramp-up of the voltage. As shown in the Fig.5, the short rising time of anode voltage was achieved. As a result, the spurious mode (167GHz) start to growth but that is immediately suppressed after 2.4 s by the excitation of the main mode (170GHz) as shown in Fig.5.

Fig.5 Waveform of 5 kHz modulation with the ITER EC prototype system and IF signal of RF detector (right )

• 4. ITER relevant Control System

Also, new control system was developed according to ITER standard of control system, namely Plant Control Design Handbook (PCDH), as a prototype of the ITER CODAC compatible gyrotron local controller. The conceptual view and the picture of the EC prototype system fabricated in JAEA is shown in Fig.6 and 7.

Fig.6 High voltage PS configuration and circuit of ITER triode gyrotron operation system and the gyrotron local controller. Fig.7 Configuration of the ITER EC prototype system

6

FIP/2-2Ra

To operate the gyrotron in EC prototype PS system, the gyrotron local controller adjusts the start-up timing of each PS for synchronization because every PS has different ramp-up time

• sequence. A prototype controller was developed according to ITER PCDH standard device

and software. The controller was settled to turn on the anode switch after ramp-up of each PS to apply the rated voltage to the gyrotron without transient ramp-up voltage. RF power is

• scillated when beam current start with accurate timing which is required for synchronous
• peration with plasma control in ITER. The accuracy of timing control for 1 ms which is

required performance by synchronous network in ITER.

• 5. Summary

Multi frequency gyrotron was developed and examined. Output power of 1 MW was demonstrated in 3 frequency oscillations. Long pulse operation was performed. 500 kW / 1000 s (170 GHz) / 330 kW / 250 s (137 GHz) / 260 kW / 20 s (104 GHz). High power RF

• perations using a multi frequency gyrotron were demonstrated on ITER relevant TL test
• stand. Power transmission efficiency of TL were around 94% for all the three frequencies and

total efficiency varied from 90% (170 GHz/137 GHz) to 85% (104 GHz). Gyrotron power was coupled into TL with 94% for 170 GHz and 92% for 137 GHz and 104 GHz using the same MOU mirror and setup which was optimized for 170 GHz. Double switch type anode switch and anode PS were installed into gyrotron test stand in

• JAEA. Gyrotron operation with novel PS configuration was demonstrated. The modulation

frequency was increased up to 5kHz and the oscillation duration of spurious mode were reduced to less than 3 s. [1] How J. et al (ed) 2009 Plasma stability and control ITER 2009 Baseline: Plant Description (PD) (France: ITER Organization) chapter 4.6 www.iter.org [2]

• K. Sakamoto, A. Kasugai, K. Kajiwara, K. Takahashi, Y. Oda, K. Hayashi, N.

Kobayashi, Nuclear Fusion, 49, 095019 (2009). [3]

• M. Thumm, J Infrared Millimeter Terahertz Waves, 32, 241 (2011)

[4] G.G Denisov, A.G. Litvak, V.E. Myasnikov, E.M. Tai, V.E. Zapevalov, Nuclear Fusion, 48, 054007 (2008). [5]

• K. Kajiwara, Y. Oda, A. Kasugai, K. Takahashi K. Sakamoto, Appl. Phys. Express, 4,

126001 (2011). [6]

• Y. Oda, K. Kajiwara, K. Takahashi, Y. Mitsunaka, K. Sakamoto, Rev Sci Instrum., 84,

013501 (2013). [7]

• K. Kajiwara, K. Sakamoto, Y. Oda, K. Hayashi, K. Takahashi, A. Kasugai, Nuclear

Fusion, 53 043013 (2013).
