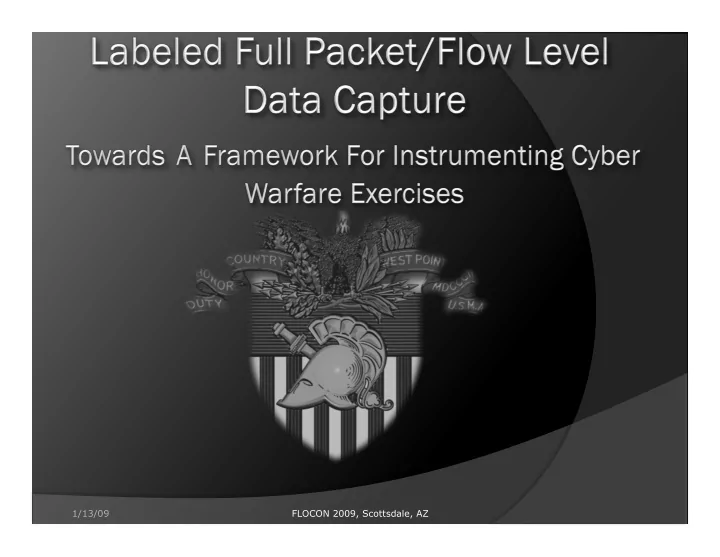

1/13/09 FLOCON 2009, Scottsdale, AZ DoD Disclaimer This document - - PowerPoint PPT Presentation

1/13/09 FLOCON 2009, Scottsdale, AZ

DoD Disclaimer

1/13/09 FLOCON 2009, Scottsdale, AZ

This document was prepared as a service to the DoD community. Neither the United States Government nor any of their employees, makes any warranty, expressed or implied, or assumes any legal liability or responsibility for the accuracy, completeness, or usefulness of any information, product, or process disclosed, or represents that its use would not infringe privately owned rights. Reference herein to any specific commercial products, process, or service by trade name, trademark manufacturer, or otherwise, does not necessarily constitute or imply its endorsement, recommendation, or favoring by the United States Government. The opinions of the authors expressed herein do not necessarily state or reflect those of the United States Government, and shall not be used for advertising or product endorsement purposes.

Outline

 Objective  Previous work  Approach  Framework  Future work  Acknowledgements

1/13/09 FLOCON 2009, Scottsdale, AZ

Objective

 Design a framework that:

 Accurately auto-labels and captures full packet /

flow level data sets from different classes of cyber defense exercises

 Produces data sets that are of value to the

intrusion detection and or security community

1/13/09 FLOCON 2009, Scottsdale, AZ

Previous Work

DARPA IDEVAL DATA SETS

 Pros

 Well-known, publicly-available data set for repeatable

intrusion detection experimentation

 Fairly rich emulation of live network traffic  Well-documented and well-controlled data sets

 Cons

 The included threats and protocols are showing their age  Modest traffic rate and network size, discrete attack events  Statistical artifacts exploitable by anomaly detection

 Note

 This work is not intended to replace the IDEVAL data sets,

but to explore techniques to provide additional resources for researchers and developers

1/13/09 FLOCON 2009, Scottsdale, AZ

Approach

 Survey opportunity

 What aspects of a data sets are of value to

researchers

 Design framework

 Objectives  Requirements

 Implement framework

○ USMA Internal Cadet Cyber Defense Exercise (March) ○ Inter-Service Academy CDX 2009 (April)

 Package and share data  Analyze data  Gather feedback  Repeat

1/13/09 FLOCON 2009, Scottsdale, AZ

Variety of Cyber Defense/Offense Exercises

 The framework must be robust enough,

and generic enough, to ensure that it can be applied to most CND/CNO exercise

 Inter-military service Cyber Defense Exercise

(Defend only)

 DEFCON Capture The Flag (Attack Only)  Colligate Cyber Defense Exercise (Defend Only)  Intra-USMA Cadet Cyber Warfare Exercise

(Mixed)

1/13/09 FLOCON 2009, Scottsdale, AZ

Design Framework

 Objectives (What do we want out of our data

captures)

 Recorded traffic from multiple sensor locations  Attack event labeling  Network, host and service status information  Exercise reports  Network and host configuration change log  Host-base LOGS  Exercise IDS Alert DB or logs

1/13/09 FLOCON 2009, Scottsdale, AZ

Design Framework

 Requirements (what do we need in

• rder to meet our objectives)

 Complete recordings of traffic at sensor

locations

 Accurate description, source, destination

and timing of Red Cell attack events

 Recording of network, host and service

status

1/13/09 FLOCON 2009, Scottsdale, AZ

Abstract Network Design

 Placement of network ‘taps’ is critical

when evaluating the type and amount of data captured

 Are we only interested in the attacks?  Are we interested in the attacks and

resulting traffic?

 Are we interested in flow patterns without

regard to type of traffic?

1/13/09 FLOCON 2009, Scottsdale, AZ

Limitations and Concerns

 One of the biggest concerns is to not

impact the exercise/game in any way

 Need to have the monitoring boxes and network

config completely invisible to the participants

 Limited number of monitoring boxes means that

there may data loss from unmonitored portions

• f the network

 Human recording is needed to know exactly

what malicious events were occurring at what times

○ We cannot guarantee that every event will be

recorded

1/13/09 FLOCON 2009, Scottsdale, AZ

Abstract Network Design

1/13/09 FLOCON 2009, Scottsdale, AZ

Network Design – CDX 2008 Example

1/13/09 FLOCON 2009, Scottsdale, AZ

Software Implementation

 Network taps (capturing boxes) will be

running FreeBSD 7.1

○ Will be using tcpdump with the capturing

interface in promiscuous mode to dump traffic directly to 1 Gigabyte files

○ Will capture during the entire exercise

1/13/09 FLOCON 2009, Scottsdale, AZ

Hardware Implementation

 4Data Capture Nodes:

 Dual-CPU (Intel Xeon 2.33 GHz)  24 GB RAM (DDR2-667)  1

.5 TB RAID-5

 Will be at the listening end of a one-way

Ethernet cable

 That Ethernet cable will be plugged into

a spanned port on a Cisco switch to allow monitoring of all traffic in all VLANs

1/13/09 FLOCON 2009, Scottsdale, AZ

Future Work

 Package and share data  Community analysis  Gather feedback  Adjust Framework according to

feedback

 Repeat

1/13/09 FLOCON 2009, Scottsdale, AZ

Conclusion

 Need for revitalized IDEVAL data sets  A number of existing opportunities to

capture data

 Proposed framework to capture and

label relevant Data

 Infuse into existing IDEVAL data sets
