Program Repair without Regret Barbara Jobstmann EPFL and Jasper DA CNRS, Verimag Joint Work with Christian von Essen UJF, Verimag Google Zurich 4th April 2014 B. Jobstmann 1 Agenda Introduction Motivation Program Repair,

slide-1

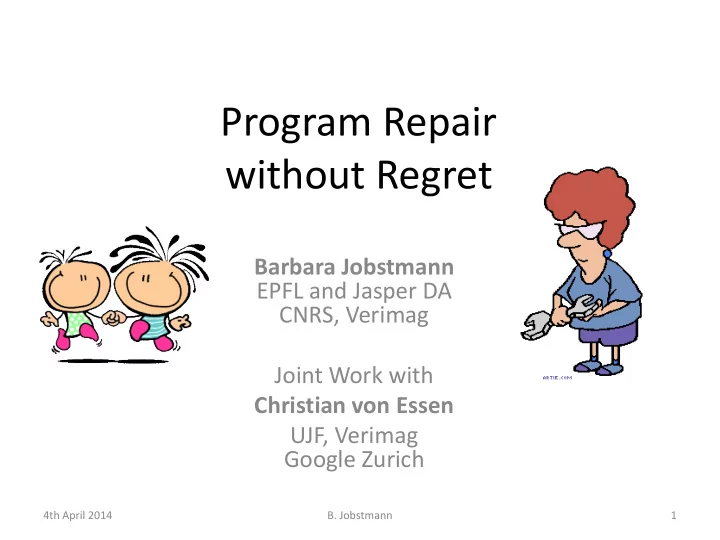

SLIDE 1

Program Repair without Regret

Barbara Jobstmann EPFL and Jasper DA CNRS, Verimag Joint Work with Christian von Essen UJF, Verimag Google Zurich

4th April 2014

  • B. Jobstmann

1

slide-2
SLIDE 2

Agenda

  • Introduction

– Motivation – Program Repair, related choices, our choices – Example

  • Our Repair approach

– Exact and relaxed repair problem – Reduction to classical synthesis – General and efficient algorithm – Implementation and results

  • Conclusion and future work

4th April 2014

  • B. Jobstmann

2

slide-3
SLIDE 3

Motivation

4th April 2014

  • B. Jobstmann

3

  • Debugging can be tedious

– Find the bug – Locate it – Fix it

slide-4
SLIDE 4

Motivation

4th April 2014

  • B. Jobstmann

4

  • Debugging can be tedious

– Find the bug: model checking – Locate it: automatically analyze/modify/explain CEX/witness – Fix it: automatically repair

slide-5
SLIDE 5

Automatic Repair

  • Given faulty program +

(explicit/implicit) specification

  • Search for modification s. t. modified program is

– “correct” and – “similar” to the original program

  • Key choices in an repair approach:

– Type of programs and specifications – Which modification do you allow? – How to you find and check corrections? – What do you mean by “similar”?

4th April 2014

  • B. Jobstmann

5

slide-6
SLIDE 6

Key choices

  • 1. Type of programs and specifications

– Data or control-oriented – Specific properties (e.g., deadlock), general properties (e.g., given in a logic), explicit/implicit

  • 2. Which modification do you allow?

– Syntactic modifications, e.g., based on expression language, genetic algorithms, …

  • 3. How to you find and check corrections?

– “Smart” enumeration and verification – “Synthesize” (combine search and verification)

  • 4. What do you mean by “similar”?

– Focus on syntactic similarity (e.g., edit distance, …)

4th April 2014

  • B. Jobstmann

6

slide-7
SLIDE 7

Our Choices [following CAV’05]

  • 1. Type of programs and specifications

– Reactive finite-state programs (Mealy machines) – General properties specified using LTL)

  • 2. Which modification do you allow?

– Theory: functions over state/input variables – Implementation: expression language

  • 3. How to you find and check corrections?

– Combine search and verification using game theory

  • 4. What do you mean by “similar”?

– Syntactic similarity (given by expression language) – Semantic similarity (NEW in this work)

4th April 2014

  • B. Jobstmann

7

slide-8
SLIDE 8

Choice 1: Programs and specifications

mainLight = Red; sideLight = Red; always @(posedge clock) begin case (mainLight) Red: if (mainSensor) mainLight = Yellow; Yellow: mainLight = Green; Green: mainLight = Red; endcase // case (mainLight) case (sideLight) Red: if (sideSensor) sideLight = Yellow; Yellow: sideLight = Green; Green: sideLight = Red; endcase // case (sideLight) end

4th April 2014 8

State variables: mainLight in {Red, Yellow, Green} sideLight in {Red, Yellow, Green} Input variables: mainSensor in {True, False} sideSensor in {True, False} Behavior represented as (infinite) sequence of evaluations of state and input variables:w ∈ 𝐹(𝑊)𝜕

Step 1 2 3 4 … mL Red Yellow Green Red … sL Red Red Red Yellow … mS True True False … … sS False False True … …

Program represented as set of behaviors: 𝑀 𝑄

slide-9
SLIDE 9

Choice 1: Programs and specifications

mainLight = Red; sideLight = Red; always @(posedge clock) begin case (mainLight) Red: if (mainSensor) mainLight = Yellow; Yellow: mainLight = Green; Green: mainLight = Red; endcase // case (mainLight) case (sideLight) Red: if (sideSensor) sideLight = Yellow; Yellow: sideLight = Green; Green: sideLight = Red; endcase // case (sideLight) end

4th April 2014 9

State variables: mainLight in {Red, Yellow, Green} sideLight in {Red, Yellow, Green} Input variables: mainSensor in {True, False} sideSensor in {True, False} Specification represented as set of behaviors: 𝑀(φ) Program represented as set of behaviors: 𝑀 𝑄 Specification: never(mainLight == Green and sideLight == Green) Behavior represented as (infinite) sequence of evaluations of state and input variables:w ∈ 𝐹(𝑊)𝜕

slide-10
SLIDE 10

Choice 2: Modifications

mainLight = Red; sideLight = Red; always @(posedge clock) begin case (mainLight) Red: if (mainSensor) mainLight = Yellow; Yellow: mainLight = Green; Green: mainLight = Red; endcase // case (mainLight) case (sideLight) Red: if (sideSensor) sideLight = Yellow; Yellow: sideLight = Green; Green: sideLight = Red; endcase // case (sideLight) end

4th April 2014 10

State variables: mainLight in {Red, Yellow, Green} sideLight in {Red, Yellow, Green} Input variables: mainSensor in {True, False} sideSensor in {True, False}

Specification: never(mainLight == Green and sideLight == Green)

??? Allowed modifications: function over state and input variables Specification represented as set of behaviors: 𝑀(φ) Program represented as set of behaviors: 𝑀 𝑄 Behavior represented as (infinite) sequence of evaluations of state and input variables:w ∈ 𝐹(𝑊)𝜕

slide-11
SLIDE 11

Choice 3: Repair Search using Games

mainLight = Red; sideLight = Red; always @(posedge clock) begin case (mainLight) Red: if (mainSensor) mainLight = Yellow; Yellow: mainLight = Green; Green: mainLight = Red; endcase // case (mainLight) case (sideLight) Red: if (sideSensor) sideLight = Yellow; Yellow: sideLight = Green; Green: sideLight = Red; endcase // case (sideLight) end

4th April 2014 11

State variables: mainLight in {Red, Yellow, Green} sideLight in {Red, Yellow, Green} Input variables: mainSensor in {True, False} sideSensor in {True, False}

Specification: never(mainLight == Green and sideLight == Green)

??? Allowed modifications: function over state and input variables Input variables: mainSensor in {True, False} sideSensor in {True, False} Winning objective: repaired program is correct, i.e., 𝑀 𝑄′ ⊆ 𝑀(φ) Specification represented as set of behaviors: 𝑀(φ) Program represented as set of behaviors: 𝑀 𝑄 Behavior represented as (infinite) sequence of evaluations of state and input variables:w ∈ 𝐹(𝑊)𝜕

slide-12
SLIDE 12

Choice 4: Similarity

mainLight = Red; sideLight = Red; always @(posedge clock) begin case (mainLight) Red: if (mainSensor) mainLight = Yellow; Yellow: mainLight = Green; Green: mainLight = Red; endcase // case (mainLight) case (sideLight) Red: if (sideSensor) sideLight = Yellow; Yellow: sideLight = Green; Green: sideLight = Red; endcase // case (sideLight) end

4th April 2014 12

State variables: mainLight in {Red, Yellow, Green} sideLight in {Red, Yellow, Green} Input variables: mainSensor in {True, False} sideSensor in {True, False} ??? Allowed modifications: “simple” function over state and input variables Input variables: mainSensor in {True, False} sideSensor in {True, False}

Specification: never(mainLight == Green and sideLight == Green)

Specification represented as set of behaviors: 𝑀(φ) Program represented as set of behaviors: 𝑀 𝑄 Winning objective: repaired program is correct, i.e., 𝑀 𝑄′ ⊆ 𝑀(φ) Behavior represented as (infinite) sequence of evaluations of state and input variables:w ∈ 𝐹(𝑊)𝜕

slide-13
SLIDE 13

Simple Repair

mainLight = Red; sideLight = Red; always @(posedge clock) begin case (mainLight) Red: if (mainSensor) mainLight = Yellow; Yellow: mainLight = Green; Green: mainLight = Red; endcase // case (mainLight) case (sideLight) Red: if (sideSensor) sideLight = Yellow; Yellow: sideLight = Green; Green: sideLight = Red; endcase // case (sideLight) end

4th April 2014

false

Specification: never(mainLight == Green and sideLight == Green)

 No car crash: correct repair  Main street blocked What went wrong? Lost intended behavior; changed behaviors unnecessarily Idea: semantic similarity

  • Keep correct behaviors
  • Modifications must not

effect correct behaviors

Extend objective: repair keeps correct behaviors 𝑀 𝑄 ∩ 𝑀 φ ⊆ 𝑀 𝑄′ (mainSensor & !(sideLight == Red & sideSensor)) Winning objective: repaired program is correct, i.e., 𝑀 𝑄′ ⊆ 𝑀(φ)

[Angelic debugging, Chandra et al.]

slide-14
SLIDE 14

Agenda

  • Introduction

– Motivation – Program Repair, related choices, our choices – Example

  • Our Repair approach

– Exact and relaxed repair problem – Reduction to classical synthesis – General and efficient algorithm – Implementation and results

  • Conclusion and future work

4th April 2014

  • B. Jobstmann

14

slide-15
SLIDE 15

Exact Repair Problem

Program 𝑄′ is an “exact repair” of program 𝑄 for specification φ if (i) all correct behaviors of 𝑄 w.r.t. φ are part of 𝑄′, (ii) all behaviors of 𝑄’ are correct w.r.t. φ, i.e., 𝑀 𝑄 ∩ 𝑀 φ ⊆ 𝑀 𝑄′ ⊆ 𝑀(φ)

4th April 2014

  • B. Jobstmann

15

P’ Ideal but sometimes too restrictive:

  • exact repair might not exists
  • exact repair might not be required

φ = φ𝑏 → φ𝑕

Behaviors that do not satisfy φ𝑏 are correct but might not need to be preserved φ P

slide-16
SLIDE 16

Relaxed Repair Problem

4th April 2014

  • B. Jobstmann

16

P’ φ P ψ

Program 𝑄′ is an “relaxed repair” of program 𝑄 for specifications φ and 𝜔 if (i) all correct behaviors of 𝑄 w.r.t. 𝜔 are part of 𝑄′, (ii) all behaviors of 𝑄’ are correct w.r.t. φ, i.e., 𝑀 𝑄 ∩ 𝑀 𝜔 ⊆ 𝑀 𝑄′ ⊆ 𝑀(φ)

slide-17
SLIDE 17

Some choices for 𝜔

  • Exact repair 𝜔 = φ
  • Assume-Guarantee:

if φ = φ𝑏 → φ𝑕, then 𝜔 = φ𝑏 ∧ φ𝑕

  • Classical repair 𝜔 = ∅

4th April 2014

  • B. Jobstmann

17

slide-18
SLIDE 18

Reduction to Classical Synthesis

Given two specifications φ and 𝜔 over variables 𝑊 = 𝐽 ∪ 𝑃 and two programs 𝑄 and 𝑄’, then 𝑄′is a relaxed repair of 𝑄 if and only if 𝑄′satisfies the following formula 𝑀 𝑄′ ⊆ 𝛽 with 𝛽 = 𝐹(𝑊)𝜕 ∖ 𝑀 𝑄 ∩ 𝑀 𝜔 ↓𝐽↑𝑊∪ 𝑀 𝑄 ∩ 𝑀(φ)

4th April 2014

  • B. Jobstmann

18

(All behaviors with a sequence of inputs for which P violates the spec)

There exists a relaxed repair for program 𝑄 w.r.t. φ and 𝜔 if and only if language 𝛽 is realizable.

slide-19
SLIDE 19

General Algorithm

  • 1. Construct an (Buchi) automaton 𝐵𝛽 for

𝛽 = 𝐹(𝑊)𝜕 ∖ 𝑀 𝑄 ∩ 𝑀 𝜔 ↓𝐽↑𝑊∪ 𝑀 𝑄 ∩ 𝑀(φ) 𝐵𝛽 can be constructed because

  • 𝑄, 𝜔, φ can be represented as Buchi automata and
  • Buchi automata are closed under intersection,

union, projection, and complementation

  • 2. Synthesize 𝑄’ using 𝐵𝛽 as specification

4th April 2014

  • B. Jobstmann

19

slide-20
SLIDE 20

Efficient Algorithm (1)

4th April 2014

  • B. Jobstmann

20

Lemma: Given program 𝑄 and LTL formula 𝜔 over variables 𝑊 = 𝐽 ∪ 𝑃, for all words 𝑥 ∈ 𝐹(𝑊)𝜕 𝑥 ∈ 𝑀 𝑄 ∩ 𝑀 𝜔 ↓𝐽↑𝑊⟺ 𝑄(𝑥 ↓𝐽) ∈ 𝑀(𝜔)

  • This enables a simple procedure to check if a word

produced by 𝑄′ lies in 𝑀 𝑄 ∩ 𝑀 𝜔 ↓𝐽↑𝑊

  • A synthesizer searching for 𝑄′ that satisfies α, can

simulate 𝑄 and check it against 𝜔 to decide if 𝑄′ is allowed to deviate.

slide-21
SLIDE 21

Efficient Algorithm (2)

4th April 2014

  • B. Jobstmann

21

P faulty program P* P extended with allowed modifications 𝐵𝜒 𝐵¬𝜔 𝐵𝑓𝑟 Inputs New Repair Approach: 𝐵¬𝜔 … checks when P’ can deviate from P 𝐵𝑓𝑟 … checks when the output

  • f P and P’ coincide

Classical Repair Approach: 𝐵𝜒 … defines objective of synthesis/repair game New Objective: 𝐵𝜒 and (𝐵¬𝜔 or 𝐵𝑓𝑟)

slide-22
SLIDE 22

Implementation

  • Ideas/choice:

– Modification restricted to expressions – Use MC instead of game engine:

  • encode “interesting” strategies using initial states (e.g., all

memoryless strategies)

  • an initial state that does not lead to a CEX gives a correct

repair.

  • Drawbacks: explodes with considered strategies
  • Benefits: can make use of any MC (and SEC optimizations)
  • Prototype based on NuSMV (with Cudd)

– Tiny modification to return initial state(s) without CEX

4th April 2014

  • B. Jobstmann

22

slide-23
SLIDE 23

PCI arbiter (partial specification)

  • PCI Bus
  • n Devices
  • n specifications

always(ri implies eventually gi) checked in isolation

  • Off by 1 error
  • Approach without lower bound gives access to

device i forever

  • Our approach fixes off by 1 error

4th April 2014

  • B. Jobstmann

23

slide-24
SLIDE 24

Processor (unclear error location)

  • Error in one of the ALUs
  • Partial specification
  • Multiple suspected error locations
  • Approach without lower bound approach may

modify all ALUs

  • Our approach only modifies faulty ALU

4th April 2014

  • B. Jobstmann

24

slide-25
SLIDE 25

Read-Write-Lock (minimal locking)

  • Faulty implementation leads to dead-lock
  • Allow introduction of a lot of locking
  • Approach without lower bound may lock

everything

  • Our approach introduces only necessary locks

4th April 2014

  • B. Jobstmann

25

slide-26
SLIDE 26

Preliminary Results

4th April 2014

  • B. Jobstmann

26

slide-27
SLIDE 27

Agenda

  • Introduction

– Motivation – Program Repair, related choices, our choices – Example

  • Our Repair approach

– Exact and relaxed repair problem – Reduction to classical synthesis – General and efficient algorithm – Implementation and results

  • Conclusion and future work

4th April 2014

  • B. Jobstmann

27

slide-28
SLIDE 28

Conclusions

  • New notion of program repair that

– ensures that correct behaviors are kept – supports fixing bugs incrementally – facilitates repair with incomplete specifications – avoids degenerated repairs

  • Algorithm based on reactive program

synthesis

  • Preliminary implementation supporting our

claims of obtaining “better” repairs

4th April 2014

  • B. Jobstmann

28

slide-29
SLIDE 29

Future Work

  • Quantitative notions of semantic similarity

– Count ratio of modified paths vs all paths – Count ratio of modified symbols – Define distance measure between symbols

  • Repairs with look-ahead to increase the

number of repairable systems

  • Repairing infinite-state system

4th April 2014

  • B. Jobstmann

29
