WNP-MPR-qos 1 Wireless Networks and Protocols MAP-Tele Manuel P. Ricardo Faculdade de Engenharia da Universidade do Porto WNP-MPR-qos 2 Topics Scheduled for Today Quality of Service Characterization and models Case studies


slide-1

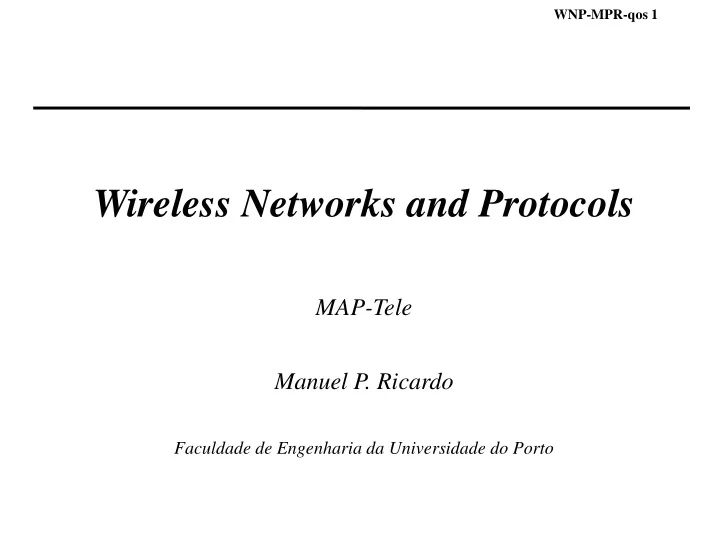

SLIDE 1

WNP-MPR-qos 1

Wireless Networks and Protocols

MAP-Tele Manuel P. Ricardo

Faculdade de Engenharia da Universidade do Porto

slide-2
SLIDE 2

WNP-MPR-qos 2

Topics Scheduled for Today

 …  Quality of Service

» Characterization and models » Case studies » Research issues

 …

slide-3
SLIDE 3

WNP-MPR-qos 3

 Review of QoS basic concepts  QoS in wireless networks

» 3GPP-QoS » IEEE-wireless-QoS

slide-4
SLIDE 4

WNP-MPR-qos 4

Quality of Service

 From a user’s point of view

» level of satisfaction experienced by the user of an application whose traffic is delivered through a network. Depends on

– User’s subjective evaluation and expectations – Terminal capabilities – Performance of networks

 From a network point of view

» ability of providing differentiated treatment to traffic flows or traffic classes » provide them with different levels of delivery guarantees

– bandwidth, delay, loss

» network behaviour characterizable by a set of performance parameters

slide-5
SLIDE 5

WNP-MPR-qos 5

QoS principles

 The provisioning of QoS requires

» cooperation of various communications layers » cooperation of network elements in the end-to-end chain

 QoS requirements of users/applications

must be mapped into values of network service attributes

 Attributes of a network service

» may be described by a set of performance (QoS) parameters » which must be observable, measurable and controllable

 Networks and users must negotiate contracts,

which are described by means of offered traffic and QoS parameters

slide-6
SLIDE 6

WNP-MPR-qos 6

QoS

QoS is an end-to-end problem, handled at several communication layers

Physical Network Transport Data link Application Mobility Security Multicast Quality of Service

IP layer IP user plane IP control plane Application

  • app. control

Application node

IP layer IP user plane IP control plane Application

  • app. control

IP IP Control IP IP Control Application control (e.g. SIP)

  • App. node-backbone

control plane interface

  • App. node-backbone

user plane (IP) interface

IP Backbone

Inter-domain interface

Application node

slide-7
SLIDE 7

WNP-MPR-qos 7

QoS building blocks in a packet network

  • Data plane (traffic flows/packets)

– Shaping, Policing – Classification & Marking – Queuing and Scheduling

(service discipline)

– Congestion control and Queue management

  • Control plane

– QoS mapping – Admission control – QoS routing – Resource reservation/allocation

  • Management plane

– Resource provisioning – Policy management

network

packet switch (router, switch)

Traffic source/ previous network element

feed-back based, end-to-end (TCO, RTP+RTCP) inter-network element

slide-8
SLIDE 8

WNP-MPR-qos 8

IP QoS Models

 2 service models

» IntServ - oriented towards the support of QoS per flow » DiffServ - oriented towards the provisioning of QoS to traffic classes

 Integrated Services (IntServ) model

» Resource ReSerVation Protocol (RSVP) » FlowSpec » Controlled load » Guaranteed service (maximum delay)  Differentiated Services

(DiffServ) model

» DS field » Per-Hop Behaviours (PHB) » Assured Forwarding (AF) » Expedited Forwarding (EF) » Bandwidth broker

slide-9
SLIDE 9

WNP-MPR-qos 9

IntServ - RSVP

Resource

ReSerVation Protocol (RSVP)

slide-10
SLIDE 10

WNP-MPR-qos 10

IntServ – Tspec, FlowSpec

 The FlowSpec - information that characterizes

» the traffic to submit to the network (TSpec) » the service requested from the network (RSpec)

 TSpec includes the following parameters

» p – peak rate » r – mean rate » b – bucket size » M – maximum datagram size » m – minimum policed unit

 RSpec is specified only for the Guaranteed service and includes

» R – service rate (must be > r) » S – delay slack (acceptable delay in addition to the delay obtained with R

slide-11
SLIDE 11

WNP-MPR-qos 11

IntServ – QoS Services

 Guaranteed Service

» hard guarantees provided to real-time applications

– Guaranteed bandwidth – Bound on end-to-end delay – No losses of conforming packets on the routers

» Resources reserved per flow, based on a Flowspec (TSpec and RSpec)

 Controlled-Load Service

» emulates the service provided by a moderately loaded best-effort network » only qualitative guarantees

– Very high percentage of transmitted packets are successfully delivered – Delay of the majority of the packets will not greatly exceed the minimum delay of a packet

» The sender does not specify RSpec

slide-12
SLIDE 12

WNP-MPR-qos 12

0 1 2 3 4 5 6 7 +---+---+---+---+---+---+---+---+ | DSCP | CU | +---+---+---+---+---+---+---+---+ DSCP: differentiated services codepoint CU: currently unused

DiffServ – DSCP field

slide-13
SLIDE 13

WNP-MPR-qos 13

Diff Serv – PHB, AF, EF

 Per-Hop Behaviours (PHB)

» Packets marked with the same DSCP, receive similar treatment

 3 PHBs defined

» Best effort » Assured Forwarding (AF)

– Service provides qualitative guarantees, based on priorities – Service characterized by a high probability of packet delivery – may be used to implement the Olympic service (gold, silver, and bronze classes)

» Expedited Forwarding (EF)

– aimed at building services characterized by low packet loss ratio, low latency and low jitter

slide-14
SLIDE 14

WNP-MPR-qos 14

DiffServ - Bandwidth broker

slide-15
SLIDE 15

WNP-MPR-qos 15

QoS in UMTS

slide-16
SLIDE 16

WNP-MPR-qos 16

Quality of Service in UMTS

TE MT RAN CN EDGE NODE CN Gateway TE UMTS End-to-End Service TE/MT Local Bearer Service UMTS Bearer Service External Bearer Service UMTS Bearer Service Radio Access Bearer Service CN Bearer Service Backbone Bearer Service RAN Access Bearer Service Radio Bearer Service Physical Radio Bearer Service Physical Bearer Service

slide-17
SLIDE 17

WNP-MPR-qos 17

QoS management functions, UMTS bearer service, user plane

Resource Manager Mapper Class if. Cond. Resource Manager Resource Manager Mapper Resource Manager Mapper Resource Manager Resource Manager Cond. Class if. Cond.

MT Gateway CN EDGE RAN

BB netw ork service RAN Access net work service RAN phys. BS

data f low with indication of direction

TE Ext. Netw.

Local BS External BS

slide-18
SLIDE 18

WNP-MPR-qos 18

 Class

» Classifies and marks packet » At the entry of network (downlink  GGSN, uplink  terminal)

 Cond – Traffic conditioner

» Enforces compliance of flow with QoS attributes » At the entry of the network and radio segment

 Mapper

» marks packet with QoS information related to bearer service below

 Resource manager

» Decides when to send the packet so that QoS is satisfied » Manages the resources it sees

– Packet queues, ARQ mechanisms, modulations and codes, power, spreading codes

Resource Manager Mapper Class if. Cond. Resource Manager Resource Manager Mapper Resource Manager Mapper Resource Manager Resource Manager Cond. Class if. Cond.

MT Gateway CN EDGE RAN

BB netw ork service RAN Access net work service RAN phys. BS

data f low with indication of direction

TE Ext. Netw.

Local BS External BS

slide-19
SLIDE 19

WNP-MPR-qos 19

UMTS QoS Classes

Traffic class Conversational class Streaming class Interactive class Background Fundamental characteristics Preserve time relation (variation) between information entities of the stream Conversational pattern (stringent and low delay) Preserve time relation (variation) between information entities

  • f the stream

Request-response pattern Preserve payload content Destination is not expecting the data within a certain time Preserve payload content Example of the application voice streaming video Web browsing Background download of emails

slide-20
SLIDE 20

WNP-MPR-qos 20

UMTS Bearer Service Attributes – Examples

Traffic class ('conversational', 'streaming', 'interactive', 'background')

Maximum bitrate (kbit/s)

» compliance enforced by token-bucket (Maximum-bitrate , Maximum-SDU-size) » used to reserve codes in WCDMA radio interface - downlink

Guaranteed bitrate (kbit/s)

» traffic compliance enforced by token-bucket (Guaranteed-bitrate , Maximum-SDU-size) » Delay/ reliability attributes guaranteed only for traffic up to the Guaranteed bitrate » Used for admission control and resource allocation

Maximum SDU size (octets)

SDU error ratio

» fraction of SDUs lost or detected as erroneous

Residual bit error ratio

» Undetected bit error ratio in the delivered SDUs

Transfer delay (ms)

» 95th percentile of the statistical delay distribution

slide-21
SLIDE 21

WNP-MPR-qos 21

Token Bucket

Token Bucket Counter (TBC) - number of remaining tokens at any time

b TBC Time OK OK Non-compliant L1<TBC L2<TBC L3>TBC b-L1 b-L1+r*T

slide-22
SLIDE 22

WNP-MPR-qos 22

QoS attributes versus traffic classes

Traffic class Conversational class Streaming class Interactive class Background class Maximum bit rate X X X X Delivery order X X X X Maximum SDU size X X X X SDU format information X X SDU error ratio X X X X Residual bit error ratio X X X X Delivery of erroneous SDUs X X X X Transfer delay X X Guaranteed bit rate X X Traffic handling priority X Allocation/ Retention priority X X X X Source statistics descriptor X X Signalling Indication X

slide-23
SLIDE 23

WNP-MPR-qos 23

UMTS Bearer Service Attributes (Rel. 7!)

Traffic class Conversational class Streaming class Interactive class Background class Maximum bitrate (kbps) <= 256 000 (2) <= 256 000 (2) <= 256 000 (2) <= 256 000 (2) Delivery order Yes/No Yes/No Yes/No Yes/No Maximum SDU size (octets) <=1 500 or 1 502 (4) <=1 500 or 1 502 (4) <=1 500 or 1 502 (4) <=1 500 or 1 502 (4) SDU format information (5) (5) Delivery of erroneous SDUs Yes/No/- (6) Yes/No/- (6) Yes/No/- (6) Yes/No/- (6) Residual BER 5*10-2, 10-2, 5*10-

3, 10-3, 10-4, 10-5,

10-6 5*10-2, 10-2, 5*10-

3, 10-3, 10-4, 10-5,

10-6 4*10-3, 10-5, 6*10-

8 (7)

4*10-3, 10-5, 6*10-

8 (7)

SDU error ratio 10-2, 7*10-3, 10-3, 10-4, 10-5 10-1, 10-2, 7*10-3, 10-3, 10-4, 10-5 10-3, 10-4, 10-6 10-3, 10-4, 10-6 Transfer delay (ms) 100 – maximum value 300 (8) – maximum value Guaranteed bit rate (kbps) <= 256 000 (2) <= 256 000 (2) Traffic handling priority 1,2,3 (9) Allocation/Retention priority 1,2,3 1,2,3 1,2,3 1,2,3 Source statistic descriptor Speech/unknow n Speech/unknow n Signalling Indication Yes/No (9)

slide-24
SLIDE 24

WNP-MPR-qos 24

PDP Context Activation Procedure for Iu mode

GGSN

  • 9. Activate PDP Context Accept
  • 4. Create PDP Context Response
  • 4. Create PDP Context Request
  • 1. Activate PDP Context Request

SGSN RAN MS

  • 5. Radio Access Bearer Setup

C1 C2

  • 6. Invoke Trace
  • 8. Update PDP Context Response
  • 8. Update PDP Context Request
slide-25
SLIDE 25

WNP-MPR-qos 25

Network-Requested PDP Context Activation Procedure

MS SGSN GGSN

  • 3. PDU Notification Request

HLR

  • 1. PDP PDU
  • 2. Send Routeing Info for GPRS
  • 2. Send Routeing Info for GPRS Ack
  • 4. Request PDP Context Activation
  • 5. PDP Context Activation procedure
  • 3. PDU Notification Response
slide-26
SLIDE 26

WNP-MPR-qos 26

Protocol architecture of NAS supporting PS mode, Terminal Equipment side

slide-27
SLIDE 27

WNP-MPR-qos 27

Primitives and Parameters at SMREG-SAP - MS side

slide-28
SLIDE 28

WNP-MPR-qos 28

UMTS QoS Conceptual Models

IP Bearer Layer Access Bearer Layer (eg. UMTS Bearer) Local UE SGSN Scope of PDP Context IP Bearer Service Remote Access Point Gn/Gp GGSN Remote Host GGSN UE Remote AP Remote Host Backbone IP Network

slide-29
SLIDE 29

WNP-MPR-qos 29

Local UE does not support IP QoS

Uplink Data Downlink Data

QoS in UMTS controlled by PDP context. DS DS PDP Flow PDP Flow

GGSN UE Remote AP Remote Host

The UE controls the QoS mechanisms from the UE. The UE may control the QoS mechanisms from received information. QoS on remote access link controlled by DS. QoS on remote access link controlled by DS or other means. QoS in UMTS controlled by PDP context selected by TFT. QoS in backbone network controlled by DS. DS marking performed by GGSN. QoS in backbone network controlled by DS. DS marking performed by RUE, or remarking by RAP. Application Layer (eg. SIP/SDP) Application Layer (eg. SIP/SDP)

slide-30
SLIDE 30

WNP-MPR-qos 30

Local UE supports DiffServ (DS)

Uplink Data Downlink Data

DS DS

GGSN Remote AP Remote Host

The UE controls the QoS mechanisms from the UE. The UE may control the QoS mechanisms from received information. The UE performs DS edge functions. QoS on remote access link controlled by DS. QoS on remote access link controlled by DS or other means. QoS in UMTS controlled by PDP context. UE DS marking carried transparently. QoS in UMTS controlled by PDP context selected by TFT. Remote DS marking/GGSN remarking carried transparently. QoS in backbone network controlled by DS. DS marking performed by UE (or remarking by GGSN). QoS in backbone network controlled by DS. DS marking performed by RUE, or remarking by RAP. PDP Flow PDP Flow Application Layer (eg. SIP/SDP) Application Layer (eg. SIP/SDP)

UE

slide-31
SLIDE 31

WNP-MPR-qos 31

Local UE supports RSVP signalling and DiffServ

RSVP Signalling RSVP Signalling QoS in backbone network controlled by DS. DS marking performed by UE, or by GGSN based on PDP context signalling. RSVP signalling carried transparently. QoS in UMTS controlled by PDP context. UE DS marking and RSVP signalling carried transparently.

Uplink Data Downlink Data

DS DS

GGSN UE Remote AP Remote Host

The UE controls the QoS mechanisms from the UE. The UE may control the QoS mechanisms from received information. The UE performs DS edge functions and RSVP QoS in UMTS controlled by PDP context selected by TFT. Remote DS marking/GGSN remarking and RSVP signalling carried transparently. QoS in backbone network controlled by DS. DS marking performed by RUE (or remarking by RAP). RSVP signalling carried transparently. QoS on remote access link controlled by either DS or RSVP. QoS on remote access link controlled by either DS or RSVP. PDP Flow PDP Flow Application Layer (eg. SIP/SDP) Application Layer (eg. SIP/SDP)

slide-32
SLIDE 32

WNP-MPR-qos 32

UMTS – Radio Resource Management

 UMTS – WCDMA  What are the causes of high packet delays?

» Low transmission information rate R

 high packet service time (transmission time)  long queues  high waiting time delay

» Packet retransmissions caused by packet loss

 What are the causes of packet loss?

» High BER

 What are the causes high BER?

slide-33
SLIDE 33

WNP-MPR-qos 33

Uplink Capacity – Maximum Number ( N ) of users

– Ideal power control (every sinal received same power) – N users transmitting at same data bitrate R bit/s – Eb/Io decreases  BER increases, or alternatively, for a given Eb/Io , (BER),

  • N, R 

 need to be managed  admission control

1 1 ) 1 (     N N C C I C

RN W N R W I C R W W I R C E

I

b

     1 1

I Eb

R W N 1 

N – number of users C – power received form each user (W) I – interference from other users (W) Eb – energy received per information bit (J/bit) I0 – Interference spectral density (J/Hz) W –chip rate (chip/s) R – information bitrate (bit/s)

 N i i

R

1

slide-34
SLIDE 34

WNP-MPR-qos 34

Load Factor, Uplink (from Holma & Toskala, 3rd edition)

slide-35
SLIDE 35

WNP-MPR-qos 35

Load Factor, Uplink (from Holma & Toskala, 3rd edition)

slide-36
SLIDE 36

WNP-MPR-qos 36

Admission Control Based on Throughput

<

slide-37
SLIDE 37

WNP-MPR-qos 37

WLAN- QoS

slide-38
SLIDE 38

WNP-MPR-qos 38

DCF - Distributed Coordination Function

 Listen before-talk, CSMA/CA based  Station transmist when medium is free for time greater than DIFS  Random backoff used when medium is busy

AP

DIFS

S2 S1

SIFS DATA RTS DIFS S2-bo DATA

  • Packet arrival

DATA

  • Transmission of DATA

DIFS

  • Time interval DIFS

CTS SIFS SIFS ACK

slide-39
SLIDE 39

WNP-MPR-qos 39

PCF - Point Coordination Function

 Contention-free frame transfer  Point Coordinator (PC / AP) pools stations  PIFS time used to enter Contention Free Period Data+Poll

DATA+ACK Beacon Data+Poll

ACK CF-End PIFS SIFS SIFS SIFS SIFS

SIFS (no response)

PIFS Contention Period PC Contention Free Period CP

Data+Poll

SIFS Time

slide-40
SLIDE 40

WNP-MPR-qos 40

802.11e – QoS Support for WLAN

 Basic elements for QoS

» Traffic Differentiation

– 4 Access Categories, 8 Traffic Classes

» Concept of Transmission Opportunity (TXOP)

– Transmission of multiple frames

 New Contention-based channel access

» Enhanced Distributed Channel Access (EDCA)

 New Contention-free channel access

» HCF Controlled Channel Access (HCCA)

slide-41
SLIDE 41

WNP-MPR-qos 41

PC BSS (Basic Service Set) QBSS (Basic Service Set for QoS)

( Enhanced Station )

EDCA HCCA DCF PCF

HCF- Hybrid Coordination Function

STA STA STA STA STA

HC

STA STA STA STA STA

slide-42
SLIDE 42

WNP-MPR-qos 42

HCF - Hybrid Coordination Function

 During Contention Period

» Controlled Contention

– STA may send traffic with different priorities – STAs may also request resources

» HC can send polled TXOPs during CP

 During Contention Free Period

» HC polls STAs and gives a station the permission to access channel » Specifies time and maximum duration of each TXOP

slide-43
SLIDE 43

WNP-MPR-qos 43

EDCA

4 Access Categories (AC)

» AC_VO (Voice) » AC_VI (Video) » AC_BE (best-effort) » AC_BK (background)

Contention between ACs (and STAs)

An Inter-frame Space (IFS) for each AC

Arbitration Inter frame Space (AIFS)

Contention-Window (CW) depends on AC

Mapping Priorities into AC

» IEEE 802.1D and IEEE 802.1Q Virtual Collision

AC1 AC2 AC3 AC4

slide-44
SLIDE 44

WNP-MPR-qos 44

ACK

BackOff[AC0] + Frame BackOff[AC1] + Frame BackOff[AC2] + Frame

AIFS[AC0] AIFS[AC1] AIFS[AC2]

BackOff[AC3] + Frame

AIFS[AC3]

Access Category AIFS

slide-45
SLIDE 45

WNP-MPR-qos 45

MAC Parameters

  • Prioritized Channel Access

implemented using MAC parameters per AC

AC_VOice [0] AC_VIdeo [1] AC_BE [2] AC_BK [3] AIFSN 2 2 3 7 CWmin 3 7 15 15 CWmax 7 15 1023 1023

AIFS [AC] = AIFSN [AC] * aSlotTime + SIFS

If CW[AC] is less than CWmax[AC], CW[AC] shall be set to the value (CW[AC] + 1)*2 – 1.

slide-46
SLIDE 46

WNP-MPR-qos 46

Transmission Opportunity (TXOP)

 TXOP: duration a STA has to transmit frame(s)  When will a STA get a TXOP ?

» Winning a contention in EDCA during Contention Period » Receiving a “polled TXOP” from HC

slide-47
SLIDE 47

WNP-MPR-qos 47

Transmission Opportunity (TXOP) (cont.)

 In TXOP, frames exchange sequences are separated by SIFS

slide-48
SLIDE 48

WNP-MPR-qos 48

HCF Controlled Channel Access (HCCA)

 Procedure similar to PCF  Hybrid Coordinator (HC)

» Controls the iteration of CFP and CP

– By using beacon, CF-End frame and NAV Mechanism (similar to PCF)

» Use polling scheme to assign TXOP to STA

– Issue CF-poll frame to poll STA – Polling can be issued in both CFP & CP

slide-49
SLIDE 49

WNP-MPR-qos 49

Resources Managed in WLAN

 Resources are the time slots

» Used to transmit bits according to the modulations/codes used

 WLAN enables to send differentiated traffic

» By giving priority to realtime type traffic

 WLAN enables a flow to get a bit rate /delay

» By using polling

 What needs to be managed by the HC?

» The time slots available » Who uses them and when
