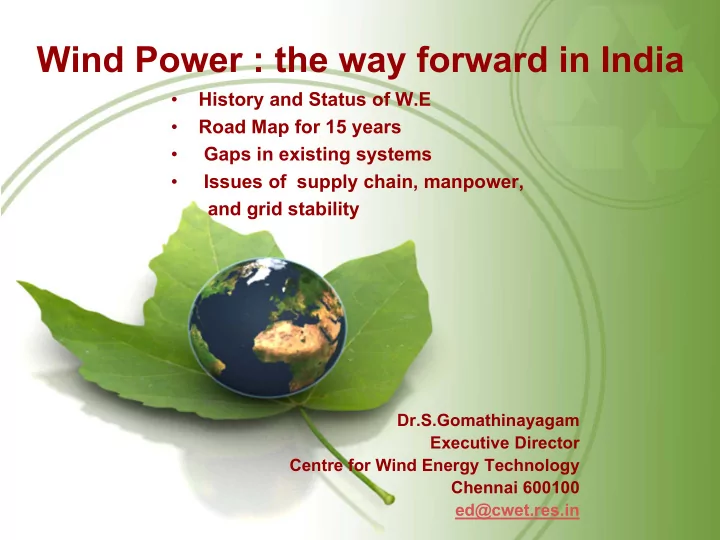

Wind Power : the way forward in India

Dr.S.Gomathinayagam Executive Director Centre for Wind Energy Technology Chennai 600100 ed@cwet.res.in

  • History and Status of W.E
  • Road Map for 15 years
  • Gaps in existing systems
  • Issues of supply chain, manpower,

and grid stability

slide-2
SLIDE 2

History of wind energy in India

  • Two Oil Shocks of 1970s gave

CASE-1981 (Commission on Alternate Sources of Energy) under DST

  • DNES-1982 (Department of Non-

conventional Energy Sources) MoEnergy

  • First Demonstration wind farm in India

Mullaikadu, Tuticorin, 1984 55kW (BHEL) 1986 10x55kW (WindMatic)

slide-3
SLIDE 3

History of wind energy in India

  • 1985- Veraval Gujrat
  • Demonstration wind farms in 11 states 73MW ( 0.4%)
  • MNES – 1992 Ministry of Non-conventional Energy

Sources

  • MNRE – 2006 Ministry of New and Renewable Energy

(MoState-Independent charge)

  • MNRE- 2009 (Independent Cabinet ranked Ministry)
slide-4
SLIDE 4

What can we Design ? in HAWT

4 10/4/2013 Power (translation) = Force x Velocity = (P=F V) Power (rotation) = Torque x rotational speed = (P=T x Ω) Power(Energy) = Kinetic Energy x mass flow rate = (P= KE*m) Pwind = Cp 1/2 pAV3 Cp efficiency (“Betz” max. = 16/27) = 0.59

Pwind = Cp 1/2 ρAV3

Cp

A

slide-5
SLIDE 5

1871.205 2478.885 3593.5 5341.66 7119.92 8704.175 10188.18 11752.83 14097.48 17277.255 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 2002-2003 2003-2004 2004-2005 2005-2006 2006-2007 2007-2008 2008-2009 2009-2010 2010-2011 2011-2012

Cumulative Installed Capacity in India (MW)

STATUS of wind energy in India , 19GW (July 2013)

slide-6
SLIDE 6

238.955 607.68 1114.615 1748.16 1778.26 1584.255 1484.005 1564.65 2344.65 3179.775 500 1000 1500 2000 2500 3000 3500 2002-2003 2003-2004 2004-2005 2005-2006 2006-2007 2007-2008 2008-2009 2009-2010 2010-2011 2011-2012

Annual Capacity addition in India (MW)

STATUS of wind energy in India , Annual 1.7GW in 2012-13

ACCELERATED DECREASE in CAPACITY ADDITION 3.2 GW to 1.7GW ??????

slide-7
SLIDE 7

594 651 680 801 797 867 902 932 998 1140 200 400 600 800 1000 1200

Average rated capacity of wind turbines (last ten years)

STATUS of wind energy in India , Average Rated Capacity/WTG Cumulative Rated Capacity/WTG Demo = 184 kW Private= 843 kW

CUF increases With MW class Turbines

slide-8
SLIDE 8

Development in Size

Year Maximum Capacity 2001 900 kW 2002 950 kW 2003 1500 kW 2004 1650 kW 2005 1650 kW 2006 2100 kW 2007 2100 kW 2008 2100 kW 2009 2100 kW 2010 2500 kW 2011 2500 kW 2012 2500 kW

Andhra Pradesh Goa Gujarat Karnataka Kerala Madhya Pradesh Maharastra Orissa Rajasthan Tamilnadu

STATUS of wind energy in India WTG-capacity

slide-9
SLIDE 9

STATUS of wind energy in India WTG-capacity Old & New

slide-10
SLIDE 10

Global Technology Trends in SIZES

Enercon E126 7.5MW

Repower 6M Series

Siemens SWT-6.0 150

  • 10. GE 4.1‐113
  • 9. Gamesa G10X

Sinovel SL6000 Areva M5000

XEMC 5MW

slide-11
SLIDE 11

1000 2000 3000 4000 5000 6000 7000 8000 2007-2008 2008-2009 2009-2010 2010-2011 2011-2012

Statewise Cumulative Installed capacity (MW)

Andrapradesh Guj arat Karnataka Kerala Madhyapradesh Maharastra Raj asthan Tamilnadu

STATUS of wind energy in India

slide-12
SLIDE 12

2000 4000 6000 8000 10000 12000 2007-2008 2008-2009 2009-2010 2010-2011 2011-2012

Statewise Cumulative Generation (MW)

Andrapradesh Guj arat Karnataka Kerala Madhyapradesh Maharastra Raj asthan TamilNadu

Private profit to power Public Grid

STATUS of wind energy in India

NO “AD” Effect anymore AD is welcome For small investors Let IPPs Sell WTGs like RealEstt Urban Flats ?

slide-13
SLIDE 13

10% 19% 25% 31% 15% 225-500 kW 501-1000 kW 1001-1500 kW 1501-2000 kW 2000-2500 kW 11% 81% 8% Lattice Tubular S teel Combination 4% 42% 35% 19% Class I Class II Class III Class S 10% 0%6% 15% 4% 15% 29% 21% <30m 31-40m 41-50m 51-60m 61-70m 71-80m 81-90m 91-100m 43% 9% 15% 33%

Induction Generator Synchronous Generator with Electrically exicted Synchronous Generator with Permanent Magnet Double Fed Induction Generator

STATUS of wind energy in India WTGs

slide-14
SLIDE 14
  • Nacelle 100% Indian By GoI policy

Assembly

  • Gear 37.5% Indian ,( US, Finland, Spain

UK, China, Germany)

  • Generator 44.2% Indian ,( US, France, Spain

Swiss, Italy, China, Germany)

  • Controls 42.9% Indian (Denmark,

Germany, US)

  • Blade 38.9% Indian ( Finland, Spain

Denmark, China, Brazil) GREAT OPPORTUNITIES TO BE No.1 in WTG Manufacturing overtaking China in Quality and in Reliability ; ARAI did gave affordable but usable CAR

STATUS of 18 Manuf. 43 WTGs in India ; Is there a WTRAI ?

slide-15
SLIDE 15

STATUS of wind energy in India WTGs

0.00 20.00 40.00 60.00 80.00 100.00 120.00 225 250 250 500 600 600 1500

Rotor Diameter (m)

Rotor Diameter (m) 20000 40000 60000 80000 100000 225 250 320 500 600 1500

Nacelle Weight (Kg)

Nacelle Weight (Kg) 5 10 15 20 25 0.00 50.00 100.00 150.00

Rotor Weight/m2

Rotor Weight/m2 Linear (Rotor Weight/m2) 500 1000 1500 2000 2500 0.00 50.00 100.00 150.00

Tower Weight/m

Tower Weight/m Linear (Tower Weight/m) 50 100 150 200 250 300 1000 2000 3000 Nacelle Weight/ kW Total Weight/ kW

slide-16
SLIDE 16

Infirmity ? Nature + man made design of power curve

LESS OR NO WIND

Wind below rated capacity

Excess WIND Good TURBINE Operating GRID

slide-17
SLIDE 17

POWER and ENERGY, RESEARCH NEED for Site Specific

  • f WTG operation

WIND WIND M/C POWER

SITE- SPECIFIC

MACHINE- SPECIFIC

INDIA SPECIFIC DESIGNS ?

12- 17m/s 6-7 m/s

slide-18
SLIDE 18

WE-Road Map for 15 years

  • Investment Grade Wind Resource

for large 225kW+ and Small WTGs

  • National Wind Mission atleast till 2020
  • Consortium mode cost reduction
  • Higher Wind power with forecasting & Energy storage

techniques (Wind Must)

  • Evacuation and tariff payment Guarantee
  • Offshore Wind Power realisation (Multi-purpose Projects)
  • Offgrid Wind-solar Hybrids
  • Focussed Exclusive R&D to address issues
  • Full exploitation of Manuf.Capacity 5000MW/year
  • Consolidation and sustaining Supply Chain
  • Effective and barrier less Policy support (with WRPO/REC)
slide-19
SLIDE 19
slide-20
SLIDE 20

Plug&Charge EOV urban parking AREAS & Wind to Water/Hydrogen in remote off grid locations

Excess Wind USAGE

slide-21
SLIDE 21
  • No Land issues
  • 20-30% more
  • No noise

Opportunity :

  • ffshore wind power
slide-22
SLIDE 22

New Solar /Wind on your Roof top will cut your EB bill : Net-metering in Tamil Nadu

slide-23
SLIDE 23

Identify Gaps in current systems

  • Critical Component supply / FOREX
  • Standards for Grid Connection of WE
  • Issues of Power Quality
  • Lack/Attrition of Skilled Manpower
  • Fly by Night Operators /Quality&AMC
  • Threat of updated technology denial over

long term in the absence Indigenous R&D

  • Land costs and Governmental procedures
slide-24
SLIDE 24
slide-25
SLIDE 25

www: Win With Wind is NEED of HOUR to Power All, Ever

  • Wind is not mined & use needs MINDSET
  • Wind to hydrogen for mobile-energy
  • Wind is not transported
  • Wind need not be stored
  • Wind is abundant, giving Green Power
  • Wind is freely owned
  • Wind power sustains drinking water
  • Wind is completely renewable by NATURE
slide-26
SLIDE 26
  • No threat of cost escalation
  • No threat of hoarding
  • No threat of transport-driver/ miner’s Strike
  • No threat of depletion as it is renewable
  • No threat of Pollution to environment
  • Wind is sustainable with infirmity managed

with Focused Political and societal WILL

Wind certainly Works

26 10/4/2013

slide-27
SLIDE 27

NATIONAL WIND MISSION NEEDED

  • Wind farm cooperatives with farmers as owners

(rural corporate) as in Denmark

  • Societal Will and awareness of long term

sustainability and energy security

  • Sustained Political Will for wind onshore/offshore
  • Sustained Policy directives for extended period

for self-sustained green energy devp.

  • Promotional measures for Capacity building in

India for (offgrid/Wind solar/Grid-tied ) roof top or hill top ( net metering seriously)

  • Augmented Clean energy fund from CSR stream

& Citizens

slide-28
SLIDE 28

NATIONAL WIND MISSION 2020 WHY NOT A “WTRAI” LIKE THE “ARAI” ?

THANK YOU FOR YOUR KIND ATTENTION

WEB SITE : CWET.RES.IN
