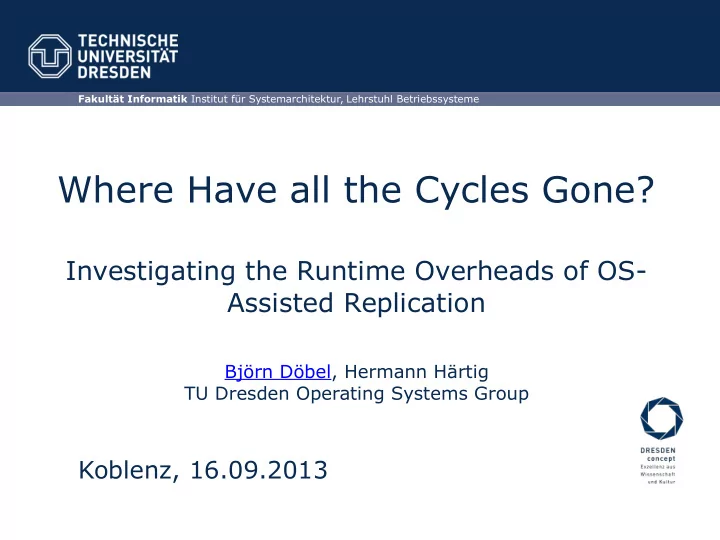

Fakultt Informatik Institut fr Systemarchitektur, Lehrstuhl Betriebssysteme Where Have all the Cycles Gone? Investigating the Runtime Overheads of OS- Assisted Replication Bjrn Dbel, Hermann Hrtig TU Dresden Operating Systems Group

SLIDE 1

Björn Döbel, Hermann Härtig TU Dresden Operating Systems Group

Fakultät Informatik Institut für Systemarchitektur, Lehrstuhl Betriebssysteme

Koblenz, 16.09.2013

Where Have all the Cycles Gone?

Investigating the Runtime Overheads of OS- Assisted Replication

SLIDE 2

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 2 / 23

ASTEROID – OS-Assisted Replication

Fiasco.OC L4Re APP APP APP APP Driver Romain Enc. Proc. Driver Driver

[1] Döbel, Härtig, Engel: Operating System Support for Redundant Multithreading, EMSOFT 2012

[1]

SLIDE 3

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 3 / 23

ASTEROID – OS-Assisted Replication

Fiasco.OC L4Re

APP APP APP

APP Romain Enc. Proc.

Interpose on system

calls & CPU exceptions

Replicate memory

(no need for ECC)

Unmodified binary

applications

SLIDE 4

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 4 / 23

How Much is Replicated Execution?

Resource Overhead
Roughly: N x replication → N x resouces
Optimizations vs. error coverage
Fault Coverage
No complete measurements yet
Estimation: matches compiler-assistance
Runtime overhead
Should be optimized for
This paper: SPEC INT 2006

SLIDE 5

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 5 / 23

Experiment Setup

Intel X5650 @ 2.66 GHz L1 L2

SLIDE 6

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 6 / 23

Experiment Setup

L 3 L 3 12 GB RAM

SLIDE 7

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 7 / 23

ASTEROID – OS-Assisted Replication

L4/Fiasco.OC,

32 bit + Romain

SPEC INT 2006

400.perl 401.bzip2 403.gcc 429.mcf 445.gobmk 456.hmmer 458.sjeng 462.libquantum 464.h264 471.omnet++ 473.astar 478.xalancbmk

L 3 L 3 12 GB RAM

SLIDE 8

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 8 / 23

Engage!

SLIDE 9

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 9 / 23

SLIDE 10

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 10 / 23

The Problem: CPU Assignment

App CPU0 Higher priority logger App

Time

print() Native Execution

SLIDE 11

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 11 / 23

The Problem: CPU Assignment

App CPU0 Higher priority logger App

Time

print()

CPU0 CPU1 CPU2 CPU3 App App App Higher priority logger

print()

App App App

...

Native Execution Replicated Execution

SLIDE 12

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 12 / 23

Where does overhead come from?

Replica exec. Replica exec.

Sync time

Replica 1 Replica 2 Master

Validate States

Notification time

System Call Replica exec. Replica exec.

... ...

SLIDE 13

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 13 / 23

Source

Overhead vs. native

Per-replica execution unmodified +/- 0 Sync time No background load ~ 0 State comparison ~ 100 cycles System call Mostly unmodified ~ 0 Notifications Local core ~ 2,000 cycles On socket ~ 6,000 cycles Cross-socket ~ 14,300 cycles

Where does overhead come from?

Rule: Prefer placing replicas on the same CPU socket

SLIDE 14

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 14 / 23

Replicating SPEC INT 2006

SLIDE 15

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 15 / 23

Idea: Reduce Memory Management Overhead

Assumption: memory management

is expensive

Idea: reduce overhead by using x86

huge pages (4 MB)

Works for microbenchmark
SPEC CPU:

(nearly) no difference

Microbenchmark Native: 0.72 s 1x: 0.80 s 2x: 2.23 s 3x: 3.12 s Native: 0.38 s 1x: 0.38 s 2x: 0.53 s 3x: 0.91 s

4 kB pages 4 MB pages

SLIDE 16

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 16 / 23

Secondary Effects: Cache Miss Rates

Benchmark DMR misses TMR misses L2 L3 L2 L3 429.mcf 2,600 1,300,000 11,000,000 5,200,000 462.libquantum 2,500 570 440,000 387,000 471.omnet++ 270,000 6,900,000 35,000,000 21,200,000

x 130 x 3 Rule: Prefer placing replicas on a different CPU socket

SLIDE 17

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 17 / 23

Secondary Effects: Cache Miss Rates

Benchmark DMR misses TMR misses L2 L3 L2 L3

429.mcf

2,600 → 2,600 1,300,000 → 930,000 11,000,000 → 11,000,000 5,200,000 → 3,600,000

462.libquantum

2,500 → 2,500 570 → 323 440,000 → 385,000 387,000 → 8,700

471.omnet++

270,000 → 290,000 6,900,000 → 5,500,000 35,000,000 → 34,900,000 21,200,000 → 16,400,000

SLIDE 18

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 18 / 23

SPEC INT: Improved L3 Miss Rates

SLIDE 19

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 19 / 23

Reliable Computing Base [2]

And now for something slightly different...

Fiasco.OC L4Re APP APP APP APP Driver Romain Enc. Proc. Driver Driver

[2] Engel, Döbel: The Reliable Computing Base – A new Paradigm ..., SOBRES 2012

SLIDE 20

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 20 / 23

Protecting the RCB

We have full RCB source, so we can apply compiler-

level techniques.

Encoded compiler anyone?

→ Approximate Overhead

SLIDE 21

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 21 / 23

Protecting the RCB: 2nd try tprot := tapp + C * (tkern + tmaster + tkern') + thw tprot := tnative + C * tReplicated

thw = tkern = tkern' = 0

SLIDE 22

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 22 / 23

Protecting the RCB: 2nd try

Selected values for C [3]:
CSWIFT = 1.09
CANBD = 3.89

[3] Schiffel, Schmitt, Süßkraut, Fetzer: Software-Implemented Hardware Error Detection: Costs and Gains, DEPEND 2010

SLIDE 23

TU Dresden, 07.05.14 Where have all the cycles gone? Folie 23 / 23

Summary

Romain: <5% overhead for 3x replicating

most of the SPEC INT 2006 benchmarks

Replica-core placement matters
RCB protection may add additional
verheads
Combination with compiler-level methods

seems feasible
