What s Involved in Drilling a Gas Well? s Involved in Drilling a Gas Well? What About the Bureau About the Bureau Northwest Region Southwest Region 230 Chestnut St. 400 Waterfront Dr. Meadville, PA 16335 Pittsburgh, PA 15222 814

slide-1
SLIDE 1

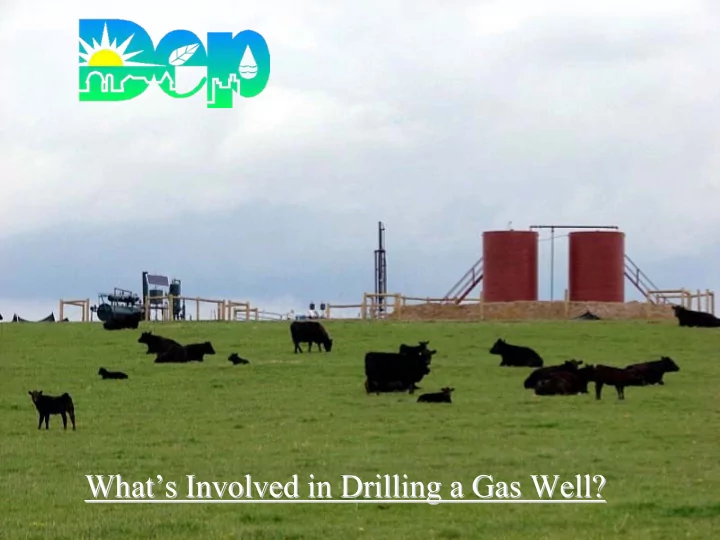

What What’ ’s Involved in Drilling a Gas Well? s Involved in Drilling a Gas Well?

slide-2
SLIDE 2

About the Bureau

slide-3
SLIDE 3

About the Bureau

Northwest Region

230 Chestnut St. Meadville, PA 16335 814 – 332 – 6860

Southwest Region

400 Waterfront Dr. Pittsburgh, PA 15222 412 – 442 – 4024

Central Office

Bureau of Oil and Gas Management PO Box 8765 Harrisburg, PA 17105 717 – 772 - 2199

slide-4
SLIDE 4

Program Authority

  • Oil and Gas Act
  • 25 Pa Code Chapter 78 – Oil and Gas Wells
  • Oil and Gas Conservation Law
  • 25 Pa Code Chapter 79 – Oil and Gas Conservation
  • Coal and Gas Coordination Act
slide-5
SLIDE 5

Program Authority

Dam Safety and Encroachment Act

  • 25 Pa Code 105 – Dams and Waterways

Management

  • 25 Pa Code 106 – Flood Management

Solid Waste Management Act

slide-6
SLIDE 6

Program Authority

Clean Streams Law

  • 25 Pa Code 102 – Erosion and Sediment Control
  • 25 Pa Code 91 – General Provisions
  • 25 Pa Code 92 – NPDES Permitting, Monitoring

and Compliance

  • 25 Pa Code 93 – Water Quality Standards
  • 25 Pa Code 95 – Waste Water Treatment

Requirements

  • 25 Pa Code 96 – Water Quality Standards

Implementation

slide-7
SLIDE 7

Pennsylvania Oil & Gas Patch?

Titusville

Pennsylvania currently produces 3.76 million barrels of oil and 163 BCF

  • f natural gas (2004)
slide-8
SLIDE 8

In 2007, 7,241 permits were issued. .

slide-9
SLIDE 9

Oil & Gas Well Permits Issued, 1990 - 2007

500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 8000 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007

DOW DOWDD DOWR

slide-10
SLIDE 10

Wells Permitted 2007/2006 7,241 /7,302

64/99 587/662 11/8 100/36 57/54 60/66

283/322

301/369 40/14 356/348 200/105 60/36 349/528

332/379

418/298 0/2 514/596

335/377

0/3 1151/945 151/271 109/120 1/2 202/129 457/637 447/219 628/639 0/1 2/7

Map Courtesy of Digital-Topo-Maps.com

14/1 0/16 17/3 3/0 2/0

slide-11
SLIDE 11

Wells Permitted 2008 January - May

Map Courtesy of Digital-Topo-Maps.com

51 235 4 15 33 22 16 168 91 26 171 119 21 127 72 207 254 207 47 501 43 74 34 12 118 212 211 285 2

slide-12
SLIDE 12

To drill a gas well in Pennsylvania the operator needs…

  • a drilling permit
  • an E & S plan

Permits, Etc.

slide-13
SLIDE 13

Additional permits and/or approvals may be needed

  • PennDOT highway occupancy

permit

  • SRBC or DRBC Permit
  • Chapter 105 encroachment permit
  • Stormwater Management permit

for projects affecting more than 5 acres

slide-14
SLIDE 14

Drilling Permit Applications include

  • Application Fee
  • Bond
  • Any waiver or variance requests
  • PNDI check
  • Well plat
  • Political subdivision and county
  • Location of the well
  • Name of the surface owner and lessor
  • Name of all surface owners or water purveyors

whose water supplies are within 1000 ft.

  • Name of owner or operator of all underlying

workable coal seams

  • Record of Notification
  • Marcellus Addendum
slide-15
SLIDE 15

The operator shall forward by certified mail a copy of the plat to:

  • the surface owner
  • all surface owners with water supplies

and water purveyors within 1000 ft

  • all coal owners and lessee of any underlying

workable coal seams

  • all coal operators identified on the well plat.
  • Gas Storage operators within 2000 ft.
  • proof of the notification shall be sent to the Department

The operator must give 24 hr notice of the date the drilling

  • the department
  • the landowner
  • political subdivision
slide-16
SLIDE 16

Locating A Well Site

  • Geology – drill where the gas is
slide-17
SLIDE 17

Survey the Site

slide-18
SLIDE 18

Distance Restrictions:

  • 100 ft. - stream, spring or body of water

identified on the most current 7 ½ minute USGS topographic map.

  • 100 ft. must be maintained to any wetland

greater than one acre in size.

  • 200 ft from an existing building or water

well without written consent of the owner.

  • The department may grant a waiver to the

distance restriction.

slide-19
SLIDE 19

History

Sept 29, 1972 – 25 PA Code Chapter 102 adopted. Oil & Gas Operators were required to prepare Erosion and Sediment Control plans. 1981 – Department’s First Erosion and Sediment Control Manual for oil & gas well operations (Now incorporated in the Oil and Gas Operators Manual.)

Let’s Make a Plan, Stan.

slide-20
SLIDE 20

Erosion and Sediment Control Plan Erosion and Sediment Control Plan

slide-21
SLIDE 21

Erosion & Sediment Controls (BMPs)_

slide-22
SLIDE 22
slide-23
SLIDE 23

Stream Crossings

slide-24
SLIDE 24

Minimize the Disturbance

slide-25
SLIDE 25

Build the Site Drill the well Stabilize as you go

slide-26
SLIDE 26

Drilling the Well

slide-27
SLIDE 27

Gas/Oil Formations Fresh Ground Water Conductor

slide-28
SLIDE 28

Fresh Ground Water Gas/Oil Formations Conductor Well Bore

slide-29
SLIDE 29

Fresh Ground Water Gas/Oil Formations Fresh Water Casing

slide-30
SLIDE 30

Fresh Ground Water Gas/Oil Formations Cement

slide-31
SLIDE 31

Cement Returns from the annular space

slide-32
SLIDE 32

Gas/Oil Formations Fresh Ground Water Borehole to Formations

slide-33
SLIDE 33

Fresh Ground Water Gas/Oil Formations Baffle

slide-34
SLIDE 34

Fresh Ground Water Gas/Oil Formations

slide-35
SLIDE 35

Fracing the Well

slide-36
SLIDE 36

What is Fracing? Hydraulic fracturing is the process in which fluid is pumped down a well and into a formation under pressure high enough to cause the formation to crack,

  • r fracture, forming passages through

which gas can flow into the well bore. Upon completion of the frac this fluid is pumped from the formation into a lined sump and trucked to a permitted treatment facility.

slide-37
SLIDE 37

Fresh Ground Water Gas/Oil Formations

slide-38
SLIDE 38

Fresh Ground Water Gas/Oil Formations

slide-39
SLIDE 39

Fresh Ground Water Gas/Oil Formations

slide-40
SLIDE 40

220’ bore length 8’ below the streambed

Pipeline Stream Crossings

slide-41
SLIDE 41

The End Result

slide-42
SLIDE 42

Bioretention / Infiltration Area

Stormwater Management

slide-43
SLIDE 43

You might see this…

slide-44
SLIDE 44

Common Questions

slide-45
SLIDE 45

Protection of Water Supplies

slide-46
SLIDE 46

“presumption of responsibility” An operator is responsible for any degradation of a water supply within 1000 ft

  • f the gas well that occurs within six months
  • f the completion of drilling, unless the
  • perator can prove otherwise.

Whenever a gas/oil well related water loss or degradation occurs it should be reported to the Bureau of Oil & Gas Mgmt. regional

  • ffice for further investigation.
slide-47
SLIDE 47

What happens to the fluids used during drilling and production?

All fluids encountered during the drilling and fracing of a gas well are collected in lined sumps.

slide-48
SLIDE 48

Top Hole Water.

slide-49
SLIDE 49

All other drilling, fracing and production fluid is hauled to a permitted treatment facility

slide-50
SLIDE 50
  • NPDES permit
  • Specific discharge limits.
  • Satisfies state as well as USEPA requirements.
slide-51
SLIDE 51

Be Smart Out There

slide-52
SLIDE 52

If you see something unusual… Let Someone Know!

slide-53
SLIDE 53

“Well mam, first, I ask’n politely to put in the BMPs, and if that don’t work…well, that’s what this here shootin’ iron’s fer.”

Great,Great Great Grand Pappy Umholtz

slide-54
SLIDE 54

Joe Umholtz Chief Division of Surface Activities Bureau of Oil & Gas Management 717-772-2199
