Slide 1 / 191 Slide 2 / 191 5th Grade Algebraic Concepts 2015-10-16 www.njctl.org Slide 3 / 191 click on the topic to go Table of Contents to that section What is Algebra? Order of Operations Grouping Symbols Writing Simple

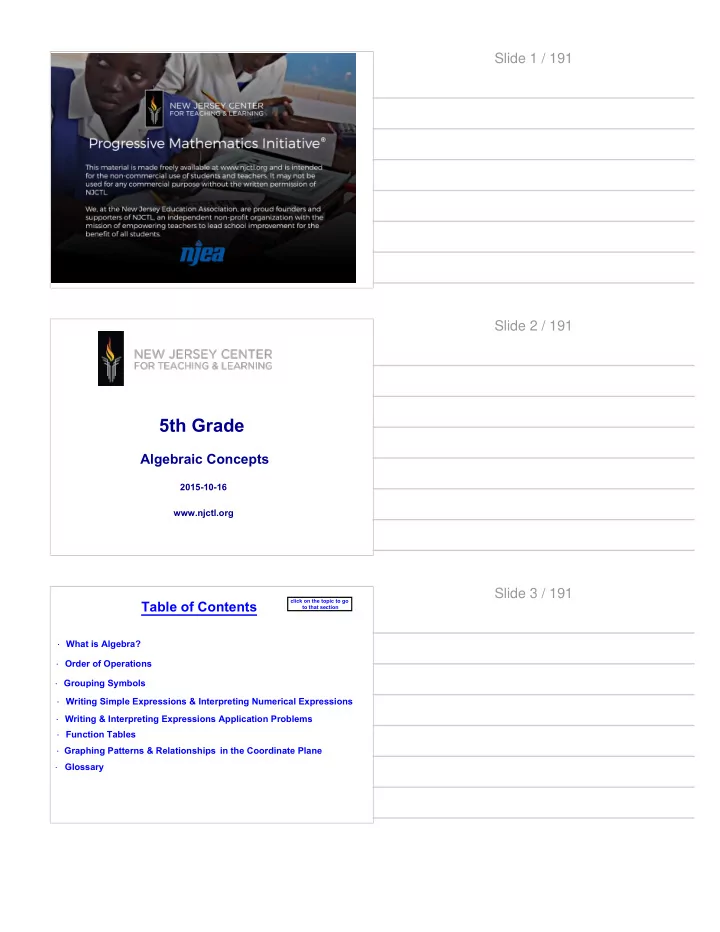

Slide 1 / 191
Algebraic Concepts
2015-10-16 www.njctl.org
Slide 2 / 191
click on the topic to go to that section
Table of Contents
· What is Algebra? · Grouping Symbols · Writing Simple Expressions & Interpreting Numerical Expressions · Graphing Patterns & Relationships in the Coordinate Plane · Order of Operations · Function Tables · Writing & Interpreting Expressions Application Problems · Glossary
Slide 3 / 191
click on the topic to go to that section
Table of Contents
· What is Algebra? · Grouping Symbols · Writing Simple Expressions & Interpreting Numerical Expressions · Graphing Patterns & Relationships in the Coordinate Plane · Order of Operations · Function Tables · Writing & Interpreting Expressions Application Problems · Glossary
[This object is a pull tab]
Teacher Notes
Vocabulary Words are underlined with a dashed line in the presentation. This is linked to the page at the end
word defined on it.
Slide 3 (Answer) / 191
Return to Table
Slide 4 / 191
The word "algebra" is taken from a book title al-jebr w'al-muqabalah (circa 825) by the Persian mathematician known as al-Khowarismi. This is considered to be the first book written about Algebra. al-jebr (from the book title) means "reunion of broken parts". Kind of like puzzle pieces. Al'Khwarizmi was a Persian mathematician who wrote on Hindu-Arabic numerals (the numeral system we use today). He was also
Slide 5 / 191
Algebra is a way of solving Math problems.
It is basically like looking at the problem like a puzzle. Putting together the pieces you have, in order to figure out what is missing. What is the missing piece to this number puzzle?
Slide 6 / 191
$40
______ (hours)
Sarah earns $10 for every hour she works.
What is the missing value?
Algebra help us tie together many mathematical ideas.
(Like hours worked and money earned.)
Slide 7 / 191
Things change. To describe things that change or vary, mathematicians invented Algebra.
Algebra makes it easier to say exactly how two changing things (like dollars earned and hours worked) are related.
Sarah earns $10 for every hour she works.
$10 x = $40
(hours)
If we change the amount Sarah earns, the number of hours she worked will change too.
$10 x = $60
(hours)
Slide 8 / 191
Important Vocabulary: An expression is like a phrase and names a number. An equation is a number sentence that describe a relationship between two expressions. H x 6 is an example of an algebraic expression. An algebraic expression uses operation symbols (+,-,x,÷) to combine variables and numbers. A letter that stands for a number is called a variable. Some common variables are: l = length, w = width, h = height and x or y.
Slide 9 / 191
Return to Table
Slide 10 / 191 Imagine this: You put your shoes on, and then your socks. Wait... What? What's wrong with this picture? It's out of order.
click
Slide 11 / 191
In life, there is an order in which we do things. Like putting our socks on first, before our shoes. Math is no different. When we perform operations (+,-,x, ) there is an order. Slide 12 / 191
In an expression with more than one operation, use the rules called Order of Operations.
Note: From left to right means first come, first served. Like reading a book. Start on the left, and work your way to the right. First, completing all x and . Then all + and -.
Slide 13 / 191
Name the operation that should be done first. 6 x 3 + 4 multiplication 3 + 4 x 6 multiplication 5 - 3 + 6 subtraction 9 - 6 3 division
click click click
click
Slide 14 / 191
1 Do you add or multiply first? 6 + 3 x 2 + 7
A
add
B
multiply
Slide 15 / 191
1 Do you add or multiply first? 6 + 3 x 2 + 7
A
add
B
multiply
[This object is a pull tab]
Answer
B
Slide 15 (Answer) / 191
2 Do you divide or add first? 12 + 3 ÷ 12 ÷ 4
A
add
B
divide
Slide 16 / 191
2 Do you divide or add first? 12 + 3 ÷ 12 ÷ 4
A
add
B
divide
[This object is a pull tab]
Answer
B
Slide 16 (Answer) / 191
3 10 - 6 x 6 + 4 x 10
Which operation do you do... A B C D E F G H I
+
+
+
1st? 2nd? 3rd?
Choose an operation for each step.
Slide 17 / 191
3 10 - 6 x 6 + 4 x 10
Which operation do you do... A B C D E F G H I
+
+
+
1st? 2nd? 3rd?
Choose an operation for each step.
[This object is a pull tab]
Answer
C,E,G
Slide 17 (Answer) / 191
Evaluate the expression using the Order of Operations. 4 + 3 x 7 Step 1 Multiply 3 x 7. Step 2 Rewrite the expression. 4 + 21 Step 3 Add 4 + 21. So, 4 + 3 x 7 = 25.
Slide 18 / 191
Evaluate the expression. 25 - 4 x 5 + 4 Step 1 Multiply 4 x 5. Step 2 Rewrite the expression. 25 - 20 + 4 Step 3 Subtract 25 - 20 Step 4 Rewrite the expression. 5 + 4 Step 5 Add 5 + 4. So, 25 - 4 x 5 + 4 = 9.
Slide 19 / 191
4 Evaluate 6 + 3 x 2 + 7 =
Slide 20 / 191
4 Evaluate 6 + 3 x 2 + 7 =
[This object is a pull tab]
Answer
19
Slide 20 (Answer) / 191
5 Evaluate 12 + 12 ÷ 4 ÷ 3 =
Slide 21 / 191
5 Evaluate 12 + 12 ÷ 4 ÷ 3 = [This object is a pull tab]
Answer
13
Slide 21 (Answer) / 191
6 Evaluate 100 - 6 x 6 + 4 x 10 =
Slide 22 / 191
6 Evaluate 100 - 6 x 6 + 4 x 10 =
[This object is a pull tab]
Answer
104
Slide 22 (Answer) / 191
7 Evaluate 50 ÷ 10 + 15
Slide 23 / 191
7 Evaluate 50 ÷ 10 + 15
[This object is a pull tab]
Answer
20
Slide 23 (Answer) / 191
Return to Table
Slide 24 / 191
Sarah has 8 dollars. Jonathan has 5 dollars more than Sarah. He spends half of his money. Write an expression that represents this scenario.
Sara's $ plus $5 divided in half
Think, pair, share: Is this correct? Explain your answer on your paper.
Slide 25 / 191
Sara's $ plus $5 divided in half If we follow the order of operations, we would divide the "$5 more" before we added it to Sarah's money.
So how can we represent this scenario? We can use parenthesis. Slide 26 / 191
Parentheses ( ) are used to group calculations to be sure that they are done in a certain order. When you use parentheses ( ), you are saying, "DO THIS FIRST."
Sara's $ plus $5 divided in half The parenthesis tell us to add $5 to Sarah's money before we divide it in half.
Slide 27 / 191
Lets look at the results of each expression.
Step 1: Step 2:
8 + 2.5
10.5
John has $10.50.
13 2
6.5
John has $6.50.
Which makes more sense?
Sarah has 8 dollars. Jonathan has 5 dollars more than Sarah. He spends half of his money.
Slide 28 / 191
Evaluate each expression using the order of operations. 10 - 2 x 4
Remember, to do what is inside the parenthesis first.
(10 - 2) x 4 What do you notice? 10 - 8 2 8 x 4 32 Step 1 click click Step 2 Slide 29 / 191
Let's solve (17 - 4) x 3 The parentheses tell you to subtract 17 - 4 first. (17 - 4) x 3 Then multiply by 3. 13 x 3 The answer is 39. 39 OR Let's solve 17 - (4 x 3) The parentheses tell you to multiply 4 x 3 first. 17 - (4 x 3) Then subtract. 17 - 12 The answer is 5. 5
Slide 30 / 191
Evaluate the expression. (10 + 6 x 6) - 4 x 10 Step 1 Start with computations inside the parentheses. Using the Order of Operations, multiply first and then add. (10 + 6 x 6) (10 + 36) 46 Step 2 Rewrite the expression with parentheses evaluated. 46 - 4 x 10 Step 3 Multiply 4 x 10. Step 4 Rewrite the expression. 46 - 40 Step 5 Subtract. So, (10 + 6 x 6) - 4 x 10 = 6.
Slide 31 / 191
8 What is the value of this expression? 5 + 3 x (7 - 1)
Remember to do inside the parentheses( ) first. A 23
B
25 C 48 D 64
Slide 32 / 191
8 What is the value of this expression? 5 + 3 x (7 - 1)
Remember to do inside the parentheses( ) first. A 23
B
25 C 48 D 64
[This object is a pull tab]
Answer
A
Slide 32 (Answer) / 191
9 What is the value of this expression? (8 + 4) ÷ 3 x 6 A 6 B 9 C 24
Slide 33 / 191
9 What is the value of this expression? (8 + 4) ÷ 3 x 6 A 6 B 9 C 24
[This object is a pull tab]
Answer
C
Slide 33 (Answer) / 191
10 Use the Order of Operations.
Write each step and evaluate the expression. 5 x (12 - 5) + 7
Slide 34 / 191
11 Evaluate (14 - 5) + ( 10 ÷ 2)
Slide 35 / 191
12 Which expression equals 72?
A 36 ÷ 4 - 3 x 2 B (36 ÷ 4 - 3) x 2 C 36 ÷ (4 - 3 x 2) D 36 ÷ (4 - 3) x 2
Slide 36 / 191
13 Enter your answer.
From PARCC sample test
Slide 37 / 191
14 Evaluate (8 x 9) - (6 x 7)
Slide 38 / 191
15 Without actually calculating, compare the two
expressions using <, >, or =. On your paper, explain how you know . 10 x (4 x 3) 10 x (5 x 6) A B C
< > =
Problem derived from
( (
Slide 39 / 191
16 Select each expression that is equal to 3/5 x 6. On your
paper, explain why the others are not equal using words, pictures, or numbers. A B C D
3 x (6 5) 3 (5 x 6) (3 x 6) 5 3 x 6
5
Problem derived from
( (
Slide 40 / 191
17 Danny wrote an equation using two operations and one
set of parentheses, with an answer of 24. Select one letter from each column to complete Danny's equation below. A15 B8 C+ D- E3 F4 Gx H I2 J5
= 24
Problem derived from
( ( Slide 41 / 191
18 Use what you know about the order of operations to
select the correct parenthesis locations to make this equation true. A B C D E F
( ( ( ( ( (
Problem derived from
( ( Slide 42 / 191
19 Which of the following does not equal 134.86 + 52.14?
A (134+0.14)+(52+0.86) B (134+0.86)+(52+0.14) C (134+52)+(0.86+0.14) D(134.86-0.14)+(52.14-0.86)
Slide 43 / 191
Besides parentheses ( ), brackets [ ] and braces { } are other kinds of grouping symbols used in expressions. To evaluate an expression with different grouping symbols, perform the operation in the innermost set of grouping symbols first. Then evaluate the expression from the inside
Slide 44 / 191
Evaluate the expression 2 x [(9 x 4) - (17 - 6)] Step 1 Do operations in the parentheses ( ) first. multiply, subtract and rewrite 2 x [36 - 11] Step 2 Next do operations in the brackets [ ]. subtract and rewrite 2 x 25 Step 3 Multiply 2 x 25 = 50. So, 2 x [(9 x 4) - (17 - 6)] = 50.
Slide 45 / 191
Evaluate the expression 3 x [(9 + 4) - (2 x 6)] Step 1 Do the operations in the parentheses ( ) first. add, multiply and rewrite 3 x [13 - 12] Step 2 Next do operation in the brackets [ ]. subtract and rewrite 3 x 1 Step 3 Then multiply 3 x 1 = 3. So, 3 x [(9 + 4) - (2 x 6)] = 3.
Slide 46 / 191
Let's evaluate an expression together. Remember the Order of Operations, and solve parentheses ( ) first, then brackets [ ]. 5 x [(11 -3) - (13 - 9)] 5 x [8 - 4] 5 x 4 20
Slide 47 / 191
Your turn...Evaluate the expression. Write each step. 8 x [(7 + 4) x 2] Step 1 8 x [11 x 2] Step 2 8 x [22] Step 3 176
click click click
Slide 48 / 191
20 Evaluate an expression, with multiple grouping
symbols, from the inside out.
True False
Slide 49 / 191
21 In the following expression, what operation would you
do first? 4 x [(15 - 6) x (7 - 3)]
A
multiiply
B
add
C subtract
Slide 50 / 191
22 Evaluate the expression. Rewrite each step.
40 - [(8 x 7) - (5 x 6)]
Slide 51 / 191
23 Evaluate the expression.
60 ÷ [(20 - 6) + (14 - 8)]
Slide 52 / 191
Follow the same rules to solve expressions with braces { }. Perform the operation in the innermost set of grouping symbols first. Then, evaluate the expression from inside out. Evaluate the expression 2 x {5 + [(10 - 2)] + (4 - 1)]} Step 1 Do operations in parentheses ( ) first. subtract and rewrite 2 x {5 + [8 + 3]} Step 2 Next do operations in brackets [ ]. add and rewrite 2 x {5 + 11} Step 3 Then solve operations in braces { }. add and rewrite 2 x 16 Step 4 Multiply 2 x 16 = 32. So, 2 x {5 + [(10 - 2)] + (4 - 1)]} = 32.
Slide 53 / 191
Let's evaluate an expression together. Remember the Order of Operations and to solve parentheses ( ), brackets [ ] and braces{ } from the inside out. 7 + {32 + [(7 x 2) - (2 x 5)]} 7 + {32 + [14 - 10]} 7 + {32 + 4} 7 + 36 43
Slide 54 / 191
24 Evaluate the expression.
3 x {30 - [(9 x 2) - (3 x 4)]}
Slide 55 / 191
25 Evaluate the expression.
10 + {36 ÷ [(14 -5) - (10 - 7)]}
Slide 56 / 191
26 Which expressions equals 8?
A {5+[6-(3 x 2)] -1} B {[5 + (6 - 3) x 2] - 1} C {5+ 6 - [3 x (2 - 1)]}
Slide 57 / 191
Return to Table
Slide 58 / 191
Word problems use expressions that you can write with
A variable is a letter that represents an unknown number. Any letter can be used for a variable. Writing algebraic expressions for words helps to solve word problems. These are a few common words that are used for operations. add (+) subtract (-) multiply (x or ) divide (÷) sum difference product quotient increased by minus times divided by plus less doubled per more than decreased by tripled
Slide 59 / 191
"more than" means add "more than x" means add 17 to 5
17 more than 5
It is written as 5 + 17. four times the sum of 17 and 5
"four times" means multiply by 4 "sum of 17 and 5" means add 17 and 5
It is written as 4(17 + 5).
The words mean multiply 4 by (17 + 5) Examples:
Slide 60 / 191
Practice writing a simple algebraic expression for these words. Addition Subtraction 9 increased by 12 336 less 24 9 + 12 336 - 24 322 more than 4 129 decreased by 106 322 + 4 129 - 106 8 plus 92 subtract 13 from 155 8 + 92 155 - 13 Multiplication Division 8 times 6 16 divided by 4 8 6 16 ÷ 4 9 multiplied by 5 the quotient of 24 and 14 9 x 5 24 ÷ 14
click click click click click
click
click
click
click click
Slide 61 / 191
27 Which phrase is the correct algebraic expression?
the sum of 3 and 9
A
3 + 9
B
9 + 3
Slide 62 / 191
28 Which phrase is the correct algebraic expression?
4 more than 5 A B 5 + 4 4 + 5
Slide 63 / 191
29 Which phrase is the correct algebraic expression?
12 decreased by 7
A
12 - 7
B
7 - 12
Slide 64 / 191
30 Three students were working on this problem.
Each of them had a different answer. Which answer is correct?
A B C
From PARCC sample test
Slide 65 / 191
31 Which phrase is the correct algebraic expression?
13 less than 15
A
13 - 15
B
15 - 13
Slide 66 / 191
32 Which phrase(s) is the correct algebraic expression?
product of 2 and 4
A
4 + 2 B 2 4
Slide 67 / 191
33 Which phrase is the correct algebraic expression?
9 divided by 3
A
3 ÷ 9 B 9 ÷ 3
Slide 68 / 191
34 Which phrase is the correct algebraic expression?
three times the sum of 8 and 7
A
8 x (3 + 7)
B
3 (8 + 7)
Slide 69 / 191
35 Which is the correct algebraic expression?
12 divided by the sum of 5 and 2
A
12 (5 + 2)
B
(5 + 2) 12
Slide 70 / 191
Let's practice writing phrases for these algebraic expressions. Remember, key words or phrases help decide which operation(s) to use when making your translations. Operation Key Words/Phrases Add (+) sum, more than, increased by Subtract (-) difference, less than, decreased by Multiply (x) product, times, twice, doubled, of Divide ( ) quotient, half, per
Slide 71 / 191
Add (+) sum, more than, increased by Examples: 5 + 4 5 and 4 more 270 + 19 19 added to 270 100 + 160 160 increased by 100
click click
click
Slide 72 / 191
Subtract (-) difference, less than, decreased by Examples: 400 - 199 400 decreased by 199 65 - 12 12 less than 65 50 - 31.5 difference of 50 and 31.5
click
click click
Slide 73 / 191
Multiply (x) product, times, twice, doubled, of Examples: 9 x 4 9 times 4 45 2 product of 45 and 2 2 12 twice 12
click click click
Slide 74 / 191
Divide ( ) quotient, half, per Examples: 12 6 12 divided by six 8 2 half of 8 15 5 5 per 15
click click click
Slide 75 / 191
36 The phrase,16 less than 20, is the same as 20 - 16.
True False
Slide 76 / 191
37 The phrase, 23 subtract from 233, is the same as 23 - 233.
True False
Slide 77 / 191
38 Is the product of a 5 and 12, the same as 5 12?
Yes
No
Slide 78 / 191
39 Which phrase is correct for the expression 21 7?
A
21 decreased by seven
B
the quotient of 21 and seven C the quotient of seven and 21
Slide 79 / 191
40 Which phrase(s) are correct for the expression 3 2 + 9?
A three times 2 plus nine B three times 9 plus 2 C triple 2 added to nine
Slide 80 / 191
41 The sum of 6 and 5 is 11,
is the same as 6 + 5 = 11.
True False
Slide 81 / 191
Return to Table
Slide 82 / 191
Often, in "real world" problems, a scenario is given in words, and you must translate it into a number sentence. Let's study four examples. Example 1 Patty bought just enough nuts to put five on each brownie she
4 nuts on each brownie, how many brownies did she make? Thus, the correct number sentence would be: 20 = 4 brownies So she made 5 brownies.
Slide 83 / 191
Example 2 Pedro bought five of each kind of cookie that a bakery made. If we don't know the number of kinds of cookies the bakery had, we can use a blank box. What number sentence could represent how many cookies Pedro bought? number of cookies = x 5
Slide 84 / 191
Example 3 Shandra sold five fewer boxes of Girl Scout cookies than Lisa. Let's use a blank box for the number of boxes Lisa sold, since we don't know how many she sold. What number sentence could represent how many boxes of cookies Shandra sold? Shandra = - 5
Slide 85 / 191
Example 4 Nick brought 5 new packs of baseball cards today. We don't know how many packs he had yesterday, so we will use a blank
now? Today = + 5
Slide 86 / 191
42 For a recycling project, 4 students each collected the same
amount of plastic bottles. They collected 32 in all. Which equation, when solved, will tell how many bottles each student collected? A 32 x 4 = B 4 - 32 = C 4 x = 32
Slide 87 / 191
43 David has 46 sweaters in his closet. He has some sweaters
in his dresser as well. David has 64 sweaters in all. Which equation, when solved, will show how many sweaters are in David's dresser? A 46 + = 64 B 64 + 46 = C 64 + = 46
Slide 88 / 191
44 A teacher opened a box of raisins and divided them evenly
among 16 students. Each student got 6 raisins. Which equation, when solved, will tell how many raisins were in each box? A - 16 = 6 B 6 = 16 C 16 = 6
Slide 89 / 191
45 Dana took some almonds from a bowl. She ate ten of them
and had 18 almonds left. Which equation, when solved, will tell how many almonds Dana took from the bowl? A - 10 = 18 B 10 = 18 C + 10 = 18
Slide 90 / 191
46 True/False: The following two scenarios can be
represented by the same expression. True False Enter your answer. Then, on your paper, explain how you know that the answer is true or false.
Lia works 7 hours a day for days. Gil has 7 baseballs in bags.
Problem derived from
( ( Slide 91 / 191
47
The chart shows expressions that students wrote in math class. Select the expressions that are equal. A B C D
Jake 38+6 Liz 56-24 Ryan 8x6 Kim 4x8
Amy wrote the expression 17+15. Her equation is also equivalent to these expressions. On your paper, use what you know about expressions to explain why this is true.
Part I Part II
Problem derived from
( ( Slide 92 / 191
Return to Table
Slide 93 / 191
In John's class, the boys are outnumbered 3 to 1. So, for every boy there are 3 girls. If there is 1 boy, there are 3 girls. If there are 2 boys, there are 6 girls. If there are 5 boys, there are ______ girls. (1,3) (2,6) (5,___)
(1,3) (2,6) (5,___) { } ; ;
This set of numbers is called a relation, and it describes the relationship between boys and girls in John's class.
Slide 94 / 191
A relation is a set of pairs of numbers, called ordered pairs, that represent a relationship between two things. The members of a set can be: · pairs of things (like socks) · people (like boys and girls) · people and things (like students and the types of books they read) · numbers (like 5 and 10).
Slide 95 / 191
They are many ways to show that two different items are related. Let's practice using tables, equations and graphs to describe a function or relation. boys girls 1 3 2 6 3 9 · a list of ordered pairs
{(1,3); (2,6); (3,9)}
Number of boys Number of girls
· a graph · a table · a word description For every boy, there are 3 girls · an algebraic rule or equation girls = boys x 3
Slide 96 / 191
A function shows the relationship between an Input amount and an Output amount. Input Output Rule
My Function Machine Slide 97 / 191
The value of the output relies on
Input Output Rule The rule is the relationship between the input and the output. It says what happens to the input inside the machine. The value of the output always depends on the value of the input.
Slide 98 / 191
Let's Practice figuring out the rule.
Step 1. Assign a value to the input.
Step 2. Hit Enter to see the output. The input and output values will show
this table. Step 3. Once you have enough input/output values to figure out the rule, select + or * and the addend or factor. Step 4. Check Your Rule
Click here for online practice.
Slide 99 / 191
A function table shows you the relationship between pairs of
applies to all the pairs of numbers on the table. You can think of the rule as a black box or machine. Usually, the Input is labeled (x) and the Output is labeled (y).
, Slide 100 / 191
The function table can be set up vertically or horizontally to show the relation. x = first number (input) y = second number (output). If the rule is add 5, here are the tables: 5 1 6 2 7 3 8
1 2 3 5 6 7 8
input(x) output(y)
input(x)
Slide 101 / 191
The variables x and y are usually used for an unknown value, but other letters can be used. Examples: m = miles c = cost h = hours l = length
Slide 102 / 191
Let's apply a rule to the function table.
Pull Pull
Teacher Note
Slide 103 / 191
Let's apply a different rule to the function table.
Pull Pull
Teacher Note
Slide 104 / 191
48 Rule: Add 4
The missing value is 14.
True False 6 10 7 11 8 12 10 12 16
input(x) output(y)
Slide 105 / 191
49 Rule: Multiply 3
The missing value is 12. True False
2 6 3 9 6 18 8 24
input(x) output(y)
Slide 106 / 191
50 Rule: Add 9
What is the missing value?
1 2 3 4 9 10 11 12 13
input(x)
Slide 107 / 191
51 Rule: Divide by 2
What is the missing value? 48
24 16 8 8 4 2 1
input(x) output(y)
Slide 108 / 191
52 Rule: Subtract 8
What is the missing value that the arrow is pointing to?
8 10 19 22 40 2 11 14 32
input(x)
Slide 109 / 191
53 Rule: Subtract 8
What is the missing value that the arrow is pointing to?
8 10 19 22 40 2 11 14 32
input(x)
Slide 110 / 191
Let's find the rule for the function table. Add, subtract, multiply
Let's study the pattern between the input and output values.
Pull Pull
Teacher Note
Slide 111 / 191
Look at the difference between the numbers. The rule is y = x 8 or divided by 8.
Slide 112 / 191
Let's practice finding the rule or function on the tables. Remember to look at the given Input-Output pairs.
2 9 3 10 5 12 6 13
Input (x) Output(y) Each Output is greater than the Input. Try a rule with addition or multiplication. 2 9 3 10 5 12 6 13 The rule is Add 7, or y = x + 7.
15 3 20 4 25 5 40 8
Input(x) Output(y) Each Output is less than the Input. Try a rule with subtraction or division. 15 3 20 4 25 5 40 8 The rule is Divide by 5, or y = x 5.
Slide 113 / 191
54 Is the rule or function
y = x 9? Yes
No 9 1 18 2 27 3 36 4
Input(x) Output(y)
Slide 114 / 191
55 Is the rule
y = x - 6?
Yes No
6 8 10 14 2 4 8
input(x)
Slide 115 / 191
56 Is the rule or function
y = 2x - 1?
True False 10
19 8 15 14 27 6 11
Input(x) Output(y)
Slide 116 / 191
57 What is the rule or function?
A Subtract 2 B Add 3 C Add 2
5 8 7 10 6 9 8 11
Input(x) Output(y)
Slide 117 / 191
58 What is the rule or function?
A y = x + 2 B y= 2x C y = x 2 2 20 10 14 7 10 5
Input(x) Output(y)
Slide 118 / 191
59 What is the rule or function?
A y = 2x + 2 B y = 3x + 2 C y = 2x - 2 1 5 2 8 3 11 4 14
Input(x) Output(y)
Slide 119 / 191
A function table can be used to solve Miguel and Mary's problem with their pens. Solution: "Miguel has 7 fewer pens than Mary." means: Number pens Miguel has is 7 fewer than the number pens Mary has y = - 7 x So you get , y = x - 7
Pull Pull
Teacher Note
Slide 120 / 191
A function table can be used to solve Sharon's problem with number of miles she will run given any number of hours. Solution: For the number of miles, multiply by the rate(miles per hour). number of miles = miles per hour x number of hours y = 5 x x So you get, y = 5x
Pull Pull
Teacher Note
Slide 121 / 191
Lori is traveling by taxi in New York City. Using a function table, she can calculate the cost of her trip. Use the letter m, for the miles traveled and c, for the cost of the taxi ride. miles traveled, m
1 2
3 4 5 6 7
cost of taxi ride, c
$6 $7
$8 $9 $1 $11 $12
How would you describe the function in words? _______ each mile is five more dollars What would be the equation to calculate the cost? _______ c = m + 5 Using the equation, how much would if cost to travel 20 miles? _______ $25 = 20 + 5
Pull Pull
Teacher Note
Slide 122 / 191
60 Given the rule used in the function table, will 15
people fit in 3 vans? Yes
No
number of people, p
5 10 15 20
number of vans, v
1 2 3 4
Pull Pull
Teacher Note
Slide 123 / 191
61 Use the function table and equation.
How many vans are needed for 35 people?
A 5 vans B 35 vans C 7 vans
number of people, p
5 10 15 20
number of vans, v
1 2 3 4
Slide 124 / 191
62 If each package contained 2 cookies, what is the tenth
number of cookies in the package?
5 10 7 14 8 16 10 20
(p) number
packages (c) number
cookies
Slide 125 / 191
63 Use the function table and equation.
How many hours will it take for the car to travel 495 miles?
A 7 hours B 9 hours C 11 hours D 15 hours
time (hr) 1
2 3 4
distance (miles) 55
110 165 220
Slide 126 / 191
64 Use the function table and equation.
How much money will you earn in 4 weeks?
Hours Worked (h) Money Earned (m) 1 $6.25 2 $12.50 3 $18.75 4 $25.00 5 $31.25
Slide 127 / 191
65 Given the rule add 3 and
starting at 0 complete the table below. A Each term in the second table is equal to the corresponding term in the first table. BEach term in the second table is twice the value of the corresponding term in the first table. CEach term in the second table is three more than the value of the corresponding term in the first table. Given the rule add 6 and starting at 0 complete the table below.
Look at both of the tables once they are complete, and identify the relationship between the corresponding terms.
Problem derived from
( (
Slide 128 / 191
66 Complete the pattern below using the rule 3n-1.
(type in the numbers)
Problem derived from
( ( 5, _____, 11, _____, _____ Slide 129 / 191
67 The output of a function table is 4 less than each
says the rule is 4 - x = y. Who is correct? Explain your answer on your paper. AAngela BKara
Problem derived from
( ( Slide 130 / 191
68 Use the table below to show the
the pattern in the previous problem. (Select one value for each box.)
1 2 5 3 14 8 2 4 11 5 10 14 6 14 17
A B C D E F G H I J
Problem derived from
( (
Slide 131 / 191
69 A fifth-grade class collected boxed and canned foods
for the school's annual food drive. The first day, 2 boxes and 2 cans were collected. Each day after the first, the number of boxes collected went up by 4 and the number of cans collected went up by 2. A times 2 B times 2, then minus 2 C add 2 D subtract 4 On your paper, complete the table by writing the first five numbers in the number patterns for the number of boxes and cans collected. Then, select the rule for the table that compares the two patterns.
Cans Boxes
Slide 132 / 191
Return to Table
Slide 133 / 191
Number patterns, functions tables and equations can be shown in graphs on a coordinate plane. The graph gives an easy visual way to solve problems, and to make predictions based on the patterns seen in the graph.
Lets explore graphing coordinates first.
Slide 134 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
The coordinate plane is formed by perpendicular number lines called axes. The horizontal line is the x-axis. The vertical line is the y-axis.
Slide 135 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
The point at which the x and y axes intersect is called the origin. The coordinates of the origin are (0, 0).
Origin (0, 0)
Slide 136 / 191
Points can be plotted on the plane using one coordinate from each of the axes. These sets are called ordered pairs. The x coordinate always appears first in these pairs. The y coordinate appears second.
(x,y)
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
x y Slide 137 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
To graph an ordered pair, such as (4,3): · Start at the origin (0,0). · Move right on the x-axis, since the first number is positive. · Then, move up since the second number is positive. · Plot the point. (4,3)
x y Slide 138 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
(x,y)
This point is (3,2). To plot the point, go over 3, then up 2.
x y Slide 139 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
x y (x,y)
This point is (1,4). To plot the point, go over 1, then up 4.
Slide 140 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
(x,y)
This point is (5,0). To plot the point, go over 5, then up 0.
x y Slide 141 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7 70 Which point is at the origin?
A B C D
Slide 142 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7 71 Which point is at (1,3)?
A B C D
Slide 143 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7 72 Which point is at (3,3)?
A B C D
Slide 144 / 191
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7 73 Which point is at (0,5)?
A B C D
Slide 145 / 191
74 Which ordered pair is the origin? A (4,0) B
(0,0)
C
(0,4)
D
(4,4)
Slide 146 / 191
75 Which number in the ordered pair (7,3) is
the x-coordinate?
A 7 B
3
C D
x
Slide 147 / 191
76 Which number in the ordered pair (5,9) is
the y-coordinate?
A B
5
C
9
D
y
Slide 148 / 191
77 Which number in the ordered pair (7,12)
is the y-coordinate?
A
7
B
12
C D
y
Slide 149 / 191
78 Which number in the ordered pair (7,12) is
the x-coordinate?
A
7
B
12
C D
x
Slide 150 / 191
Follow the steps to graph the function y = x + 2. Step 1 Complete the function table. Replace the x in the equation with a number from the x
Step 2 Graph each ordered pair (x,y) on the coordinate grid. Look at the first pair (1,3). The 1 tells you to go one unit to the right (horizontal) of the
Step 3 Use the same method to graph (2,4), (3,5), (4,6) Step 4 Connect all the points with a line. You should end up with a straight line that shows the solution for y = x + 2.
Pull Pull
Teacher Note
Slide 151 / 191
Equation y = x + 2
x y 1 3 2 4 3 5 4 6
Quadrant I: positive numbers
Graph: Function Table:
Slide 152 / 191
Increasing line: A line that slants upward from left to right. Decreasing line: A line that slants downward from left to right. Equations that result in curved lines are called nonlinear equations. Equations that result in straight lines are called linear equations.
Slide 153 / 191
Equation: y = x - 1 Function Table Graph
x y 1 2 1 3 2 4 3
Quadrant I - positive numbers
x y Solve for y. Start with x = 1 y = 1 - 1 y = 0 Repeat the above steps to find the value of y when x = 2. Repeat x = 3 and x = 4. Graph the order pairs and connect the points with a line.
Slide 154 / 191
Equation: y = 2x + 3 Function Table Graph
x y 3 1 5 2 7 3 9
Quadrant I - positive numbers
x y
Solve for y. Start with x = 2 y = 2x + 3 y = (2 x 2) + 3 y = 7 Repeat the above steps to find the value of y when x = 3. Graph the order pairs and connect the points with a line.
Slide 155 / 191
79 Which of the following points is on the
line?
A (1, 5) B (4, 10) C (2, 7) D (8, 3) x
y
Slide 156 / 191
80 Which graph represents the given function?
A Graph A B Graph B
Slide 157 / 191
81 Which graph does not represent the given function?
A Graph A B Graph B
1 2 3 4 5 6 7 1 2 3 4 5 6 7
Slide 158 / 191
82 Which graph represents the given function?
A Graph A B Graph B
Slide 159 / 191
Graphing Relations can be used in "real" world problems. The clerk at the video store earns $6.00 per hour. Here is how you would graph the relation between hours worked and amount earned, up to six hours.
First, use a table to show this one-to-one relation.
Hours Worked (x) 0
1 2
3
4 5 6
Dollars Earned (y) 0
$6 $1 2
$1 8
$2 4 $30 $3 6 Second, graph the ordered pairs: (0, 0), (1, 6), (2, 12), (3, 18), (4, 24), (5, 30), (6, 36).
number of hours worked
1 2 3 4 5 6
612
18
24 30 36
42
number of dollars earned
Slide 160 / 191
Using the equation from the table or graph, y = 6x, you can calculate how much you would earn given any amount
If the clerk worked 12 hours, how much would be earned? $72.00 If the clerk worked 30 hours, how much would be earned? $180.00 If the cleark worked 40 hours, how much would be earned? $240.00
Pull Pull
Teacher Note click click click
Slide 161 / 191
Blaise walks home from school at the rate of 3 kilometers per hour. Complete the function table that shows the relationship between d, the distance he walks, and t, the time it takes him to walk this distance. Graph the ordered pairs and connect with a line. Equation: d = 3t or y = 3x time (t) distanc e (d)
d pairs (0, 0) 1 3 (1, 3) 2 6 (2, 6) 3 9 (3, 9)
x
y
time distance
Pull Pull
Teacher Note
Slide 162 / 191
Using the equation from the table or graph, d = 3t, you can calculate how much distance traveled given any amount of time. If you walked 5 hours, how much distance did you travel? 15 miles If you walked 8 hours, how much distance did you travel? 24 miles
click
Pull Pull
Teacher Note
Slide 163 / 191
We can use graphs to compare two relations. Line a
(The ordered pairs from table A) When Blaise rides his bike home from school,
he travels at the rate of 6 kilometers per hour. Complete function table B to show the kilometers he bikes per hour. Then, graph the ordered pairs and connect with a line. Label the line b.
time (t) distanc e (d) 1 3 2 6 3 9
x
y
time distance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 19 2 3 4 5 6 7 8 9 1
Table A
Equation: d = 3t
time (t) distanc e (d) 1 6 2 12 3 18
x
y
Table B
Equation: d = 9t
a b
Slide 164 / 191
We can use graphs to compare two relations. Compare the y-coordinates on line a (and in Table A) to the y-coordinates on line b (and in Table B).
time (t) distance (d) 1 3 2 6 3 9
x
y
time distance
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 19 2 3 4 5 6 7 8 9 1
Table A
Equation: d = 3t
time (t) distance (d) 1 6 2 12 3 18
x
y
Table B
Equation: d = 9t
a b
Click
Explain the relationship between the y-coordinates on line a to the y-coordinates on the same x-axis on line b. What does this tell you about his walking and biking speed?
Pull Pull
Teacher Note
Slide 165 / 191
83 Which function table does the graph best represent?
A Table A B Table B
number of quarts (q) number of gallons (g)
1 2 2 4 3 6
number of quarts (q) number of gallons (g)
4 1 8 2 12 3
quarts gallons
4 8
12 16
1 2 3 4 5 6
Slide 166 / 191
84 Which best describes a graph that shows the relationship
between the cost of heating a home and the outside temperature?
A horizontal line B an increasing straight line C a decreasing straight line D a vertical line
Slide 167 / 191
85 What is the relationship between the y-coordinates on
line a and the y-coordinates with the same x-coordinate
A The coordinate on line b is half the value of the coordinate on line a. B The coordinate on line b is twice the value of the coordinate on line a. CThe coordinate on line b is one-fourth the value of the coordinate on line a.
1 2 3 4 5 6 7 8 9 10 11 12 2 3 4 5 6 7 8 9 1
a b
Slide 168 / 191
Return to Table of Contents
Slide 169 / 191
Return to Table of Contents
[This object is a pull tab]
Teacher Notes
Vocabulary Words are underlined with a dashed line in the presentation. This is linked to the page at the end
word defined on it.
Slide 169 (Answer) / 191
Back to Instruction
y = 3
Algebra is like a Math puzzle, finding the missing pieces and how they fit together.
A type of Math that uses letters (variables) and symbols to represent numbers. Slide 170 / 191
Algebraic Expression
Back to Instruction
variable:
number: number:
variable:
equals sign:
3 + 2 = y An expression that consists of
variables, and operations. Slide 171 / 191
To find a number/answer by adding, subtracting, multiplying, and/or dividing.
4 x 3
Back to Instruction
pencil & paper calculator mental math
Slide 172 / 191
Back to Instruction
Coordinate Plane
The two dimensional plane or flat surface that is created when the x-axis intersects with the y-axis.
Also known as a coordinate graph and a Cartesian plane.
(0,0) x
y Slide 173 / 191
Back to Instruction
Two expressions that are equivalent to each other. Equivalence is shown with an equal sign.
equivalent expressions
equivalent expressions
no equivalence
Slide 174 / 191
Back to Instruction
To find the value/amount of something.
If x=3, then 2x is 2 times 3; so 2x = 6
You cannot "evaluate" an algebraic expression if you do not know the value of the variable.
Slide 175 / 191
Back to Instruction
Numbers, symbols and
show the value of something.
2 x 3 = 6
Expressions DO NOT have equals signs.
2
An expression is
an equation.
Slide 176 / 191
Back to Instruction
A special relationship between x and y values, where each of its input values gives back exactly one output value. The
depends
input (x).
(x) (y)
1 1 2 4 3 9
(x) (y) 1 1 1 4
3 9
Not a function. For each input, there can only be
Slide 177 / 191
Back to Instruction
The input is the independent variable in a function (y).
The
depends
input (x).
(x) (y) 1 1 2 4
3 9
The value of y is determined by the value of x. Input
Input
Rule
y = x2
3 Slide 178 / 191
Back to Instruction
An equation whose graph is a straight line.
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
Slide 179 / 191
Back to Instruction
An equation whose graph is not a straight line.
Slide 180 / 191
Back to Instruction
Order of Operations
Please Excuse My Dear Aunt Sally The rules of which calculation comes first in an expression.
Parentheses, Exponents, Multiplication or Division, Addition or Subtraction r
Slide 181 / 191
Back to Instruction
(x,y) (x,y)
An x and y value that identify a location on a coordinate plane.
Slide 182 / 191
Back to Instruction
The point where zero on the x-axis intersects zero on the y-axis. The coordinates of the origin are (0,0). (0,0) (0,0)
Slide 183 / 191
Back to Instruction
The output is the dependent variable in a function (y).
The
depends
input (x).
(x) (y) 1 1 2 4
3 9
The value of y is determined by the value of x. Output
Input Rule
y = x2
3 Slide 184 / 191
Back to Instruction
A point is not an object, but a location, identified by a set of coordinates. A
1 2 3 4 5 6 8 9 10 2 3 4 5 6 7 8 9 10 1 7
A (3,5)
Slide 185 / 191
Back to Instruction
A relationship between two sets of data, where
represented with a set of ordered pairs.
(1,3) (2,6) (5,___) { } ; ;
For every boy, there are 3 girls.
(x) (y) 1 1 2 4
3 9
(1,1) (2,4) (3,9)
{ } ; ;
(Hours worked, $ earned)
{(1,8);(2,16);(3,24)} ( x , y )
Slide 186 / 191
Back to Instruction
Defines the relationship between the input and the output, using an algebraic equation. It says what happens to the input in a function.
Input
3
Output
9
Rule:
(x) (y) 1 3 2 6
3 9
Rule:
(x) (y) 1 6 2 10
3 14
Rule:
Slide 187 / 191
Back to Instruction
A visual display that organizes the special relationship between two sets of data. (x) (y)
1 1 2 4 3 9
in. ft.
12 1 24 2 36 3
hours worked
3 $ earned24
4 5 32 40
Slide 188 / 191
Back to Instruction
A letter or symbol that represents a changeable or unknown value.
variable
x x
Slide 189 / 191
Back to Instruction
Horizontal number line that extends indefinitely in both directions from zero. (Right- positive Left negative)
1 2 3 4 5
x Slide 190 / 191
Back to Instruction
Vertical number line that extends indefinitely in both directions from
1 2 3 4 5
y
Slide 191 / 191
