Broadway & West 69th Public Hearing May 8, 2018 Presented By Courtney Fisher Location 2012 Broadway New York, New York 10023 Slide / 2 T-Mobile Proprietary & Confidential Information Not for Customer Distribution Through History

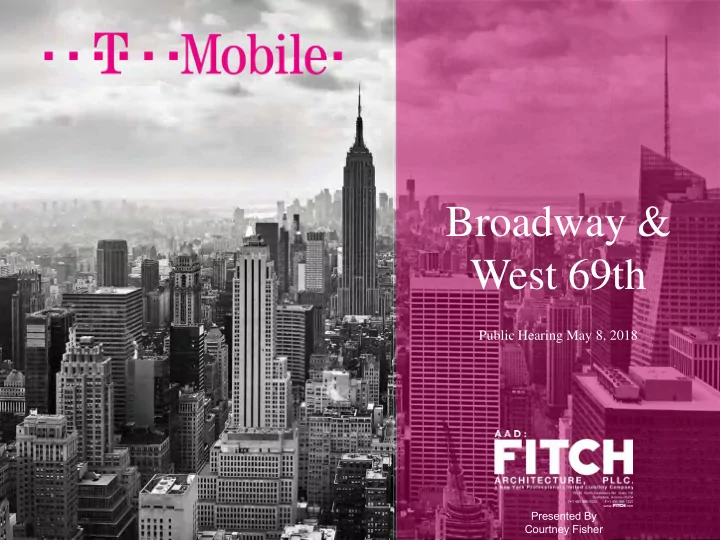

SLIDE 1

Broadway & West 69th

Presented By Courtney Fisher

Public Hearing May 8, 2018

SLIDE 2

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 2

Location

2012 Broadway New York, New York 10023

SLIDE 3

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 3

Through History

1940s 1980s Present

SLIDE 4

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 4

Through History

1940s 1980s Present

SLIDE 5

Existing Conditions

SLIDE 6

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 6

Existing Conditions

SLIDE 7

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 7

Probes Conducted – 8/9/2017

“…there is no evidence

f any limestone behind

the facade panels. The limestone begins above the graphic signage.’

SLIDE 8

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 8

Similar Projects in Historic District

2261 Broadway 275 Amsterdam Ave 175 W 72nd Street 198 Columbus Ave

SLIDE 9

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 9

T-Mobile Locations in NYC

66 9th Avenue 2181 Broadway 93 Court Street 1535 Broadway

SLIDE 10

Proposed Storefront

SLIDE 11

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 11

Full Building

Existing Proposed 3/14/18 New Proposal

SLIDE 12

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 12

Existing Proposed

Broadway & West 69th Corner

SLIDE 13

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 13

69th Street

Existing Proposed

SLIDE 14

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 14

Existing Proposed

Broadway Street

SLIDE 15

Proposed Finishes & Design Elements

SLIDE 16

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 16

New Exterior Finishes

DULETAI: WOVEN AWNING FABRIC ANODIZED ALUMINUM KAWNEER: DARK BRONZE GRAY GRANITE MC SIGN: METAL WITH WHITE PAINT AVERY: BLACK SUPERCAST A9090-O MC SIGN: METAL WITH WHITE PAINT

SLIDE 17

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 17

7” Anodized Aluminum Angle Shade Gooseneck DULETAI: WOVEN AWNING FABRIC GRAY GRANITE KAWNEER: DARK BRONZE FINISH TO MATCH EXISTING LIMESTONE MC SIGN: METAL WITH WHITE PAINT

StorefrontFinishes

SLIDE 18

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 18

Proposed Awnings

DULETAI: WOVEN ACRYLIC AWNING FABRIC

SLIDE 19

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 19

Proposed Signage

METAL SIGN WITH WHITE PAINT QUANTITY: (1) ONE REQUIRED METAL SIGN WITH WHITE PAINT QUANTITY: (1) ONE REQUIRED

SLIDE 20

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 20

Mechanical – 69th Street

Existing Proposed

MECHANICAL SHUTTER/LOUVER PAINT TO MATCH ADJACENT FINISH AVERY: BLACK SUPERCAST A9090-O KAWNEER: ALUMINUM FINISH #29 BLACK

SLIDE 21

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 21

Mechanical Louvers

Section

Kawneer Trifab VersaGlaze 451T Glazing Framing System with 1” insulated clear tempered glazing.

Aluminum Wall Exhaust Shutter Drainable Stationary Louver

SLIDE 22

T-Mobile Proprietary & Confidential Information – Not for Customer Distribution Slide / 22

1940s Present 1980s Future
