Welcome to the Caledonia Station Preliminary Design Online Consultation Please review the presentation and complete the survey. May 14th to May 28th, 2012 Caledonia Station Preliminary Design The Purpose of this Online Consultation

slide-1

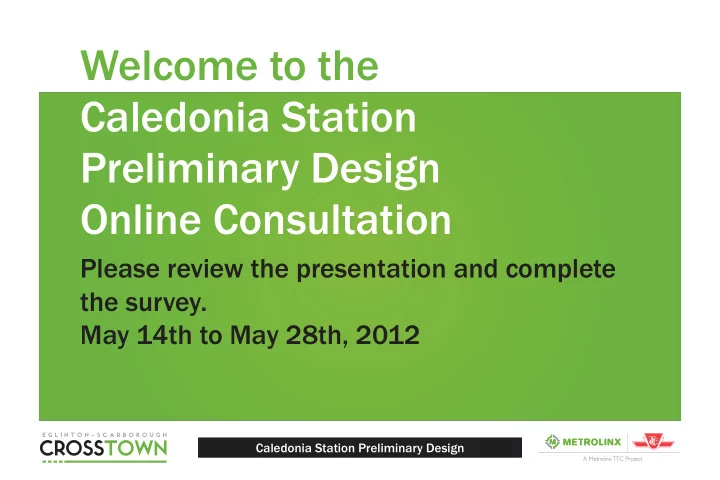

SLIDE 1

Caledonia Station Preliminary Design

Welcome to the Caledonia Station Preliminary Design Online Consultation

Please review the presentation and complete the survey. May 14th to May 28th, 2012

slide-2
SLIDE 2

Caledonia Station Preliminary Design

The Purpose of this Online Consultation

  • Provide a brief Crosstown project update
  • Present the Crosstown station design philosophy
  • Explain the anatomy of the station components and challenges
  • Visualize the preliminary design of Caledonia Station

Most importantly: * Get your input on the Preliminary Design, early in this process.

  • Architectural station design will be prepared for Open House #2 in

Summer 2012.

  • Signifjcant public outreach will follow on construction.
slide-3
SLIDE 3

Caledonia Station Preliminary Design

Online Consultation Overview

Part 1

  • Introduction
  • Crosstown Update
  • Station Design 101 - Guiding Principles of a Crosstown Station

Part 2

  • Caledonia Station Preliminary Design

* Our partners in City Planning are here if you have questions about existing development applications at Caledonia or the future Land Use Study around Crosstown Stations

slide-4
SLIDE 4

Caledonia Station Preliminary Design

Caledonia Station Design Process

Open House #1 — May 14, 2012 Online Consultation — May 14 to May 28, 2012 Open House #2 — Summer 2012 Tunnelling Construction — Fall 2012 (TBD) Caledoina Station Construction Start — 2014 (TBD) Open House #3 — Early 2013 (TBD)

  • Response to Open House #1 input
  • Architectural Treatments
  • Final Station Design Open House
  • Construction staging
  • Ongoing outreach on construction
slide-5
SLIDE 5

Caledonia Station Preliminary Design

Format for Feedback

  • Please complete the online survey at www.thecrosstown.ca by

May 28, 2012

  • A consultation report to inform the designers will be posted
  • nline at: www.thecrosstown.ca
slide-6
SLIDE 6

Crosstown Station Preliminary Design

Presentation Part 1: Crosstown Overview & Construction Update

slide-7
SLIDE 7

Crosstown Station Preliminary Design

Problem Today: Congestion

slide-8
SLIDE 8

Crosstown Station Preliminary Design

Solution Tommorrow: The Crosstown

* Final number and location of stations subject to review

slide-9
SLIDE 9

Crosstown Station Preliminary Design

The Eglinton-Scarborough Crosstown Plan

  • $8.4 billion for all Toronto Transit Expansion from the Province of Ontario through

Metrolinx

  • 19-kilometre rapid transit line running along Eglinton Avenue, connecting west to

east from Jane Street/Black Creek Drive to Kennedy Station.

  • 60% faster than bus service today (e.g. only 15 minutes from Caledonia to Yonge)
  • Underground tunnel (Keele Street to Laird Drive)*
  • SRT upgrade and replacement from Kennedy Station to Scarborough Centre
  • Potential of up to 26 stations
  • *Exact alignment west of Keele Street and east of Laird Drive TBD
slide-10
SLIDE 10

Crosstown Station Preliminary Design

The Eglinton-Scarborough Crosstown Plan Update

  • Crosstown tunnel preparation work

at Black Creek and Eglinton in Keelesdale Park

  • Piling rigs are building concrete

support walls for the future tunnel launch shaft

  • The shaft will enable tunnelling

eastward in summer 2012

  • Soil testing for the tunnel and stations

continues from Caledonia Rd to Kennedy Station in Scarborough

slide-11
SLIDE 11

Crosstown Station Preliminary Design

Conceptual Design Typical Crosstown Station

  • Ensure positive change along

the corridor

  • Guide individual station designs

and achieve consistency

  • Guide confjguration of surface

elements

  • Integrate surface elements

with existing and future development

Urban Design and Architectural Guidelines have been developed:

slide-12
SLIDE 12

Crosstown Station Preliminary Design

Stations 101

What’s needed to make a Station Work?

  • Main Entrance
  • Secondary Entrance
  • Passenger Transportation

(elevators, escalators)

  • Mechanical and Electrical Systems
  • Ventilation Shafts and Ventilation

Fan Rooms

  • Traction Power Substations
  • Reduce construction impacts

(traffjc, staging area, noise, dust)

  • Preserve public space and

development potential

  • Fiscally responsible

Overall Design Principle:

Consolidate Surface Elements to enhance design & minimize impacts

slide-13
SLIDE 13

Crosstown Station Preliminary Design

Consolidated Design Approach

  • Integrate with surrounding neighbourhood
  • Safe and enjoyable user experience
  • Full accessibility with all levels of mobility,

elevators, escalators, low-fmoor access

  • Preserve space for future re-development
  • Enhance the local “sense of place”
  • Long-term sustainability
  • Reduce Construction Footprint & Impacts
  • Reduce Costs

Accessibility for all users Compatible scale

slide-14
SLIDE 14

Crosstown Station Preliminary Design

Architecture

  • Excellence in architectural/urban design

treatments

  • Responding to local conditions balancing

quality and budget

  • Standard station box confjgurations
  • Creative use of materials, color, textures,

artwork, light

  • Brand identifjcation with graphics
  • Use standard elements whenever possible
slide-15
SLIDE 15

Crosstown Station Preliminary Design

Public Realm Elements

  • Streetscape & integration
  • f Public Realm Elements
  • Innovative wayfjnding

and effective signage

  • Bicycle Facilities
  • Integrated artwork

including walls, fmoors, ceilings and glazing

slide-16
SLIDE 16

Crosstown Station Preliminary Design

Accessibility, Safety and Security

  • Access for persons with

all levels of mobility

  • Elevators
  • Escalators
  • Low-Floor Access
  • Monitored CCTV

Cameras

  • Urban Braille
  • High Quality Lighting
slide-17
SLIDE 17

Crosstown Station Preliminary Design

Surface Element

  • Surface elements are most

visible to public

  • Integrate into local community
  • Minimize property implications
  • High quality design
  • Major focus on consolidating:
  • Entrances
  • Vent Shafts
  • Substations

21 m box (construction zone) 23-26m ROW HVAC intake (1) HVAC exhaust (1) Traction Power Substation (every other station) Secondary Entrance (2) Firefighter Access Shafts (2) Main Entrance (1) Emergency Access Pad (1) Emergency Vent Shafts (4) Refuse Room (1) Bike Storage (1)

M S

E R B

S TPS

slide-18
SLIDE 18

Crosstown Station Preliminary Design

Station Entrance

  • Public spaces which fjt into the community
  • Main and secondary entrance
  • Main entrance is fully accessible
  • Use of height/massing to create unique

structure

  • Highly visible, transparent, sophisticated
  • Promote transit-oriented development
  • Maximize daylighting opportunities
  • Well lit at night
  • Connect with buses on the street
slide-19
SLIDE 19

Crosstown Station Preliminary Design

Integrated Artwork

Any architectural fjnish can contain integrated artwork, including:

  • walls
  • fmoors
  • ceilings
  • glazing
slide-20
SLIDE 20

Crosstown Station Preliminary Design

Traction Power Substations What and Why?

  • Required to provide power to the station system
  • Every two kilometres, at stations
  • Many different confjgurations
  • Above ground, surface, below-ground
  • Guidelines to integrate substations

Toronto Hydro Substation in Scarborough Leslie Station Substation

slide-21
SLIDE 21

Caledonia Station Preliminary Design

Presentation Part 2: Caledonia Station

slide-22
SLIDE 22

Caledonia Station Preliminary Design

Caledonia Station Design Team

Preliminary Design by:

slide-23
SLIDE 23

Caledonia Station Preliminary Design

Caledonia Station

Density within 10 minute walk

Eglinton Avenue West Keele Street Caledonia Road K e e l e S t r e e t N

  • r

t h Trethewey Drive Rogers Road Castlefield Ave Dufferin Street 4 5 m R a d i u s 5 m i n W a l k 9 m R a d i u s 1 m i n W a l k

Density

100 people/ha 75 people/ha 50 people/ha Crosstown Station

slide-24
SLIDE 24

Caledonia Station Preliminary Design

Existing Condition

Eglinton Ave West Blackthorn Ave G O T r a n s i t

  • B

a r r i e L i n e

Gabian Way

Croham Rd

C a l e d

  • n

i a R d

Gilbert Ave

slide-25
SLIDE 25

Caledonia Station Preliminary Design

Existing Transportation Connections

Bicycle Route Bus Routes Bus Numbers Caledonia Station Bus Stop

slide-26
SLIDE 26

Caledonia Station Preliminary Design

Caledonia Station EA 2010

slide-27
SLIDE 27

Caledonia Station Preliminary Design

Caledonia Station Site Plan 2012

slide-28
SLIDE 28

Caledonia Station Preliminary Design

Caledonia Station Plan 2012

slide-29
SLIDE 29

Caledonia Station Preliminary Design

Existing NE Corner

Westside Mall/Eglinton

slide-30
SLIDE 30

Caledonia Station Preliminary Design

Potential NE Corner

Westside Mall/Eglinton

slide-31
SLIDE 31

Caledonia Station Preliminary Design

Existing NW Corner

Croham/Eglinton

slide-32
SLIDE 32

Caledonia Station Preliminary Design

Potential NW Corner

Croham/Eglinton

slide-33
SLIDE 33

Caledonia Station Preliminary Design

Existing Site Overview

Eglinton Avenue C r

  • h

a m R

  • a

d

slide-34
SLIDE 34

Caledonia Station Preliminary Design

Overview with Caledonia Station

Eglinton Avenue C r

  • h

a m R

  • a

d

slide-35
SLIDE 35

Caledonia Station Preliminary Design

Potential Future GO Connection

Elevators

slide-36
SLIDE 36

Caledonia Station Preliminary Design

Primary Entrance & Bus Loop

with Potential Future GO Connection

slide-37
SLIDE 37

Caledonia Station Preliminary Design

Consolidated Layout (2012)

Key advantages:

A consolidated layout provides passengers with a clear point of entry into the station

  • Entrance locations coincide with bus routes/stops
  • Passenger travel from street level to concourse

minimized

  • Primary Entrance accessible to passengers from

Eglinton Avenue and bus loop drop off area

  • Station street level buildings respectful of

surrounding context, while preserving for future development as envisioned by Avenues Study

  • Reduced construction footprint, impacts, costs -

avoiding major utility relocation

slide-38
SLIDE 38

Caledonia Station Preliminary Design

Passenger Circulation

slide-39
SLIDE 39

Caledonia Station Preliminary Design

Concourse Perspective

slide-40
SLIDE 40

Caledonia Station Preliminary Design

Station Concourse View

slide-41
SLIDE 41

Caledonia Station Preliminary Design

Platform Perspective

slide-42
SLIDE 42

Caledonia Station Preliminary Design

Platform View

slide-43
SLIDE 43

Caledonia Station Preliminary Design

Longitudinal Section

SECONDARY ENTRANCE SECONDARY ENTRANCE PRIMARY ENTRANCE PRIMARY ENTRANCE

slide-44
SLIDE 44

Caledonia Station Preliminary Design

Toronto Green Standards

Key site-related components that will be analyzed and designed to meeting Toronto Green Standards through the design process

  • Cycling infrastructure
  • Pedestrian infrastructure
  • Urban heat island reduction:

at-grade

  • Urban heat island reduction:

roof

  • Water efficiency
  • Urban forest: tree protection
  • Urban forest: encourage tree

growth

  • Natural heritage: site
slide-45
SLIDE 45

Caledonia Station Preliminary Design

Community Outreach for Construction

  • At this early design stage, construction staging is not

yet developed

  • Comprehensive Construction Management Plan & individual

construction plans for each station will be developed with local consultation well before construction

  • Please contact us any time with questions you may have

about construction

slide-46
SLIDE 46

Caledonia Station Preliminary Design

The Crosstown Team

Please get in touch with us

Devin Horne, Franca Di Giovanni, Denise Jayawardene E-mail: eglintontransit@ttc.ca Online: www.thecrosstown.ca Tel: 416-338-6310 Fax: 416-397-8193 TTY: 416-481-2523 Visit our West Community Office at 1848 Eglinton Avenue West (at Dufferin) Community Office Hours — 2012 Monday, Wednesday, Friday: 9:00 a.m. – 5:00 p.m. Tuesday & Thursday Please make an appointment Evening hours and presentations available

facebook.com/thecrosstown twitter.com/crosstownTO
