vmgen - A Generator of Efficient Virtual Machine Interpreters M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey May 6, 2011 M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter


slide-1

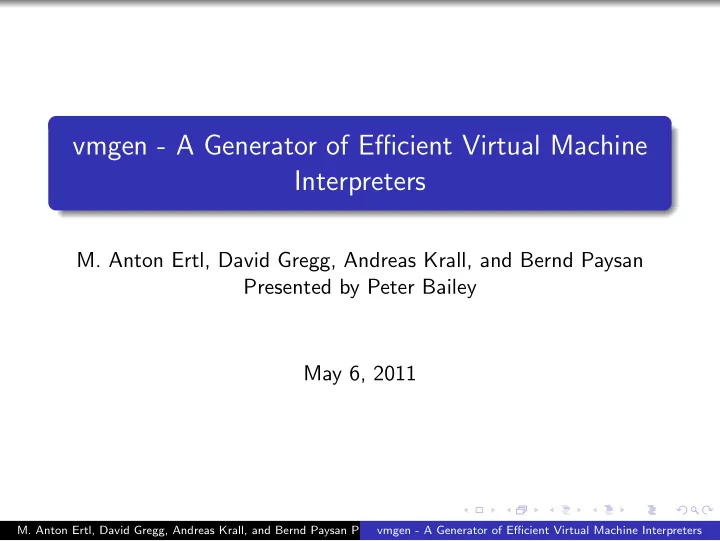

SLIDE 1

vmgen - A Generator of Efficient Virtual Machine Interpreters

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan

Presented by Peter Bailey May 6, 2011

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-2
SLIDE 2

Summary

vmgen generates fast interpreters from instruction descriptions also generates parts of associated tools

profiler debugger disassembler code generator

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-3
SLIDE 3

Motivation

writing/modifying an interpreter toolset is tedious and error-prone

many parts can be automated

can generated interpreters compete with those hand-written in assembly?

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-4
SLIDE 4

Motivation

C compiler does most of the complicated things vmgen makes modifying an instruction set easier than rewriting anything in assembly

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-5
SLIDE 5

Process

inputs: description of instruction set

  • utputs: C code

interpreter profiler debugger VM code disassembly VM code generation

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-6
SLIDE 6

Process

producing a working interpreter requires a bit more work

C code for interpreter skeleton C code from vmgen C compiler

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-7
SLIDE 7

Process

Figure: vmgen process

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-8
SLIDE 8

Vmgen input example

input format: iadd: iadd ( i1 i2 -- i ) i = i1 + i2;

name stack effect, input and output types C implementation code

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-9
SLIDE 9

Output example

I_iadd:{ int i1, i2, i; NEXT_P0; i1 = vm_Cell2i(sp[1]); i2 = vm_Cell2i(sp[0]); sp += 1; { i = i1 + i2; } NEXT_P1; sp[0] = vm_i2Cell(i); NEXT_P2; }

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-10
SLIDE 10

Architecture

designed and optimized for stack-based VMs

but register-based VMs are possible

generated interpreter uses direct threading

but indirect threading is possible

flexible!

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-11
SLIDE 11

Optimizations

vmgen interpreters are designed for optimization built-ins

TOS caching, software pipelining, efficient stack usage

tail duplication for branch prediction superinstructions

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-12
SLIDE 12

Existing optimizations

TOS caching software pipelining/scheduled dispatch

interleave instruction execution with instruction fetch

superinstructions

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-13
SLIDE 13

Superinstructions

not superoperators

superoperators are tree operators superinstructions are DAG operators, work on stack-based interpreters

arbitrary combination of previously-defined instructions

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-14
SLIDE 14

Superinstructions

consequences

C compiler ideally generates more efficient code VM code generator generates fewer instructions interpreter interprets fewer instructions profiler can recommend superinstructions

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-15
SLIDE 15

Novel optimizations

store elimination

example: dup ( i -- i i ) avoid creating a temporary variable and pushing it twice doesn’t work with superinstructions

tail duplication for branch prediction

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-16
SLIDE 16

Performance

two interpreters built with vmgen

Gforth: Forth interpreter Cacao int: JVM interpreter, with threaded code instead of byte code

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-17
SLIDE 17

Performance

Gforth is faster than Win32Forth

Win32Forth is written in assembly, but uses indirect threading and PIC

Gforth is slower than BigForth

BigForth compiles Forth to native code

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-18
SLIDE 18

Performance

Cacao int is faster than the DEC JVM native JIT compiler for some benchmarks Cacao int is slower than Cacao native, but only by a factor of two for most benchmarks

Cacao int and Cacao native share synchronization and garbage collection mechanisms, and Cacao int spends 30% of its time in these routines

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-19
SLIDE 19

Performance

  • ptimizations were generally beneficial

but architecture-dependent

example: TOS caching improved performance on PPC by 20%, but net effect on a particular Alpha machine was 5%

and benchmark-dependent

  • M. Anton Ertl, David Gregg, Andreas Krall, and Bernd Paysan Presented by Peter Bailey

vmgen - A Generator of Efficient Virtual Machine Interpreters

slide-20
SLIDE 20

Discussion

quality of resulting interpreter depends on quality of compiler used to build interpreter authors claim GCC does a good job, but did not verify all compiled code authors manually allocated registers in Gforth because GCC inappropriately spilled important interpreter registers
