SLIDE 1

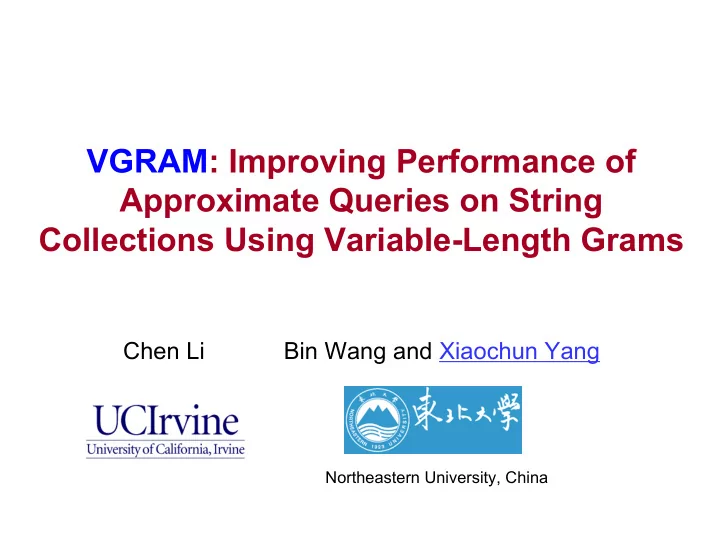

VGRAM: Improving Performance of Approximate Queries on String Collections Using Variable-Length Grams

Chen Li Bin Wang and Xiaochun Yang

Northeastern University, China

SLIDE 2

2

Approximate selection queries

… Samuel Jackson Schwarzenegger Samuel Jackson Keanu Reeves Schwarrzenger

Query errors:

Limited knowledge about data
Typos
Limited input device (cell phone) input

Data errors

Typos
Web data
OCR

Applications

Spellchecking
Query relaxation
…

SLIDE 3

3

Record linkage

R

… … microsoft informix

S

… mcrosoft … infromix Applications

Record linkage …

Similarity functions:

Edit distance Jaccard Cosine …

SLIDE 4

4

“q-grams” of strings

u n i v e r s a l

2-grams

SLIDE 5

5

q-gram inverted lists

id strings 1 2 3 4 rich stick stich stuck static

4 2 3 1 4

2-grams

at ch ck ic ri st ta ti tu uc

2 1 3 1 2 4 4 1 2 4 3 3

SLIDE 6

6

# of common grams >= 3

Searching using inverted lists

Query: “shtick”, ED(shtick, ?)≤1

id strings 1 2 3 4 rich stick stich stuck static

2-grams

at ch ck ic ri st ta ti tu uc

4 2 3 1 4 2 1 3 1 2 4 4 1 2 4 3 3

ti ic ck sh ht ti ic ck

SLIDE 7

7

# of common grams >= 1

2-grams 3-grams?

Query: “shtick”, ED(shtick, ?)≤1

id strings 1 2 3 4 rich stick stich stuck static

3-grams

ati ich ick ric sta sti stu tat tic tuc uck

tic ick sht hti tic ick

4 2 4 1 2 1 3 4 1 3 4 2 3

id strings 1 2 3 4 rich stick stich stuck static id strings 1 2 3 4 rich stick stich stuck static

Shorter inverted list More false positive

SLIDE 8

8

Outline

Motivation VGRAM

Main idea Decomposing strings to grams Choosing good grams Effect of edit operations on grams Adopting vgram in existing algorithms

Experiments

SLIDE 9

9

Motivation

Small index size (memory) Small running time

Merge matched inverted lists Calculate ED(query, candidate)

SLIDE 10

10

Observation 1: dilemma of choosing “q”

Increasing “q” causing:

Longer grams Shorter lists Smaller # of common grams of similar strings

id strings 1 2 3 4 rich stick stich stuck static

4 2 3 1 4

2-grams

at ch ck ic ri st ta ti tu uc

2 1 3 1 2 4 4 1 2 4 3 3

SLIDE 11

11

Observation 2: skew distributions of gram frequencies

DBLP: 276,699 article titles

Popular 5-grams: ation (>114K times), tions, ystem, catio

SLIDE 12

12

VGRAM: Main idea

Grams with variable lengths (between qmin

and qmax)

zebra

ze(123)

corrasion

co(5213), cor(859), corr(171)

Advantages

Reducing index size ☺ Reducing running time ☺ Adoptable by many algorithms ☺

SLIDE 13

13

Challenges

Generating variable-length grams? Constructing a high-quality gram dictionary? Relationship between string similarity and their

gram-set similarity?

Adopting VGRAM in existing algorithms?

SLIDE 14

14

Challenge 1: String Variable-length grams?

Fixed-length 2-grams Variable-length grams

u n i v e r s a l ni ivr sal uni vers

[2,4]-gram dictionary

u n i v e r s a l

SLIDE 15

15

Representing gram dictionary as a trie

Fixed-length 2-grams Variable-length grams

u n i v e r s a l ni ivr sal uni vers

[2,4]-gram dictionary

u n i v e r s a l

SLIDE 16

16

Challenge 2: Constructing gram dictionary

selecting grams

Pruning trie using a frequency threshold T (e.g., 2)

SLIDE 17

17

Challenge 2: Constructing gram dictionary

selecting grams

Pruning trie using a frequency threshold T (e.g., 2)

SLIDE 18

18

Final gram dictionary

Final grams

SLIDE 19

19

Outline

Motivation VGRAM

Main idea Decomposing strings to grams Choosing good grams Effect of edit operations on grams Adopting vgram in existing algorithms

Experiments

SLIDE 20

20

Challenge 3: Edit operation’s effect on grams

k operations could affect k * q grams

u n i v e r s a l

Fixed length: q

SLIDE 21

21

Deletion affects variable-length grams

i-qmax+1 i+qmax- 1

Deletion Not affected Not affected Affected

i

SLIDE 22

22

Grams affected by a deletion

u n i v e r s a l

i+qmax- 1

Deletion

i

Affected? Deletion Affected?

[2,4]-grams i-qmax+1

SLIDE 23

23

Grams affected by a deletion (cont)

i-qmax+1 i+qmax- 1

Deletion

i

Affected? Trie of grams Trie of reversed grams

SLIDE 24

24

# of grams affected by each operation

_ u _ n _ i _ v _ e _ r _ s _ a _ l _

0 1 1 1 1 2 1 2 2 2 1 1 1 2 1 1 1 1 0

Deletion/substitution Insertion

SLIDE 25

25

Max # of grams affected by k operations

Vector of s = <2,4>

With 2 edit operations, at most 4 grams can be affected

Called NAG vector (# of affected grams) Precomputed

_ u _ n _ i _ v _ e _ r _ s _ a _ l _

0 1 1 1 1 2 1 2 2 2 1 1 1 2 1 1 1 1 0

Deletion/substitution Insertion

SLIDE 26

26

Summary of VGRAM index

SLIDE 27

27

Challenge 4: adopting VGRAM

Easily adoptable by many algorithms Basic interfaces:

String s grams String s1, s2 such that ed(s1,s2) <= k

min # of their common grams

SLIDE 28

28

Lower bound on # of common grams

If ed(s1,s2) <= k, then their # of common grams >=:

(|s1|- q + 1) – k * q

u n i v e r s a l

Fixed length (q) Variable lengths: lower bound = # of grams of s1 – NAG(s1,k)

SLIDE 29

29

Example: algorithm using inverted lists

1 2 4 1 2 1 4 3

… ck ic … ti …

Lower bound = 3 Lower bound = 1

Query: “shtick”, ED(shtick, ?)≤1

sh ht tick

2 4 1 4 1 1 2 3

… ck ic ich … tic tick …

2-4 grams 2-grams

tick id strings 1 2 3 4 rich stick stich stuck static id strings 1 2 3 4 rich stick stich stuck static id strings 1 2 3 4 rich stick stich stuck static

SLIDE 30

30

Outline

Motivation VGRAM

Main idea Decomposing strings to grams Choosing good grams Effect of edit operations on grams Adopting vgram in existing algorithms

Experiments

SLIDE 31

31

Data sets

Data set 1: Texas Real Estate Commission.

151K person names, average length = 33.

Data set 2: English dictionary from the Aspell

spellchecker for Cygwin.

149,165 words, average length = 8.

Data set 3: DBLP Bibliography.

277K titles, average length = 62.

Environment: VC++, Dell GX620 PC with an Intel Pentium 3.40Hz Dual Core CPU, 2GB memory, Window XP O.S.

SLIDE 32

32

VGRAM overhead (index size)

Dataset 3: DBLP titles, [5,7]-gram, T=500, LargeFirst pruning policy

SLIDE 33

33

VGRAM overhead (construction time)

Dataset 3: DBLP titles, [5,7]-gram, T=500, LargeFirst pruning policy

SLIDE 34

34

Benefits over fixed-length grams (index)

Dataset 1: 150K Person names, k=1, MergeCount algorithm, T=1000, LargeFirst pruning policy

SLIDE 35

35

Benefits over fixed-length grams (running time)

Dataset 1: 150K Person names, k=1, MergeCount algorithm, T=1000, LargeFirst pruning policy

SLIDE 36

36

Enhance approximate join algorithms

ProbeCount ProbeCluster PartEnum

SLIDE 37

37

Improving algorithm ProbeCount

Dataset 1: [4,6]-gram, T=200, LargeFirst pruning policy K=3 50K person names

SLIDE 38

38

Improving algorithm ProbeCluster

Dataset 1: [5,7]-gram, T=1000, LargeFirst pruning policy

SLIDE 39

39

Improving algorithm PartEnum

Dataset 1: [4,6]-gram, T=1000, LargeFirst pruning policy

SLIDE 40

40

Conclusions

VGRAM: using grams of

variable-length high-quality

Adoptable in existing algorithms

Reduce index size Reduce running time

SLIDE 41

41

Related work

Approximate String Matching

q-Grams, q-Samples Inside DBMS Substring matching

Set similarity join Variable length gram applications

Speech recognition, information retrieval, artificial intelligence Substring selectivity estimation

Improve space and time efficiency

n-Gram/2L
