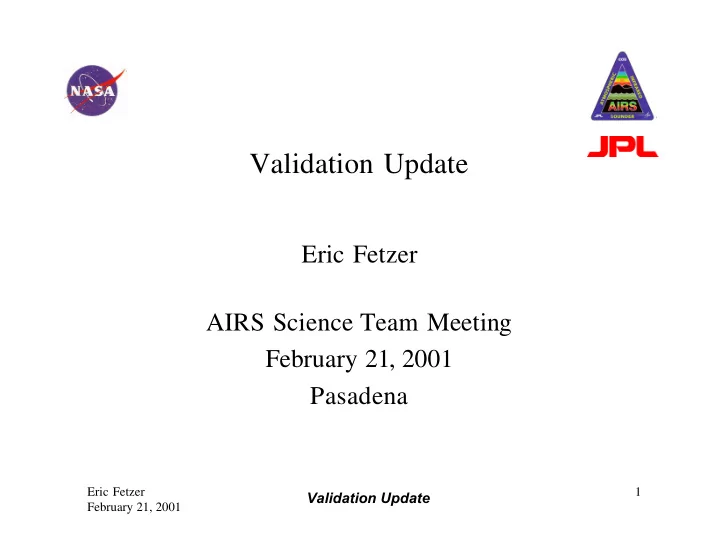

SLIDE 1

Eric Fetzer February 21, 2001 1

Validation Update

Validation Update

Eric Fetzer AIRS Science Team Meeting February 21, 2001 Pasadena

SLIDE 2

Eric Fetzer February 21, 2001 2

Validation Update

Today’s Topics

• Report on the February 7 Aqua Validation

Working Group meeting at GSFC.

• Validation software status
• Update on primary validation data sources

SLIDE 3

Eric Fetzer February 21, 2001 3

Validation Update

Aqua Validation Meeting General Impressions

• Several common validation issues

– Clear sky identification is key – Upwelling radiance, SST, LST under clear sky is next – Upper trop water of particular concern for CERES

• Standards for data distribution and formatting are needed
• The selected Aqua validation proposals will be

announced on or near February 23, according to David Starr

SLIDE 4

Eric Fetzer February 21, 2001 4

Validation Update

AIRS Aqua-wide Validation Issues

From page 13 of the current AIRS Team Science Validation Plan:

Inter-Aqua Data for AIRS Standard Product Validation AIRS Validation Focus MODIS cloud retrieval Clear-sky flag, cloud clearing, VIS / NIR cloud fraction AMSR-E SST SST retrieval MODIS SST SST retrieval MODIS, CERES radiance Radiance CERES OLR OLR CO and Methane from MOPPIT and network CO, Methane retrievals Surface-based VIS / NIR VIS / NIR retrievals MODIS low cloud indicator VIS / NIR low cloud algorithm

SLIDE 5

Eric Fetzer February 21, 2001 5

Validation Update

Aqua Validation Meeting Relevant Instrument Team Activities

• Vince Salomonson on MODIS

– Steve Ackerman and others at U. Wisconsin have experience identifying clear sky conditions – Upwelling radiance from many sources, e. g., dedicated M-AERI cruise will be used.

• Some will be useful in our efforts
• See their Validation Plan linked to AIRS home

page

SLIDE 6

Eric Fetzer February 21, 2001 6

Validation Update

Aqua Validation Meeting Relevant Instrument Team Activities

• Bruce Weilicki on CERES

– Early processing backlogged

• complex data availability requirements for

processing

• ephemeris information delayed ~1 month

– OLR product calculation requires accurate upper tropospheric water vapor

• They will oversee a DAO-ECMWF shoot-out this

spring for upper trop water vapor (and land skin T / diurnal cycle)

SLIDE 7

Eric Fetzer February 21, 2001 7

Validation Update

Aqua Validation Meeting Relevant Instrument Team Activities

• Bruce Weilicki on CERES (continued)

– Polar temperature inversions are a concern (!) – Upper trop water vapor is important (!) – They will measure clear sky ocean radiance with M-AERI

SLIDE 8

Eric Fetzer February 21, 2001 8

Validation Update

Aqua Validation Meeting Relevant Instrument Team Activities

• Elena Loebl on AMSR-E

– They have well-instrumented land surface experiments

• Measure T, soil moisture
• Large area of instrumentation (~50 km diameter)
• Several locations in central Asia

– Tibetan plateau (high altitudes) – Mongolia (middle altitudes)

• The effort is led by Eni Njoku at JPL

SLIDE 9

Eric Fetzer February 21, 2001 9

Validation Update

JPL Validation Software

• A hierarchy is analyses is needed

– Granule- and footprint-level display – Manipulation of correlative data will be the next development phase – Large-scale statistics (as with GSTAT files)

• An unmet action item by JPL is delivery of Vendaval 2.0

– Currently bullet-proofing the code – Will include a suite of graphics software

SLIDE 10

Eric Fetzer February 21, 2001 10

Validation Update

Correlative Data Activities

• Acquisition, cataloging of three data types:

– Sample radiosondes from ESDIS

• In HDF
• Latest test set is matched to December 15 simulations

– ARM CART best estimates

• In NetCDF
• We have a one month sample for a non-simulation period

– Ocean buoys

• In ASCII
• Currently testing a one-week sample that includes Dec 15
• - We are about to test regular, daily ingest of all these data -

SLIDE 11

Eric Fetzer February 21, 2001 11

Validation Update

Correlative Data Activities (continued)

• A common input format to AIRS forward model

calculations (RTP) has been defined. Available at:

– http://asl.umbc.edu/pub/motteler/rtp/rtpspec/rtpspec.html

• Software and format issues will be reviewed after

selection of Aqua validation proposals

SLIDE 12

Eric Fetzer February 21, 2001 12

Validation Update

ARM CART Data Flow and Versioning

TWP 25Aug01 0Z TWP 25Aug01 12Z TWP 26Aug02 0Z TWP 26Aug02 12Z TWP 27Aug02 0Z

• • •
• • •

UW TWP Data

• • •

SGP 25Aug01 0Z SGP 25Aug01 12Z SGP 26Aug02 0Z SGP 26Aug02 12Z SGP 27Aug02 0Z

• • •

UW SGP Data

TLSCF TDS

Match-Up Software

• SGP 25Aug01 0Z

SGP 25Aug01 12Z SGP 26Aug02 0Z SGP 26Aug02 12Z SGP 27Aug02 0Z + Golfballs

• Match-up

SGP Data Match-up TWP Data Match-up NSA Data

NSA 25Aug01 0Z NSA 25Aug01 12Z NSA 26Aug02 0Z NSA 26Aug02 12Z NSA 27Aug02 0Z

• • •
• • •

UW NSA Data Long-Term Match-Ups Long-Term SGP Match-ups Long-Term TWP Match-ups Long-Term NSA Match-ups Match-Ups by Site Interface Issues for Site Match- Up:

• Versioning
• Format
• METADATA

Interface Issues For Long-Term Match-Ups:

• Version
• Format
• Accumulation

Time

• METADATA

Other Sites: e. g. Brazil, Australia

SLIDE 13

Eric Fetzer February 21, 2001 13

Validation Update

Radiosonde (PREPQC) Data Handoff

NOAA EMC GDAAC

Operations Team (currently Mike Theobald for testing) Interface Issues (and Solutions):

• Data

PREPQC

• Frequency

four files daily

• Data Volume

75 MB/day

• Latency

24 hours

• Format

BUFR

• Ingest

Edward Olsen

TLSCF

Quentin Sun

TDS

Interface Issues (and Solutions):

• Data

PREPQC

• Format

HDF-EOS Point

• Content

Selected Fields

• Subscription

Push

• Data

Matchups

• Format

HDF-EOS Swath

• Content

nominally 30 matchups/day Interface Issues (and Solutions):

• Data

Matchups

• Format

HDF-EOS Swath

• Content

nominally 100 matchups/day

• Data

Golden Day Matchups

• Format

HDF-EOS Swath

• Content

Radiosonde or AVN Forecast for selected Profiles

Joel Susskind

Science Team

Mitch Goldberg

• Validation
• Validation

Data Provider Steps Data Users

• Tuning
• Validation

Larry McMillin GSFC NOAA TLSCF Eric Fetzer

• Validation

JPL

Interface Issues:

• Metadata
• Format
• Content
• Frequency
• Timeliness
• Pull
• Radiance bias studies

Luke Chen Edward Olsen

• Radiance Bias/Tuning
• Validation
• Trend Analyses

Matchups HDF-EOS Swath (after L+12 Months) PREPQC HDF-EOS Point

• Validation

Bjorn Lambrigtsen Phil Rosenkranz

• Validation
• Validation

Dave Staelin MIT

• Retrieval QA assessment

Evan Fishbein UMBC Larrabee Strow

• RTA

SLIDE 14

Eric Fetzer February 21, 2001 14

Validation Update

Data Flow for AIRS Sea Surface Temperature Product Validation

Launch + 150 days (or when product available) . . .

Golf Ball Module including Sea Surface Temperature Product And Truth Pointers Golf Ball Module including Sea Surface Temperature Product And Truth Pointers Truth Data: NOAA Surface Marine GDC Drifter Data SST Climatology Truth Data: NOAA Surface Marine GDC Drifter Data SST Climatology Sort using cloud flag Day/night Scan angle Buoy matchups Cloudy cases Buoy matchups Cloudy cases Buoy match-ups Clear cases Buoy match-ups Clear cases Special SVP drifters Compare L2 SST Day vs night scan angle Column H20 Compare surface emissivity product: Cloud fraction Scan angle Emissivity model Special SVP drifters Apply surface gradient correction Determine rejection criteria Sort by cloud fraction Compare L2 SST Day vs night

• Scan angl

e Cloud fraction Surface Emissivity Basic drifters Adjust for obvious temperature effects Basic drifters Compare L2 SST Day vs night scan angle Column H20

Data Products: Statistics as function

• f scan angle, day-night, surface

gradient, column H20, cloud fraction, surface emissivity.
