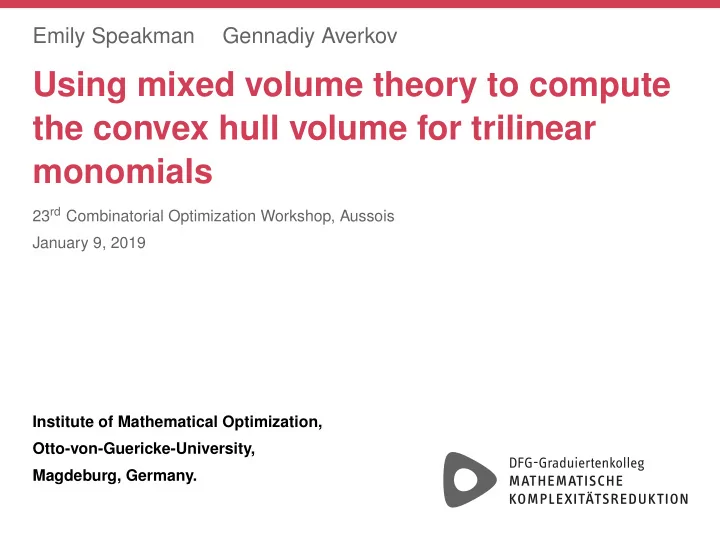

Emily Speakman Gennadiy Averkov

Using mixed volume theory to compute the convex hull volume for trilinear monomials

23rd Combinatorial Optimization Workshop, Aussois January 9, 2019 Institute of Mathematical Optimization, Otto-von-Guericke-University, Magdeburg, Germany.

Talk Outline

• Using volume to compare relaxations for mixed-integer

nonlinear optimization

• The convex hull of the graph of a trilinear monomial over a box
• Use techniques from mixed volume theory to obtain an

alternative proof

1 Speakman & Averkov // Mixed Volume

Global optimization of non-convex functions is hard! min

x∈Rn,z∈Zm {f(x, z) : (x, z) ∈ F}

• Global optimization of a mixed integer non-linear optimization

(MINLO) problem

• Not necessarily convex sets/functions

2 Speakman & Averkov // Mixed Volume

Global optimization of non-convex functions is hard! min

x∈Rn,z∈Zm {f(x, z) : (x, z) ∈ F}

• Global optimization of a mixed integer non-linear optimization

(MINLO) problem

• Not necessarily convex sets/functions

Software: Baron, Couenne, Scip, Antigone...

2 Speakman & Averkov // Mixed Volume

Global optimization of non-convex functions is hard! min

x∈Rn,z∈Zm {f(x, z) : (x, z) ∈ F}

• Global optimization of a mixed integer non-linear optimization

(MINLO) problem

• Not necessarily convex sets/functions

Software: Baron, Couenne, Scip, Antigone...

• Each of these perform some variation on the algorithm known

as Spatial Branch-and-Bound (sBB)

2 Speakman & Averkov // Mixed Volume

Global optimization of non-convex functions is hard! min

x∈Rn,z∈Zm {f(x, z) : (x, z) ∈ F}

• Global optimization of a mixed integer non-linear optimization

(MINLO) problem

• Not necessarily convex sets/functions

Software: Baron, Couenne, Scip, Antigone...

• Each of these perform some variation on the algorithm known

as Spatial Branch-and-Bound (sBB)

• sBB has a daunting complexity

2 Speakman & Averkov // Mixed Volume

Global optimization of non-convex functions is hard! min

x∈Rn,z∈Zm {f(x, z) : (x, z) ∈ F}

• Global optimization of a mixed integer non-linear optimization

(MINLO) problem

• Not necessarily convex sets/functions

Software: Baron, Couenne, Scip, Antigone...

• Each of these perform some variation on the algorithm known

as Spatial Branch-and-Bound (sBB)

• sBB has a daunting complexity
• How can we effectively tune/engineer this software?
• experimentally
• mathematically

2 Speakman & Averkov // Mixed Volume

Key algorithm: sBB

To find optimal solutions we use Spatial Branch- and-Bound:

• Create sub-problems

by branching on individual variables

• Generate convex

relaxations of the graph of the function at each node

3 Speakman & Averkov // Mixed Volume

The choice of convexification method is important

Computational tractability of sBB depends on the quality of the convexifications we use. We want both:

• Tight relaxations (good bounds)
• Simple algebraic representations of feasible regions (solve

quickly) We have a trade off:

4 Speakman & Averkov // Mixed Volume

We compare the tightness of convexifications via n-dimensional volume

• Allows us to quantify the difference

between formulations analytically

• The optimal solution could occur

anywhere in the feasible region, and therefore the volume measure corresponds to a uniform distribution on the location of the optimal solution

• Volume was introduced as a means of comparing formulations

by Lee and Morris (1994)

• Recent survey on volumetric comparison of polyhedral

relaxations for optimization Lee, Skipper, Speakman (2018)

5 Speakman & Averkov // Mixed Volume

Trilinear monomials: some notation

Assume we have a monomial of the form: f = x1x2x3.

6 Speakman & Averkov // Mixed Volume

Trilinear monomials: some notation

Assume we have a monomial of the form: f = x1x2x3.

• xi ∈ [ai, bi], where 0 ≤ ai < bi, for i = 1, 2, 3

6 Speakman & Averkov // Mixed Volume

Trilinear monomials: some notation

Assume we have a monomial of the form: f = x1x2x3.

• xi ∈ [ai, bi], where 0 ≤ ai < bi, for i = 1, 2, 3
• Label the variables x1, x2 and x3 such that:

a1 b1 ≤ a2 b2 ≤ a3 b3 (Ω)

6 Speakman & Averkov // Mixed Volume

Trilinear monomials: some notation

Assume we have a monomial of the form: f = x1x2x3.

• xi ∈ [ai, bi], where 0 ≤ ai < bi, for i = 1, 2, 3
• Label the variables x1, x2 and x3 such that:

a1 b1 ≤ a2 b2 ≤ a3 b3 (Ω) The convex hull of the graph f = x1x2x3 (on the domain xi ∈ [ai, bi]) is polyhedral, we refer to this polytope as PH.

6 Speakman & Averkov // Mixed Volume

Trilinear monomials: some notation

Assume we have a monomial of the form: f = x1x2x3.

• xi ∈ [ai, bi], where 0 ≤ ai < bi, for i = 1, 2, 3
• Label the variables x1, x2 and x3 such that:

a1 b1 ≤ a2 b2 ≤ a3 b3 (Ω) The convex hull of the graph f = x1x2x3 (on the domain xi ∈ [ai, bi]) is polyhedral, we refer to this polytope as PH.

• The facet description was given by Meyer and Floudas (2004)
• There are alternative convexifications for trilinear monomials

(based on the well-know McCormick inequalities)

• S. and Lee (2017) consider these alternatives and compute

their volumes

• Here we focus on the convex hull i.e. PH

6 Speakman & Averkov // Mixed Volume

Convex hull of the graph f = x1x2x3 over a box

• The extreme points of PH are the 8 points that correspond to the

23 = 8 choices of each x-variable at its upper or lower bound:

v1 :=     b1a2a3 b1 a2 a3     v2 :=     a1a2a3 a1 a2 a3     v3 :=     a1a2b3 a1 a2 b3     v4 :=     a1b2a3 a1 b2 a3     v5 :=     a1b2b3 a1 b2 b3     v6 :=     b1b2b3 b1 b2 b3     v7 :=     b1b2a3 b1 b2 a3     v8 :=     b1a2b3 b1 a2 b3    

7 Speakman & Averkov // Mixed Volume

Convex hull of the graph f = x1x2x3 over a box

• The extreme points of PH are the 8 points that correspond to the

23 = 8 choices of each x-variable at its upper or lower bound:

v1 :=     b1a2a3 b1 a2 a3     v2 :=     a1a2a3 a1 a2 a3     v3 :=     a1a2b3 a1 a2 b3     v4 :=     a1b2a3 a1 b2 a3     v5 :=     a1b2b3 a1 b2 b3     v6 :=     b1b2b3 b1 b2 b3     v7 :=     b1b2a3 b1 b2 a3     v8 :=     b1a2b3 b1 a2 b3    

• Meyer and Floudas (2004) completely characterized the facets
• f PH
• They did this for our special case (non-negative) and also in

general

7 Speakman & Averkov // Mixed Volume

Facet Description

PH (Meyer and Floudas, 2004)

f − a2a3x1 − a1a3x2 − a1a2x3 + 2a1a2a3 ≥ 0 f − b2b3x1 − b1b3x2 − b1b2x3 + 2b1b2b3 ≥ 0 f − a2b3x1 − a1b3x2 − b1a2x3 + a1a2b3 + b1a2b3 ≥ 0 f − b2a3x1 − b1a3x2 − a1b2x3 + b1b2a3 + a1b2a3 ≥ 0 f − η1 b1 − a1 x1 − b1a3x2 − b1a2x3 + ( η1a1 b1 − a1 + b1b2a3 + b1a2b3 − a1b2b3 ) ≥ 0 f − η2 a1 − b1 x1 − a1b3x2 − a1b2x3 + ( η2b1 a1 − b1 + a1a2b3 + a1b2a3 − b1a2a3 ) ≥ 0 − f + a2a3x1 + b1a3x2 + b1b2x3 − b1b2a3 − b1a2a3 ≥ 0 − f + b2a3x1 + a1a3x2 + b1b2x3 − b1b2a3 − a1b2a3 ≥ 0 − f + a2a3x1 + b1b3x2 + b1a2x3 − b1a2b3 − b1a2a3 ≥ 0 − f + b2b3x1 + a1a3x2 + a1b2x3 − a1b2b3 − a1b2a3 ≥ 0 − f + a2b3x1 + b1b3x2 + a1a2x3 − b1a2b3 − a1a2b3 ≥ 0 − f + b2b3x1 + a1b3x2 + a1a2x3 − a1b2b3 − a1a2b3 ≥ 0 ai ≤ xi ≤ bi, i = 1..3 where η1 = b1b2a3 − a1b2b3 − b1a2a3 + b1a2b3 and η2 = a1a2b3 − b1a2a3 − a1b2b3 + a1b2a3.

8 Speakman & Averkov // Mixed Volume

Volume of PH

Theorem (S. and Lee, 2017)

Under Ω, the volume of PH is given by:

1 24(b1 − a1)(b2 − a2)(b3 − a3) × ( b1(5b2b3 − a2b3 − b2a3 − 3a2a3) + a1(5a2a3 − b2a3 − a2b3 − 3b2b3) ) .

9 Speakman & Averkov // Mixed Volume

Our contribution

• We provide an alternative way to obtain the formula for the

convex hull volume

• Observe a special structure in the convex hull polytope
• Allows us to use theory from so-called Mixed Volumes

10 Speakman & Averkov // Mixed Volume

Mixed Volumes

Kn is the set of all nonempty compact convex sets in Rn

Theorem

There is a unique, nonnegative function, V : (Kn)n → R, the mixed volume, which is invariant under permutation of its arguments, such that, for every positive integer m > 0, one has Vol(t1K1 + t2K2 + · · · + tmKm) =

m

∑

i1,...,in=1

ti1 . . . tinV(Ki1, . . . , Kin), for arbitrary K1, . . . Km ∈ Kn and t1, t2, . . . , tn ∈ R+.

11 Speakman & Averkov // Mixed Volume

Mixed Volumes

Theorem

The mixed volume function satisfies the following properties: (i) Vol(K1) = V(K1, . . . , K1). (ii) V(t′K′

1 + t′′K′′ 1 , K2, . . . , Kn) = t′V(K′ 1, K2, . . . , Kn)

+ t′′V(K′′

1 , K2, . . . , Kn),

for K1, . . . Kn ∈ Kn and t′, t′′ ∈ R+.

12 Speakman & Averkov // Mixed Volume

Mixed Volumes

Theorem

The mixed volume function satisfies the following properties: (i) Vol(K1) = V(K1, . . . , K1). (ii) V(t′K′

1 + t′′K′′ 1 , K2, . . . , Kn) = t′V(K′ 1, K2, . . . , Kn)

+ t′′V(K′′

1 , K2, . . . , Kn),

for K1, . . . Kn ∈ Kn and t′, t′′ ∈ R+. There is a great deal of rich theory, see Schneider (2014).

12 Speakman & Averkov // Mixed Volume

Visualizing four dimensions

A 2d projection of a standard 4d cube that preserves the usual 2d projection of a 3d cube

0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1101 1100 1010 1110 1011 1111

13 Speakman & Averkov // Mixed Volume

Visualizing the convex hull

• 2d representation
• f the extreme

points of PH ∈ R4

• 23 = 8 extreme points
• R4 since points have form:

(f = x1x2x3, x1, x2, x3)

• f variable represented by

‘4th dimension’, inner cube to outer cube

• v2 = [a1a2a3, a1, a2, a3]

v6 = [b1b2b3, b1, b2, b3]

• The original proof

constructed a triangulation

• f the polytope

v2 v6 v1 v3 v4 v5 v7 v8 14 Speakman & Averkov // Mixed Volume

Another way of viewing the polytope

• Consider the x3 component

(could be x1 or x2)

• Observe that four
• f the points lie in the

x3 = a3 hyperplane and form a 3d simplex, S

• Furthermore the

remaining four points lie in the x3 = b3 hyperplane and form a simplex, T

• Consider calculating the

volume of PH = conv(S ∪ T) via an integral as x3 varies from a3 to b3

v2 v6 v1 v3 v4 v5 v7 v8 15 Speakman & Averkov // Mixed Volume

Alternative volume computation

Vol(PH) = Vol(conv(S ∪ T)) = ∫ b3

a3

Vol ( b3 − t b3 − a3 S + t − a3 b3 − a3 T ) dt = (b3 − a3)−3 ∫ b3

a3

Vol((b3 − t)S + (t − a3)T)dt = (b3 − a3)−3 ∫ b3

a3

(b3 − t)3 Vol(S) + 3(b3 − t)2(t − a3)V(S, S, T) + 3(b3 − t)(t − a3)2V(S, T, T) + (t − a3)3 Vol(T) dt,

Where V(S, S, T) and V(S, T, T) are the mixed volumes.

16 Speakman & Averkov // Mixed Volume

Calculating the mixed volumes

• S and T are simplicies, therefore we can compute their volume

via a simple determinant calculation

• All that remains is to calculate V(S, S, T) and V(S, T, T)
• To do this we need a couple of definitions

17 Speakman & Averkov // Mixed Volume

Calculating the mixed volumes

• S and T are simplicies, therefore we can compute their volume

via a simple determinant calculation

• All that remains is to calculate V(S, S, T) and V(S, T, T)
• To do this we need a couple of definitions

Definition (Support function)

For K ∈ Kn, the support function, hK : Rn → R, is defined by hK(u) = sup

x∈K

xTu.

17 Speakman & Averkov // Mixed Volume

Calculating the mixed volumes

• S and T are simplicies, therefore we can compute their volume

via a simple determinant calculation

• All that remains is to calculate V(S, S, T) and V(S, T, T)
• To do this we need a couple of definitions

Definition (Support function)

For K ∈ Kn, the support function, hK : Rn → R, is defined by hK(u) = sup

x∈K

xTu.

Definition

For a full dimensional polytope, P ⊆ Rn, U(P) = the set of all outer facet normals, u, such that the length of u is the (n − 1)-dimensional volume of the respective facet.

17 Speakman & Averkov // Mixed Volume

Calculating the mixed volumes

Now, to calculate V(S, S, T) and V(S, T, T), we make use of the following fact: For P ⊆ Rn, a full-dimensional polytope, and K ∈ Kn, V(P, P, . . . , P, K) = 1 n ∑

u∈U(P)

hK(u).

18 Speakman & Averkov // Mixed Volume

Calculating the mixed volumes

Now, to calculate V(S, S, T) and V(S, T, T), we make use of the following fact: For P ⊆ Rn, a full-dimensional polytope, and K ∈ Kn, V(P, P, . . . , P, K) = 1 n ∑

u∈U(P)

hK(u).

• Thus, we need: U(S), U(T), hS(·) and hT(·)

18 Speakman & Averkov // Mixed Volume

Calculating the mixed volumes

Now, to calculate V(S, S, T) and V(S, T, T), we make use of the following fact: For P ⊆ Rn, a full-dimensional polytope, and K ∈ Kn, V(P, P, . . . , P, K) = 1 n ∑

u∈U(P)

hK(u).

• Thus, we need: U(S), U(T), hS(·) and hT(·)
• Given that S, T are tetrahedra we are able to compute these
• Four facet normals to compute
• Four extreme points to check

18 Speakman & Averkov // Mixed Volume

Calculating the mixed volumes

Now, to calculate V(S, S, T) and V(S, T, T), we make use of the following fact: For P ⊆ Rn, a full-dimensional polytope, and K ∈ Kn, V(P, P, . . . , P, K) = 1 n ∑

u∈U(P)

hK(u).

• Thus, we need: U(S), U(T), hS(·) and hT(·)
• Given that S, T are tetrahedra we are able to compute these
• Four facet normals to compute
• Four extreme points to check
• We can therefore evaluate the integral and in doing so we
• btain the same formula as the triangulation method

18 Speakman & Averkov // Mixed Volume

Conclusions and future work

• Because of some nice properties of the convex hull polytope, we

are able to use mixed volume theory as an alternative method for computing the volume, this gives a more compact proof

• However, the method does not naturally extend to the other

volume proofs, (unlike the original triangulation method) and here is where the majority of the technical difficulties lay

• Interestingly, in both proof methods for the convex hull, the

technical difficulties were similar – establishing the sign of polynomial expressions in the parameters

19 Speakman & Averkov // Mixed Volume

Conclusions and future work

• It seems likely that using this method we can extend to the case
• f negative bounds (current work)
• This method gives a more natural way to extend to n = 4 than

we had before, however, it still seems like there will be difficulties doing this in practice

• Another tool in the volume toolbox!

20 Speakman & Averkov // Mixed Volume

Thank you for listening!

References:

• J. Lee, & W. Morris. Geometric comparison of combinatorial polytopes.

Discrete Applied Mathematics 55 163-182 (1994)

• J. Lee, D. Skipper & E. Speakman. Algorithmic and modeling insights via

volumetric comparison of polyhedral relaxations. Math Programming 170(1) 121–140 (2018)

• Meyer, C.A & C.A. Floudas. Trilinear monomials with mixed sign domains:

Facets of the convex and concave envelopes. Journal of Global Optimization 29 125-155 (2004)

• Schneider, R. Convex bodies: the Brunn-Minkowski theory. 2nd edn. Volume

151 of Encyclopedia of Math. and its Apps. Cambridge University Press (2014)

• E. Speakman & G. Averkov. Computing the volume of the convex hull of the

graph of a trilinear monomial using mixed volumes. ArXiv:1810.12625 (2018)

• E. Speakman & J. Lee. Quantifying double McCormick. Mathematics of

Operations Research 42(4) 1230–1253 (2017)

21 Speakman & Averkov // Mixed Volume
