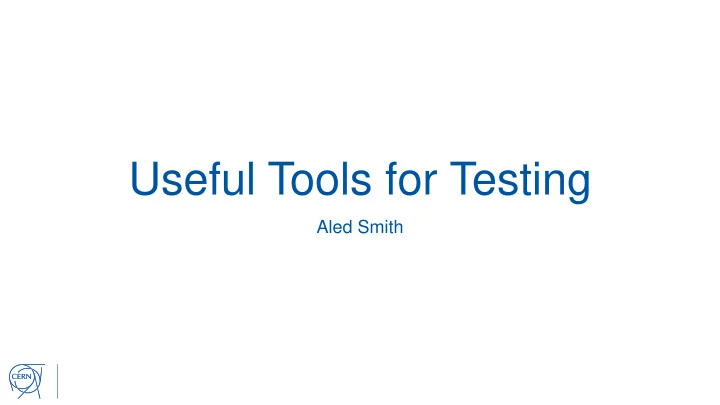

SLIDE 1

Useful Tools for Testing

Aled Smith

SLIDE 2

This presentation will be looking at two useful tools for

performing tests:

1. Virtual Machine Creator
https://svn.cern.ch/reps/en-ice-svn/trunk/utilities/SIC/virtual-environment-setup/vm_creator/
2. Unit-Test-Harness
https://svn.cern.ch/reps/en-ice-svn/trunk/utilities/SIC/virtual-environment-setup/Unit_Test_Harness
A use case for each of these tools will also be

demonstrated.

Useful Tools for Testing

SLIDE 3

VM Creator: Overview

What is it?

The Virtual Machine Creator is a Python based script that fully automates the process of creating and

configuring OpenStack virtual machines. How does it work?

The VM creator uses three main components:
Fabric - A Python based SSH wrapper.
JenkinsAPI - A Python based API for Jenkins.
Nova - A Python based API to OpenStack.

What can it do?

Fabric provides the Virtual Machine Creator with a Python based SSH interface to a virtual machine so that

any SSH tasks like installing and configuring software can be executed from a Python script. It also provides built-in functions to perform tasks like sudo commands and file transfers.

JenkinsAPI allows the Virtual Machine Creator to interact with Jenkins and performs tasks like registering

new slave nodes and executing Jenkins jobs.

Nova allows the Virtual Machine Creator to interact with OpenStack and perform tasks like creating, deleting

and modifying virtual machines.

Jenkins OpenStack JenkinsAPI Nova SSH Fabric VM Creator

SLIDE 4

This use case will create a CERN Scientific Linux 6 Jenkins slave virtual machine running with WinCC-OA

installed for the purposes of running test projects using Jenkins.

VM Creator: Use Case

Generate new key-pair Create virtual machine Expand main partition Add ‘jenkinst’ service account Install WinCC-OA Install Subversion Install PVSSBootstrapper Install Java Connect VM to Jenkins Install X-Window

This basic flow chart shows the main tasks that the

Virtual Machine Creator must complete for this particular use case.

However, the Virtual Machine Creator is not restricted

to any specific use case and the user can pick and choose the functions they’d like to use and also add their own.

SLIDE 5

This use case will create a CERN Scientific Linux 6 Jenkins slave virtual machine running with WinCC-OA

installed for the purposes of running test projects using Jenkins.

VM Creator: Use Case

Generate new key-pair Create virtual machine Expand main partition Add ‘pvss’ local account Install WinCC-OA Install Subversion Install PVSSBootstrapper Install X-Window

This basic flow chart shows the main tasks that the

Virtual Machine Creator must complete for this particular use case.

However, the Virtual Machine Creator is not restricted

to any specific use case and the user can pick and choose the functions they’d like to use and also add their own.

For example, in this use case, a CERN Scientific

Linux 6 virtual machine is created with WinCC-OA installed that is not a Jenkins slave, has a local account called ‘pvss’ and has Samba and Gmoon installed.

Create virtual machine Install Samba Install Gmoon

SLIDE 6

VM Creator: Use Case

The WinCC-OA Jenkins slave creator use case described previously has been implemented and incorporated

into a Jenkins job. Jenkins Job: https://icejenkins.cern.ch/job/CREATE_JENKINS_SLAVE/

SLIDE 7

What is it?

The Unit-Test-Harness is a tool that automates the process of unit testing framework components within a

WinCC-OA project. What can it do?

It can be invoked from command line using Python or from a GUI panel within the project.
It can automatically create a new WinCC-OA project and install the required components
It can automatically run the unit tests and publish the results in Junit XML format.

How does it work?

The user creates a ctl script containing the unit tests.
If executed from the GUI panel, the Unit-Test-Harness finds any unit tests within the project and presents

them to the user. The user can then select the tests that they want executing.

If executed from the command line, the user needs to describe the components that need to be

installed/tested, their sources and the location of the unit test ctl script in an XML file.

The Unit-Test-Harness can then parse the XML and either create a new test project or use an existing one.
It then performs the desired units tests and publishes the results in Junit XML format.
Finally, the Unit-Test-Harness can also delete the project and clean-up any downloaded files.

Unit-Test-Harness: Overview

SLIDE 8

Start via GUI panel. Find available unit tests within project. Run the unit tests. Publish the results of the unit tests. End via GUI panel. User selects unit tests.

CTRL Python

Delete project Start via command line. Use existing project? Check project is registered and start it. Create project, install desired components and start project. Start Unit-Test-Harness within project. Copy results from project and stop project Clean-up project? End via command line. Yes No Yes No

Unit-Test-Harness: Overview

SLIDE 9

This use case is used to test whether an RDA3 client correctly receives different

formats of data while the RDA3 server continuously iterates the data it publishes.

It checks that the client is receiving the data correctly by using a listener that

checks each iteration of data that is received and records any missed or incorrect iterations.

This use case requires some logic to be run outside of the Unit-Test-Harness

such as starting the RDA3 Server.

The Unit-Test-Harness is therefore split into two parts:
1. ‘setup_project.py’ - which handles the creation of the projects and

installation of the components.

2. ‘run_tests.py’ - which executes the units tests and retrieves the results.
This use case was also incorporated into a Jenkins job and is shown in the

following flow chart:

Unit-Test-Harness: Use Case

SLIDE 10

Unit-Test-Harness: Use Case

Start via GUI panel. Find available unit tests within project. Run the unit tests. Publish the results of the unit tests. End via GUI panel. User selects unit tests.

CTRL Python

Start Jenkins job Start RDA3 client Start RDA3 server Start listener and leave running for fixed time End of Jenkins job Publish test results

Jenkins

Initialise listener values Stop listener Delete project Start via command line. Use existing project? Check project is registered and start it. Create project, install desired components and start project. Start Unit-Test-Harness within project. Copy results from project and stop project Clean-up project? End via command line. Yes No Yes No

setup_project.py run_tests.py

SLIDE 11

In this screenshot, you can see the

XML code within the XML configuration file that is passed to the Unit-Test-Harness through the command line.

The XML file describes the

components that need to be installed, their sources and also defines the location of the test suite file.

Specifying just the test suite tells the

Unit-Test-Harness to execute all of the unit test cases but these can also be specified individually using the <testCase> tag.

Unit-Test-Harness: Use Case

SLIDE 12

In this screenshot, you can see a snapshot
f the code within the test suite file.
In this ctl script, the user defines the unit

test cases and their logic.

Each unit test should have an assert

routine.

The Unit-Test-Harness supports the

following assert routines:

assertError()
assertEmpty()
assertEqual()
assert()
assertTrue()
assertFalse()

Unit-Test-Harness: Use Case

Jenkins Job: https://icejenkins.cern.ch/job/RDA3_CLIENT_MONITOR/

SLIDE 13

Any questions?

Useful Links:

Virtual Machine Creator:

https://svn.cern.ch/reps/en-ice-svn/trunk/utilities/SIC/virtual-environment-setup/vm_creator/

Unit-Test-Harness:

https://svn.cern.ch/reps/en-ice-svn/trunk/utilities/SIC/virtual-environment-setup/Unit_Test_Harness

Fabric:

http://docs.fabfile.org/en/1.10/

JenkinsAPI:

http://jenkinsapi.readthedocs.org/en/latest/

Nova:

http://docs.openstack.org/developer/python-novaclient/
